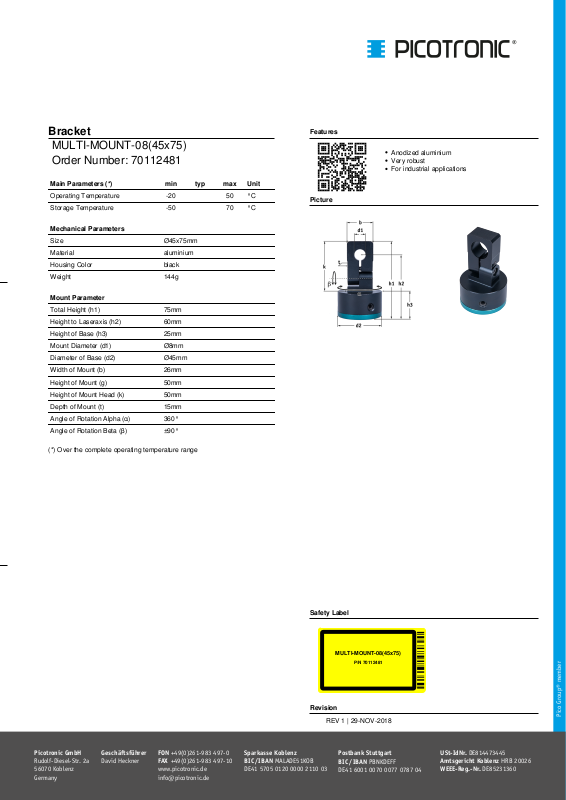

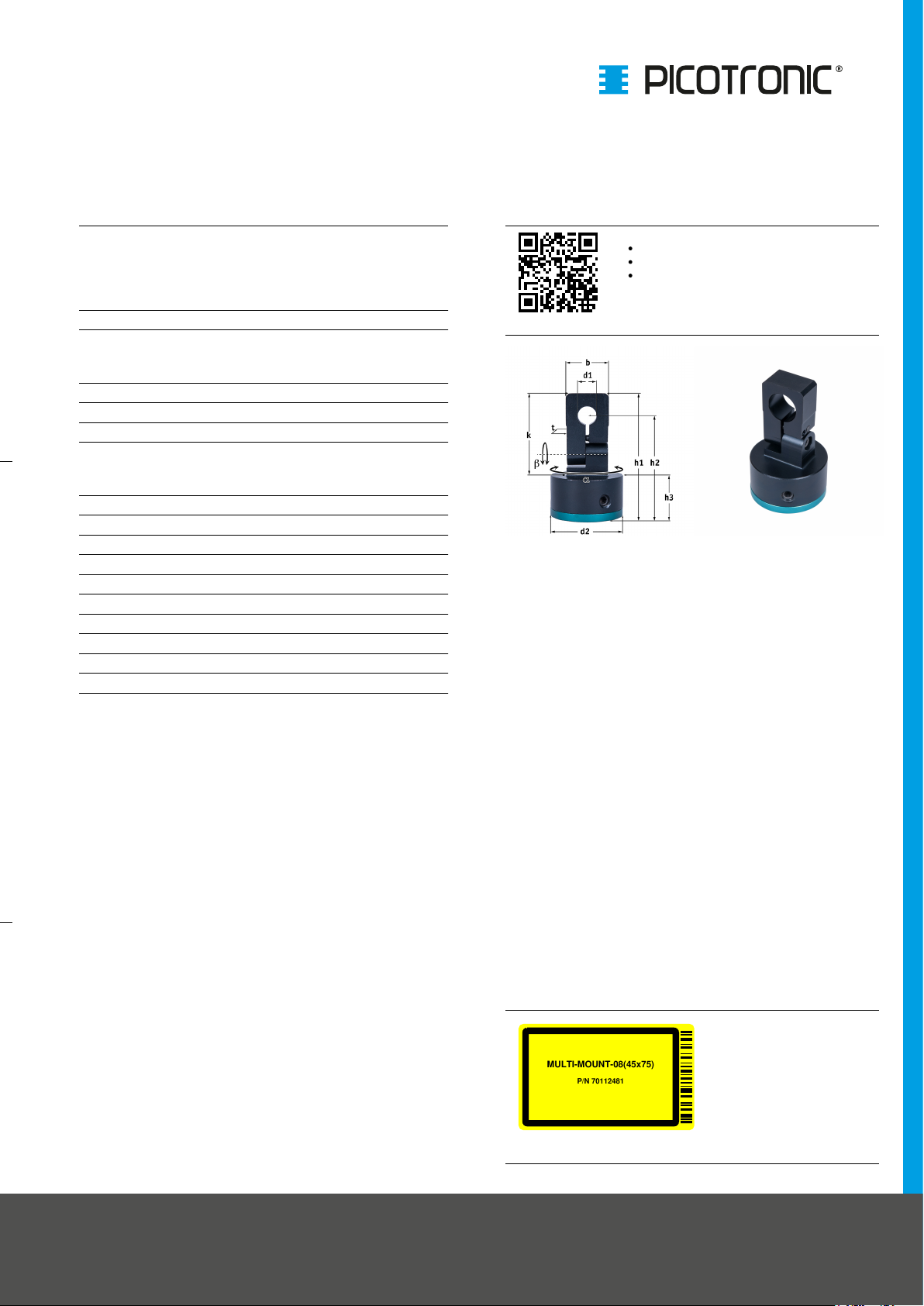

Bracket
MULTI-MOUNT-08(45x75)
P/N 70112481
Powered by TCPDF (www.tcpdf.org)
MULTI-MOUNT-08(45x75)
Order Number: 70112481
Main Parameters (*) min typ max Unit
Operating Temperature -20 50 °C
Storage Temperature -50 70 °C
Mechanical Parameters
Size Ø45x75mm
Material aluminium
Housing Color black
Weight 144g
Mount Parameter
Total Height (h1) 75mm
Height to Laseraxis (h2) 60mm
Height of Base (h3) 25mm
Mount Diameter (d1) Ø8mm
Diameter of Base (d2) Ø45mm
Width of Mount (b) 26mm
Height of Mount (g) 50mm
Height of Mount Head (k) 50mm
Depth of Mount (t) 15mm
Angle of Rotation Alpha (α) 360°
Angle of Rotation Beta (β) ±90°
Features
Anodized aluminium
Very robust
For industrial applications
(*) Over the complete operating temperature range
Safety Label
Revision
REV 1 | 29-NOV-2018
