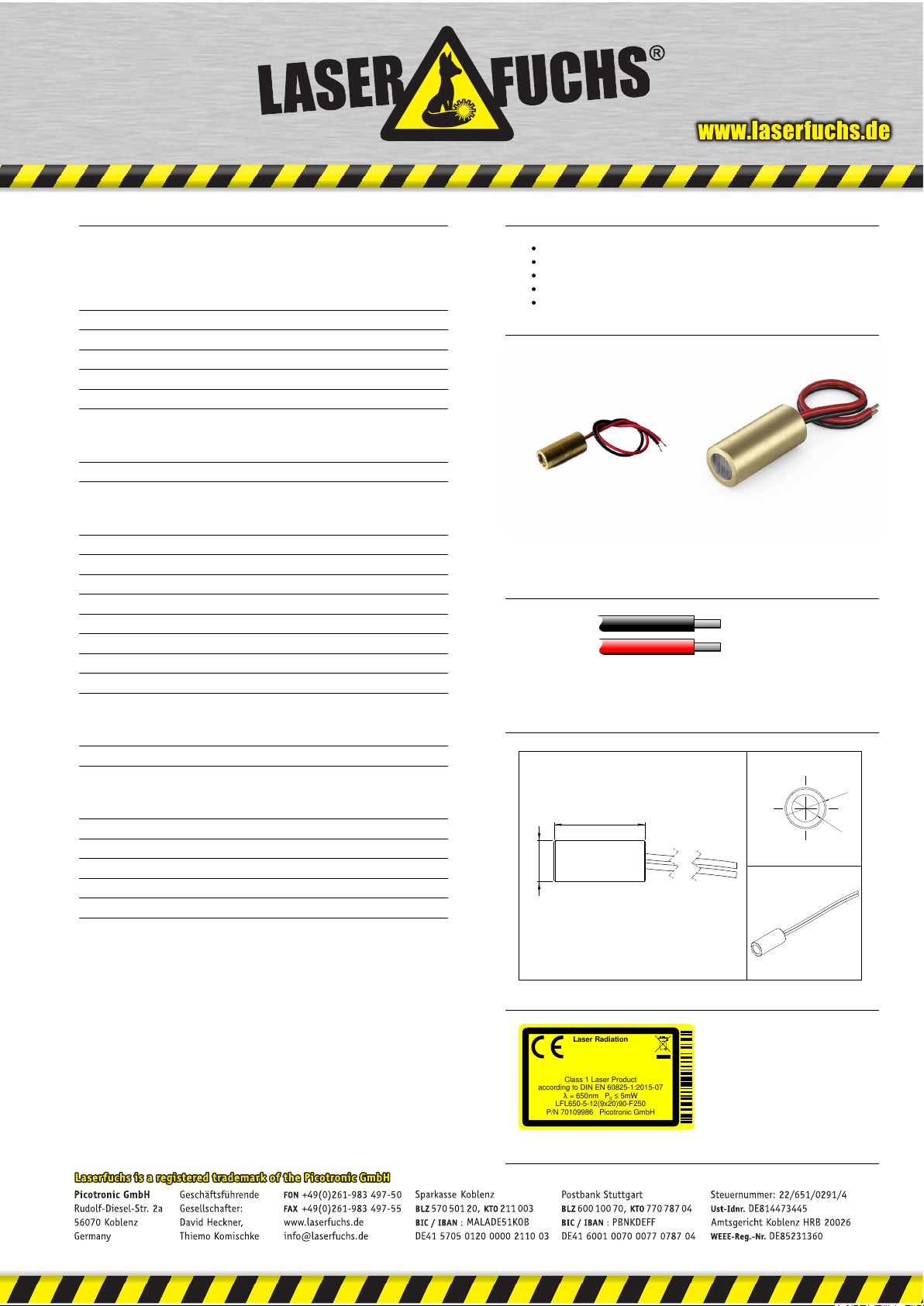

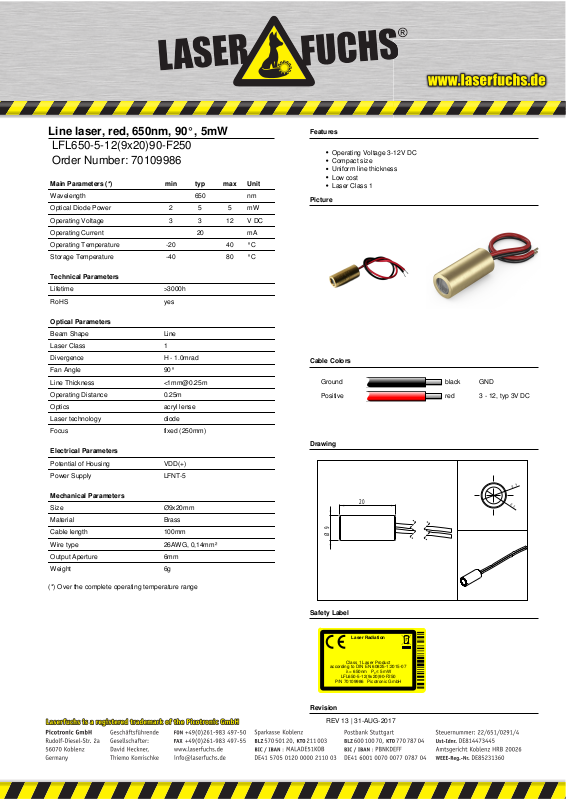

Line laser, red, 650nm, 90°, 5mW
Ø
9
20
Ø
9
Ø
6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LFL650-5-12(9x20)90-F250
P/N 70109986 Picotronic GmbH
LFL650-5-12(9x20)90-F250
Order Number: 70109986
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 2 5 5 mW
Operating Voltage 3 3 12 V DC
Operating Current 20 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 0.25m
Optics acryl lense
Laser technology diode
Focus fixed (250mm)
Electrical Parameters
Potential of Housing VDD(+)
Power Supply LFNT-5
Features
Operating Voltage 3-12V DC
Compact size
Uniform line thickness
Low cost
Laser Class 1
Cable Colors
Ground black GND
Positive red 3 - 12, typ 3V DC
Drawing
Mechanical Parameters
Size Ø9x20mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 6mm
Weight 6g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 13 | 31-AUG-2017
