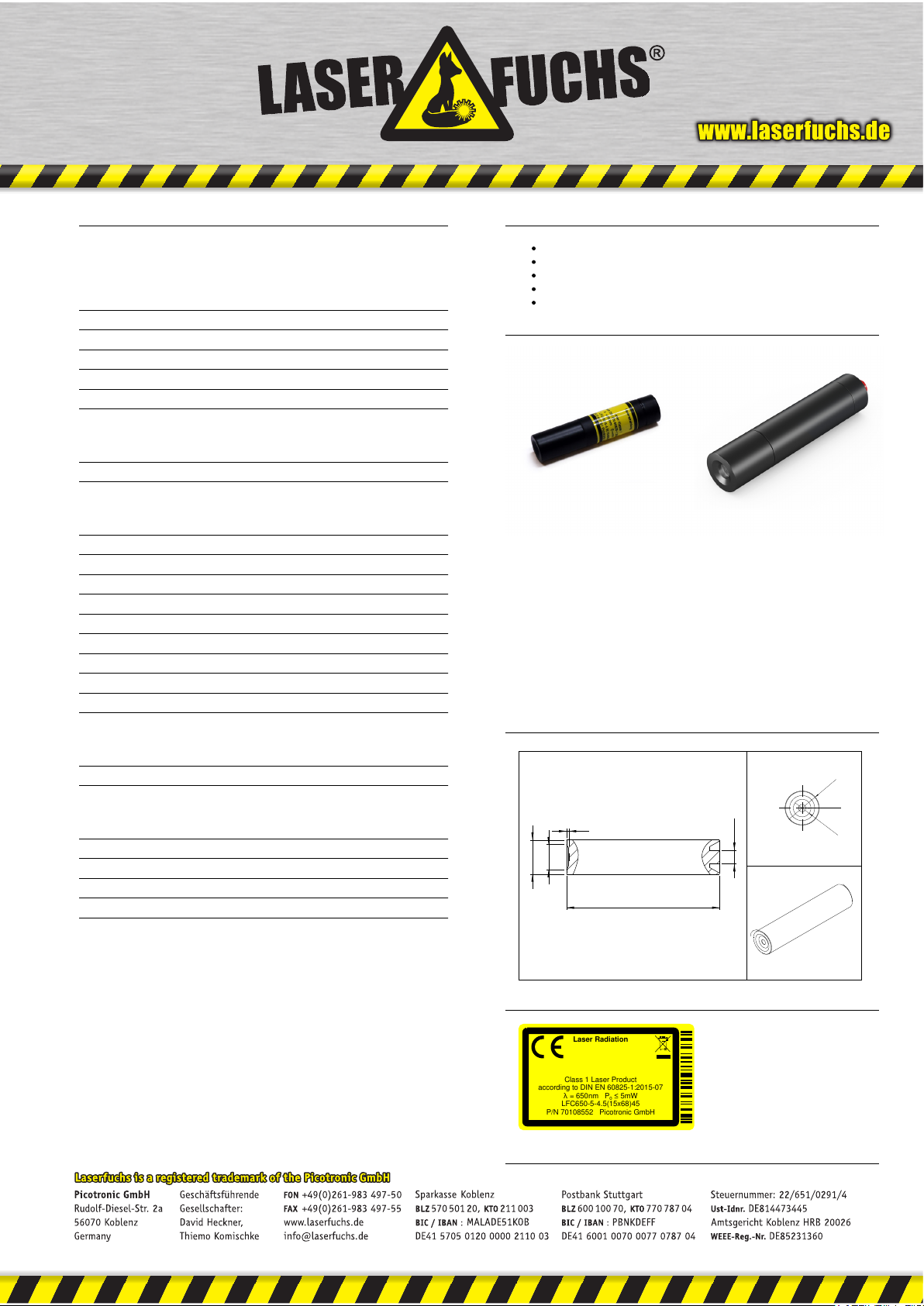

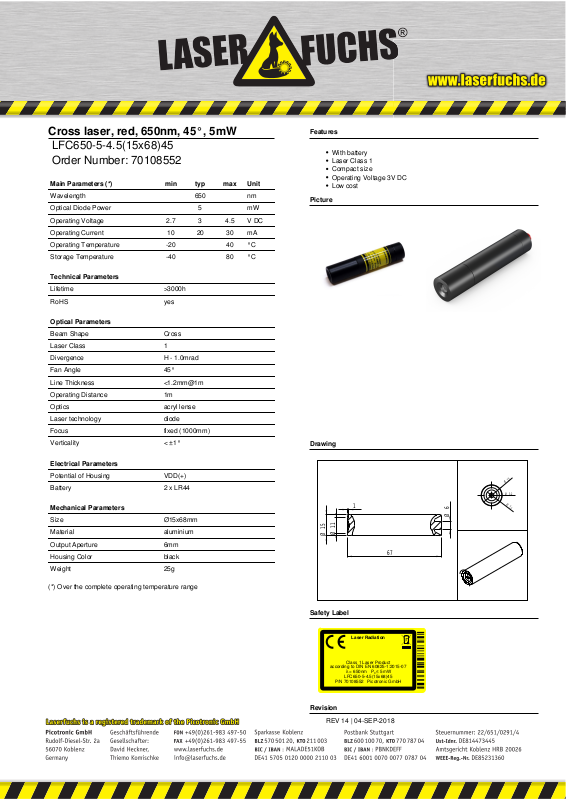

Cross laser, red, 650nm, 45°, 5mW
67
Ø
15
Ø
6
1
Ø
11
Ø
15
Ø
7,7
Ø
3,2
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LFC650-5-4.5(15x68)45
P/N 70108552 Picotronic GmbH
LFC650-5-4.5(15x68)45
Order Number: 70108552
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 5 mW
Operating Voltage 2.7 3 4.5 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Cross
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 45°
Line Thickness <1.2mm@1m
Operating Distance 1m
Optics acryl lense
Laser technology diode
Focus fixed (1000mm)
Verticality < ±1°
Features
With battery
Laser Class 1
Compact size
Operating Voltage 3V DC
Low cost
Drawing
Electrical Parameters
Potential of Housing VDD(+)
Battery 2 x LR44
Mechanical Parameters
Size Ø15x68mm
Material aluminium
Output Aperture 6mm
Housing Color black
Weight 25g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 14 | 04-SEP-2018
