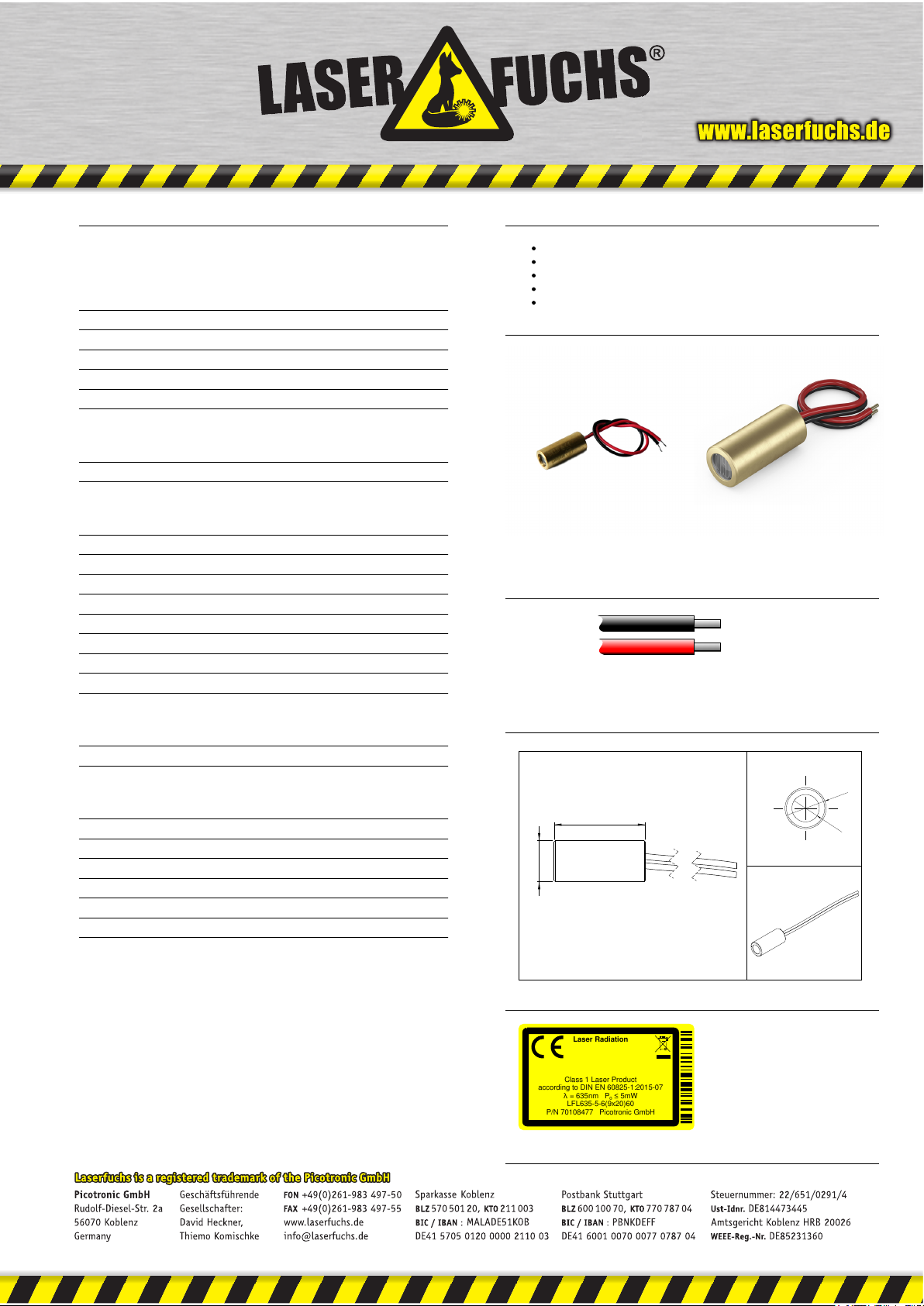

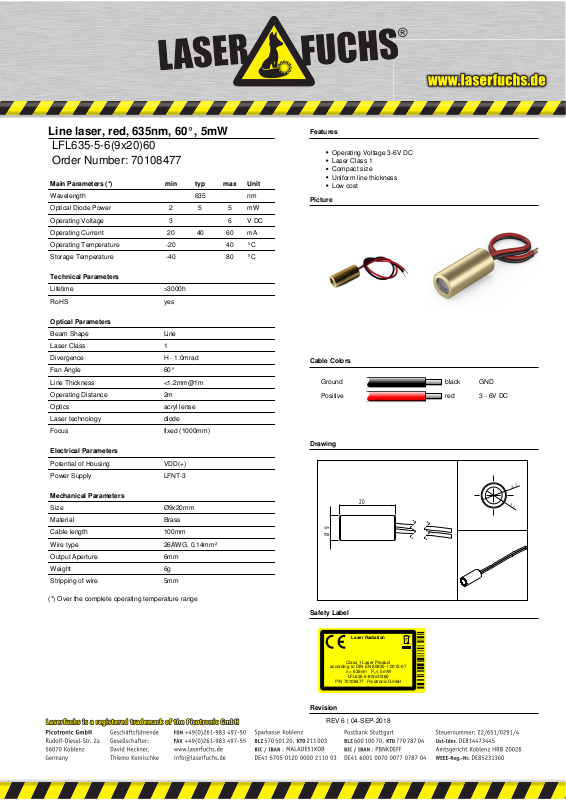

Page 1
Line laser, red, 635nm, 60°, 5mW
Ø
9
20
Ø
9
Ø
6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 5mW
LFL635-5-6(9x20)60
P/N 70108477 Picotronic GmbH
LFL635-5-6(9x20)60
Order Number: 70108477
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Diode Power 2 5 5 mW
Operating Voltage 3 6 V DC
Operating Current 20 40 60 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 60°
Line Thickness <1.2mm@1m
Operating Distance 2m
Optics acryl lense
Laser technology diode
Focus fixed (1000mm)
Electrical Parameters
Potential of Housing VDD(+)
Power Supply LFNT-3
Features
Operating Voltage 3-6V DC
Laser Class 1
Compact size
Uniform line thickness
Low cost
Cable Colors
Ground black GND
Positive red 3 - 6V DC
Drawing
Mechanical Parameters
Size Ø9x20mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 6mm
Weight 6g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Safety Label
Revision
REV 6 | 04-SEP-2018
