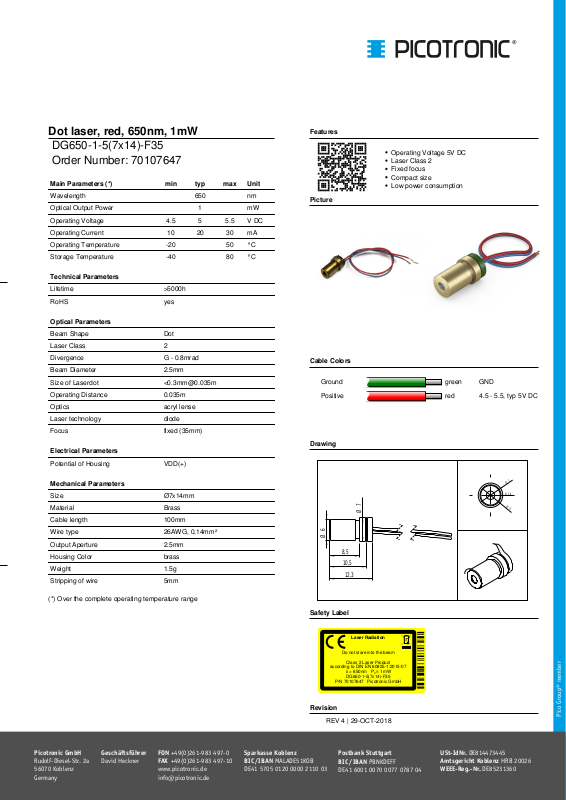

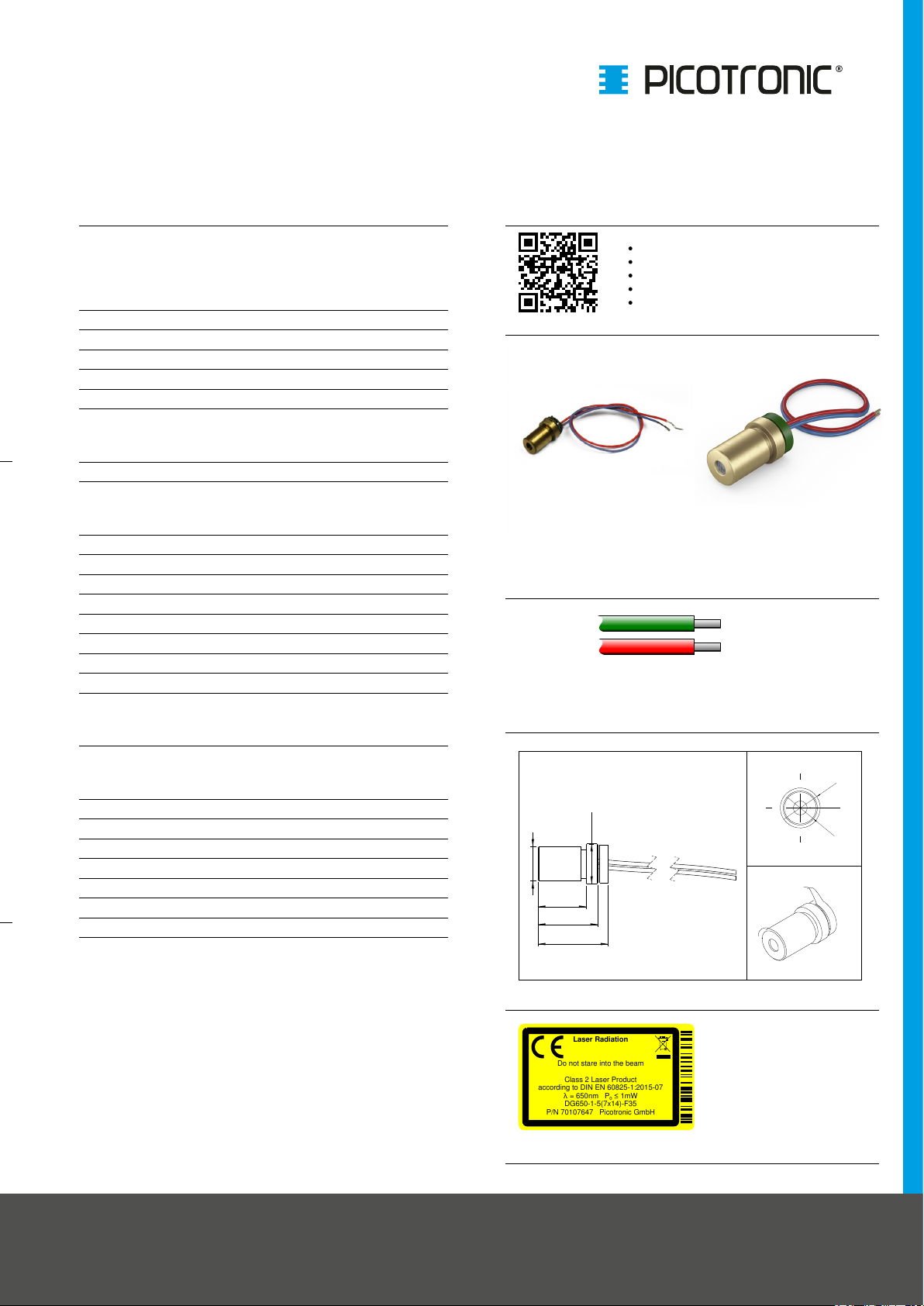

Dot laser, red, 650nm, 1mW
Ø
6
Ø
7
12,3
8,5
10,5
Ø
7
Ø
6
Ø
2,4
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DG650-1-5(7x14)-F35
P/N 70107647 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DG650-1-5(7x14)-F35
Order Number: 70107647
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence G - 0.8mrad
Beam Diameter 2.5mm
Size of Laserdot <[email protected]
Operating Distance 0.035m
Optics acryl lense
Laser technology diode
Focus fixed (35mm)
Electrical Parameters
Potential of Housing VDD(+)
Features
Operating Voltage 5V DC
Laser Class 2
Fixed focus
Compact size
Low power consumption
Cable Colors
Ground green GND
Positive red 4.5 - 5.5, typ 5V DC
Drawing
Mechanical Parameters
Size Ø7x14mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 2.5mm
Housing Color brass
Weight 1.5g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 4 | 29-OCT-2018
