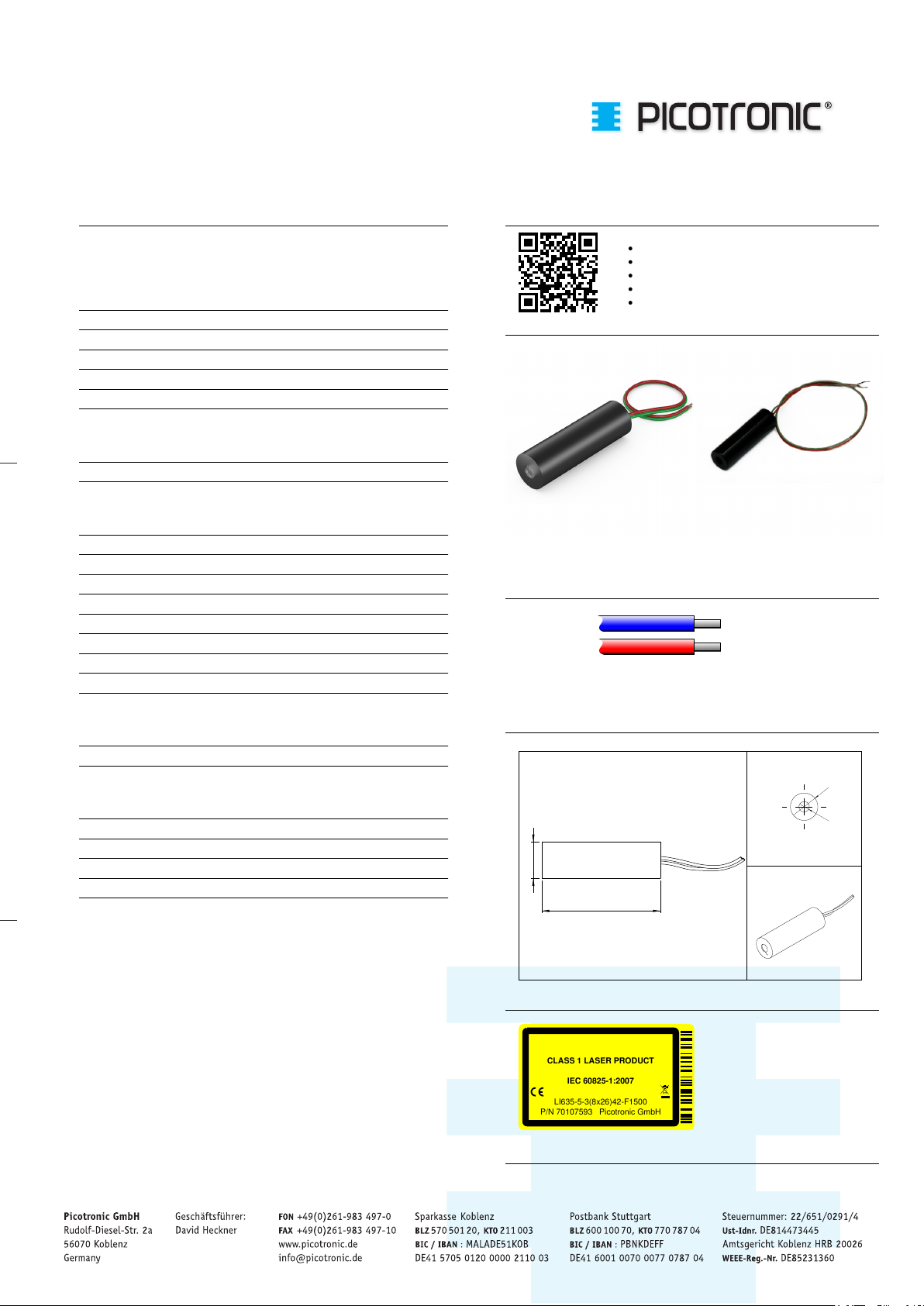

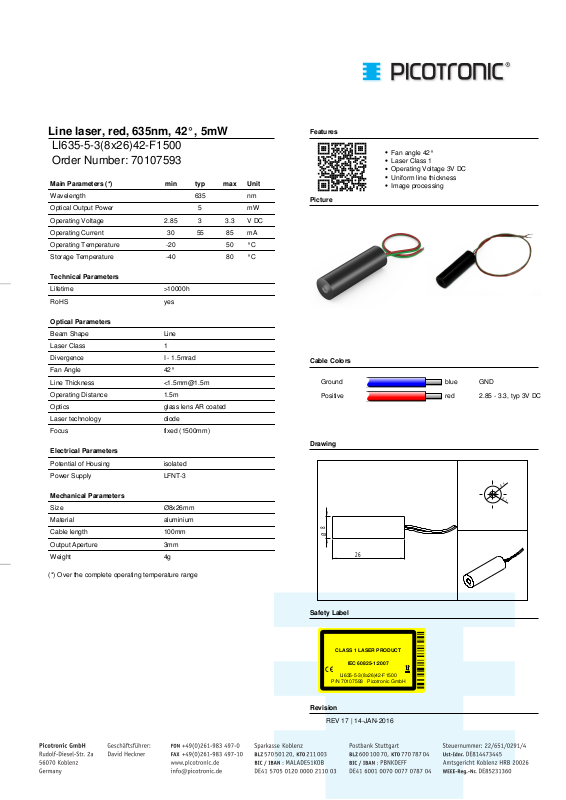

Line laser, red, 635nm, 42°, 5mW
Ø
8
26
Ø
8
Ø
3
CLASS 1 LASER PRODUCT
IEC 60825-1:2007
LI635-5-3(8x26)42-F1500
P/N 70107593 Picotronic GmbH
LI635-5-3(8x26)42-F1500
Order Number: 70107593
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 5 mW
Operating Voltage 2.85 3 3.3 V DC
Operating Current 30 55 85 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence I - 1.5mrad
Fan Angle 42°
Line Thickness <[email protected]
Operating Distance 1.5m
Optics glass lens AR coated
Laser technology diode
Focus fixed (1500mm)
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Features
Fan angle 42°
Laser Class 1
Operating Voltage 3V DC
Uniform line thickness
Image processing
Cable Colors
Ground blue GND
Positive red 2.85 - 3.3, typ 3V DC
Drawing
Mechanical Parameters
Size Ø8x26mm
Material aluminium
Cable length 100mm
Output Aperture 3mm
Weight 4g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 17 | 14-JAN-2016
