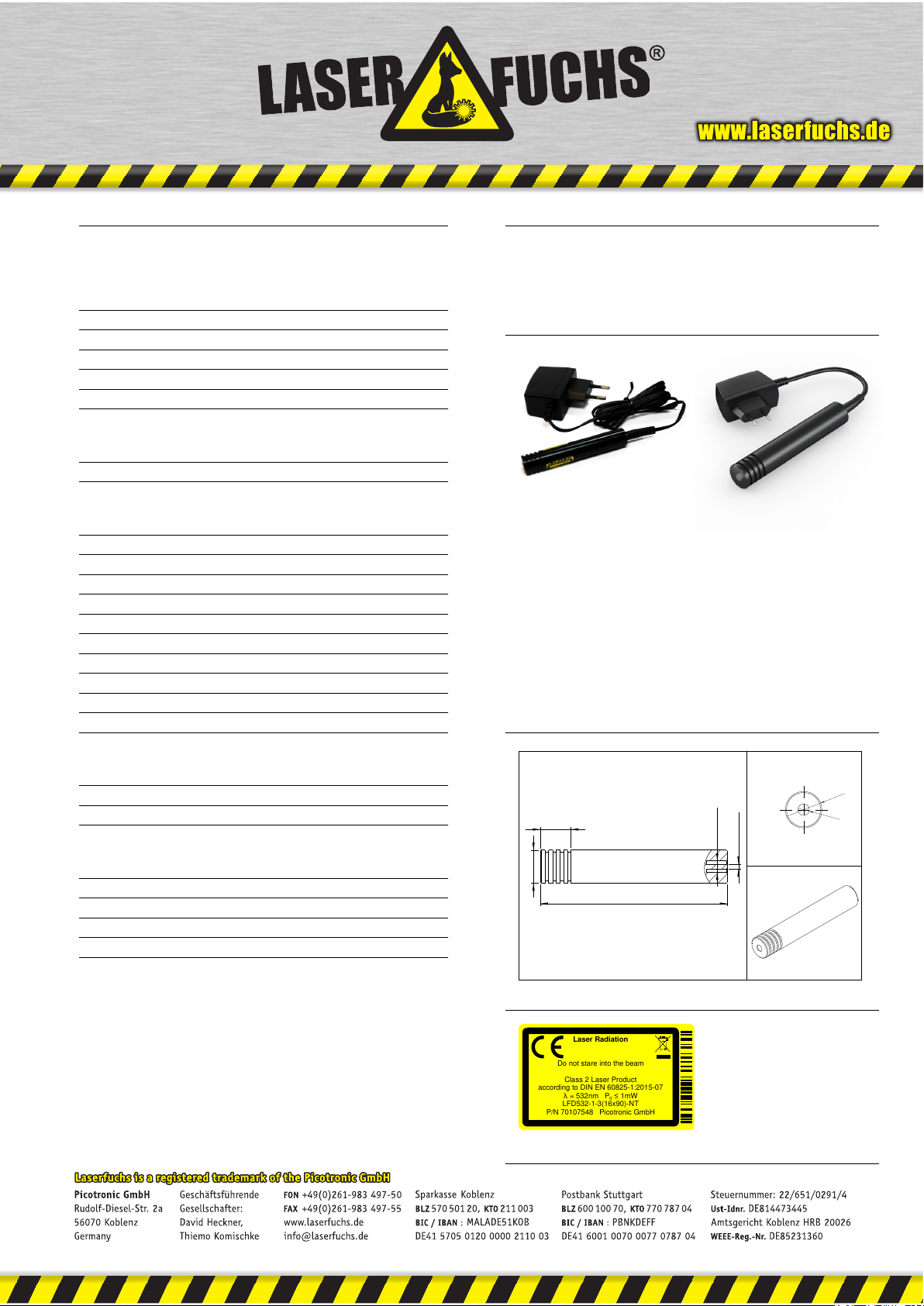

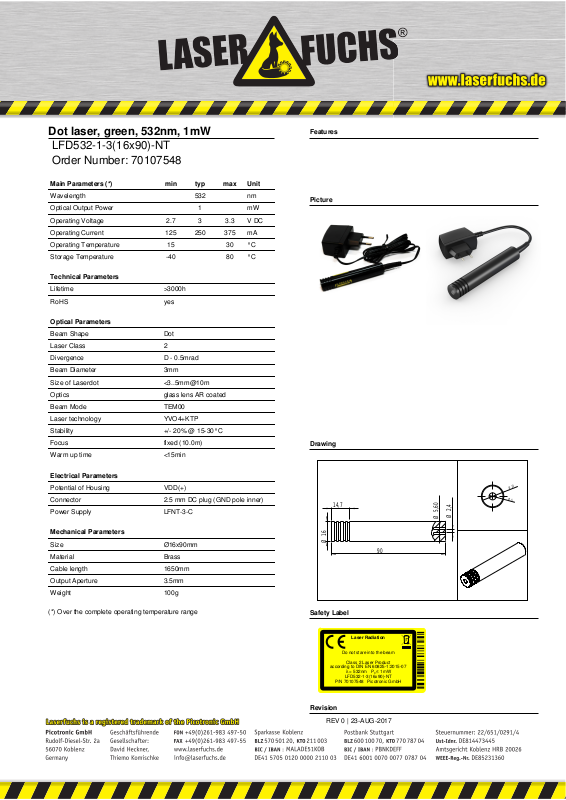

Dot laser, green, 532nm, 1mW
Ø
16
14,7
90
Ø
5,60
Ø
2,4
Ø
16
Ø
5
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 532nm P₀ ≤ 1mW
LFD532-1-3(16x90)-NT
P/N 70107548 Picotronic GmbH
LFD532-1-3(16x90)-NT
Order Number: 70107548
Main Parameters (*) min typ max Unit
Wavelength 532 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 125 250 375 mA
Operating Temperature 15 30 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence D - 0.5mrad
Beam Diameter 3mm
Size of Laserdot <3..5mm@10m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology YVO4+KTP
Stability +/- 20% @ 15-30°C
Focus fixed (10.0m)
Warm up time <15min
Features
Drawing
Electrical Parameters
Potential of Housing VDD(+)
Connector 2.5 mm DC plug (GND pole inner)
Power Supply LFNT-3-C
Mechanical Parameters
Size Ø16x90mm
Material Brass
Cable length 1650mm
Output Aperture 3.5mm
Weight 100g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 0 | 23-AUG-2017
