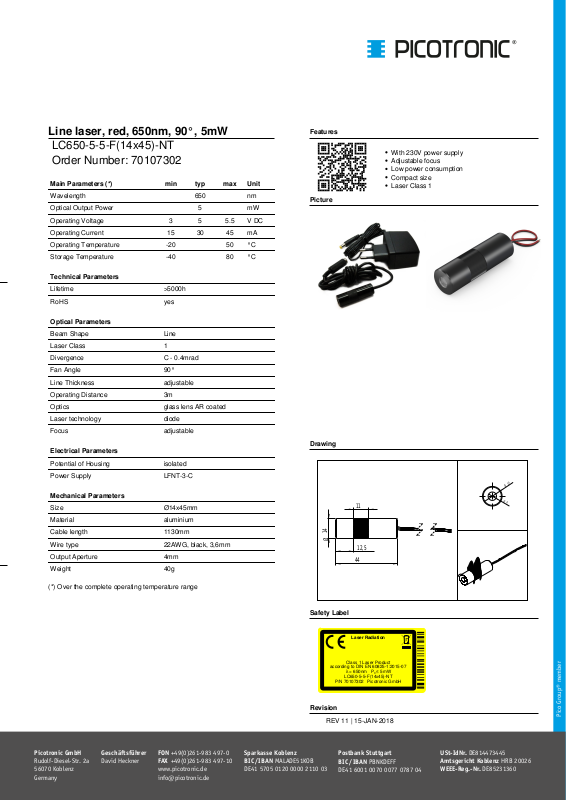

Line laser, red, 650nm, 90°, 5mW
Ø
14
44
12,5
11
Ø
14
Ø
6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LC650-5-5-F(14x45)-NT
P/N 70107302 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LC650-5-5-F(14x45)-NT
Order Number: 70107302
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 5 mW
Operating Voltage 3 5 5.5 V DC
Operating Current 15 30 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence C - 0.4mrad
Fan Angle 90°
Line Thickness adjustable
Operating Distance 3m
Optics glass lens AR coated
Laser technology diode
Focus adjustable
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3-C
Features
With 230V power supply
Adjustable focus
Low power consumption
Compact size
Laser Class 1
Drawing
Mechanical Parameters
Size Ø14x45mm
Material aluminium
Cable length 1130mm
Wire type 22AWG, black, 3,6mm
Output Aperture 4mm
Weight 40g
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 11 | 15-JAN-2018
