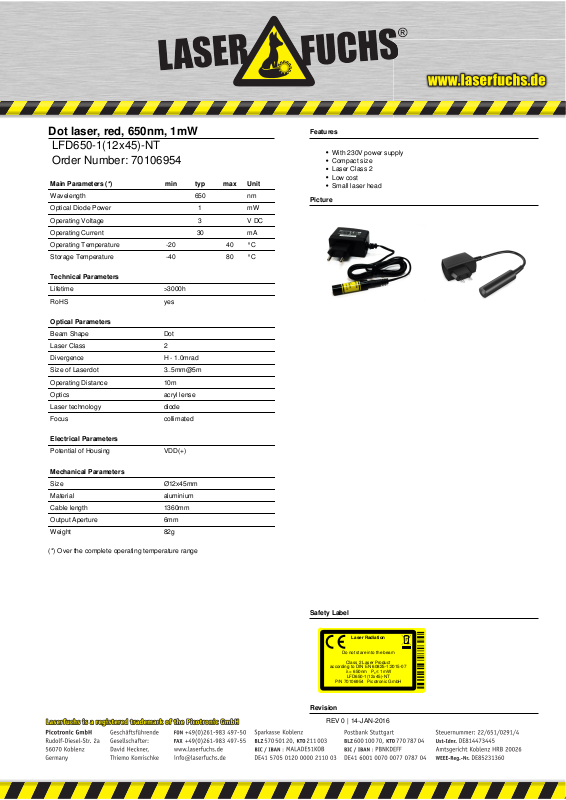

Dot laser, red, 650nm, 1mW
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
LFD650-1(12x45)-NT
P/N 70106954 Picotronic GmbH
LFD650-1(12x45)-NT
Order Number: 70106954
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 1 mW
Operating Voltage 3 V DC
Operating Current 30 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence H - 1.0mrad
Size of Laserdot 3..5mm@5m
Operating Distance 10m
Optics acryl lense
Laser technology diode
Focus collimated
Features
With 230V power supply
Compact size
Laser Class 2
Low cost
Small laser head
Electrical Parameters
Potential of Housing VDD(+)
Mechanical Parameters
Size Ø12x45mm
Material aluminium
Cable length 1360mm
Output Aperture 6mm
Weight 82g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 0 | 14-JAN-2016
