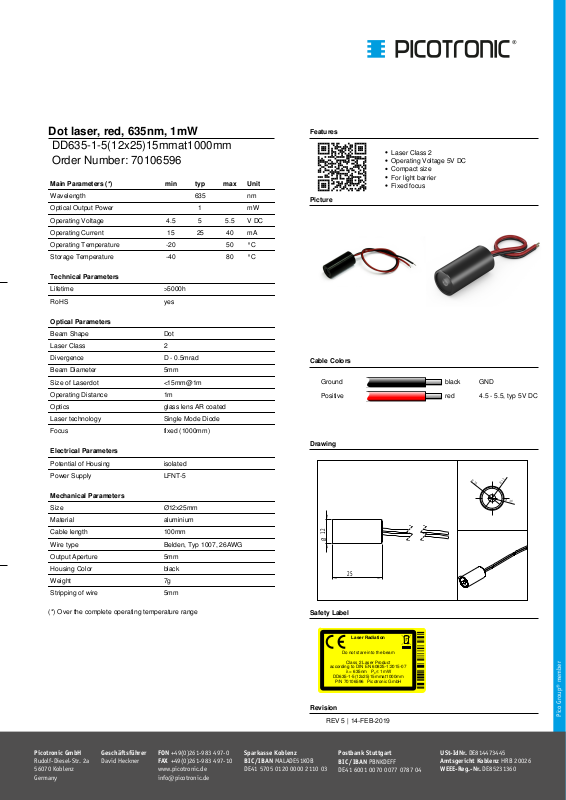

Dot laser, red, 635nm, 1mW
Ø
12
25
Ø
12
Ø
3,6
Ø
10
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 1mW
DD635-1-5(12x25)15mmat1000mm
P/N 70106596 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DD635-1-5(12x25)15mmat1000mm
Order Number: 70106596
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 1 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 15 25 40 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence D - 0.5mrad
Beam Diameter 5mm
Size of Laserdot <15mm@1m
Operating Distance 1m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (1000mm)
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-5
Features
Laser Class 2
Operating Voltage 5V DC
Compact size
For light barrier
Fixed focus
Cable Colors
Ground black GND
Positive red 4.5 - 5.5, typ 5V DC
Drawing
Mechanical Parameters
Size Ø12x25mm
Material aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 5mm
Housing Color black
Weight 7g
Stripping of wire 5mm
