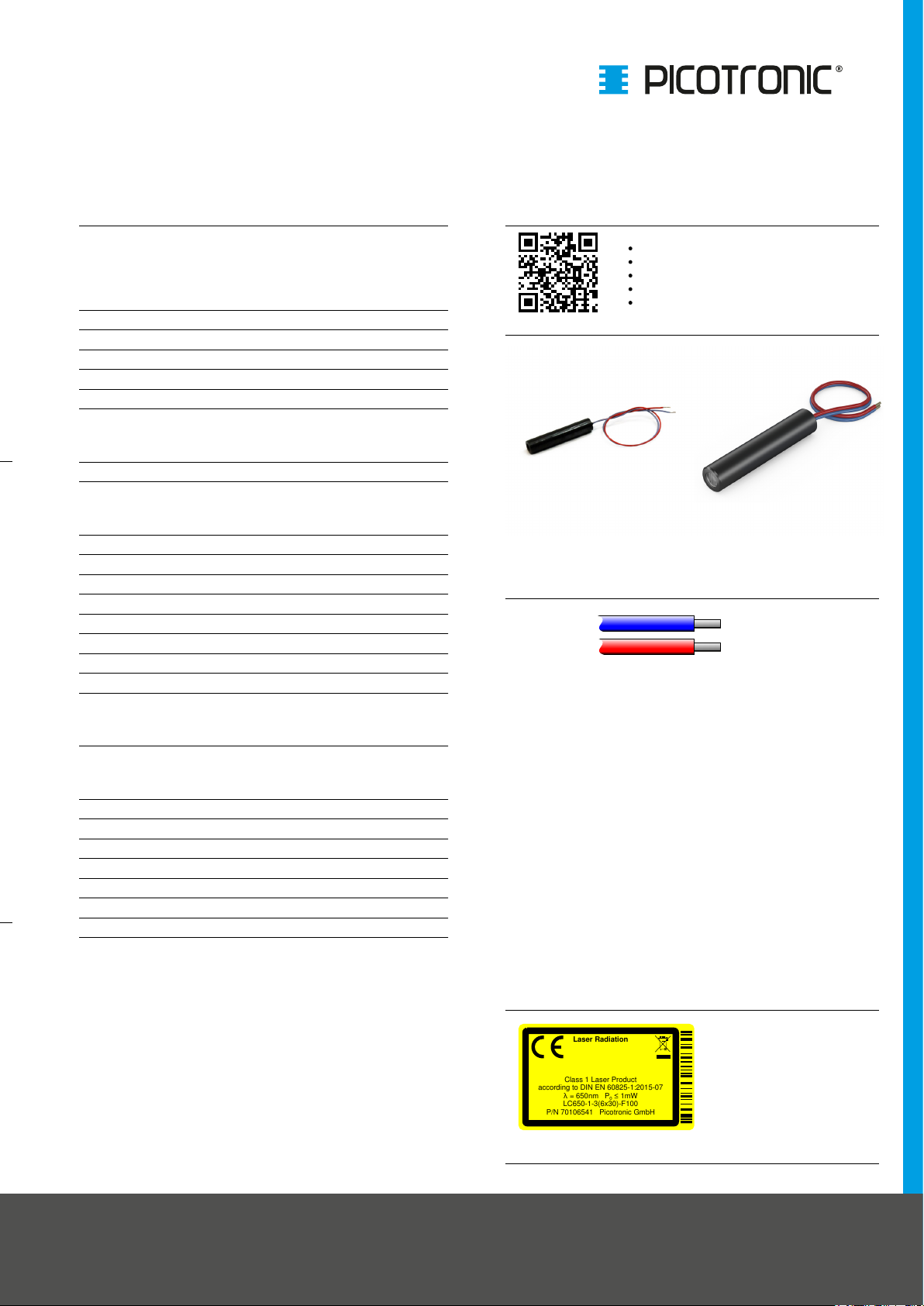

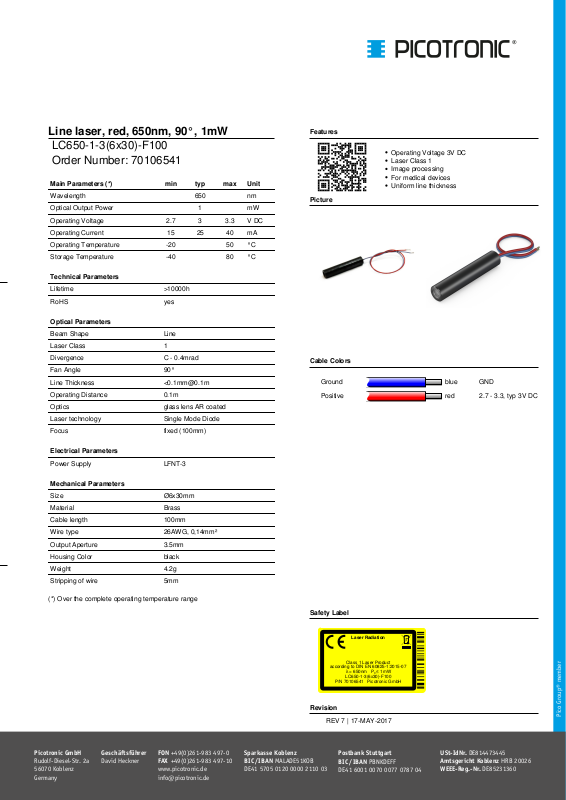

Line laser, red, 650nm, 90°, 1mW
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
LC650-1-3(6x30)-F100
P/N 70106541 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LC650-1-3(6x30)-F100
Order Number: 70106541
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 25 40 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence C - 0.4mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 0.1m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (100mm)
Features
Operating Voltage 3V DC
Laser Class 1
Image processing
For medical devices
Uniform line thickness
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Electrical Parameters
Power Supply LFNT-3
Mechanical Parameters
Size Ø6x30mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3.5mm
Housing Color black
Weight 4.2g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Safety Label
Revision
REV 7 | 17-MAY-2017
