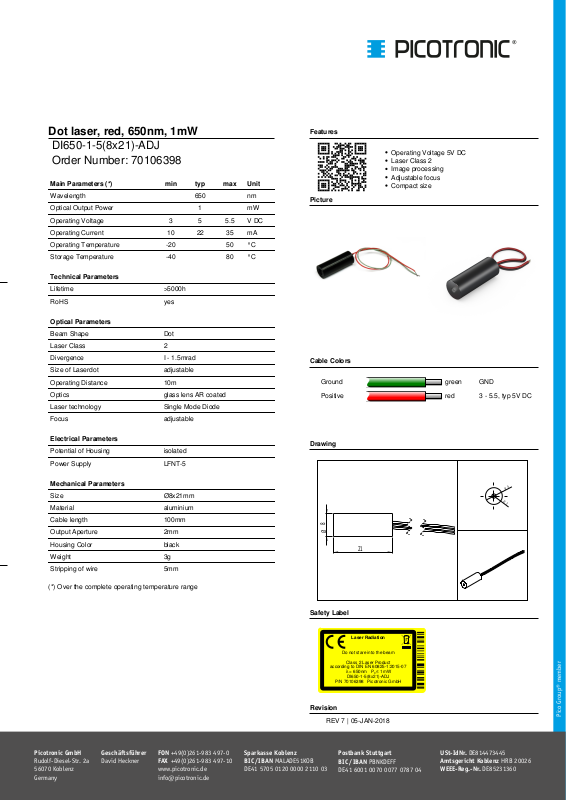

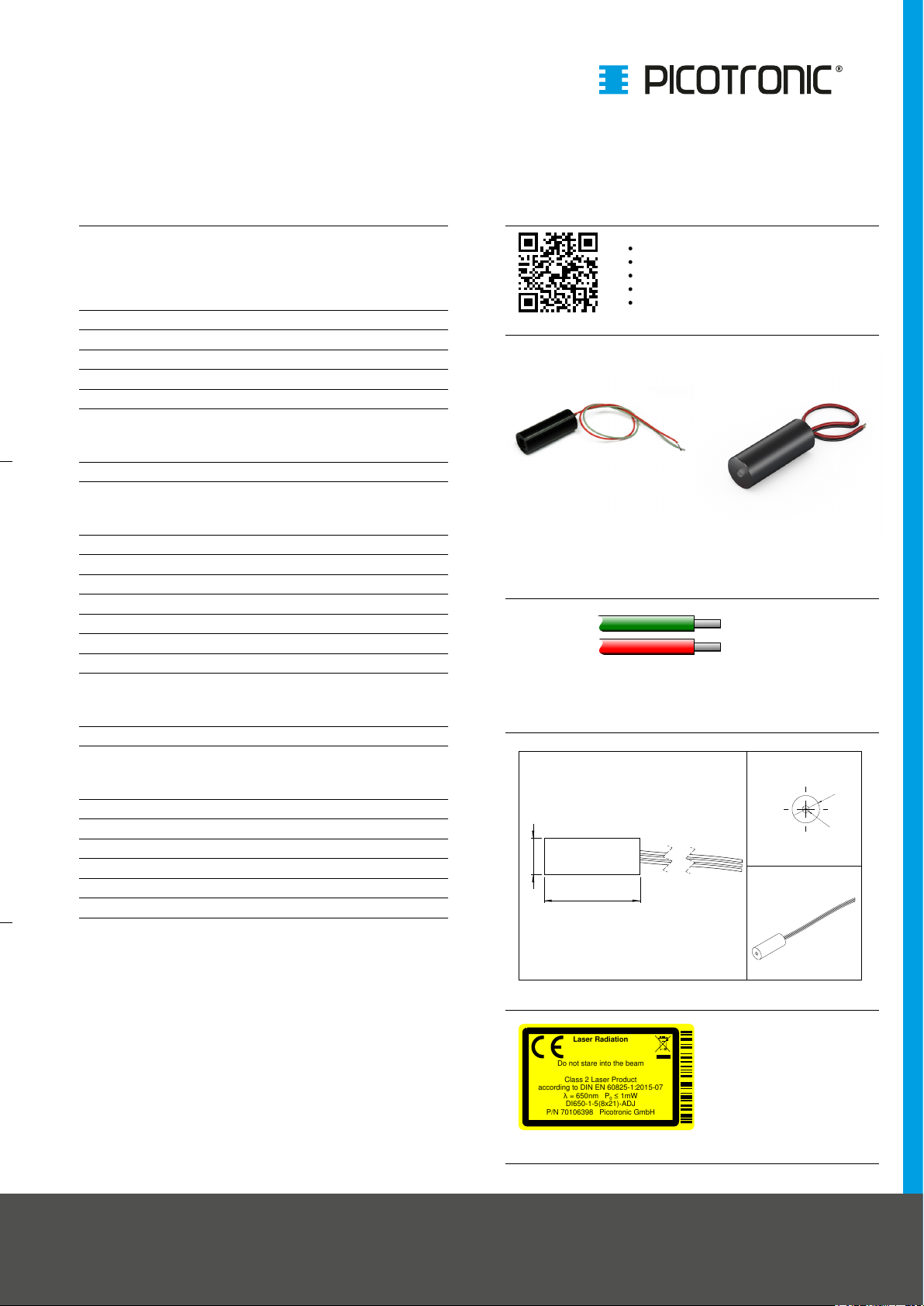

Dot laser, red, 650nm, 1mW
Ø
8
21
Ø
8
Ø
2
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DI650-1-5(8x21)-ADJ
P/N 70106398 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DI650-1-5(8x21)-ADJ
Order Number: 70106398
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 3 5 5.5 V DC
Operating Current 10 22 35 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence I - 1.5mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Features
Operating Voltage 5V DC
Laser Class 2
Image processing
Adjustable focus
Compact size
Cable Colors
Ground green GND
Positive red 3 - 5.5, typ 5V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-5
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Output Aperture 2mm
Housing Color black
Weight 3g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Drawing
Safety Label
Revision
REV 7 | 05-JAN-2018
