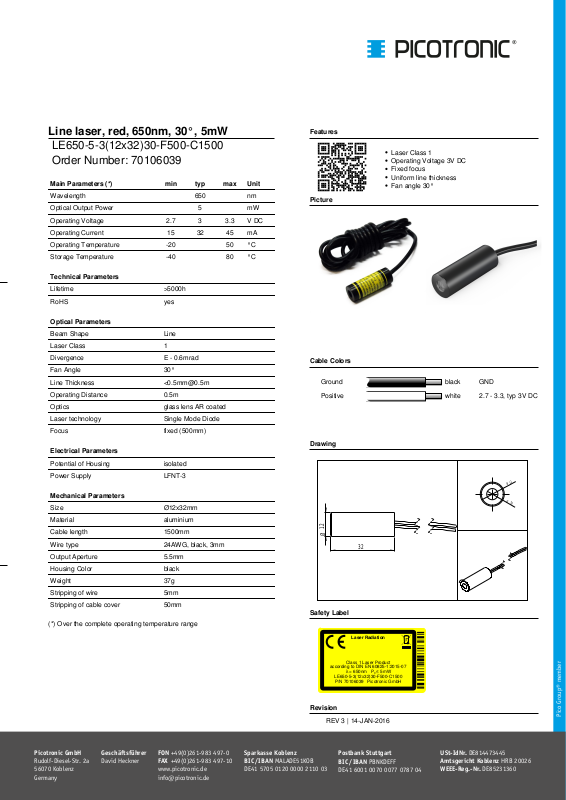

Line laser, red, 650nm, 30°, 5mW
Ø
12
32
Ø
12
Ø
5,6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LE650-5-3(12x32)30-F500-C1500
P/N 70106039 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
LE650-5-3(12x32)30-F500-C1500
Order Number: 70106039
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 5 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 32 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence E - 0.6mrad
Fan Angle 30°
Line Thickness <[email protected]
Operating Distance 0.5m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (500mm)
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Features
Laser Class 1
Operating Voltage 3V DC
Fixed focus
Uniform line thickness
Fan angle 30°
Cable Colors
Ground black GND
Positive white 2.7 - 3.3, typ 3V DC
Drawing
Mechanical Parameters
Size Ø12x32mm
Material aluminium
Cable length 1500mm
Wire type 24AWG, black, 3mm
Output Aperture 5.5mm
Housing Color black
Weight 37g
Stripping of wire 5mm
Stripping of cable cover 50mm
(*) Over the complete operating temperature range
