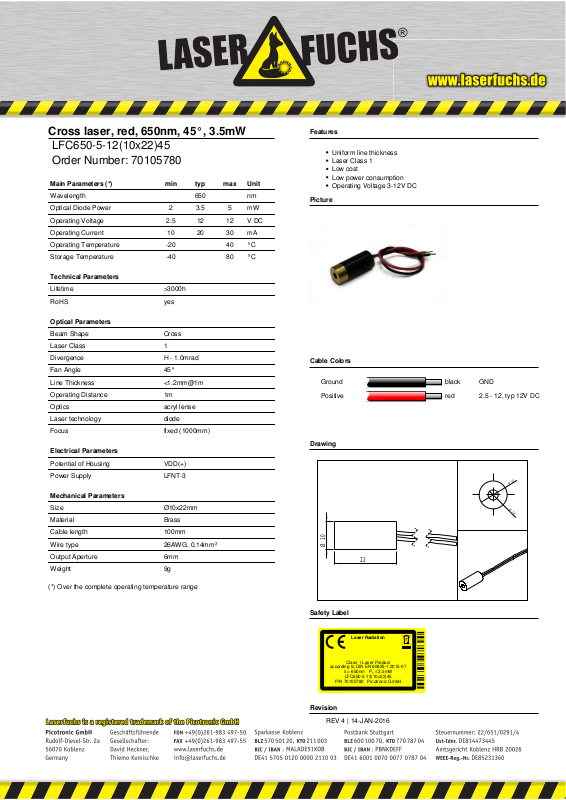

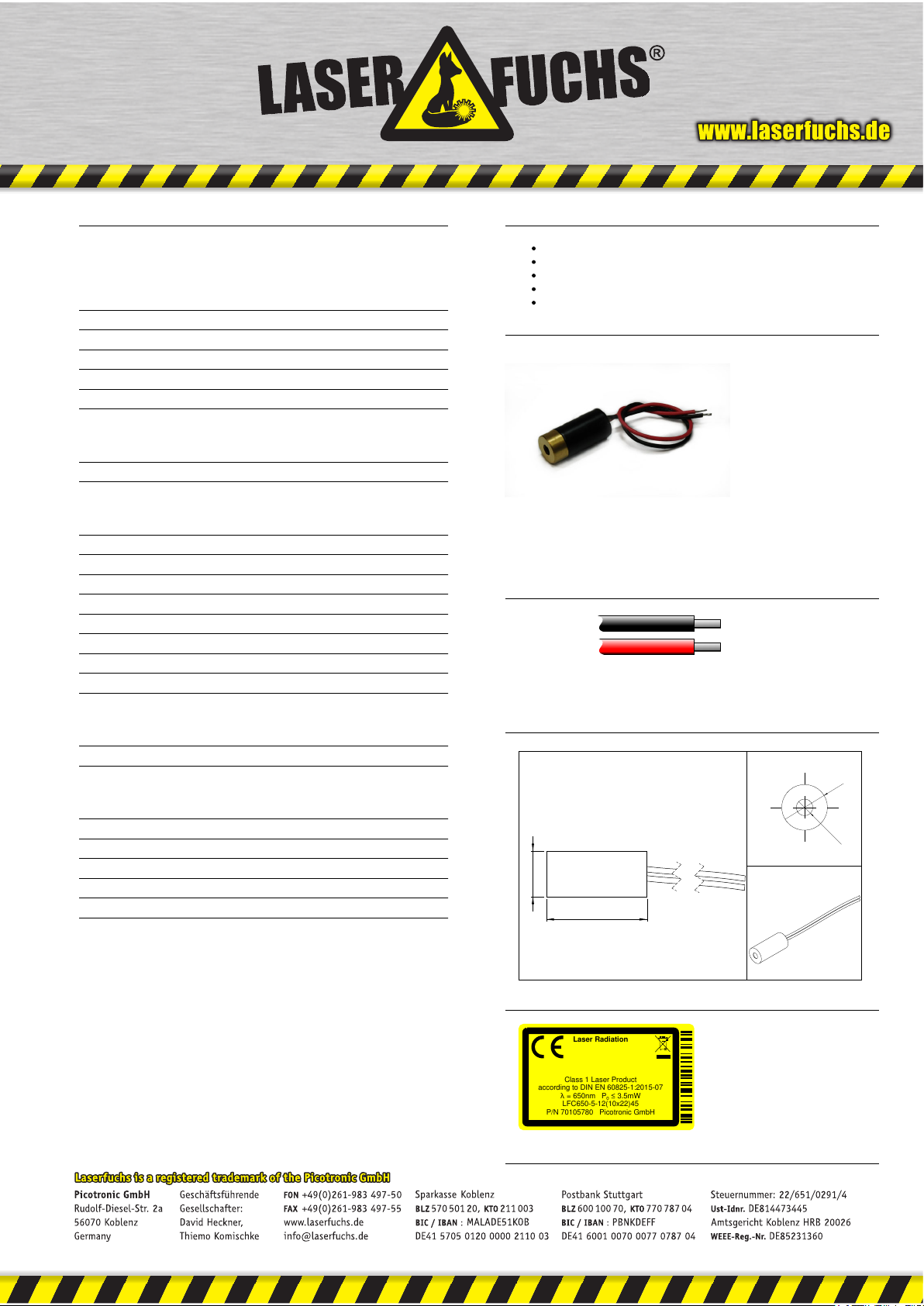

Cross laser, red, 650nm, 45°, 3.5mW
Ø
10
22
Ø
10
Ø
3,6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 3.5mW
LFC650-5-12(10x22)45
P/N 70105780 Picotronic GmbH
LFC650-5-12(10x22)45
Order Number: 70105780
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 2 3.5 5 mW
Operating Voltage 2.5 12 12 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Cross
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 45°
Line Thickness <1.2mm@1m
Operating Distance 1m
Optics acryl lense
Laser technology diode
Focus fixed (1000mm)
Electrical Parameters
Potential of Housing VDD(+)
Power Supply LFNT-3
Features
Uniform line thickness
Laser Class 1
Low cost
Low power consumption
Operating Voltage 3-12V DC
Cable Colors
Ground black GND
Positive red 2.5 - 12, typ 12V DC
Drawing
Mechanical Parameters
Size Ø10x22mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 6mm
Weight 9g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 4 | 14-JAN-2016
