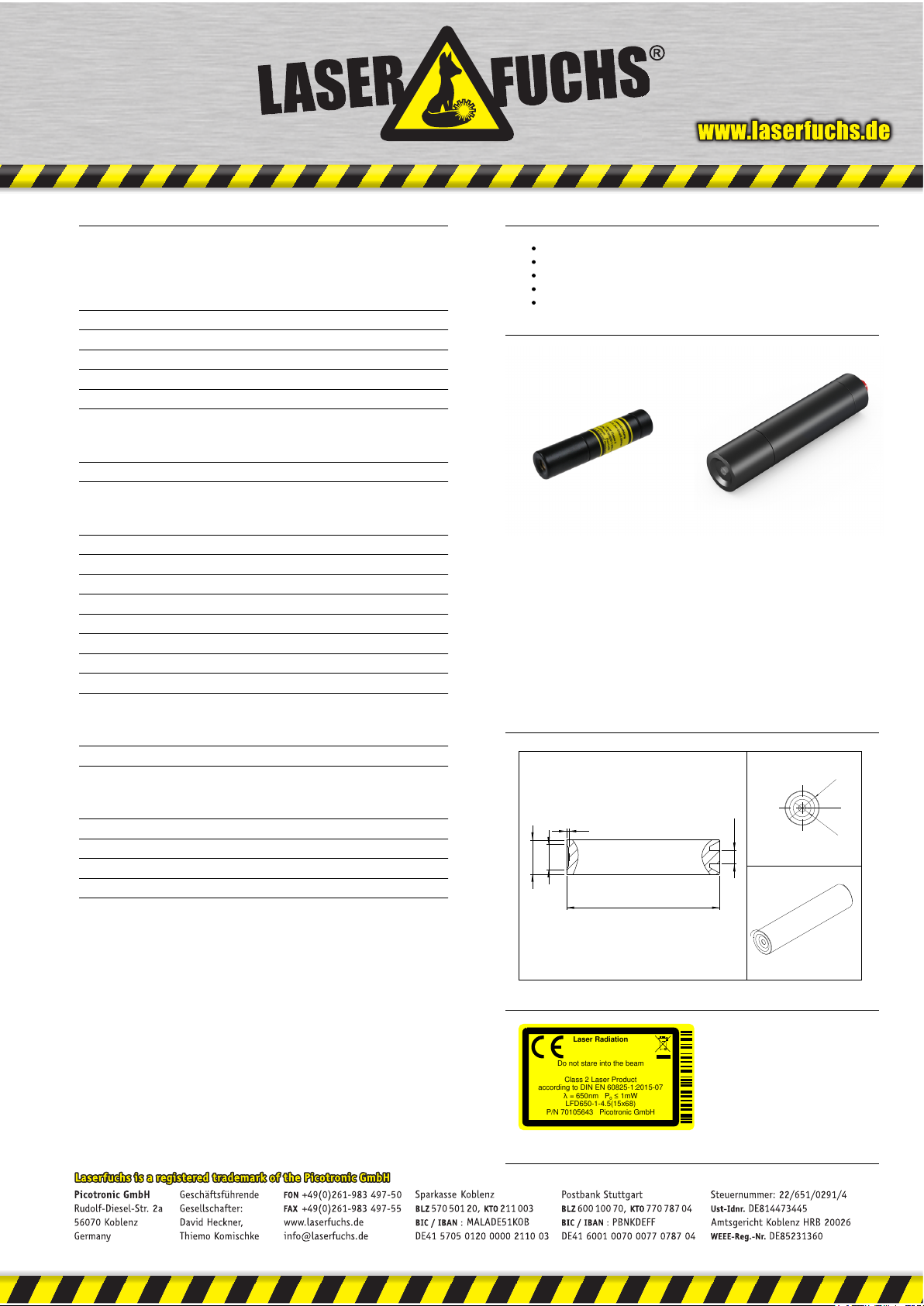

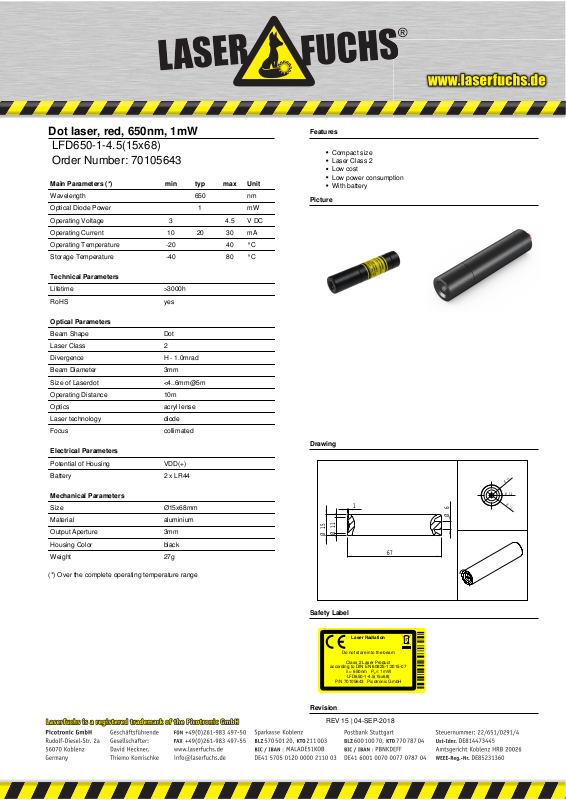

Dot laser, red, 650nm, 1mW
67
Ø
15
Ø
6
1
Ø
11
Ø
15
Ø
7,7
Ø
3,2
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
LFD650-1-4.5(15x68)
P/N 70105643 Picotronic GmbH
LFD650-1-4.5(15x68)
Order Number: 70105643
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 1 mW
Operating Voltage 3 4.5 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence H - 1.0mrad
Beam Diameter 3mm
Size of Laserdot <4..6mm@5m
Operating Distance 10m
Optics acryl lense
Laser technology diode
Focus collimated
Electrical Parameters
Potential of Housing VDD(+)
Battery 2 x LR44
Features
Compact size
Laser Class 2
Low cost
Low power consumption
With battery
Drawing
Mechanical Parameters
Size Ø15x68mm
Material aluminium
Output Aperture 3mm
Housing Color black
Weight 27g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 15 | 04-SEP-2018
