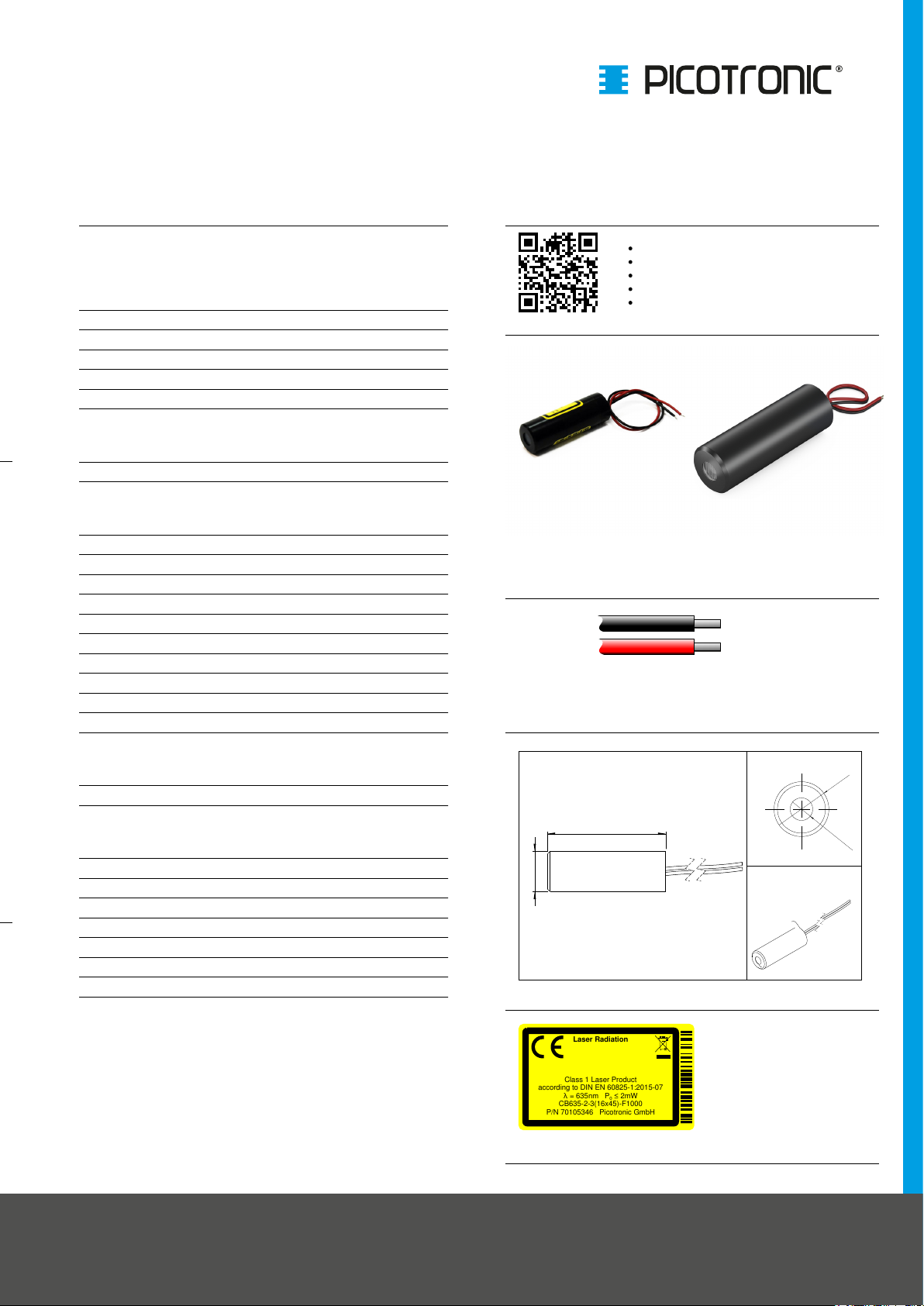

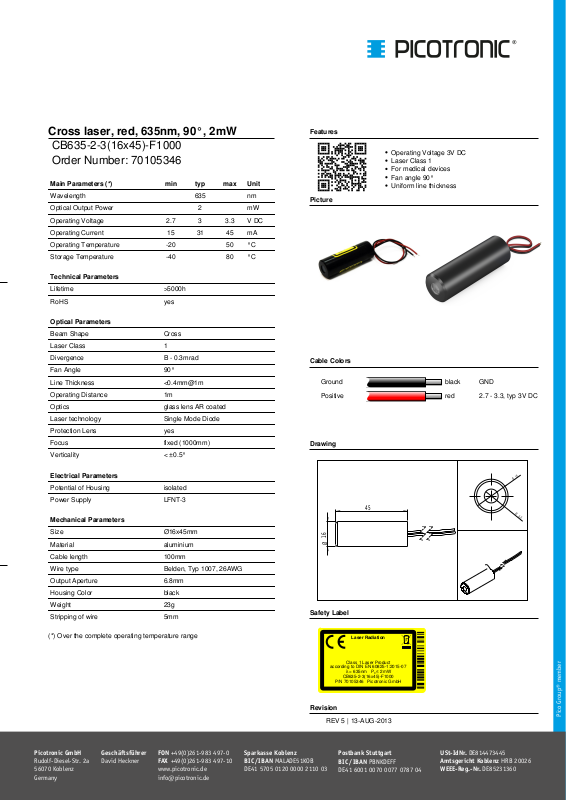

Cross laser, red, 635nm, 90°, 2mW
Ø
16
45
Ø
16
Ø
6,6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 2mW
CB635-2-3(16x45)-F1000
P/N 70105346 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
CB635-2-3(16x45)-F1000
Order Number: 70105346
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 2 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 31 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Cross
Laser Class 1
Divergence B - 0.3mrad
Fan Angle 90°
Line Thickness <0.4mm@1m
Operating Distance 1m
Optics glass lens AR coated
Laser technology Single Mode Diode
Protection Lens yes
Focus fixed (1000mm)
Verticality < ±0.5°
Features
Operating Voltage 3V DC
Laser Class 1
For medical devices
Fan angle 90°
Uniform line thickness
Cable Colors
Ground black GND
Positive red 2.7 - 3.3, typ 3V DC
Drawing
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø16x45mm
Material aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 6.8mm
Housing Color black
Weight 23g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 5 | 13-AUG-2013
