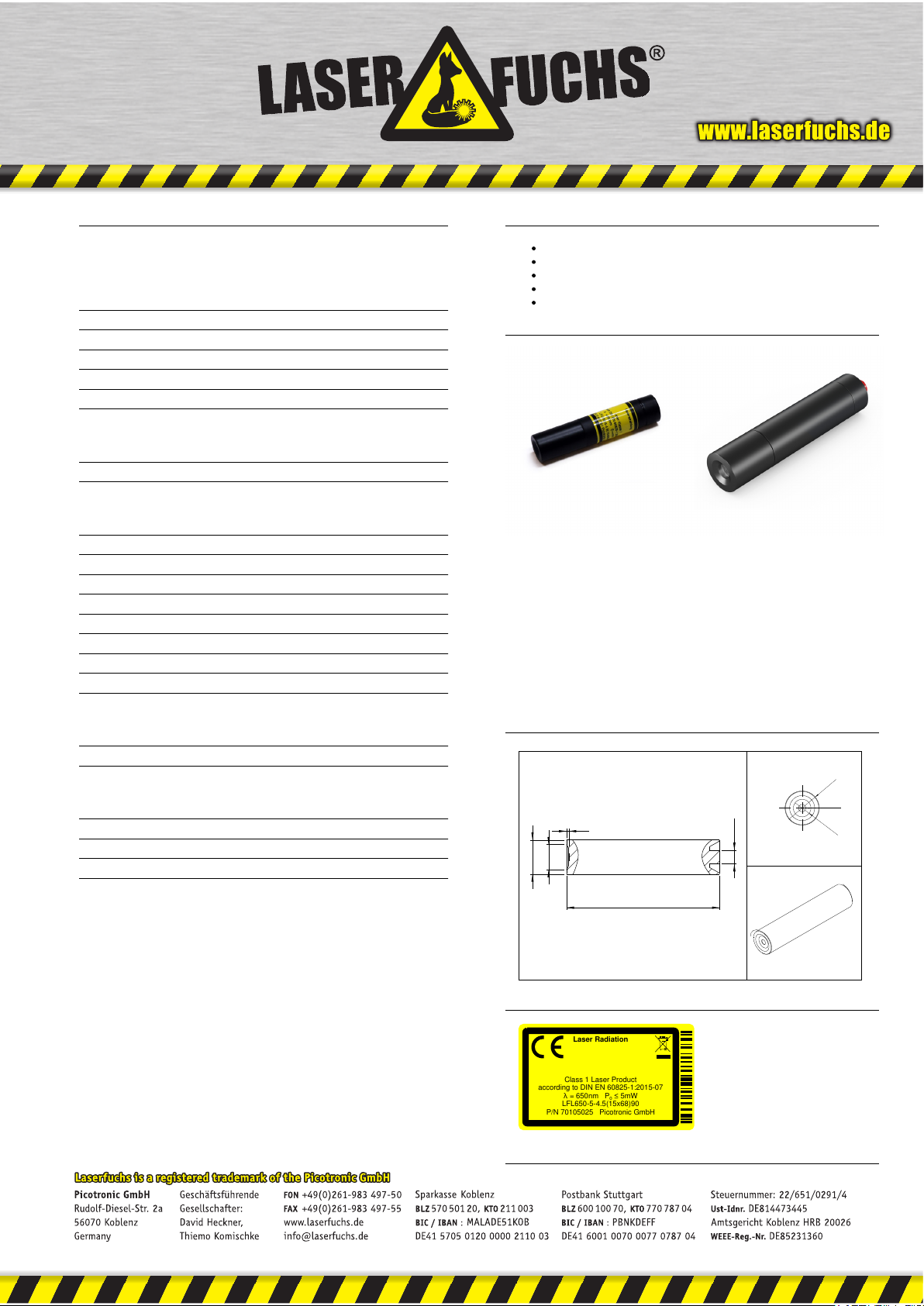

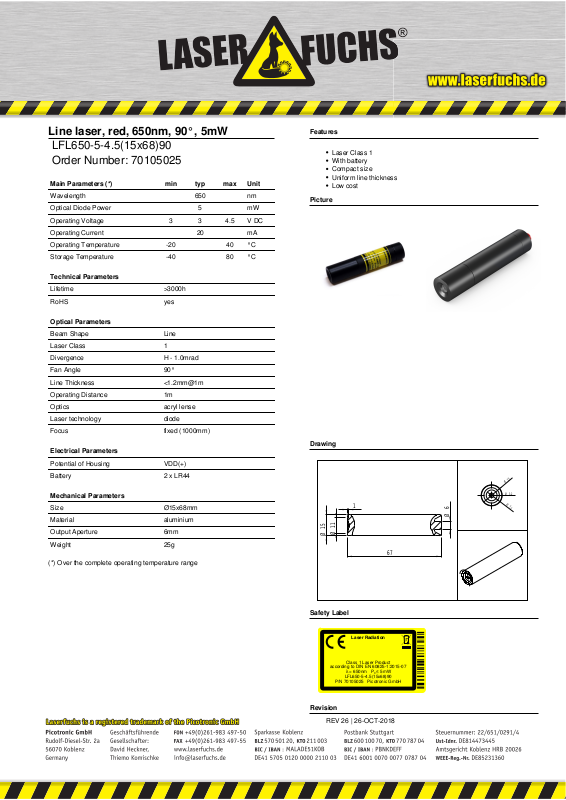

Line laser, red, 650nm, 90°, 5mW
67
Ø
15
Ø
6
1
Ø
11
Ø
15
Ø
7,7
Ø
3,2
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LFL650-5-4.5(15x68)90
P/N 70105025 Picotronic GmbH
LFL650-5-4.5(15x68)90
Order Number: 70105025
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 5 mW
Operating Voltage 3 3 4.5 V DC
Operating Current 20 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 90°
Line Thickness <1.2mm@1m
Operating Distance 1m
Optics acryl lense
Laser technology diode
Focus fixed (1000mm)
Electrical Parameters
Potential of Housing VDD(+)
Battery 2 x LR44
Features
Laser Class 1
With battery
Compact size
Uniform line thickness
Low cost
Drawing
Mechanical Parameters
Size Ø15x68mm
Material aluminium
Output Aperture 6mm
Weight 25g
(*) Over the complete operating temperature range
Safety Label
Revision
REV 26 | 26-OCT-2018
