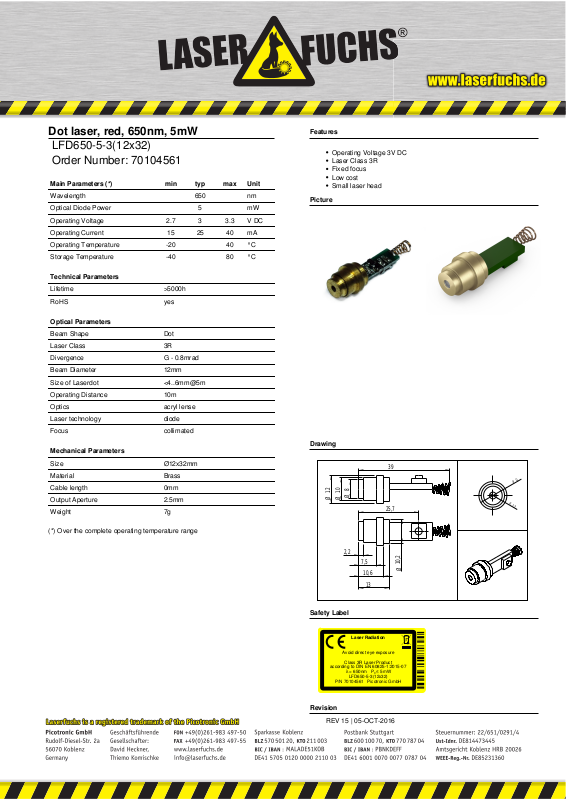

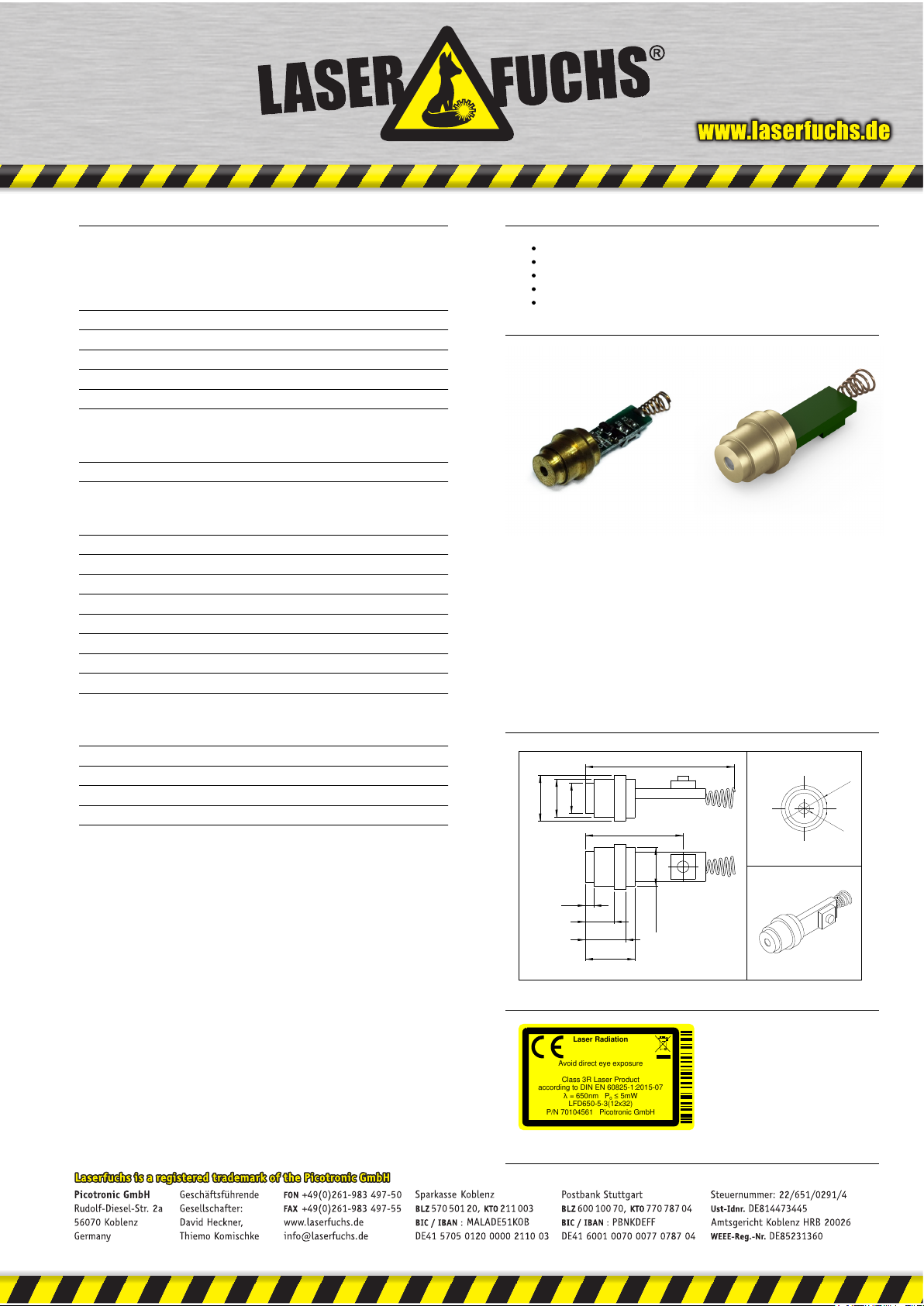

Page 1
Dot laser, red, 650nm, 5mW
Ø
10,2
2,2
7,5
10,6
13
25,7
Ø
8
Ø10Ø
12
39
Ø
12
Ø
2,9
Laser Radiation
Avoid direct eye exposure
Class 3R Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LFD650-5-3(12x32)
P/N 70104561 Picotronic GmbH
LFD650-5-3(12x32)
Order Number: 70104561
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 5 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 25 40 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 3R
Divergence G - 0.8mrad
Beam Diameter 12mm
Size of Laserdot <4..6mm@5m
Operating Distance 10m
Optics acryl lense
Laser technology diode
Focus collimated
Mechanical Parameters
Size Ø12x32mm
Material Brass
Cable length 0mm
Output Aperture 2.5mm
Weight 7g
Features
Operating Voltage 3V DC
Laser Class 3R
Fixed focus
Low cost
Small laser head
Drawing
(*) Over the complete operating temperature range
Safety Label
Revision
REV 15 | 05-OCT-2016
