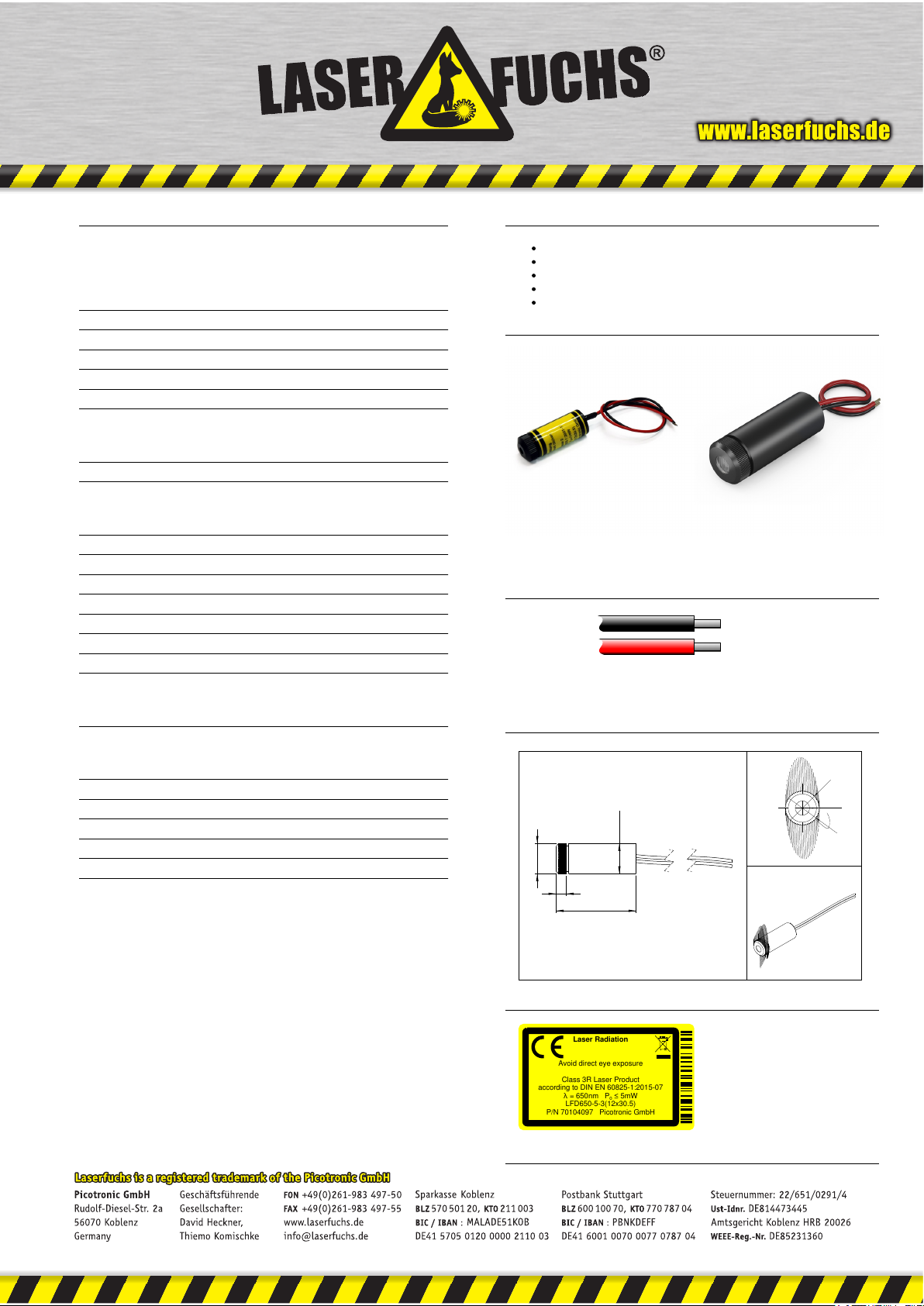

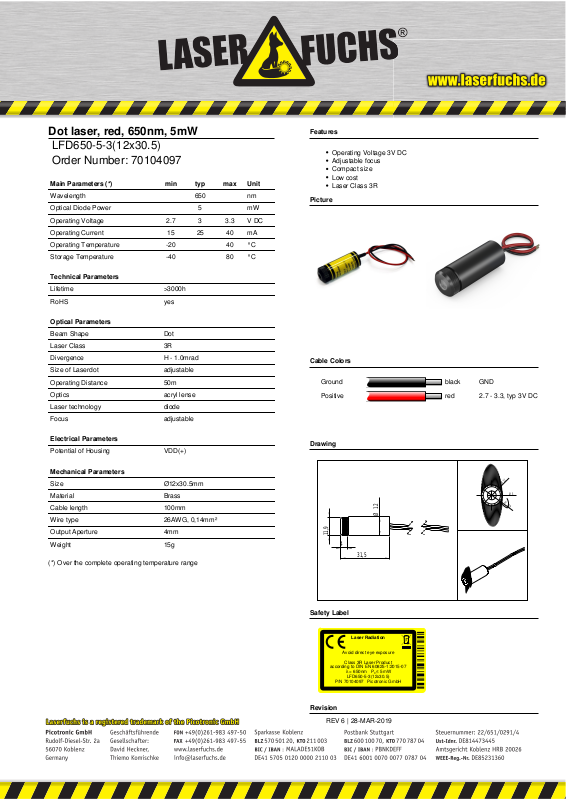

Dot laser, red, 650nm, 5mW
31,5
4
11,9
Ø
12
Ø
11,9
Ø
12
Ø
5
Laser Radiation
Avoid direct eye exposure
Class 3R Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 5mW
LFD650-5-3(12x30.5)
P/N 70104097 Picotronic GmbH
LFD650-5-3(12x30.5)
Order Number: 70104097
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Diode Power 5 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 15 25 40 mA
Operating Temperature -20 40 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >3000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 3R
Divergence H - 1.0mrad
Size of Laserdot adjustable
Operating Distance 50m
Optics acryl lense
Laser technology diode
Focus adjustable
Features
Operating Voltage 3V DC
Adjustable focus
Compact size
Low cost
Laser Class 3R
Cable Colors
Ground black GND
Positive red 2.7 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing VDD(+)
Mechanical Parameters
Size Ø12x30.5mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 4mm
Weight 15g
(*) Over the complete operating temperature range
Drawing
Safety Label
Revision
REV 6 | 28-MAR-2019
