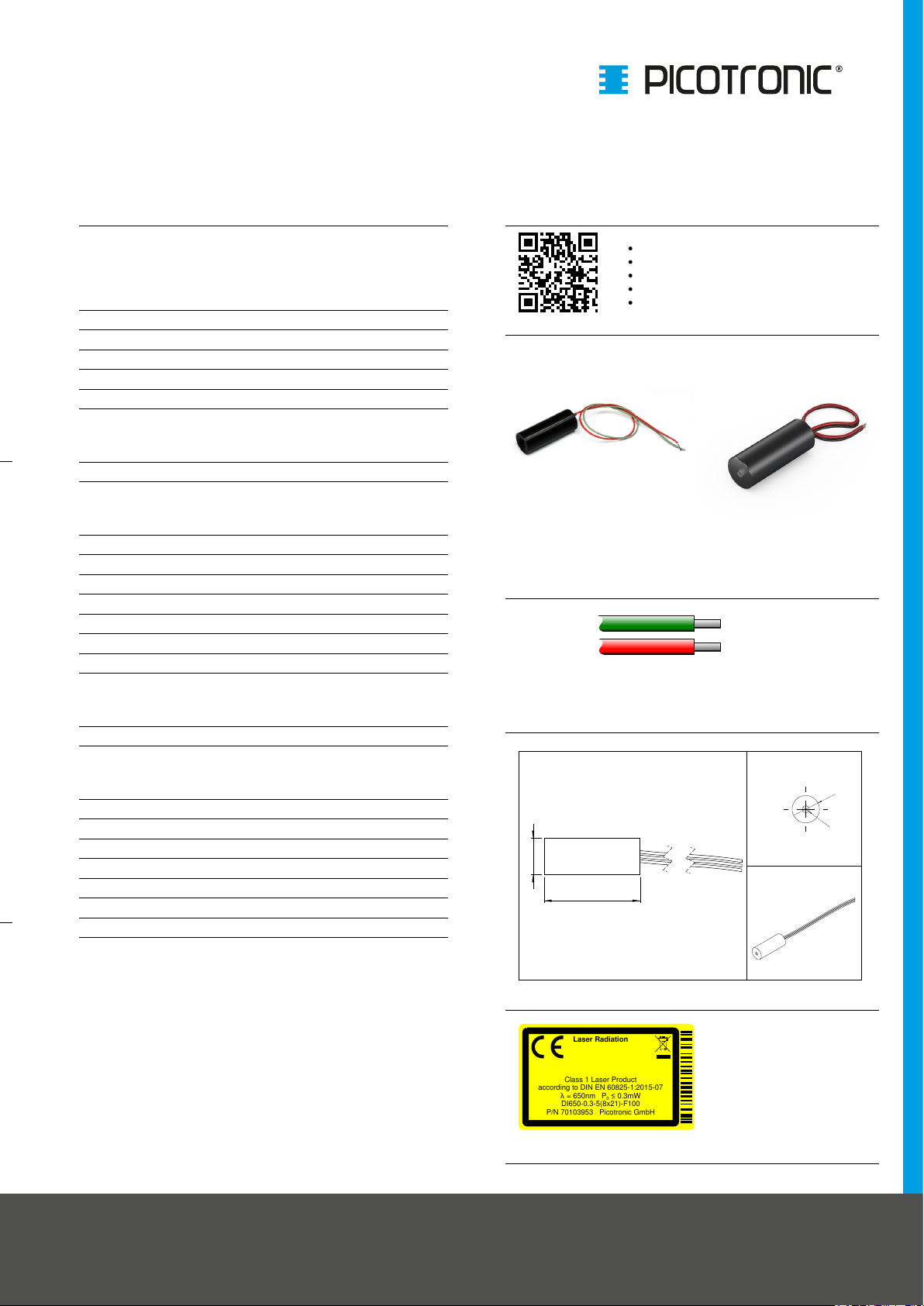

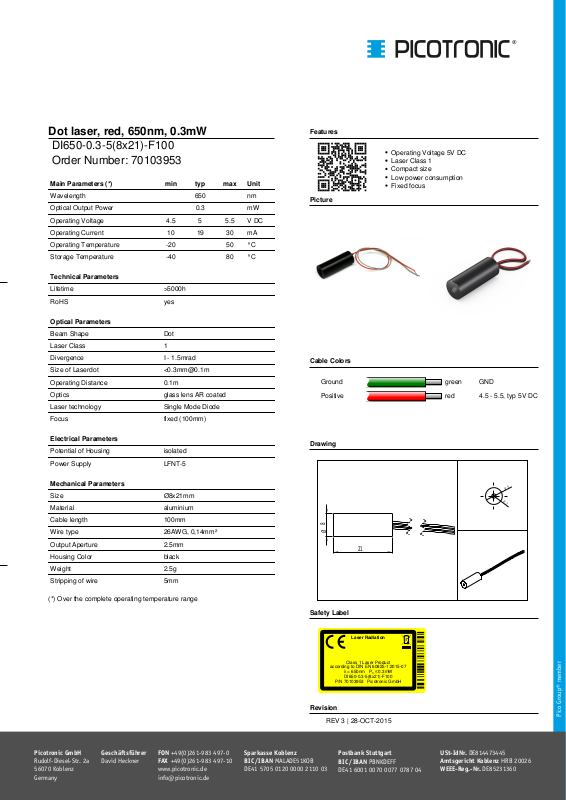

Dot laser, red, 650nm, 0.3mW
Ø
8
21
Ø
8
Ø
2
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 0.3mW
DI650-0.3-5(8x21)-F100
P/N 70103953 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DI650-0.3-5(8x21)-F100
Order Number: 70103953
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 0.3 mW
Operating Voltage 4.5 5 5.5 V DC
Operating Current 10 19 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 1
Divergence I - 1.5mrad
Size of Laserdot <[email protected]
Operating Distance 0.1m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (100mm)
Features
Operating Voltage 5V DC
Laser Class 1
Compact size
Low power consumption
Fixed focus
Cable Colors
Ground green GND
Positive red 4.5 - 5.5, typ 5V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-5
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 2.5mm
Housing Color black
Weight 2.5g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Drawing
Safety Label
Revision
REV 3 | 28-OCT-2015
