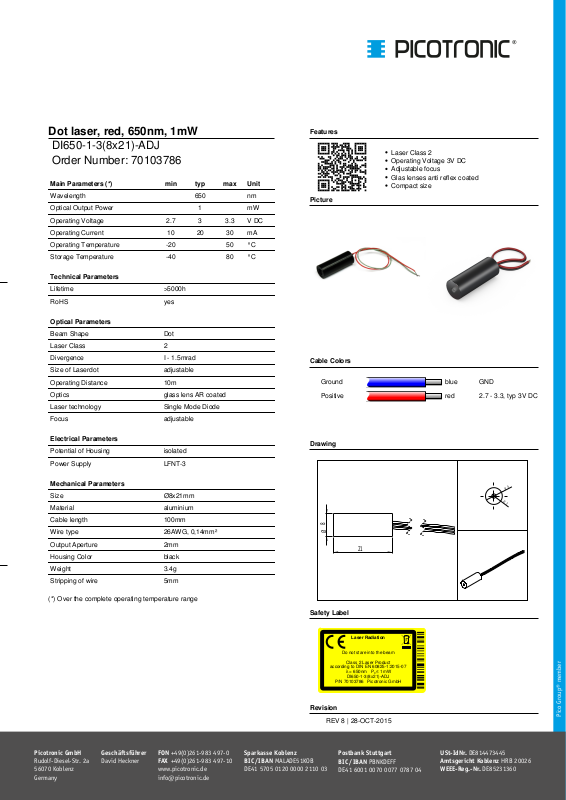

Dot laser, red, 650nm, 1mW
Ø
8
21
Ø
8
Ø
2
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DI650-1-3(8x21)-ADJ
P/N 70103786 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DI650-1-3(8x21)-ADJ
Order Number: 70103786
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence I - 1.5mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Features
Laser Class 2
Operating Voltage 3V DC
Adjustable focus
Glas lenses anti reflex coated
Compact size
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 2mm
Housing Color black
Weight 3.4g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)

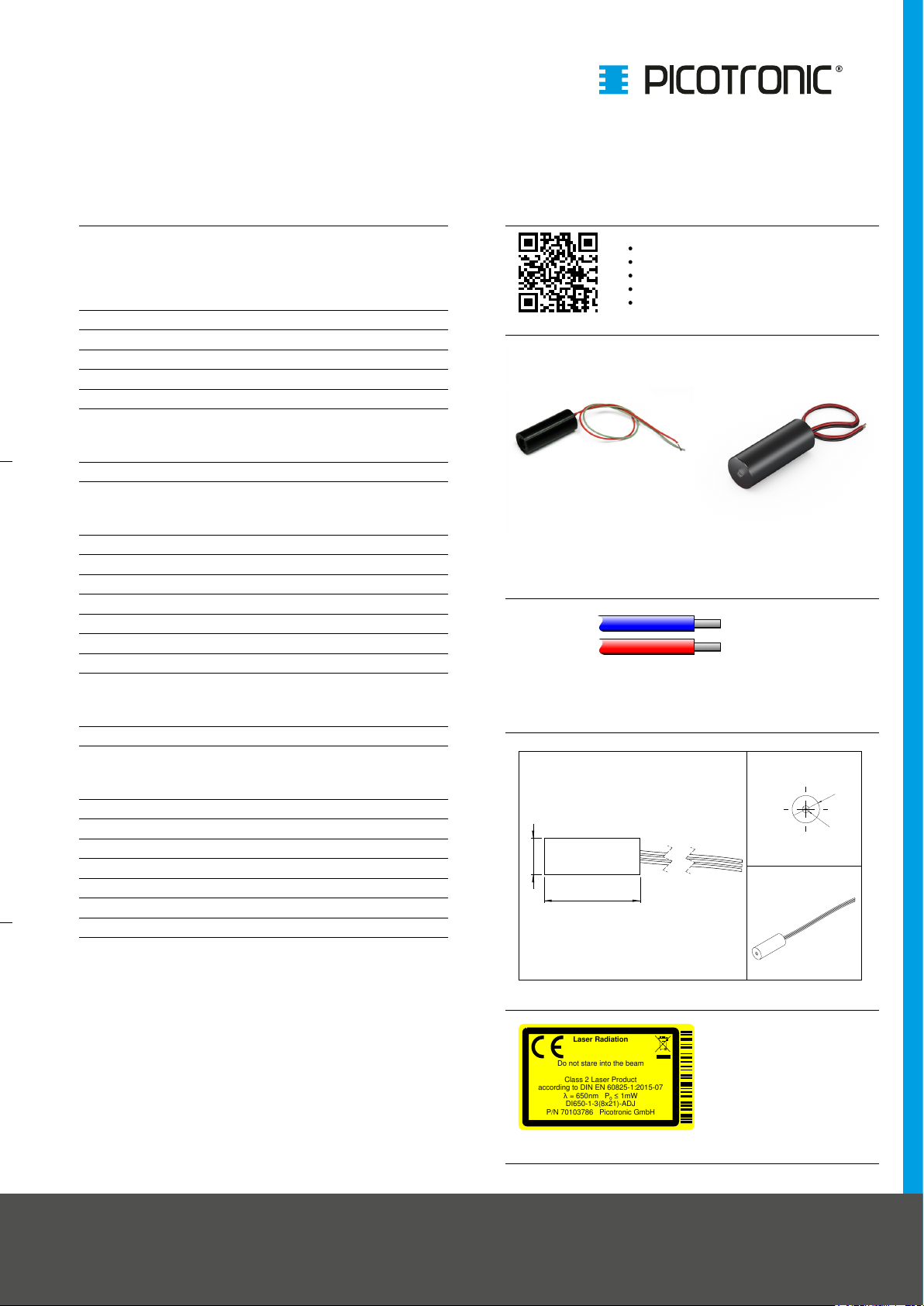

Drawing
Safety Label
Revision
REV 8 | 28-OCT-2015
