Dot laser, infrared, 850nm, 0.4mW
Invisible
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 850nm P₀ ≤ 0.5mW
DC850-0.4-6(10x27)
P/N 70102680 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)

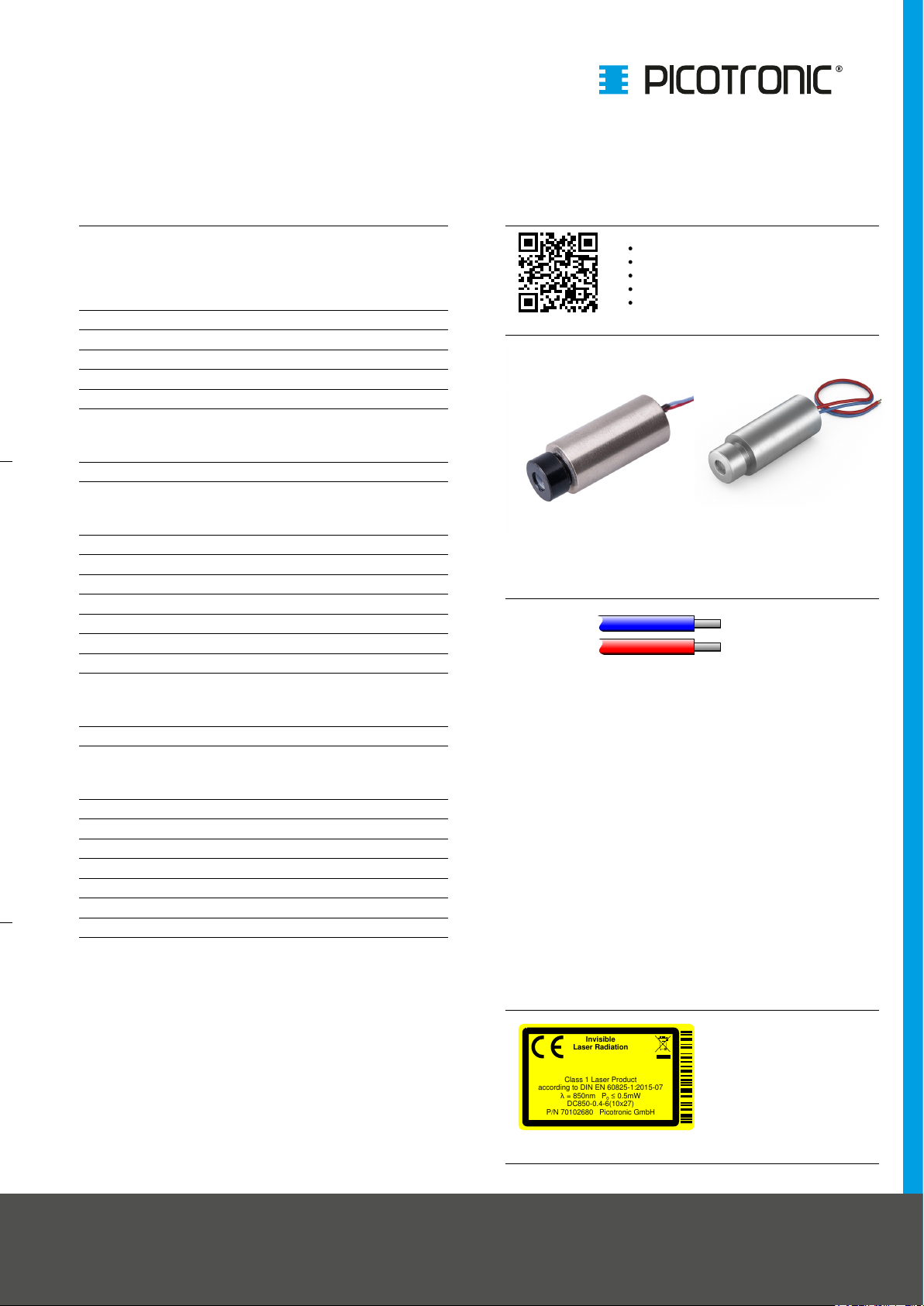

DC850-0.4-6(10x27)
Order Number: 70102680
Main Parameters (*) min typ max Unit
Wavelength 850 nm
Optical Output Power 0.2 0.4 0.5 mW
Operating Voltage 5.4 6 6.6 V DC
Operating Current 5 12 20 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 1
Divergence C - 0.4mrad
Size of Laserdot adjustable
Operating Distance 50m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus adjustable
Features
Low power consumption
Image processing
Compact size
Laser Class 1
Operating Voltage 6V DC
Cable Colors
Ground blue GND
Positive red 5.4 - 6.6, typ 6V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-6-C
Mechanical Parameters
Size Ø10x27mm
Material Stainless Steel
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 4mm
Housing Color silver
Weight 10g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Safety Label
Revision
REV 11 | 06-DEC-2018
