Line laser, red, 635nm, 90°, 2.5mW
Ø
12
32
Ø
12
Ø
5,6
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 2.5mW
LH635-2.5-3(12x32)
P/N 70101690 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)

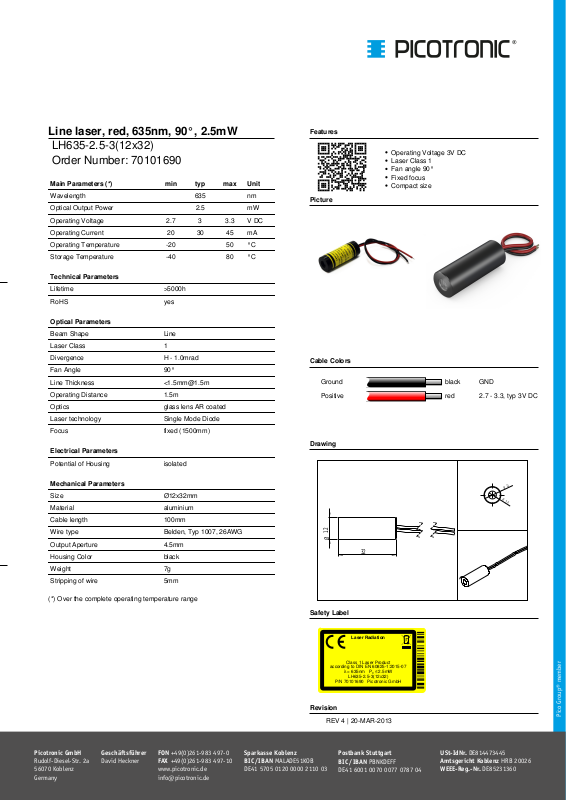

LH635-2.5-3(12x32)
Order Number: 70101690
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 2.5 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 20 30 45 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 1
Divergence H - 1.0mrad
Fan Angle 90°
Line Thickness <[email protected]
Operating Distance 1.5m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (1500mm)
Electrical Parameters
Potential of Housing isolated
Features
Operating Voltage 3V DC
Laser Class 1
Fan angle 90°
Fixed focus
Compact size
Cable Colors
Ground black GND
Positive red 2.7 - 3.3, typ 3V DC
Drawing
Mechanical Parameters
Size Ø12x32mm
Material aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 4.5mm
Housing Color black
Weight 7g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 4 | 20-MAR-2013
