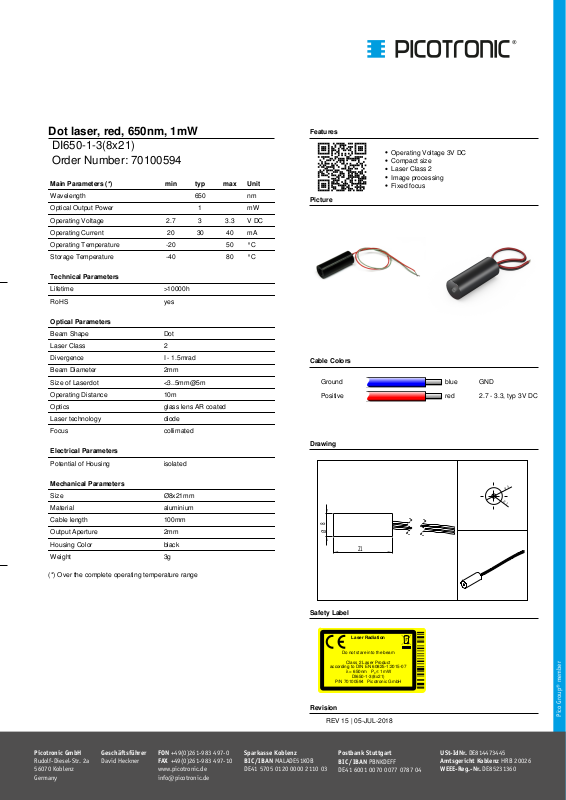

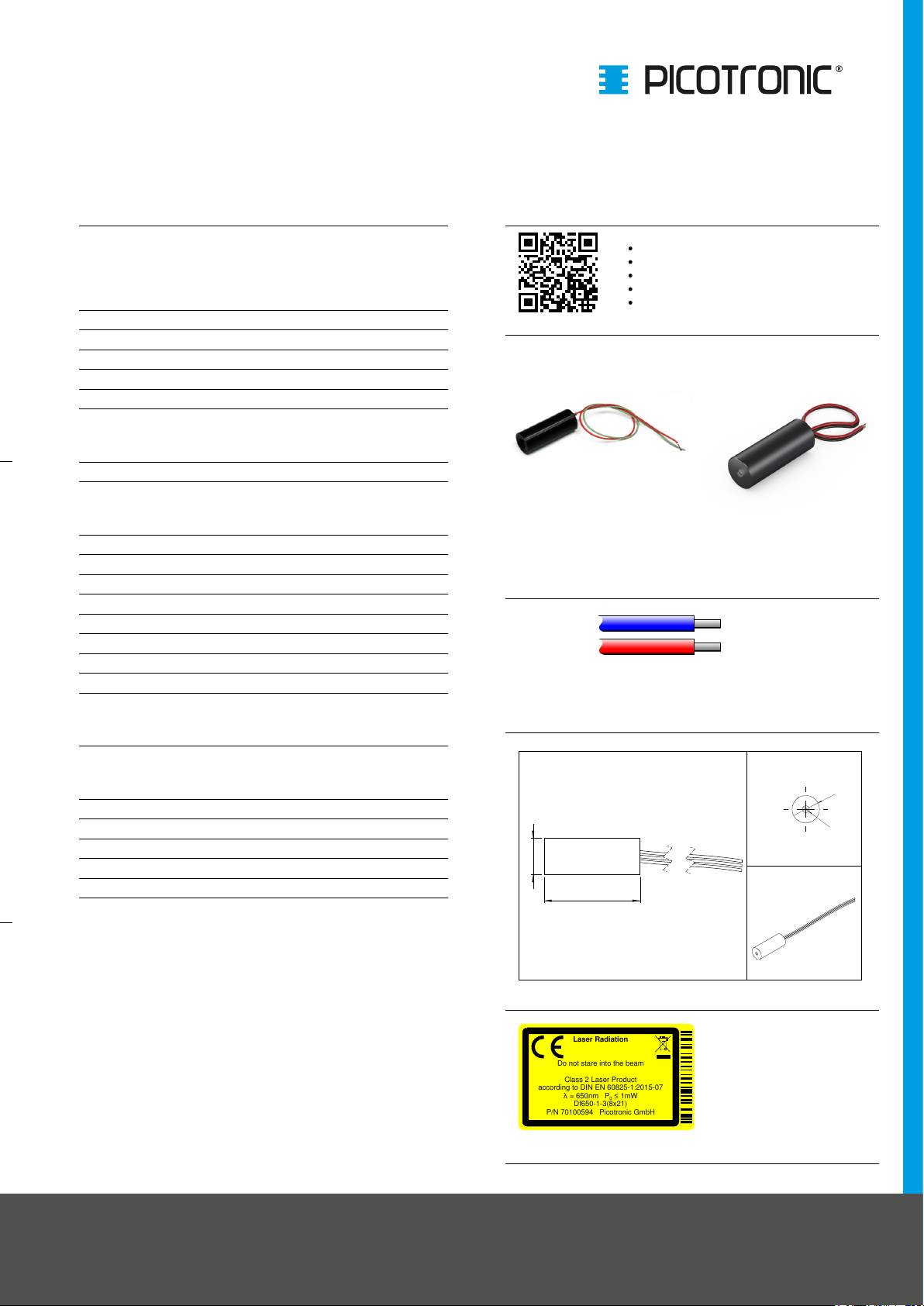

Dot laser, red, 650nm, 1mW
Ø
8
21
Ø
8
Ø
2
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DI650-1-3(8x21)
P/N 70100594 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DI650-1-3(8x21)
Order Number: 70100594
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 20 30 40 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >10000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence I - 1.5mrad
Beam Diameter 2mm
Size of Laserdot <3..5mm@5m
Operating Distance 10m
Optics glass lens AR coated
Laser technology diode
Focus collimated
Electrical Parameters
Potential of Housing isolated
Features
Operating Voltage 3V DC
Compact size
Laser Class 2
Image processing
Fixed focus
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Drawing
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Output Aperture 2mm
Housing Color black
Weight 3g
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 15 | 05-JUL-2018
