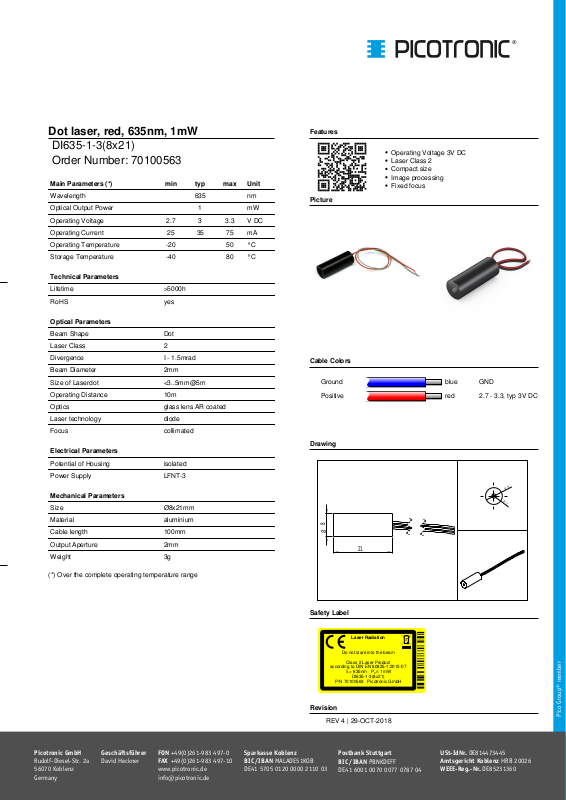

Dot laser, red, 635nm, 1mW
Ø
8
21
Ø
8
Ø
2
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 635nm P₀ ≤ 1mW
DI635-1-3(8x21)
P/N 70100563 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DI635-1-3(8x21)
Order Number: 70100563
Main Parameters (*) min typ max Unit
Wavelength 635 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 25 35 75 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence I - 1.5mrad
Beam Diameter 2mm
Size of Laserdot <3..5mm@5m
Operating Distance 10m
Optics glass lens AR coated
Laser technology diode
Focus collimated
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Features
Operating Voltage 3V DC
Laser Class 2
Compact size
Image processing
Fixed focus
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Drawing
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Output Aperture 2mm
Weight 3g
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Safety Label
Revision
REV 4 | 29-OCT-2018
