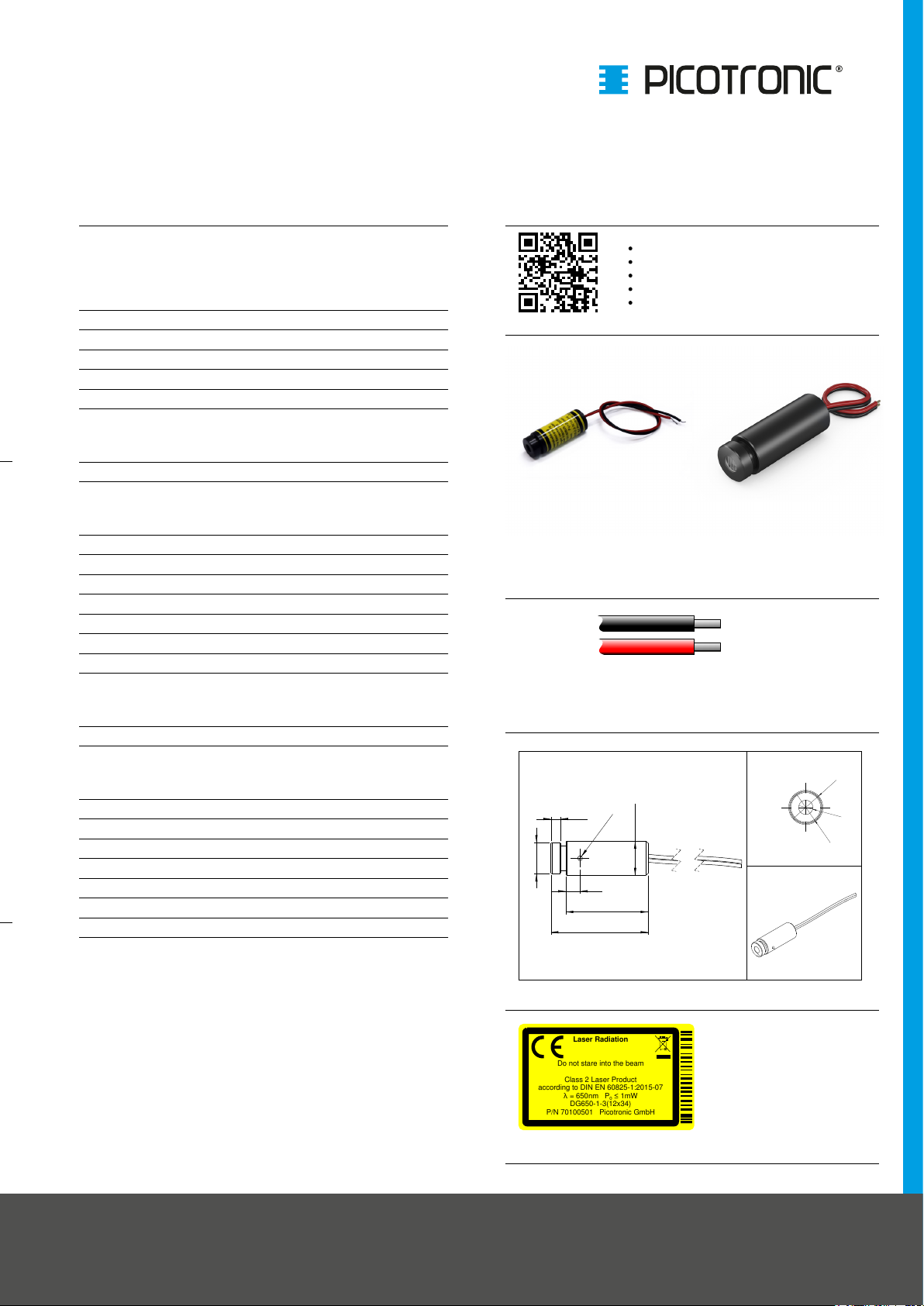

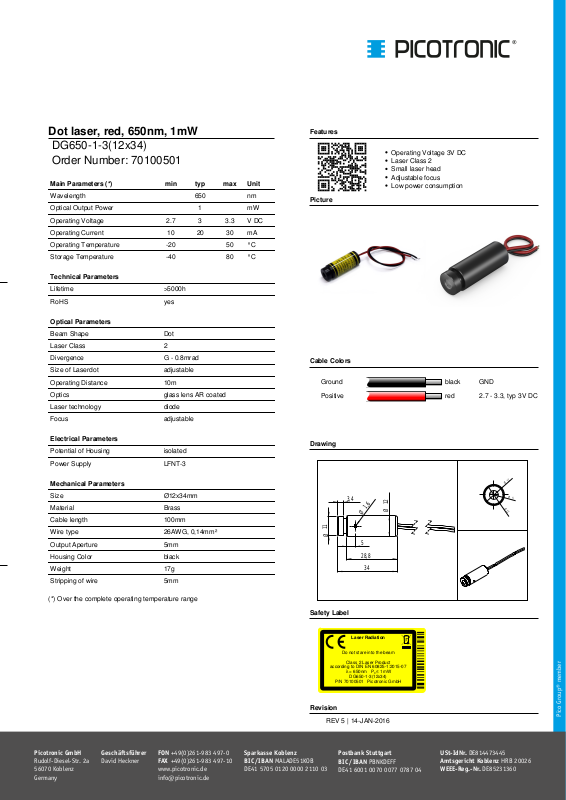

Dot laser, red, 650nm, 1mW
Ø
11
Ø
12
3,4
34
28,8
5
Ø
1,6
Ø
12
Ø
11
Ø
5
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DG650-1-3(12x34)
P/N 70100501 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
DG650-1-3(12x34)
Order Number: 70100501
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 10 20 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence G - 0.8mrad
Size of Laserdot adjustable
Operating Distance 10m
Optics glass lens AR coated
Laser technology diode
Focus adjustable
Features
Operating Voltage 3V DC
Laser Class 2
Small laser head
Adjustable focus
Low power consumption
Cable Colors
Ground black GND
Positive red 2.7 - 3.3, typ 3V DC
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø12x34mm
Material Brass
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 5mm
Housing Color black
Weight 17g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Powered by TCPDF (www.tcpdf.org)
Drawing
Safety Label
Revision
REV 5 | 14-JAN-2016
