Pico Technology TA058 User Guide

Pico Technology
Lemo
®
,
Probus
®
and Pico Technology
are registered trademarks.
Issue history:
Manufactured in Republic of China.
ctices
or practices
to this product or other

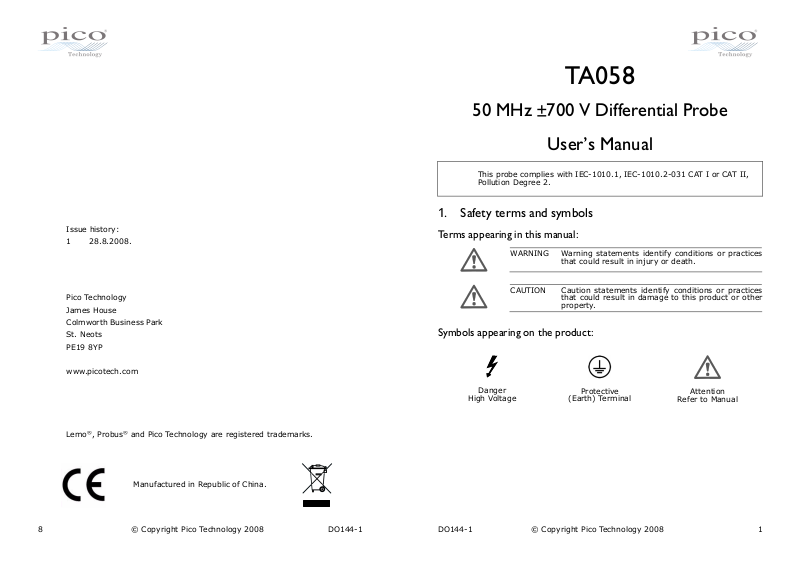

TA058
50 MHz ±700 V Differential Probe
User’s Manual
This probe complies with IEC-1010.1, IEC-1010.2-031 CAT I or CAT II, Pollution Degree 2.
1. Safety terms and symbols
1 28.8.2008.
James House
Colmworth Business Park
St. Neots
PE19 8YP
www.picotech.com
Terms appearing in this manual:
WARNING Warning statements identify conditions or pra
CAUTION Caution statements identify conditions
that could result in injury or death.
that could result in damage property.
Symbols appearing on the product:
Danger
High Voltage
Protective
(Earth) Terminal
Refer to Manual
Attention
8 © Copyright Pico Technology 2008 DO144-1
DO144-1 © Copyright Pico Technology 2008 1
is
output lead is grounded. You
may do this either by connecting the BNC shell to a
, or by
the auxiliary grounding terminal to a
raph for
2. General safety summary
Please review the following safety precautions to avoid injury and prevent damage to this probe or any products that are connected to it.
Observe maximum working voltage
To avoid any injury, do not use the probe when the voltage between either input lead and earth is above 600 V RMS CAT I.
Must be grounded
This probe is grounded with the shell of the BNC connector and an auxiliary grounding terminal.
WARNING Before making connections to the input leads of th
You must verify that the probe is securely grounded before connecting the probe input leads. Some types of measuring instrument, such as a USB oscilloscope connected to a laptop, are unlikely to be grounded even if the laptop is powered from the mains. Bench-top oscilloscopes are usually grounded, but in some cases may have been isolated from ground. A USB oscilloscope connected to a desktop computer is usually grounded. In any case, do not assume that the measurement instrument is grounded. Always verify the ground connection for yourself before connecting the probe input leads.
Use fused test prods if necessary
If this probe is intended to use for measurements in circuits of INSTALLATION CATEGORY III, it should incorporate with fused test prods.
Do not operate without covers
To avoid electric shock or fire hazard, do not operate this probe with the covers removed.
Do not operate in wet or damp conditions
To avoid electric shock, do not operate this probe in wet or damp conditions.
probe, ensure that its
grounded measurement instrument connecting reliable ground point. Read the next parag further advice.
9. Derating curve
The derating curve for absolute maximum input voltage is as follows:
600
1000
100
10
1
Voltage (V RMS)
1.E+06 1.E+07 1.E+08
600
20
Frequency (Hz)
10. Test procedure
a. Connect the BNC output connector to the vertical input of a general-purpose
oscilloscope.
b. Connect an appropriate power source to this probe and then turn it on. c. Set the oscilloscope input coupling to DC and 1 V/div. Center the trace on the
display.
d. Connect the inputs of the probe to power lines. e. A 50 Hz / 60 Hz sine-wave of proper amplitude will be displayed on the screen
of the oscilloscope. This means the probe is working properly.
11. Cleaning
Use a soft cloth to clean the probe, taking care not to cause damage. a. Do not immerse the probe.
b. Do not use abrasive cleaners. c. Do not use chemicals contains benzene or similar solvents.
Do not operate in explosive atmosphere
To avoid injury or fire hazard, do not operate this probe in an explosive atmosphere.
Avoid exposed circuitry
To avoid injury, remove jewelry such as rings, watches and other metallic objects. Do not touch exposed connections and components when power is present.
2 © Copyright Pico Technology 2008 DO144-1
DO144-1 © Copyright Pico Technology 2008 7
use only the
accessories designed for use with this differential
the circuit
under test. It is not intended for electrically
insulating the circuit under test and the measuring
8. Specifications
Bandwidth DC to 50 MHz (-3 dB) Attenuation ratio 1:10 Accuracy ±1% Rise time < 7 ns Input impedance 1.6 MΩ || 7 pF each side to ground Input Voltage
Differential Range* ±70 V (DC + Peak AC) or 70 V RMS Common Mode Range* ±700V (DC + Peak AC) or 600 V RMS Absolute Max. Voltage*
(either input to ground)
Output
Swing (into 5 kΩ load) ±7 V Offset (typical) < ±2 mV Noise (typical) 0.7 mV RMS
Source impedance (typical) 50 Ω CMRR (typical) -95 dB @ 60 Hz; -60 dB @ 1 MHz Ambient operating temperature -10 to +40 °C Ambient storage temperature -30 to +70 °C Ambient operating humidity 25 to 85% RH Ambient storage humidity 25 to 85% RH Power requirements**
Option 1 Mains adaptor (6 V DC 90 mA or 9 V DC 70 mA) Option 2 Removable battery pack (4xAA cells) Option 3 Power leads
Optional extension plugs for mains adaptor
- Input One jack with 1 A current rating
- Output Three plugs with 1 A current rating Length of input leads 50 cm Length of BNC cable 125 cm Weight 300 g Dimension (LxWxH) 111 mm x 22 mm x 14 mm
* Voltage limit is the lesser of the DC+Peak AC and RMS values. ** a. The supplied voltage must be less than 16 V and greater than 3.3 V, otherwise
the probe could be damaged or might not operate properly.
b. Polarity is “+” inside and “–” outside. If the polarity is wrong, a built-in circuit
protects the probe so that no danger or damage will occur.
c. When the voltage of the cells becomes too low, the power indicator on the
panel will flicker.
±700 V (DC + Peak AC) or 600 V RMS CAT I
Use proper power source
To ensure proper functioning of this probe, use four AA cells or a 6 V DC / 90 mA mains adaptor or 9 V DC / 70 mA mains adaptor or power leads.
Do not operate the probe if it is damaged
If you suspect there is damage to this probe, have it inspected by qualified service personnel.
3. Description
By enabling conventional oscilloscopes to display and measure in-circuit waveforms that are referenced to high common-mode voltages, this differential probe extends the measurement capability of oscilloscopes to electronic power converters, inverters, motor speed controls, switch-mode power supplies and many other applications.
4. Installation
a. Simply plug in the BNC output connector to the vertical input of a
general-purpose oscilloscope or other measurement instrument, and connect the auxiliary grounding terminal to a proper ground. The measurement instrument must have a ground reference.
b. Connect an appropriate power source (mains adaptor, battery pack or power
lead) to this probe and then turn it on.
WARNING To protect against electric shock,
c. Using the appropriate probe accessories, connect the input to the circuits under
measurement.
CAUTION This probe is designed for carrying out differential
probe.
measurements between two points on
instrument.
6 © Copyright Pico Technology 2008 DO144-1
DO144-1 © Copyright Pico Technology 2008 3
a
f
d
5. Appearance
The differential probe looks like this:
c
e
a. Output Cable: The BNC output connector and an auxiliary grounding terminal
are connected to the oscilloscope.
b. Removable Battery Pack (optional): 4 x AA cells
c. Power Source Connector. This can be connected to the following sources:
- Mains adaptor (6 V DC / 90 mA or 9 V DC / 70 mA)
- Removable battery pack (4 x AA cells)
- Power leads
d. Power Supply
e. Probe Body
f. The input leads of the differential probe
g. Sprung Hooks. The sprung hooks are connected safely to test points in
circuits.
b
g
6. Power leads
Two types of power leads are available for use with this instrument: a. Lemo
b. Probus
®
Lead: For oscilloscopes with Lemo® power connectors.
®
Lead: For oscilloscopes with Probus® power connectors.
Power Lead
Oscilloscope front panel
7. Removable Battery Pack
The following figure illustrates the operation of the removable battery pack;
4 © Copyright Pico Technology 2008 DO144-1
DO144-1 © Copyright Pico Technology 2008 5
