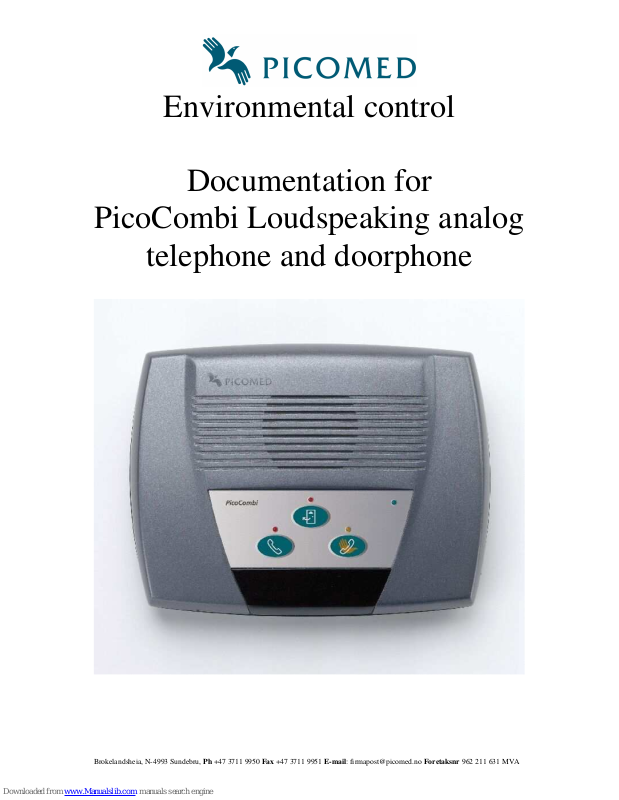

Brokelandsheia, N-4993 Sundebru, Ph +47 3711 9950 Fax +47 3711 9951 E-mail: firmapost@picomed.no Foretaksnr 962 211 631 MVA
Environmental control
Documentation for
PicoCombi Loudspeaking analog
telephone and doorphone
PicoCombi loudspeaking analog telephone and doorphone Page 2.
Revision history
When changes are made on the product or in the documentation, this will be given a revision
number. The list below keeps track of these changes. It will be signed by the person
responsible for updating the documentation.
Revisionlist:
Dato Navn Kort beskrivelse av endring
14.02.03 Bent-Håvard Sollid. First version with English text.
25.02.03 Bent-Håvard Sollid. Changed the appearance of the quick guide. Ch 3.17.
Added wiring diagram between EFP-Picolo. Ch 7.2.2.
04.08.03 Bent-Håvard Sollid. Updated in accordance to SW version 1.02.
• Changed record key for sound recordings.
• Corrected IR-format compatibility.
• Manual divided in 3 versions according to product versions.
30.01.04 Bent-Håvard Sollid. New version of EC Declaration of Conformity. Ch 7.6.
Added information in drilling template. Kap 8.
12.07.05 Bent-Håvard Sollid. Removed electrical diagram for doorphone since this is a part of the
documentation for the doorphone.
Changed colours with reference to wiring for the EFP 2005. Ch 7.2.2.
23.05.06 Bent-Håvard Sollid. Updated in accordance to SW version 1.05 (disable ring-sound). Ch 1,
3.1.1, 3.4, 3.5.8, 4.3, 6.
Changed revision list to updated look.
Contents – Documentation PicoCombi
1 Introduction ...................................................................................................................... 4
2 Getting started .................................................................................................................. 4
2.1 Keys............................................................................................................................ 5
2.2 Light indicators .......................................................................................................... 5
2.3 Connections................................................................................................................ 5
3 User manual ...................................................................................................................... 6
3.1 Incoming call.............................................................................................................. 6
3.1.1 Disable ringing sound......................................................................................... 6
3.2 Outgoing call .............................................................................................................. 6
3.3 Telephone conversation.............................................................................................. 7
3.4 Doorphone conversation ............................................................................................ 7
3.5 Functions .................................................................................................................... 7
3.5.1 Stand by.............................................................................................................. 7
3.5.2 Hook off .............................................................................................................8
3.5.3 Conversation with doorphone ............................................................................8
3.5.4 Conversation with doorphone, parked telephone............................................... 9
3.5.5 Volume adjustment ............................................................................................ 9
3.5.6 Auditive feedback .............................................................................................. 9
3.5.7 Voice message.................................................................................................. 10
3.5.8 Automatic answering function ......................................................................... 10
3.5.9 Telephone book................................................................................................10
3.5.10 Tone generating................................................................................................ 11
3.5.11 Doorphone 1 and 2 ........................................................................................... 11
3.5.12 Power failure .................................................................................................... 11
3.5.13 Accessories....................................................................................................... 12
3.5.14 User manual - quick guide ............................................................................... 13
4 Programming.................................................................................................................. 15
PicoCombi loudspeaking analog telephone and doorphone Page 3.
4.1 Getting started ..........................................................................................................15
4.2 Programming – plain................................................................................................ 15
4.3 Programming – advanced......................................................................................... 16
4.3.1 Additional explanations for the table above 1)................................................. 18
4.4 Programming – IR-training ...................................................................................... 19
4.5 Programming – back to default settings................................................................... 20
5 Maintenance.................................................................................................................... 20
6 Trouble shooting............................................................................................................. 20
6.1 When errors arise ..................................................................................................... 21
7 Technical information.................................................................................................... 21
7.1 Fixed mounting ........................................................................................................ 21
7.2 Electrical connections .............................................................................................. 21
7.2.1 Fixed 12 VDC and external IR-sensor ............................................................. 22
7.2.2 Doorphone........................................................................................................ 23
7.2.3 Multiple indoor units........................................................................................ 24
7.2.4 Door indicator .................................................................................................. 24
7.2.5 External switches.............................................................................................. 25
7.2.6 External loudspeaker........................................................................................25
7.2.7 External microphone ........................................................................................ 25
7.3 Jumpers..................................................................................................................... 25
7.4 Default (recycling) ................................................................................................... 25
7.5 Technical data .......................................................................................................... 26
7.6 CE markings............................................................................................................. 26
8 Drilling template............................................................................................................. 28
PicoCombi loudspeaking analog telephone and doorphone Page 4.
1 Introduction
This documentation are made for Picomeds PicoCombi loudspeaking IR-controlled analog
telephone and doorphone, which is a part of Picomeds environmental system. It does not have
any telephone receiver, only loudspeaking function. An external loudspeaker and/or
microphone can be connected. It is controlled by a remote controller which transmits infrared
(IR) signals. One can use Picomeds IR-remote controllers, or it is possible to let the device be
controlled by a foreign IR-remote controller. There is a built-in IR-receiver, and in addition it
is possible to connect two external IR-sensors. PicoCombi is designed for indoor use.
Picomeds loudspeaking phones can be delivered in different variants. These are:
• Picolo – doorphone with one or two outdoor devices.
• PicoPhone – analog telephone.
• PicoCombi – dual purpose doorphone and analog telephone.
It is possible to record speech into it, and the recorded speech are divided into two types:
• Auditive feedback which is ment to be used as guidance for the user about which
functions are choosen. For example as a information about which digits pressed in a
telephone number.
• Voice messages which can be played back to the one you are speaking with in the
telephone or in the outdoor phone.
Switches can be connected to the loudspeaking products to control the main functions, in
addition to external speaker and microphone. A built-in automatic answering function can be
activated if required.
There is a number of programmable settings to make. I.e the number of ringing signals before
the automatic answering function triggers, disable ringing sound, which IR-format to be the
active one, trainable IR and so on.
2 Getting started
The following parts are included when the product is delivered:
• Device.
• Powersupply for connection to AC power outlet.
• Telephone wire.
• This documentation.
In addition a remote controller which transmits infrared signals (IR) should be used to control
the device to get full access to all functions. PicoCombi can be connected to 1 or 2 doorphone
outdoor units which are not delivered with the apparatus.
• Connect the power supply to a 230 VAC line and thereafter connect the output from the
power supply to the connection point marked with ”12V” on the reverse of the apparatus.
• Connect the telephone wire to an analog telephone line and the other end of the wire to the
reverse of the apparatus in the connection marked with ”Tele”.
• Connect wires from outdoor unit to the terminal strip inside PicoCombi (you have to
loosen 4 screws in the bottom part of the unit to open it). You will find more information
about this in chapter 7.2.2.
PicoCombi loudspeaking analog telephone and doorphone Page 5.
The device is now ready for use. When delivered, it is adjusted to be controlled by IR-format
New Assistant with user code 5 (NA5). All channels from 0 to 15 (0-9, A-F) should be
accessible on the IR-remote controller to control the loudspeaking devices fully.
• An overview of the main functions are given in 3.5.14.
• A complete description of all functions are given in chapter 3.
• How to save numbers (up to 50 pcs) in the telephone book are described in chapter 4.2.
• To get the most out of all functions in the PicoCombi, the installer should go through all
settings and make any changes in the advanced programming mode. This mode are
described in chapter 4.3.
• It is recommended that auditive feedback is recorded before the unit shall be used. You
will find more information about this in chapter 3.5.6 and 4.3.
2.1 Keys
There are 3 keys on the front of PicoCombi.
Denomination Function
Telephone symbol Hook on/off, and to refuse anyone at the outdoor.
Hand with telephone symbol Enable/disable automatic answering function.
Door symbol Get in touch with anyone at the outdoor unit, and to unlock/open
the door with.
2.2 Light indicators
There are 4 light indicators on the front of PicoCombi.
Denomination Function
Power on Green.
• Illuminates when power are connected to the device.
Telephone receiver Red.
• Illuminates when hooked off.
• Flashing to indicate ”ready to hook off”.
Automatic answering Yellow.
• Steady on when automatic answering function is enabled.
• Flashes slow in programming – plain mode.
• Flashes fast in programming – advanced mode.
• Double flashing in IR-training mode.
• Triple flashing in default recycling mode.
Doorindicator Red.
• Illuminates when door is open.
2.3 Connections
On the reverse of the PicoCombi there are the following connections:
Denomination Type Function
1 3,5 mm monojack. External switch, phone book no 1.
2 3,5 mm monojack. External switch, phone book no 2.
3 3,5 mm monojack. External switch, phone book no 3.
Door 3,5 mm monojack. External switch, doorphone
Ph 3,5 mm monojack. External switch, telephone.
12V 4 pins ”telephonecontact”. Power connection. Only the enclosed
PicoCombi loudspeaking analog telephone and doorphone Page 6.
powersupply must be used together with the
device.
Tele 4 pins ” telephonecontact”
(6 pins wide).
Connection of analog telephone line.
Mic 3,5 mm stereojack. External microphone.
Sp 2,5 mm stereojack. External loudspeaker.
• Internal loudspeaker will automatically be disconnected when an external loudspeaker is
connected.
• Internal microphone will automatically be disconnected when an external microphone is
connected.
3 User manual
PicoCombi can operate in different modes. These are:
• Ordinary use.
• Programming – plain. Programming made only by use of an IR-remote controller. This
mode shall be used to save telephone numbers in the telephone book.
• Programming – advanced. Gives access to advanced settings only. Ment to be used by
technicians when installing the device.
• Programming – IR-training. Let the device teach IR-signals from foreign IR-remote
controllers. Make it possible to control it with other IR-remote controllers.
In chapter 3.5.14 an overview of the main functions are given on one page. The page is ment
as a quick guide for the user.
3.1 Incoming call
PicoCombi gives a ringing signal to indicate an incoming call. You may hook off by the use
of the remote controller, key on device, external switch or by the help of the automatic
answering function if this is enabled. When the automatic answering function activates, there
will be given a warning-tune, and then the PicoCombi hooks off after a predefined number of
ringing signals (the number can be changed in advanced programming mode).
3.1.1 Disable ringing sound
If the unit shall be used only for outgoing calls or, if there should be any other reason for not
have the ringing sound be heard, it is posible to disable it for the telephone and/or the
doorphone. If it is disabled, it will still be possible to use all functions. Contact your
technician to get this altered if there is any need for it.
3.2 Outgoing call
By the help of a remote controller or external switches it is possible to make a phone call.
PicoCombi will wait for the dialling tone before the telephone number are transmitted. If the
dialling tone not is possible to detect for the device, the number will be transmitted after a
predefined time. All numbers will be transmitted as DTMF.
PicoCombi can be programmed with a fixed prefix (i.e ”0”) to be used in combination with a
telephone switch board. If a prefix is enabled, the device will wait for dialling tone after the
prefix is transmitted. When the telephone book is used, the device will transmit the prefix
automatically.
PicoCombi loudspeaking analog telephone and doorphone Page 7.
3.3 Telephone conversation
The telephone line will be active until:
• The user disconnects (”hook on”) with the remote controller, key on PicoCombi, or an
external switch.
• The person you are talking to, hooks on.
• If the conversation is started by the automatic answering function, it will be ended when
the predefined conversation time (programmable in advanced programming mode)
expires. In this case it will be given 4 warning tones before disconnection.
3.4 Doorphone conversation
When a bell button is pressed a chime will sound (”ding-dong”) (not if ringing-sound is
disabled, see chapter 3.1.1). To answer, do as follows:
• Press the "D" button on the remote controller, or:
• Press the door key on the PicoCombi, or:
• Press key connected to external connection "Door" on the backside of PicoCombi, or:
• PicoCombi will automatically establish connection after 5 seconds if automatic answering
mode is enabled before the chime sounds.
The connection will be enabled until:
• The door is opened by:
• Press the "D" button on the remote controller.
• Press the door key on the front of PicoCombi.
• Press key connected to external connection "Door".
• Or until the connection is disabled without opening the door by:
• Press the "E" button on the remote controller.
• Press the telephone key on the PicoCombi.
• Press key connected to external connection "Ph".
• PicoCombi automatically disconnects after 45 seconds.
It is possible to control 2 different outdoor units. The function is more detailed described in
chapter 3.5.8.
3.5 Functions
3.5.1 Stand by
0 F 0 Entrance to Programming – plain.
0 F ”hold Autoanswerekey” (on device)
Entrance to Programming – advanced.
• The autoanswering key on the apparatus has to be
pressed maximum 3 seconds after the time when ”F” is
released, and it has to be pressed for at least 3 seconds.
A Hook off and redial the last used telephone number.
<1-9> (direct dialling) Hook off and transmit phone book number no 1-9.
<External switches 1-3> Hook off and transmit phone book number no 1-3.
B <01-50> Hook off and transmit phone book number no 01-50. Two
digits has to be pressed.
• Telephone indicator flashes slowly after ”B” is pressed,
and will illuminate steady after the second no is pressed.
If it takes more than 5 minutes without any keys pressed
PicoCombi loudspeaking analog telephone and doorphone Page 8.
when telephone indicator flashes, the device will go back
to standby.
C <telephone number> E On hook dialling preparation.
• The telephone indicator will be flashing when ”C” is
pressed and it will illuminate steady when ”E” is pressed.
If it takes more than 5 minutes without any keys pressed
when telephone indicator flashes, the device will go back
to standby.
• The telephone number can contain the same characters as
numbers in the telephone book, ref chapter 4.2.
• External switch 1-3 (instead of a telephone number) will
hook off and transmit telephone book number 1-3.
D
Door key on device
Establish communication with primary or secondary
doorphone.
E
Telephone key on device
Hook off. Telephone indicator will illuminate.
F
Automatic answering key
on device
Enable/disable automatic answering function. Automatic
answering indicator changes status.
3.5.2 Hook off
<0-9> Transmit DTMF 0-9.
<External switches 1-3> Transmit phone book number no 1-3.
A Transmit DTMF *.
B Transmit DTMF #.
C Generate R-key signal = hook flash.
D
Door key on device
Park a telephone conversation and establish communication
to primary or secondary doorphone.
E
Telephone key on device
End conversation.
F Volume adjustment in steps from 1-5. The value is saved
independent of doorphone volume setting.
Automatic answering key
on device
Enable/disable automatic answering function. Automatic
answering indicator changes status.
3.5.3 Conversation with doorphone
<0-9> No function.
<External switches 1-3> Ends conversation with doorphone, hook off and transmit
number 1-3 from telephone book.
A No function.
B No function.
C No function.
D
Door key on device
Open/unlock door (5 seconds active output) and thereafter
terminate conversation with doorphone. If beeper in doorlock
are mounted, the user will normally hear this sound through
the doorphone system.
PicoCombi loudspeaking analog telephone and doorphone Page 9.
E
Telephone key on device
End conversation with doorphone without open/unlock door.
F Volume adjustment in steps from 1-5. The value is saved
independent of telephone volume setting.
Automatic answering key
on device
Enable/disable automatic answering function.
3.5.4 Conversation with doorphone, parked telephone
<0-9> No function.
<External switches 1-3> No function.
A No function.
B No function.
C No function.
D
Door key on device
Open/unlock door and end conversation with doorphone
when dooropening signal has been activated in 1 second. Go
back to parked telephone conversation (the user will be able
to hear doorlock/dooropener operate for 1 second).
E
Telephone key on device
End conversation with doorphone without open/unlock door
and go back to telephone conversation.
F Volume adjustment in steps from 1-5.
Automatic answering key
on device
Enable/disable automatic answering function.
3.5.5 Volume adjustment
Volume adjustments for the telephone function on PicoCombi may be adjusted with the
remote controller in 5 steps. If the volume has been changed, the new value is stored and used
for later telephone conversations. When pressing ”F” on remote controller the volume will
increase and it will be indicated by one short ”beep” for each press. When changing from
volume 4 to 5 (maximum) it will be indicated by a long ”beep”. The next keypress on ”F” will
change the volume to 1 (minimum).
The volume for the doorphone conversations are regulated with the same procedure as for
telephone conversations. Telephone volume setting and doorphone volume setting are stored
independent of each other.
3.5.6 Auditive feedback
The following words can be recorded :
"0-9", "*", "#", "Empty", "Saved", "Error" and "Pause".
These words may be used as an auditive feedback in ordinary use, and while programming the
device. If the user dont have any need for this auditive feedback it can be disabled (in
advanced programming mode). Auditive feedback in advanced programming mode can not be
disabled.
If auditive feedback is enabled, it will be heard in the following situations:
• When someone tries to transmit an unprogrammed telephone book number it will say
”empty”.
PicoCombi loudspeaking analog telephone and doorphone Page 10.
• When someone transmits a telephone book number it will say the position of the number
in the telephone book.
• When the keys for 0-9, *, # are pressed and the telephone line not is activated (”C”), every
digit will be said. If the keys are pressed faster than the digits are presented, the feedback
will not be stopped. It will be stopped when the keys ”E” or ”C” are pressed.
3.5.7 Voice message
Three different voice messages with a duration up to 5 seconds may be recorded. 1, 2 or all 3
may be assigned to 1-5 different situations in a free order. When the situation becomes real,
the message will be spoken automatically. The 5 situtations are:
1. Answer the doorphone.
Initiated by the user or automatic answering function.
2. Unlock door and end conversation with doorphone.
Initiated by the user.
3. End conversation with doorphone without open/unlock door (refuse visitor).
Initiated by the user or timeout.
4. Answering incoming telephone conversation.
Initiated by the user or automatic answering function.
5. End telephone conversation.
Initiated by the user or timeout when using automatic answering function.
Example:
You may for instance record the following: ”Hi, this is John. I am not able to talk, but I
understand what you say” as message number 1 (this is done in advanced programming
mode). So, let message number 1 be ”copied” to situation 1 and situation 4 (also done in
advanced programming mode). When John answer the doorphone (=situation number 1 in
the list above) or if he is answering the telephone (=situation number 4 in the list above)
message number 1 will be automatically played back in the beginning of the conversation.
3.5.8 Automatic answering function
The automatic answering function can be turned on and off with an IR-remote controller or
with the ”automatic answering function key” on PicoCombi. The function will be active both
for telephone and for the doorphone. A light indicator will illuminate when the function is
enabled. Please refer to chapter 3.1, 3.3 and 3.5.11 for more information.
Be aware of the following: if this function is enabled, it is possible to call to the user
and listen to what happens in the room. If the device is used by a disabled person
without the capability to disable the function or to control the device him/herself,
there can be a risk of involuntary monitoring of the person. Please also observe that if
the ringing sound is disabled (ch 3.1.1) there will only appear a short tune until the
user is connected to an incoming call.
3.5.9 Telephone book
The telephone book in PicoCombi are able to:
• Redial the last used telephone number up to 50 digits.
• Store 50 telephonenumbers with up to 50 digits each.
• Telephone book numbers 1-3 can be activated by external keys 1-3.
• Telephone book numbers 1-9 can be activated by one keypress on the remote
controller by pressing one of the keys 1-9.
PicoCombi loudspeaking analog telephone and doorphone Page 11.
The numbers in the telephone book will not deleted if a power failure situation occur. Redial
memory will be deleted if a power failure situation occur. In advanced programming mode a
prefix can be activated. This means that there is no need to save the prefix in all numbers in
the telephone book if it is activated once in advanced programming mode. A pause (”F”) can
be a part of a number in the telephone book. PicoCombi will wait a predefined time before the
numbertransmitting continues if ”F” is a part of the telephone number.
3.5.10 Tone generating
PicoCombi generate tones as a responce to user inputs. Generated tones will occur when:
• Keypress on device (also if key has no action in actual setting) except from when DTMF
are transmitted or when recorded speech are played back.
• When a timeout occur after a ”B” or ”C” sequence in ordinary use.
• When entering a programming mode.
• When hook on is automatically executed.
3.5.11 Doorphone 1 and 2
PicoCombi can be connected to 2 different outdoor doorphone units. If both connections are
used, doorphone 2 (defined as ”secondary”) will be the active one for 30 seconds
(programmable time, can be changed in advanced programming mode) after a keypress on
bell button at outdoor unit 2. This means that the user has 30 seconds (programmable) to
answer the doorphone 2. If timeout, the user will get in connection with doorphone 1 (defined
as ”primary” doorphone). The procedure for connection to doorphone 1 and 2 is the same for
both. It is only possible to get in touch with one outdoor unit at the same time.
When a bell button is pressed a chime will sound (”ding-dong”). A two way voice controlled
communication will be established with the use of remote controller, door switch on device,
external switch (connected to ”Door” at the reverse of the device) or automatically if
automatic answering function is enabled.
If the automatic answering function is enabled the communication will be established
automatically 5 seconds (programmable) after someone has pressed the bell button. Before
connection, there will appear a warning tone from PicoCombi. When the communication is
established, the user may open/unlock the door. The signal to the dooropener/doorlock will be
active for 5 seconds.
The conversation at the doorphone lasts until the user himself disconnect, or until timeout
(programmable). Before disconnection caused by timeout there will come a beep 5 seconds
and a beep 2,5 seconds before the disconnection from the device as a prewarning.
It is possible to let a light indicator illuminate when a door is opened. If this function is
connected, the light indicator above the doorkey on PicoCombi will illuminate.
3.5.12 Power failure
If a power failure come into being PicoCombi will go back to standby when the power come
back, without any operations on it. It will be disconnected from the telephone line and the
automatically answering function will have the same status as before the power failure. It will
not be possible to operate the equipment when there is a power failure or the power supply is
disconnected. Telephone numbers stored in the telephone book and all other settings will be
unchanged. The redial memory will be deleted.
PicoCombi loudspeaking analog telephone and doorphone Page 12.
3.5.13 Accessories
The following accessories are available:
• External switches to control telephone line, doorphone and phone book numbers 1-3.
• Outdoor units for doorphone.
• External IR-sensors.
• External loudspeaker.
• External microphone.
Brokelandsheia, N-4993 Sundebru, Ph +47 3711 9950 Fax +47 3711 9951 E-mail: firmapost@picomed.no Foretaksnr 962 211 631 MVA
3.5.14 User manual - quick guide
Hook off (answer the telephone)
• Press key ”E”
Hook on
• Press key ”E”
Phone to someone
• Press key ”E”
• Press all digits in phone number
Phone to a prestored number 1-9
• Press key 1-9
• PicoCombi automatically calls prestored number 1-9
Phone to a prestored number 10-50
• Press key ”B”
• Press the 2 digits in prestored number (10-50)
• PicoCombi automatically calls prestored number 10-50
On hook dialling preparation
• Press key ”C” - slow blinking telephone light indicator
• Press all digits in phone number
• Press ”E”. PicoCombi automatically calls number
Repeat last used telephone number
• Press key ”A”
• PicoCombi automatically calls last used number
Volumecontrol
• Press key ”F” when you are speaking in the phone
• A long "beep" indicates maximum volume
Automatic answering mode
• Press key ”F” in standby mode, or:
• Press "automatical answering mode" key on PicoCombi
• A yellow light indicator indiactes enabled function
• PicoCombi hooks off automatically after 5 ringing signals
• PicoCombi enables doorphone automatically after 5 seconds
• PicoCombi hooks on after 30 seconds telephone conversation
• PicoCombi disables doorphone after 45 seconds
• Manual hook on can be done with "E"
Store prestored numbers 01-50
• Press keys ”0-F-0” in sequence. A loong beep will sound
• Press the 2 digits in prestored number (01-50)
• Press all digits in phone number, maximum 50 digits
• Press key ”D” to save
• Repeat points 2-4 to save more than one number
• Press key ”E” to exit
Answer doorphone
• Press key ”D”
• To open door, press ”D” once again
• PicoCombi disconnect after 45 seconds
• Manually disconnect with key ”E”
Parking a telephone conversation - answer doorphone
• Press key ”D”
Open door - return to parked telephone conversation
• Press key ”D”
Disconnect doorphone - return to parked telephone conversation
• Press key ”E” (does not open door)
PicoCombi loudspeaking analog telephone and doorphone Page 15.
4 Programming
PicoCombi may be programmed in different ways.
• Programming – plain: Save and edit telephone numbers in telephone book.
• Programming – advanced: Adjustments ment to be performed by a technician.
• Programming – IR-training: Copy and ”learn” foreign IR-signals.
• Programming – default/recycling: Restore default settings.
Observe that:
• When installing a PicoCombi you should as a first job enter advanced programming
mode and record speech to the auditive feedback (point 31 in the list). This should be
done because this feedback will be a very good help in programming mode.
• In programming mode the device will not respond on door bell or telephone call.
• The device will leave programming mode if no keys are pressed within 60 seconds.
• If auditive feedback is needed in ordinary use, it has to be enabled (point 4 in the list).
Specific for plain and advanced programming mode:
• PicoCombi leaves programming mode if any keys on device is pressed.
• The ”D” key can be pressed everywhere in the programming mode. When a ”D” is
pressed at the end of a programming sequence it means ”store value”. If ”D” is pressed in
the middle of a sequence the sequence can start from the beginning again, without storing
any values.
• The ”E” key can be pressed everywhere in the programming mode to leave the mode.
• Invalid keystrokes will be indicated with the auditive feedback ”error”, and the sequence
are ready to start from the beginning. This is one situation where it is important to have
done the auditive feedback recordings in point 31 in advanced programming mode.
4.1 Getting started
• When installing a PicoCombi you should as a first job enter advanced programming
mode and record speech to the auditive feedback (point 31 in the list). This should be
done because this feedback will be a very good help in programming mode.
• First of all; decide which type of programming mode should be entered.
• Enter programming mode as described in the actual chapter.
• An IR-remote controller has to be present to perform plain and advanced programming.
• As a default value, the device responds to IR-format New Assistant user code 5 (NA5).
• If no remote controller with NA5 is present, an other remote controller can be used. In this
situation the device has to learn the IR-signals. Execute the IR-training process in chapter
4.4 first.
4.2 Programming – plain
In this mode it is possible to store, edit and delete telephone numbers in the telephone book.
Auditive feedback is indicated with italic letters.
To enter this mode do as the following text says:
1. Press ”0 – F – 0” on remote controller when device is in standby mode.
2. When entering programming mode, it will be indicated by a slow flashing light indicator
for the automatic answering function.
01-50 <Existing number <telephone number> D Saved Telephonenumber
PicoCombi loudspeaking analog telephone and doorphone Page 16.
>/ Empty Pressed numbers will be stored.
01-50 <Existing number
>/ Empty
D Saved Telephonenumber
will be deleted.
• When a telephone book number is given, the stored telephone number will be played back
digit by digit. If no number is stored, the word ”empty” will be played back.
• When a number is entered, all digits will be played back one for one. If the keystrokes are
faster than the speech, the digits will be queued and played back one for one. The
playback will be interrupted by key ”D” (store) or ”E” (exit programming mode).
• If more than 50 digits are entered, all digits after the 50th will be ignored. The ignored
digits will neither be played back.
The telephone numbers may contain the following:
Digit/letter Belonging playback Function
0-9 0-9 DTMF 0-9
A * DTMF *
B # DTMF #
C Empty ”Clear”. Deleting all digits. Wait for new digits.
F Pause Stores a pause with the same lengt as for the one
programmed as a part of a prefix (done in
advanced programming mode).
4.3 Programming – advanced
It is ment that this mode shall be entered by technicians with a good insight in the product. It
is important that the technician choose the best settings so the user can make the most out of
the benefits of the product. Especially with the built in speech functions which are available.
When installing a PicoCombi you should as a first job enter advanced programming
mode and record speech to the auditive feedback (point 31 in the list). This should be
done because this feedback will be a very good help in programming mode.
Observe that:
• Auditive feedback are indicated with italic letters.
• Comma "," in the table indicate possible values, i.e "0,1" indicates "0" or "1".
• Values in paranthesis are default values.
• ”C” can be pressed everywhere in this mode. The sequence is interrupted and the device is
ready for a new sequence.
To enter this mode do as the following text says:
1. Press ”0 – F” on the remote controller while device is in standby mode.
2. Thereafter, and within 3 seconds, press and hold the key for ”automatically answering
function” on the device for 3 seconds.
3. When the light indicator for ”automatically answering function” is executing rapid
flashing you have entered the advanced programming mode.
4. Release the key for automatically answering function.
For some of the lines here, there are given an additional explanation beneath the table.
00 SW version Version number readout.
PicoCombi loudspeaking analog telephone and doorphone Page 17.
01 Stored digit 3-20 (5)
Pressed digit
D Saved Number of ringing signals before the
automatic answering function activates.
02 Stored digit 1-30 (5)
Pressed digit
D Saved Number of seconds before the automatic
answering function activates doorphone.
03 Stored digit/
Empty
-, 1-99 (-)
Pressed digit
D Saved Number of minutes open telephone line in
automatic answering mode. No value
indicates 30 seconds.
04 Stored digit 0,1 (0)
Pressed digit
D Saved Auditive feedback on/off. 0 = deactivated,
1 = activated. In ordinary use.
05 Stored digit 6-99 (45)
Pressed digit
D Saved Number of seconds open doorphone
communication.
06 Stored digit 5-99 (30)
Pressed digit
D Saved Number of seconds from a bell button
press on doorphone 2, until it not is the
active doorphone anymore.
07 Stored digit/
Empty
-, 0-99 (-)
Pressed digit
D Saved Fixed prefix or not. The digit give the
prefix. No value means no prefix.
08 Stored digit 3-8 (3)
Pressed digit
D Saved Maximum time in seconds after a prefix
before the number is transmitted. Time
will be shorter if dialling tone is detected.
09 Stored digit 100-999 (115)
Pressed digit
D Saved Number of milliseconds for R-key flash.
10 Empty 0
Pressed digit
D Saved Delete and deactivate learned IR.
11 Stored digit 00-11b (10)
Pressed digit
D Saved Activate IR-format, 0 = off, 1 = on.
1. Digit 1 indicate New Assistant.
2. Digit 2 indicate Gewa.
12 Stored digit 0-31 (5)
Pressed digit
D Saved User code for New Assistant.
13 Stored digit 0-3 (0)
Pressed digit
D Saved User group for Gewa.
14 Stored digit 0-1 (0)
Pressed digit
D Saved Activate New Assistant/Gewa lockcode.
0 = off, 1 = on.
15 0 0-4095 (0)
Pressed digit
D Saved Value for New Assistant/Gewa lockcode.
161 Stored digit 0-9, A-F (D)
Pressed digit
D Saved Indicate which ”key” the New Assistant
/Gewa lockcode shall be assigned to.
17 Empty Not in use.
18 Empty Not in use.
19 Empty Not in use.
20 Empty Not in use.
211 Playback Voice input Saved Record voicemessage 1.
221 Playback Voice input Saved Record voicemessage 2.
231 Playback Voice input Saved Record voicemessage 3.
24 Empty Not in use.
25 Empty Not in use.
261 Stored digit/
Empty
–, nnn (-)
Pressed digit
D Saved Activate voicemessage(s) for situation 1.
(Answer doorphone)
271 Stored digit/
Empty
–, nnn (-)
Pressed digit
D Saved Activate voicemessage(s) for situation 2.
(Unlock/open door)
PicoCombi loudspeaking analog telephone and doorphone Page 18.
281 Stored digit/
Empty
–, nnn (-)
Pressed digit
D Saved Activate voicemessage(s) for situation 3.
(End conversation with outdoor unit)
291 Stored digit/
Empty
–, nnn (-)
Pressed digit
D Saved Activate voicemessage(s) for situation 4.
(Answer telephone)
301 Stored digit/
Empty
–, nnn (-)
Pressed digit
D Saved Activate voicemessage(s) for situation 5.
(End telephone conversation)
311 Voice input D Saved Record auditive feedback words.
32 Stored digit/
Empty
0, 1 (1)
Pressed digit
D Saved Volumecontrol for the telephone.
0 = no ringing tone - telephone.
1 = controlled by potmeter.
33 Stored digit/
Empty
0, 1 (1)
Pressed digit
D Saved Volumkontroll dørtelefonlinje.
0 = no ringing tone - doorphone.
1 = controlled by potmeter.
4.3.1 Additional explanations for the table above 1)
16 When a lockcode is activated for a given key, then the other IR-format(s) will be
deactivated for the actual key.
21-23 To record word/sentences press and hold the "F" key, talk the message, and release
the key. The recording stops when the key is released, or the available time of 5
seconds are used. Then a long ”beep” appears, and the recorded message will be
played back. The speech will be stored while recording it, not when pressing the ”D”
key.
Recording should be done in a silent environment with a clear voice with the mouth
near the microphone which is situated in the left front corner of the device.
26-30 To activate a message, you may enter one, two or three digits (value 1,2 or 3) for
each situation in the prefered order. The value indicates the number of the voice
message. A description of each situation are given in chapter 3.5.7. A voice message
has to be recorded before it can work.
31 Recording shall be done in this sequence:
"0-9", "*", "#", "Empty", "Saved", "Error" and "Pause".
Record one word and listen to the playback. Each word may be played back several
times if necessary. If not approved, you may record again. There is 1 second
available for each word. The following keys shall be used while recording:
• F Record one word. Do it in the same way as described in point
21-23. OBSERVE: Read also text for key ”B/#”.
• A Playback a recorded word.
• B Go to next word in the sequence. If the last word is recorded,
("Pause") there will come 3 short ”beep” and the device are
ready to record the first word ("0") in the sequence again.
• D Finish the sequence.
Start with "0", go on with ”1” and so on. ”Pause” is the last word.
Important!
• When installing a PicoCombi you should as a first job enter advanced
PicoCombi loudspeaking analog telephone and doorphone Page 19.
programming mode and record speech to the auditive feedback (point 31 in
the list). This should be done because this feedback will be a very good help
in programming mode.
• Remember to activate auditive feedback in point 04 if this shall be active in
ordinary use of the equipment.
4.4 Programming – IR-training
When entering this mode, then the PicoCombi automatically will activate the trained IRformat, while the other IR-formats will remain unaltered. This means that it is possible to use
more than one remote controller to control the device. To enter IR-training mode, only keys
on the device shall be used:
1. Press and hold the automatic answering key. Light indicator changes as normal.
2. Press once on door key.
3. Press twice on telephone key.
4. Press twice on door key.
5. Release the automatic answering key. The automatic answering light indicator will start
double flashing with a pause to indicate that mode IR-training is entered. Channel number
is set to 0.
Maximum time for the points above is 8 seconds.
The word "0" (channelnumber is 0) will be played back. If there is no IR on the actual
channel, the device will also play back the word ”Empty”. The device is now ready to train the
channels 0-15. Observe that IR-training not can be done with IR-signals applied to the
external IR-sensors. The following 3 things can be done:
a) Train the device with an IR-remote controller. Point the remote controller against the IR-
receiver placed under the dark glass in the front of the device. The distance from the front
of the remote controller and the IR-glass on the device should be approximately 2-5 cm.
Press the key designated to the channel number which are active1. After the first
successful IR-training, the device will playback "Saved Beep". Then press the doorkey
and repeat the IR-training once again with the same key. After the second successful IRtraining procedure on the channel the device playback "Saved Beep Beep". A double IRtraining is neccessary to manage IR-remote controllers which transmits different IRsignals when executing repeated keystrokes on the same key.
b) Delete trained IR with a press on the automatic answering key. The device will playback
”Empty”.
c) Go to the following channel number with a keystroke on the doorkey. The new channel-
number will be played back if it is among channel 0-11 (10 = * and 11 = #). The channels
12-15 will be indicated with a ”Beep”. If there isn’t any trained IR-signal on a channel, the
device will also play back the word ”Empty”. When passing the last channel (15) the
device will leave IR-training programming mode.
To delete all trained IR-signals, enter advanced programming mode and execute the
”deactivate and delete IR” command, or make a recycling to get the device back to default
settings. PicoCombi will leave IR-training on timeout.
1
One should give a very short and concise keystroke.
PicoCombi loudspeaking analog telephone and doorphone Page 20.
4.5 Programming – back to default settings
There is a 2-stage process to execute to get the PicoCombi back to default settings. This
sequence is controlled by the keys on the device.
• Step 1 restores all changeable parametres back to default settings.
• Step 2 is a continuation of step 1, and if executed, all recorded speech will be deleted
(words in auditive feedback and voice messages).
Do as following:
1. Press and hold the key for automatically answering function. Light indicator for function
will change as normal.
2. Press door key once.
3. Press 3 times on telephone key.
4. Press 3 times on door key.
5. Release the key for automatically answering function. Light indicator for function will
start triple flashing. You will hear ” Beep-Beep-Beep" as a confirmation for a correct
entered mode.
6. To start recycling: press the key for automatically answering function and restoring
process starts. If the key not is released at once, but pressed for 3 seconds, also step 2
(delete all recorded speech) will be executed. The speech deleting process lasts for 5
seconds. A long ”Beep” will sound when the process are finished.
Maximum time for the points 1-5 is 8 seconds. Maximum time between the points 5-6 is 8
seconds.
When restoring the values, the following are done:
• Alle telephone numbers in the telephone book will be deleted.
• Redial memory will be deleted.
• Volume level will be set to value = 3 for both telephone and doorphone system.
• Automatic answering function disabled.
• Alle values which can be altered in advanced programming mode will be set to default.
• Trained IR will be deleted.
5 Maintenance
Picomeds PicoCombi loudspeaking IR-controlled loudspeaking analog telephone and
doorphone is developed to work without any sceduled maintenance. The equipment should be
cleaned when neccessary. Wipe the equipment with a slightly damp cloth or an antistatic
cloth. Never use a dry cloth, while this result in risk of static charges. It shall not be exposed
for fluids in any way.
6 Trouble shooting
If your equipment does not behave as expected, first of all try to solve the problem yourself
using the following table.
Symptom Possible cause Reccomended action
Completely dead. No light
indicators illuminated.
• No power connected. • Ensure that the power
supply is the correct one
which was delivered with
the equipment.
• Ensure that the power
supply is connected to a
PicoCombi loudspeaking analog telephone and doorphone Page 21.
functioning wall outlet.
• Ensure that the power
supply is properly
connected to the
equipment.
Very low volume in the
speaker.
• Volume set to minimum.
• Device is covered.
• Hook off, press ”F”.
• Remove covering.
No ringing sound.
• Ringing sound disabled
for telephone and/or
doorphone.
• Contact your technician,
enable ringing sound.
Does not respond to IRremote controller.
• IR-glass in front of device
is covered.
• Wrong IR-signals.
• Remove covering.
• Reprogram or do IR-
training once again.
There are no fuses inside the device which shall be replaced.
6.1 When errors arise
If there are errors which are not possible to solve, contact your supplier of the equipment, or
the national distributor. Please make a note beneath of the telephone number to your supplier.
Name Telephone number, adress etc.
Supplier:
National distributor:
7 Technical information
The device is made by:
• Injection moulded box in recycleable ABS.
• Frontglass made of plexiglass (Polycarbonat).
• 2 PCBs: a maincard in bottompart with contacs, and a keypad PCB mounted in top-part.
• Microphone and loudspeaker mounted in rubber gaskets to dampen mechanical vibrations.
• Frontfoil. Productname, light indicators and keys are visually viewed on it.
7.1 Fixed mounting
PicoCombi are designed to be placed on a flat surface, or it can be hanged vertically with the
help of the built-in screwholes.
• Ensure that cables not are crushed between the device and surface.
• The microphone is placed in the line between top and bottom part of the unit. When
placed vertically on a wall, pay attention to the attenuation of the users voice if the unit
are placed lower than the users mouth.
• A drilling template is made and attached at the end of this documentation.
7.2 Electrical connections
Severe terminal strips are placed inside the box.
• Connections are made for cables of size 0,14-1,5 mm
2
(35-16 AWG).
PicoCombi loudspeaking analog telephone and doorphone Page 22.
• Remove insulation = 6 mm.
• The figure beneath shows the position for terminal strips, contacts and jumpers.
7.2.1 Fixed 12 VDC and external IR-sensor
0V 0 V.
+12V +12 VDC fixed. Ment for IR-sensors and bell buttons. I < 65 mA. It can be used
to supply IR-sensor and to control the doorindicator via a door switch (Ch. 7.2.4).
LED Controls LED on external IR-sensor(s).
IR IR-signal from external IR-sensor(s).
1 or 2 external IR-sensors (Picomed ES2) can be connected to the terminal strip. They will be
supplied with 0 and +12 VDC together with LED signal from the device. The IR-signal wires
are also connected at the same terminal strip. There is a light indicator placed in the front of
the main PCB which indicates that IR is received. This LED is working in parallell with the
LED indicators on the external IR–sensor(s). Observe that IR-training not can be done with
IR-signals applied to the external IR-sensor(s).
PicoCombi loudspeaking analog telephone and doorphone Page 23.
7.2.2 Doorphone
A doorphone (outdoor unit) named Picomed EFP can be connected as the table shows on the
terminal strips DP1 and DP2 on PicoCombi. DP1 and DP2 are, with exception of connection
D.SW at DP1, equal. They have the following connections with recommended colours:
PicoCombi loudspeaking analog telephone and doorphone Page 24.
Denomination EFP outdoor unit Colour Function
D.Sw - Input to doorindicator. Choose function on
jumper if active high voltage shall give
indication or not. Refer to chapter 7.3 for
details about jumper settings.
(There is no doorindicator on DP2).
0 V Connection 3 and 5. Black 0 V. Supply doorphone.
12 V Connection 4. Red 12 VDC when doorphone is activated.
Phn- Connection 2. Blue 0 V.
Phn+
Connection 1. White Sound to doorphone when doorphone is
activated.
Dor- - Brown Controls the doorlock/opener. Choose function
on jumper if active relay shall give 0 V out or
be a N.O relay function. Refer to chapter 7.3 for
details about jumper settings.
Dor+ - Orange Controls the doorlock/opener. Choose function
on jumper if active relay shall give +12 VDC
out or be a N.O relay function. Refer to chapter
7.3 for details about jumper settings. Maximum
1 A current.
Bell Connection 6. Yellow O V from bell button for doorphone.
Bell - Red
(from
manuf.)
Voltage from bell button for doorphone.
Connect +12 VDC from "+12 VDC fixed” to
this connection.
PicoCombi are designed to supply doorlock/dooropener with 12 VDC. It is also possible to
use external powersupply for this purpose. With jumpers on the main board it is possible to
choose between (refer to chapter 7.3 for details about jumper settings):
• Control doorlock with 12 VDC from the device, maximume 1 A current draw.
• Control doorlock with a N.O potensial free relay, maximum 1 A / 32 VAC/VDC.
Tip:
• The microphone in the outdoor unit is polarized. If the connection wires are exchanged
there will be no sound from the outdoor unit into the indoor unit. To fix this, one can
exchange the wires to connection point 1 and 2 on the outdoor unit (connection point A
and K on control unit).
• On some versions of the doorphone there is a potentiometer inside the control unit which
decides the amplification in the EFP outdoor unit. This has to be adjusted to obtain a
perfect switching between receiving and transmitting mode in the EFP outdoor unit.
7.2.3 Multiple indoor units
It is possible to have up to 4 PicoCombi's connected to the same telephone line/doorphone
line. If more than one PicoCombi shall be used, use 1 power supply for each, and then
connect all wires from one to another in parallell both for telephone and doorphone.
7.2.4 Door indicator
There is a connection available to control the doorindicator. 12 VDC can be connected from
the terminal strip (+12 VDC, IR-sensor) via a switch in the door, and to the terminal strip. A
jumper (refer to chapter 7.3 for details about jumper settings) can be used to choose between
NO and NC switch.
PicoCombi loudspeaking analog telephone and doorphone Page 25.
7.2.5 External switches
External switches can be connected to the device to activate telephone book numbers in
position 1-3, door key and telephone key. This shall be one-pole N.O switches with 3,5 mm
mono jack.
7.2.6 External loudspeaker
Connection of external loudspeaker can be done on the reverse of the device. Use a 2,5 mm
stereojack. Connections inside the jack is:
• Earth – not to be connected.
• Pin 2: loudspeaker.
• Pin 3 at the end (center pin): loudspeaker.
The loudspeaker are independent of the polarity.
7.2.7 External microphone
Connection of external microphone can be done on the reverse of the device. Use a 3,5 mm
stereojack. Connections inside the jack is:
• Earth – not to be connected.
• Pin 2: microphone positive voltage.
• Pin 3 at the end (center pin): microphone negative voltage.
The microphone are dependent of the polarity, and therefore it is important to connect correct
polarity to correct connection.
7.3 Jumpers
There are some functions which can be altered when changing place for jumpers on the main
board. The following can be done:
Denomination Short-circuit: Function
S253 2 and 3 Relay to control door 1 has closed circuit (N.O).
1 and 2 + 3 and 4 Relay to control door 1 supplies door 1 with +12 VDC to
DOR+ and 0 VDC to DOR-. Maximum 1 A.
S254 2 and 3 Relay to control door 2 has closed circuit (N.O).
1 and 2 + 3 and 4 Relay to control door 2 supplies door 2 with +12 VDC to
DOR+ and 0 VDC to DOR-. Maximum 1 A.
S255 1 and 2 When connecting positive voltage, the doorindicator will
illuminate.
2 and 3 When connecting positive voltage, the doorindicator will
be switched off.
7.4 Default (recycling)
The following shall be done on Picomeds PicoCombi when it shall be used by a new user. If
neccessary, make a copy of this page, fill inn serial number, version and tick off the points
which are done with signature and date at each point, and file it as your routines requires.
Serialnumber:
Check the equipment. Is there any physical damages, cracks etc in box or foil.
Check that foil is not damaged, that it is fastened all around the edges and that it not has
loosened from its surface.
Clean the device.
Ensure that all components are available, power supply, telephone wire and outdoor units.
Make a function check.
PicoCombi loudspeaking analog telephone and doorphone Page 26.
There has to be a IR-remote controller available for test. Equipment and transmitter
has to be programmed with the same IR-format.
Ensure that all functions are working properly and that the device works as expected
on commands from remote controller, keys on device and external switches.
Perform ”programming – default/recycling” procedure as described in chapter 4.5.
Signals, voice messages, telephone numbers and other data will be deleted.
Store.
7.5 Technical data
Type
• Picomed PicoCombi loudspeaking IR-controlled analog
telephone and doorphone.
Operate
• Picomed IR-remote controller with 16 channels.
• An other IR-remote controller with 16 channels.
• Keypad for main functions.
• External switches may be connected.
Power supply Enclosed: Friwo 15.1433 Medical Ferrite.
Power consumption
• < 250 mA internal consumption.
• < 1,0 A output to control doorlock/opener.
Temperature
Designed for indoor use, 0˚C to +40° C.
Measurements LxWxH: 165 x 210 x 50 mm.
Weight 0,5 kg without powersupply and cable.
Key size 20 x 12 mm ovale.
Material in box ABS, recycleable.
Plexiglass (Polycarbonat) in IR-glass.
Waste management Dispose as electronic waste.
Developed and manufactured in Norway.
7.6 CE markings
Picomeds environmental control systems are developed and manufactured in accordance with
EU directives, national regulations and harmonised standards which are applicable, and
thereafter marked with the CE-mark. The Declaration of Conformity is in English version and
it is set out on the next page.
8 Drilling template
Loading...
