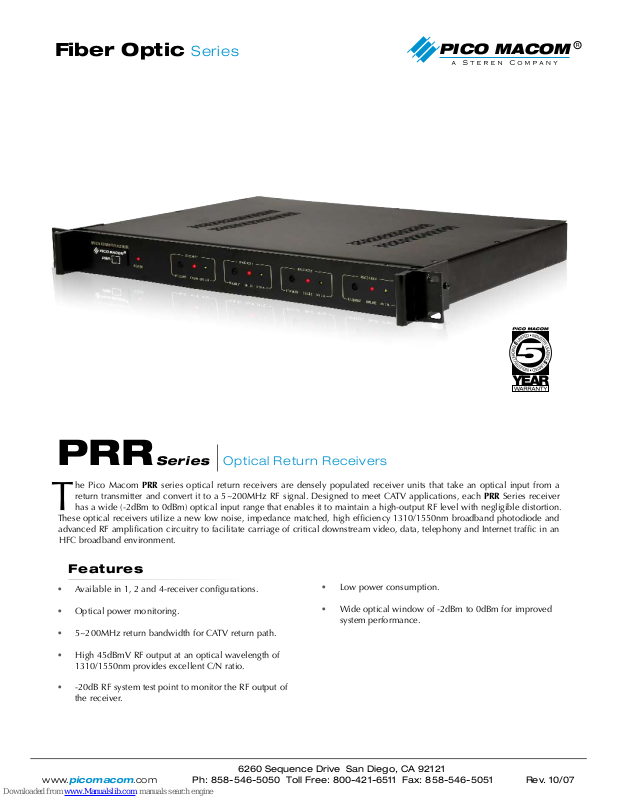

Fiber Optic Series
PICO MACOM
PRR
he Pico Macom PRR series optical return receivers are densely populated receiver units that take an optical input from a
return transmitter and convert it to a 5~200MHz RF signal. Designed to meet CATV applications, each PRR Series receiver
T
has a wide (-2dBm to 0dBm) optical input range that enables it to maintain a high-output RF level with negligible distortion.
These optical receivers utilize a new low noise, impedance matched, high efficiency 1310/1550nm broadband photodiode and
advanced RF amplification circuitry to facilitate carriage of critical downstream video, data, telephony and Internet traffic in an
HFC broadband environment.
Se ries
Optical Return Receivers
Features
• Available in 1, 2 and 4-receiver configurations.
• Optical power monitoring.
• 5~200MHz return bandwidth for CATV return path.
• High 45dBmV RF output at an optical wavelength of
1310/1550nm provides excellent C/N ratio.
• -20dB RF system test point to monitor the RF output of
the receiver.
• Low power consumption.
• Wide optical window of -2dBm to 0dBm for improved
system performance.
www.picomacom.com
1
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
Rev. 10/07
Page 2
PICO MACOM
RECEIVER 1
RF ADJUST ON LINE OPTICAL
RECEIVER 2
RF ADJUST ON LINE OPTICAL
RECEIVER 3
RF ADJUST ON LINE OPTICAL
RECEIVER 4
RF ADJUST ON LINE OPTICAL
POWER
OPTICAL RETURN PATH RECEIVER
90-264 VAC
47-63 Hz
RF RF RF RF
ON/OFF
2 OPTICAL IN 1 OPTICAL IN
RECEIVER 1
RF ADJUST ON LINE OPTICAL
RECEIVER 2
RF ADJUST ON LINE OPTICAL
RECEIVER 3
RF ADJUST ON LINE OPTICAL
RECEIVER 4
RF ADJUST ON LINE OPTICAL
POWER
OPTICAL RETURN PATH RECEIVER
Fiber Optic Series

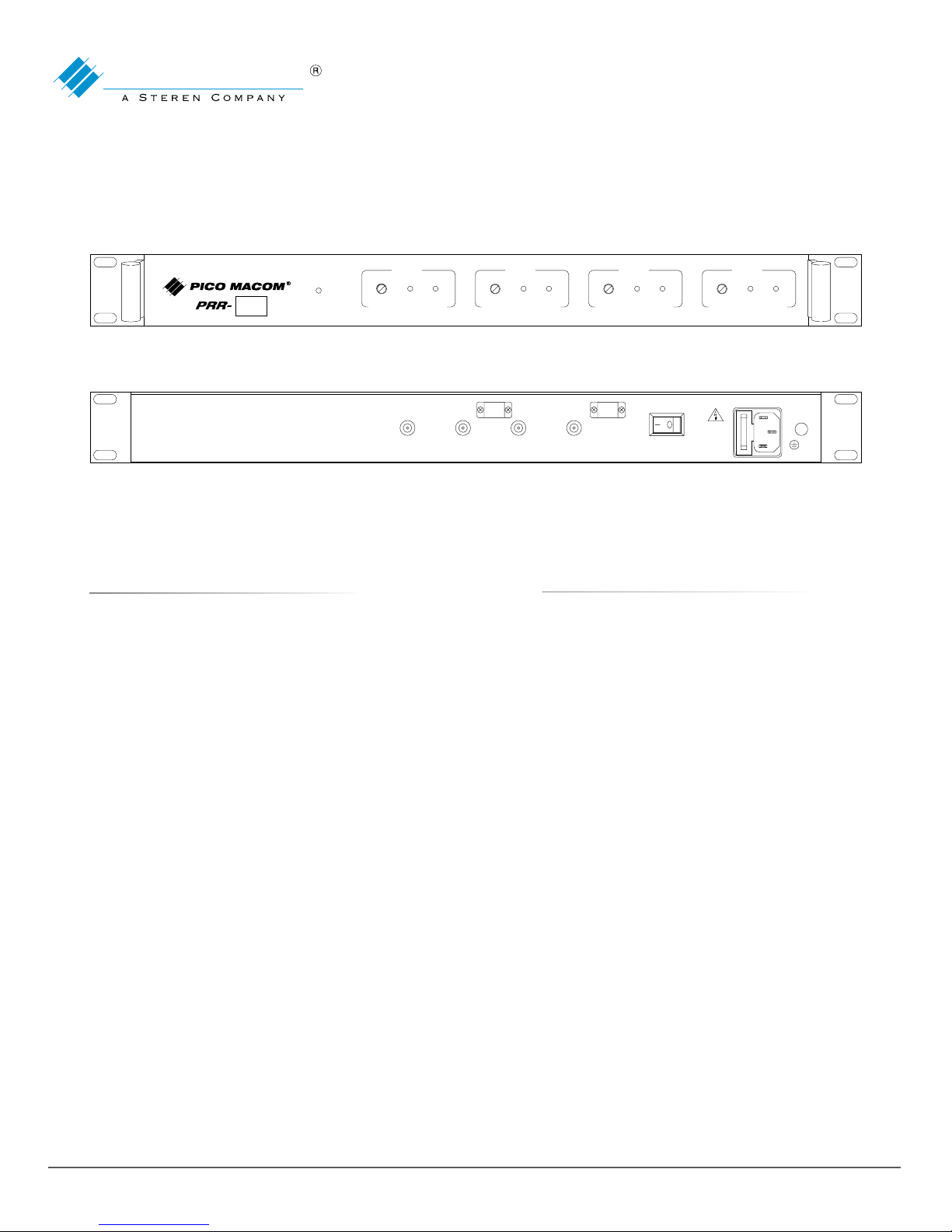

Front View
Rear View of PRR-2
Specifications
Optical Wavelength: 1290nm/1600nm
Optical Input Range: -2dBm to 0dBm
Optical Connector Type: SC/APC(FC/APC Optional)
RF Frequency Range: 5~200MHz
RF Output Level: 45dBmV
RF Output Impedance: 75Ω
In-Band Flatness: ±1dB
Output Return Loss: ≥15dB
Carrier-to-Noise Ratio (CNR)*: ≥50dB
Composite Second Order (CSO)*: ≥60dB
Composite Triple Beat (CTB)*: ≤65dB
Power Consumption (typical): 30 watts
Operating Temperature: 0~50°C
Storage Temperature: -20~+65°C
Relative Humidity: <10%
Dimensions: 19˝W x 13˝D x 1RU
Weight: 7.15 lbs PRR-1
7.50 lbs PRR-2
8.15 lbs PRR-4
Ordering Information
PRR-1 Single Optical Return Receiver
PRR-2 Dual Optical Return Receiver
PRR-4 Quad Optical Return Receiver
2
* Test results are typical and were performed at our San Diego test center.
Rev. 10/07
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
www.picomacom.com
