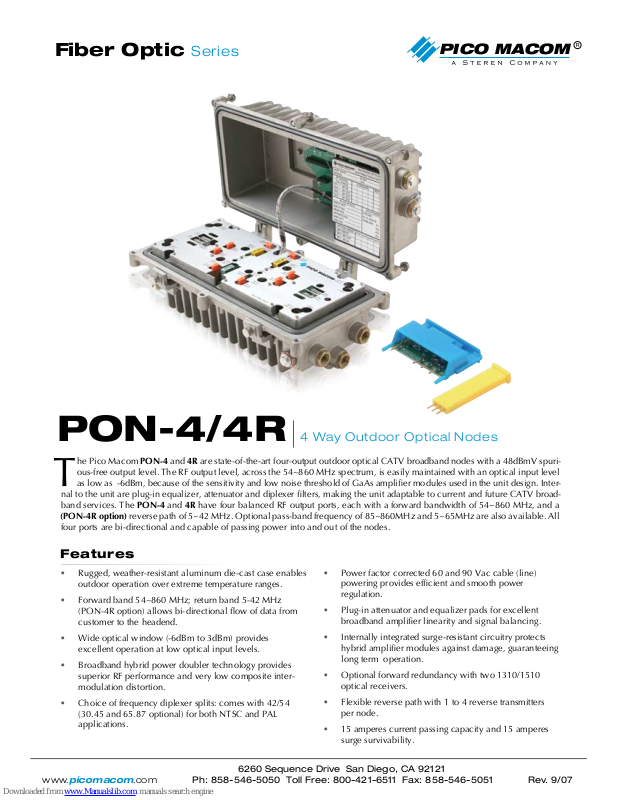

Page 1
Fiber Optic Series
PICO MACOM
PON-4/4R

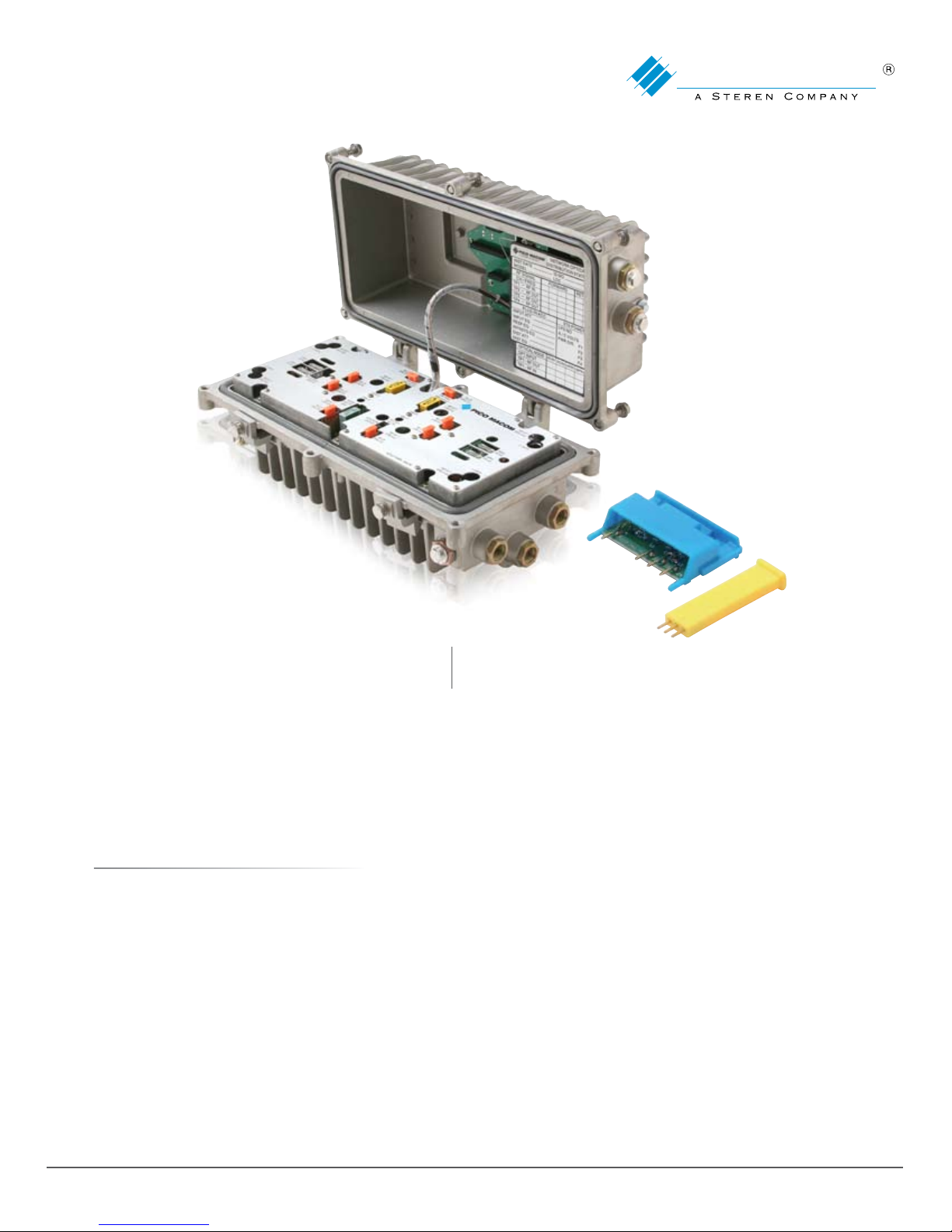

he Pico Macom PON-4 and 4R are state-of-the-art four-output outdoor optical CATV broadband nodes with a 48dBmV spuri-
ous-free output level. The RF output level, across the 54~860 MHz spectrum, is easily maintained with an optical input level
T
as low as -6dBm, because of the sensitivity and low noise threshold of GaAs amplifier modules used in the unit design. Internal to the unit are plug-in equalizer, attenuator and diplexer filters, making the unit adaptable to current and future CATV broadband services. The PON-4 and 4R have four balanced RF output ports, each with a forward bandwidth of 54~860 MHz, and a
(PON-4R option) reverse path of 5~42 MHz. Optional pass-band frequency of 85~860MHz and 5~65MHz are also available. All
four ports are bi-directional and capable of passing power into and out of the nodes.
4 Way Outdoor Optical Nodes
Features
• Rugged, weather-resistant aluminum die-cast case enables
outdoor operation over extreme temperature ranges.
• Forward band 54~860 MHz; return band 5-42 MHz
(PON-4R option) allows bi-directional flow of data from
customer to the headend.
• Wide optical window (-6dBm to 3dBm) provides
excellent operation at low optical input levels.
• Broadband hybrid power doubler technology provides
superior RF performance and very low composite inter modulation distortion.
• Choice of frequency diplexer splits: comes with 42/54
(30.45 and 65.87 optional) for both NTSC and PAL
applications.
• Power factor corrected 60 and 90 Vac cable (line)
powering provides efficient and smooth power
regulation.
• Plug-in attenuator and equalizer pads for excellent
broadband amplifier linearity and signal balancing.
• Internally integrated surge-resistant circuitry protects
hybrid amplifier modules against damage, guaranteeing
long term operation.
• Optional forward redundancy with two 1310/1510
optical receivers.
• Flexible reverse path with 1 to 4 reverse transmitters
per node.
• 15 amperes current passing capacity and 15 amperes
surge survivability.
www.picomacom.com
1
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
Rev. 9/07
Page 2
PICO MACOM

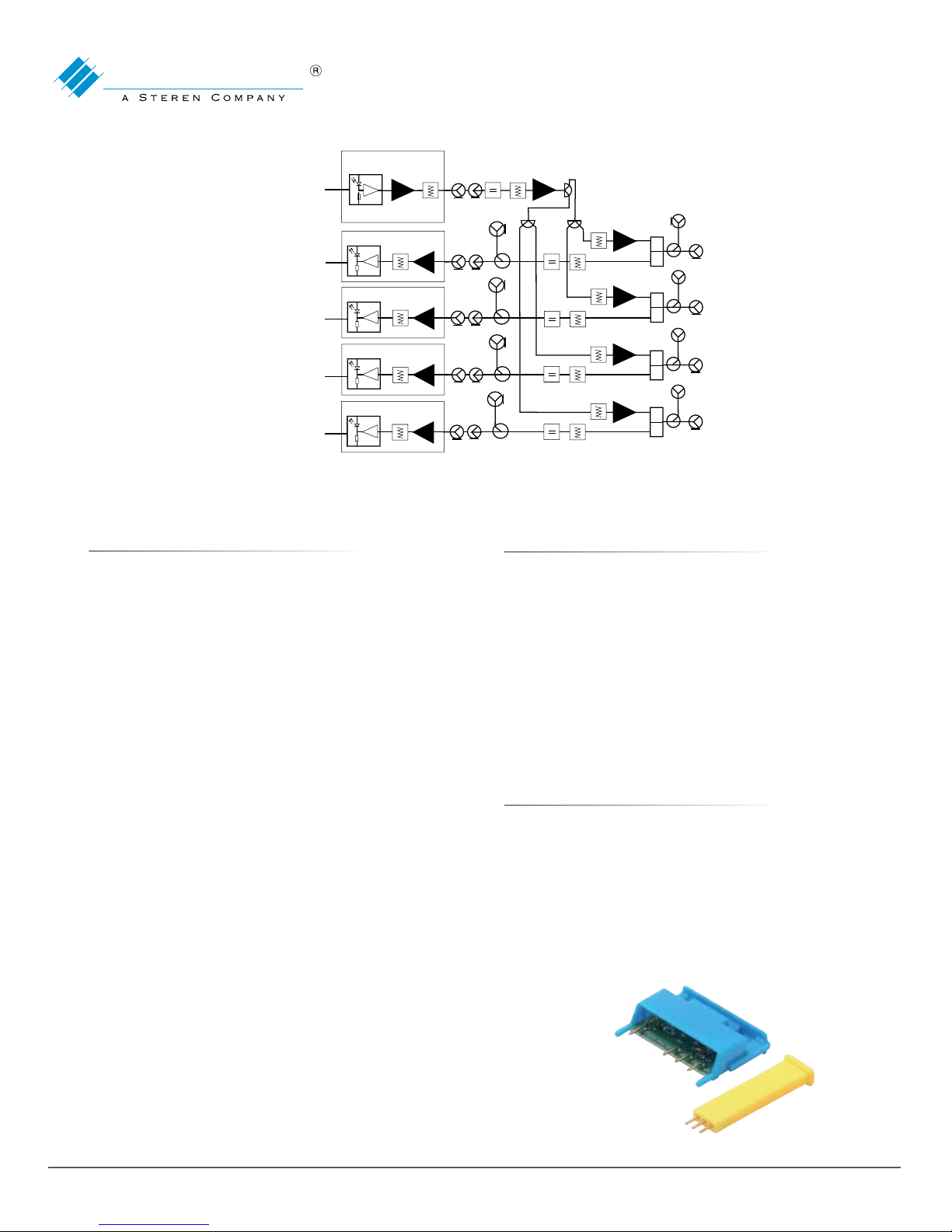

OUT-2
H
L
OUT-3
H
L
OUT-4
H
L
RBQ1
RATT1
RBQ2
RATT2
RBQ3
RATT3
RBQ4
RATT4
FIBER IN
OPTIC RECEIVER
FIBER OUT
RET.TRANSMITTER-1
AMP
FATT1
FEQ
OUT-1
H
L
RATT
FIBER OUT
FIBER OUT
FIBER OUT
FATT2
DTB1
DTB2
TP.5
-20DB
TP.6
-20DB
TP.7
-20DB
TP.8
-20DB
ATT1
AMP1
ATT2
AMP2
ATT3
AMP4
ATT4
AMP4
TP.1
-20DB
TP.2
-20DB
TP.3
-20DB
TP.4
-20DB
RET.TRANSMITTER-2
RATT
RET.TRANSMITTER-3
RATT
RET.TRANSMITTER-4
RATT
Fiber Optic Series
PON-4/ 4R
Specifications
Optica l Chara cterist ics:
Input optical wavelength 1290~1600nm
Input optical return loss >45dB
Optical input power 0 to 4 dBm
Optical input test point 1V/mW (±20%)
RF Amp lifier Charact eristic s:
Forward bandwidth (option) 54~860MHz
Freqtuency response ±0.75dB
CNR ≥51dB *
Output return loss ≥16dB
Output level 48dBmV
Distortion CTB≤-65dBc *
CSO≤-62dBc *
Test level -20dB
(* Loaded with 77 Analog channels)
Return Optica l Tra nsmissi on (PON -4R O pt ion):
Reverse bandwidth 5~42MHz
Duplex filter options 5/42 standard (30/45 and
65/85MHz options)
Optical output level 1dBm
Wavelength 1310nm
Optical connector SC/APC (standard)
Reverse RF test port -20dB
Optical output test point 1V/mW (±20%)
Electr ical Ch aracter istics:
Voltage 60~90Vac systems
Frequency 47~63Hz
Power Consumption 70 Watts typical,
94 Watts maximum
Dimensions: 15˝ L x 9˝ W x 7.8˝ H
Weight: 19.20 lbs
2
Rev. 9/07
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
Ordering Information
PON-4 4-Way Outdoor Optical Node
(Includes one FRM4 Receiver Module)
PON-4R 4-Way Outdoor Optical Node With Reverse Path
(Includes one FRM4 Receiver and
one RTM4 Transmitter Module)
PON-4RX2 4-Way Outdoor Optical Node With Reverse Path
(Includes one FRM4 Receiver and
two RTM4 Transmitter Module)
PON-4RX4 4-Way Outdoor Optical Node With Reverse Path
(Includes one FRM4 Receiver and
four RTM4 Transmitter Module)
Accessories
FRM4 Forward Receiver Module
RTM4 Reverse Transmitter Module
PON-AT - (value)** Plug-in Attenuator
PON-EQ - (value)** Plug-in Equalizer
** (Values = 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,
18, 19, 20, 21, 22)
www.picomacom.com
