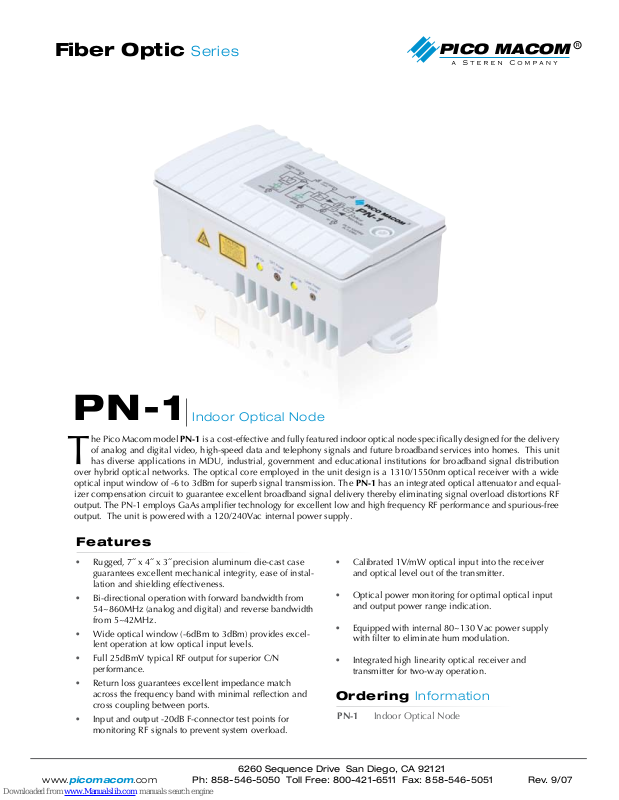

Page 1
Fiber Optic Series
PICO MACOM
PN-1

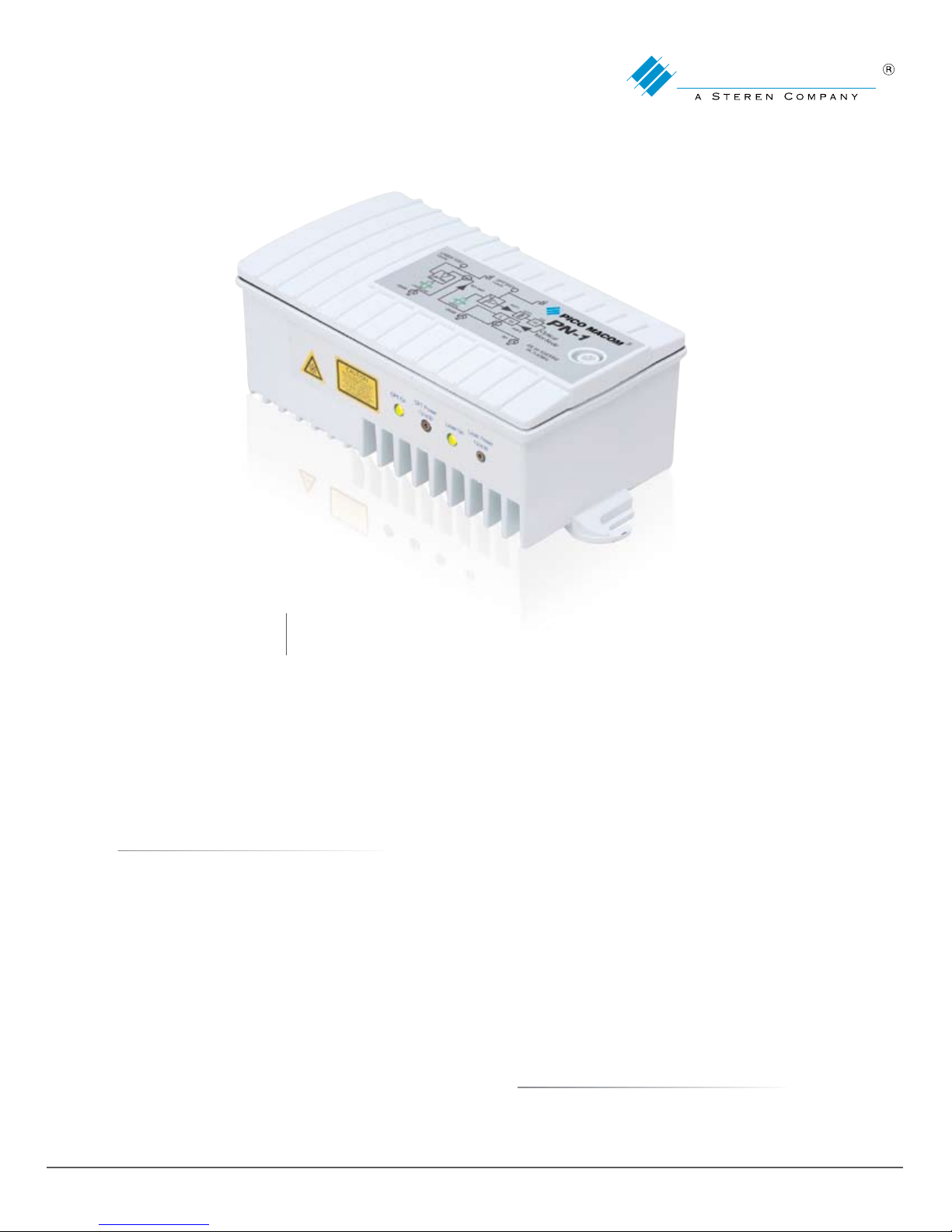

he Pico Macom model PN-1 is a cost-effective and fully featured indoor optical node specifically designed for the delivery
of analog and digital video, high-speed data and telephony signals and future broadband services into homes. This unit
T
has diverse applications in MDU, industrial, government and educational institutions for broadband signal distribution
over hybrid optical networks. The optical core employed in the unit design is a 1310/1550nm optical receiver with a wide
optical input window of -6 to 3dBm for superb signal transmission. The PN-1 has an integrated optical attenuator and equalizer compensation circuit to guarantee excellent broadband signal delivery thereby eliminating signal overload distortions RF
output. The PN-1 employs GaAs amplifier technology for excellent low and high frequency RF performance and spurious-free
output. The unit is powered with a 120/240Vac internal power supply.
Indoor Optical Node
Features
• Rugged, 7˝ x 4˝ x 3˝ precision aluminum die-cast case
guarantees excellent mechanical integrity, ease of instal lation and shielding effectiveness.
• Bi-directional operation with forward bandwidth from
54~860MHz (analog and digital) and reverse bandwidth
from 5~42MHz.
• Wide optical window (-6dBm to 3dBm) provides excel-
lent operation at low optical input levels.
• Full 25dBmV typical RF output for superior C/N
performance.
• Return loss guarantees excellent impedance match
across the frequency band with minimal reflection and
cross coupling between ports.
• Input and output -20dB F-connector test points for
monitoring RF signals to prevent system overload.
• Calibrated 1V/mW optical input into the receiver
and optical level out of the transmitter.
• Optical power monitoring for optimal optical input
and output power range indication.
• Equipped with internal 80~130 Vac power supply
with filter to eliminate hum modulation.
• Integrated high linearity optical receiver and
transmitter for two-way operation.
Ordering Information
PN-1 Indoor Optical Node
www.picomacom.com
1
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
Rev. 9/07
Page 2
PICO MACOM

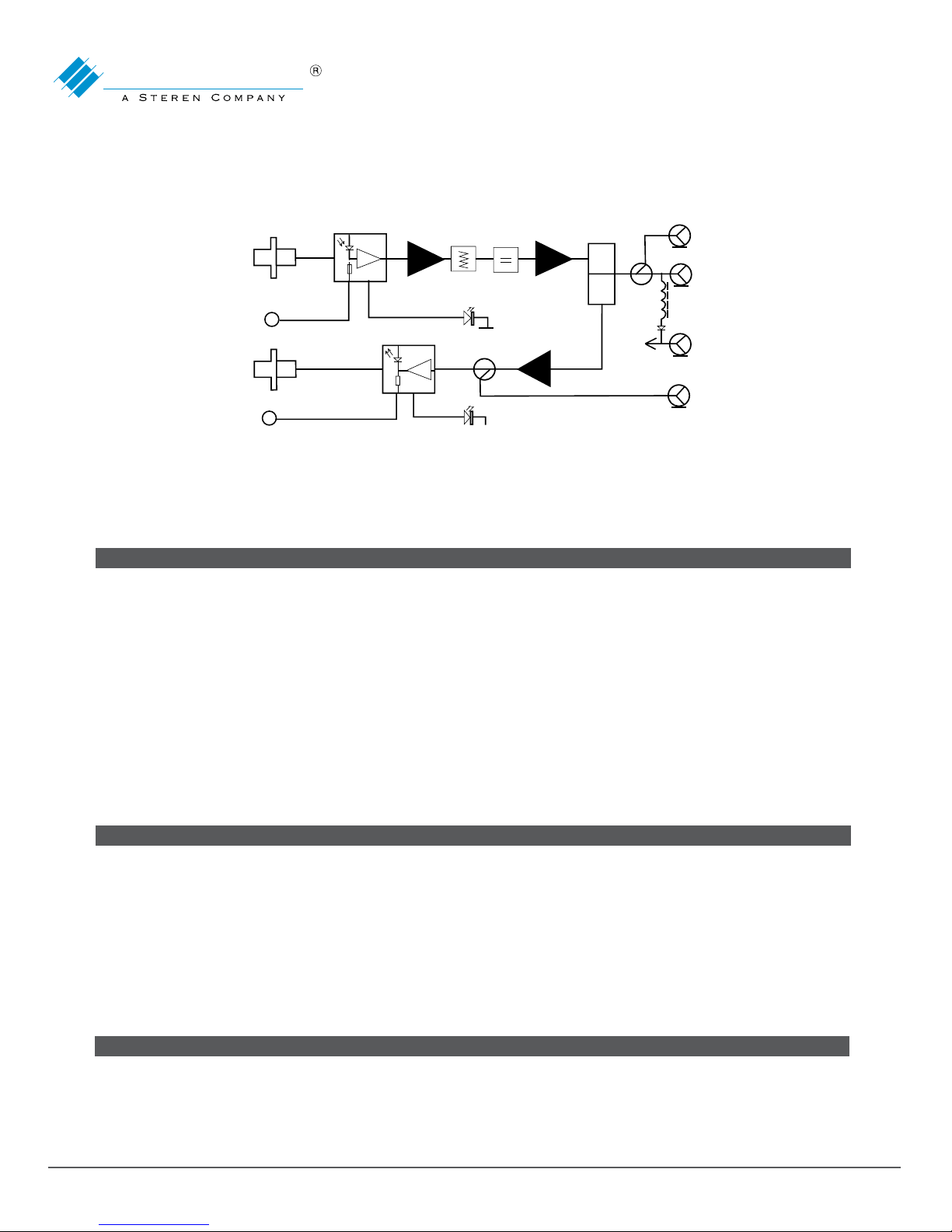

FIBER IN
O.RE
OPT. POWER
1V/mW
FIBER OUT
LEASER POWER
1V/mW
REV.TRANSMITTER
REV AMPLIFIER
DISPLY
DISPLY
AMP1
ATT1
EQ
AMP2
RF OUT
POWER
DC-12V
TEST-20dB
TEST-20dB
H
L
Fiber Optic Series
PN-1
2
Forward Receiver
Symbol Parameter Conditions Min. Typ. Max. Unit
l Optical Wavelength - 1290 - 1600 nm
V
Pin Optical Input Power Continuous -6 1 3 dBm
f Frequency Range - 54 - 1000 MHz
FL Freq. Response Flatness f=53~1000MHz - ±0.5 - dB
S22 Output Return Loss f=53~1000MHz 15 16 - dB
Vo Output Level - - 25 - dBmV
Optical Return Loss - 45 - - dB
CTB Composite Triple Beat 99chs flat, - - -61 dB
CSO Composite Second Order fm=859.25MHz - - -60 dB
* Test results are typical and were performed at our San Diego test center.
Monitor Voltage l=1310 - 1 - V/mW
Opt. In.
Return Transmitter
Symbol Parameter Conditions Min. Typ. Max. Unit
l Optical Wavelength - - 1310 - nm
W
Optical Output Power Continuous 0.5 1 3 dBm
Out
V
V
f Frequency Range (option) - 5 - 42 MHz
FL Freq. Response Flatness f=5~42MHz - ±0.5 - dB
S11 Input Return Loss f=5~42MHz 15 16 - dB
Optical Output Return Loss - - 45 - dB
General
Symbol Parameter Conditions Min. Typ. Max. Unit
I
Dimensions: 7.5˝ L x 4.2˝ W x 3.3˝ H
Weight: 0.75 lbs
Monitor Voltage l=1310 - 1 - V/mW
Opt. In.
RF Input Level - - 15 - dBmV
rin.
Total Current Consumption V+=12V - 350 - mA
tot
Rev. 9/07
Ph: 858-546-5050 Toll Free: 800-421-6511 Fax: 858-546-5051
6260 Sequence Drive San Diego, CA 92121
www.picomacom.com
