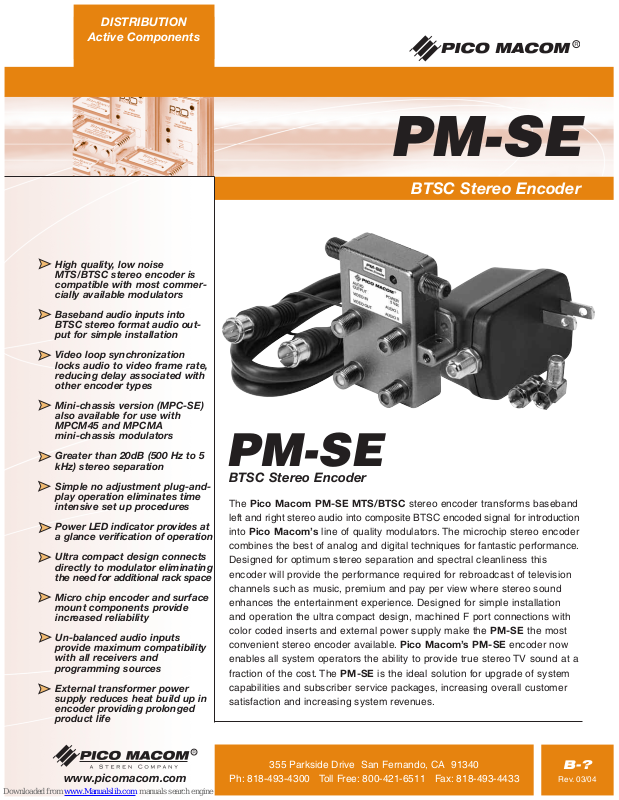

DISTRIBUTION
Active Components
High quality, low noise
MTS/BTSC stereo encoder is
compatible with most commercially available modulators
Baseband audio inputs into
BTSC stereo format audio output for simple installation
PM-SE
BTSC Stereo Encoder
Video loop synchronization
locks audio to video frame rate,
reducing delay associated with
other encoder types
Mini-chassis version (MPC-SE)
also available for use with
MPCM45 and MPCMA
mini-chassis modulators
Greater than 20dB (500 Hz to 5
kHz) stereo separation
Simple no adjustment plug-andplay operation eliminates time
intensive set up procedures
Power LED indicator provides at
a glance verification of operation
Ultra compact design connects
directly to modulator eliminating
the need for additional rack space
Micro chip encoder and surface
mount components provide
increased reliability
Un-balanced audio inputs
provide maximum compatibility
with all receivers and
programming sources
External transformer power
supply reduces heat build up in
encoder providing prolonged
product life
PM-SE
BTSC Stereo Encoder
The Pico Macom PM-SE MTS/BTSC stereo encoder transforms baseband
left and r
into Pico Macom’s line of quality modulators. The microchip stereo encoder
combines the best of analog and digital techniques f
Designed for optimum stereo separation and spectral cleanliness this
encoder will provide the performance required for rebroadcast of television
channels such as music, premium and pay per view where stereo sound
enhances the enter
and operation the ultra compact design, machined F port connections with
color coded inser
con
enables all system operators the ability to provide true stereo TV sound at a
fraction of the cost. The PM-SE is the ideal solution for upgrade of system
capabilities and subscriber service packages, increasing overall customer
satisfaction and increasing system revenues.
ight stereo audio into composite BTSC encoded signal f
Designed f
.
ience
xter
vailable.
xper
nal po
er supply make the
w
Pico Macom’
tainment e
ts and e
enient stereo encoder a
v
antastic performance.
or f
or simple installation
s PM-SE
or introduction
PM-SE the most
encoder no
w
www.picomacom.com
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
B-?
Rev. 03/04
Page 2
Product Specifications

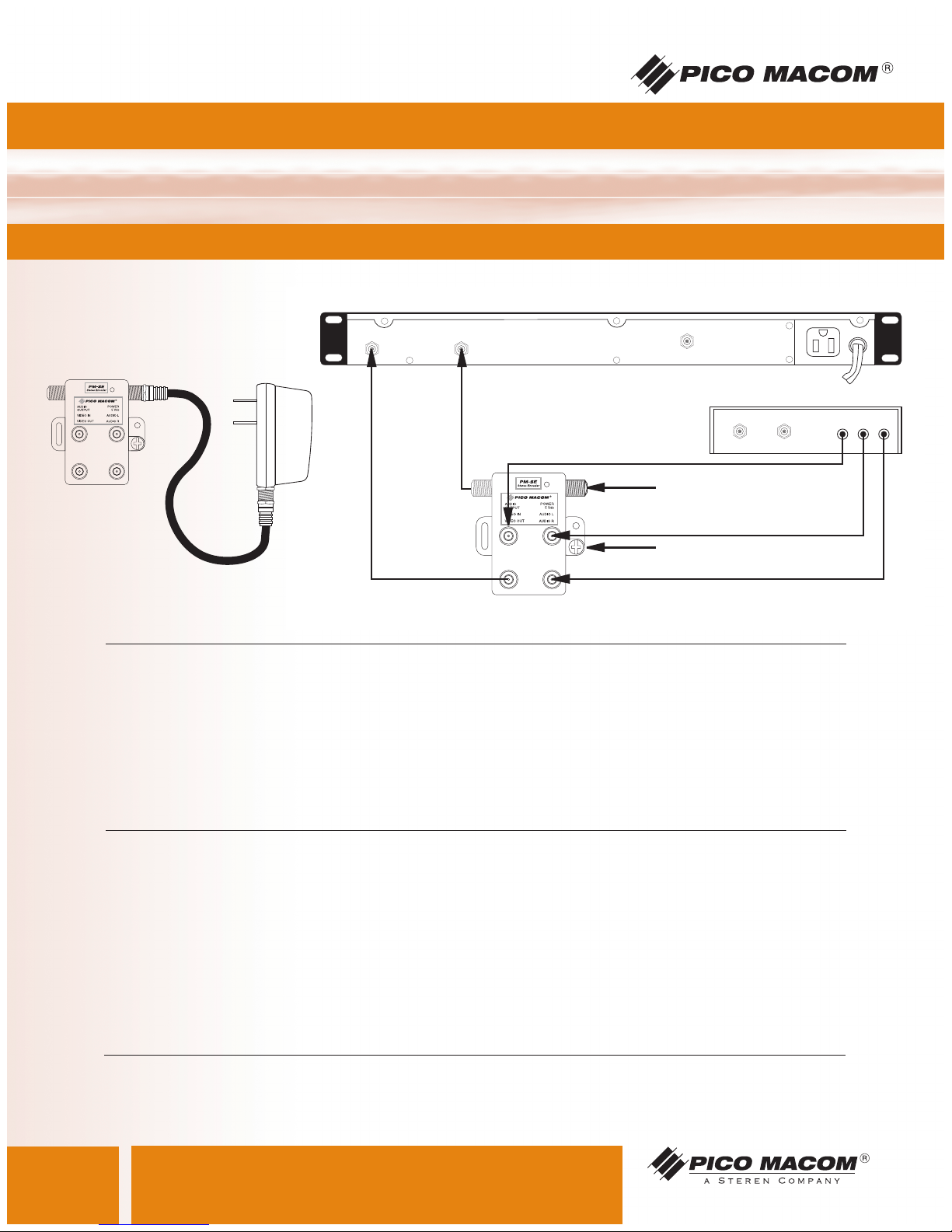

OUTPUT
RL
VIDEO AUDIO
INPUT
SATELLITE ANT IN
PCM55SA
W Modulator
Sat
ellite Receiver
RF OUT
120VAC
60Hz 10W
AUDI
O IN
VIDEO IN
600 VA MAX
+
+
+
+
+
+
+
Ground Connection
Pow
er
PM-SE
BTSC Stereo Encoder
RF
Input: Left Audio Input Level 1 volt p-p max.
Output: Composite Stereo Output Level 1 volt p-p max.
Right Audio Input Level 1 volt p-p max.
Right Audio Input Level 1 volt p-p max.
Third Harmonic Distortion 1% max.
Signal to Noise Ratio (SNR) 65dBc
Frequency Response ±1 dB @ 20Hz to 13kHz
Stereo Separation 500 Hz to 5 kHz = 20dB
100 Hz to 10 kHz = 10 dB
General
Power Supply Requirement:
Physical: Case Black Anodized Zinc
Ordering Information
PM-SE
Power Adaptor 5 Vdc @ 60 mA
Output Connector Type F-type
Connections TYPE “F”
Dimensions 2.2˝H x 1.7˝W x 1.5˝D
Weight 0.6 lbs.
Connector, Black Anodized
Zinc
Specifications Subject to Change
kside Dr
ar
B-?
Rev. 03/04
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
355 P
e San F
iv
er
ight 2004 Pico Macom, Inc.
