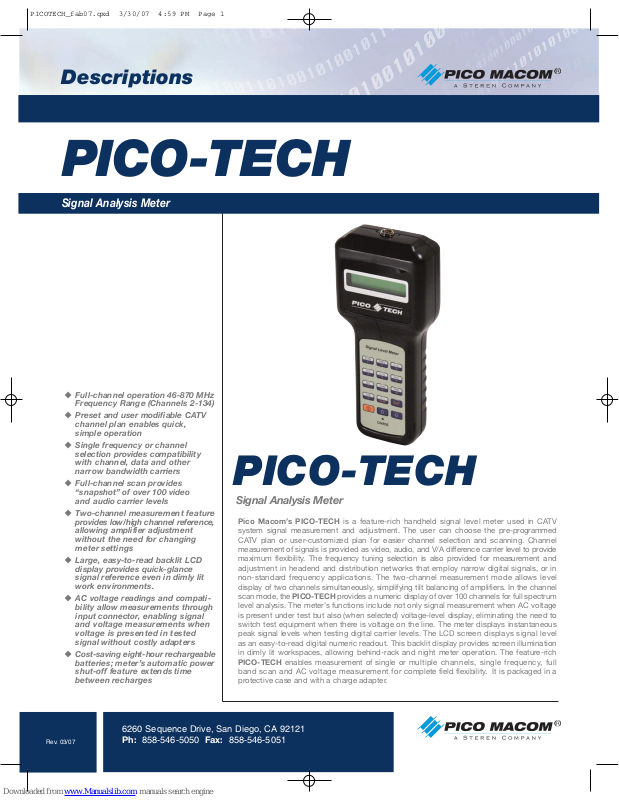

Descriptions
u Full-channel operation 46-870 MHz
Frequency Range (Channels 2-134)
u Preset and user modifiable CATV
channel plan enables quick,
simple operation
u Single frequency or channel
selection provides compatibility
with channel, data and other
narrow bandwidth carriers
u Full-channel scan provides
“snapshot” of over 100 video
and audio carrier levels
u T
wo-channel measurement feature
provides low/high channel reference,
allowing amplifier adjustment
without the need for changing
meter settings
u Large, easy-to-read backlit LCD
display provides quick-glance
signal reference even in dimly lit
work environments.
u AC voltage readings and compati
bility allow measurements through
input connector, enabling signal
and voltage measurements when
voltage is presented in tested
signal without costly adapters
u Cost-saving eight-hour rechargeable
batteries; meter’s automatic power
shut-off feature extends time
between recharges
Signal Analysis Meter
Rev. 03/07
6260 Sequence Drive, San Diego, CA 92121
Ph: 858-546-5050 Fax: 858-546-5051
Signal Analysis Meter
PICO-TECH

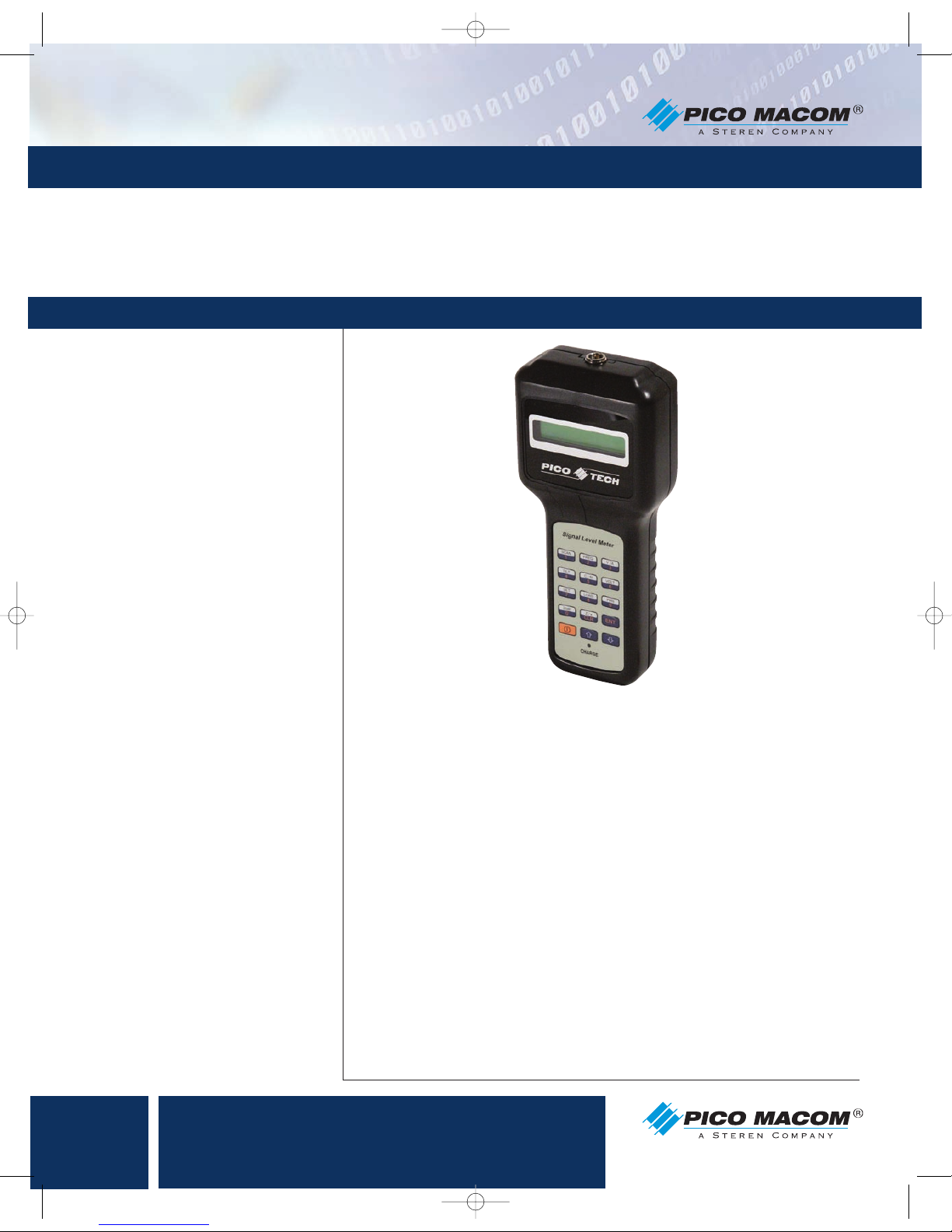

Pico Macom’s PICO-TECH is a feature-rich handheld signal level meter used in CATV
system signal measurement and adjustment. The user can choose the pre-programmed
CATV plan or user-customized plan for easier channel selection and scanning. Channel
measurement of signals is provided as video, audio, and V/A difference carrier level to provide
maximum flexibility
. The fr
equency tuning selection is also pr
ovided for measur
e
ment
and
adjustment in headend and distribution networks that employ narrow digital signals, or in
non-standard frequency applications. The two-channel measurement mode allows level
display of two channels simultaneously
, simplifying tilt balancing of amplifiers. In the channel
scan mode, the
PICO-TECH provides a numeric display of over 100 channels for full spectrum
level analysis. The meter’s functions include not only signal measurement when AC voltage
is pr
esent under test but also (when selected) voltage-level display
, eliminating the need to
switch test equipment when there is voltage on the line. The meter displays instantaneous
peak signal levels when testing digital carrier levels. The LCD screen displays signal level
as an easy-to-r
ead digital numeric readout. This backlit display provides screen illumination
in dimly lit workspaces, allowing behind-rack and night meter operation. The feature-rich
PICO-TECH enables measurement of single or multiple channels, single frequency, full
band scan and AC voltage measur
ement for
complete field flexibility
. It is packaged in a
protective case and with a charge adapter.
PICOTECH_fab07.qxd 3/30/07 4:59 PM Page 1

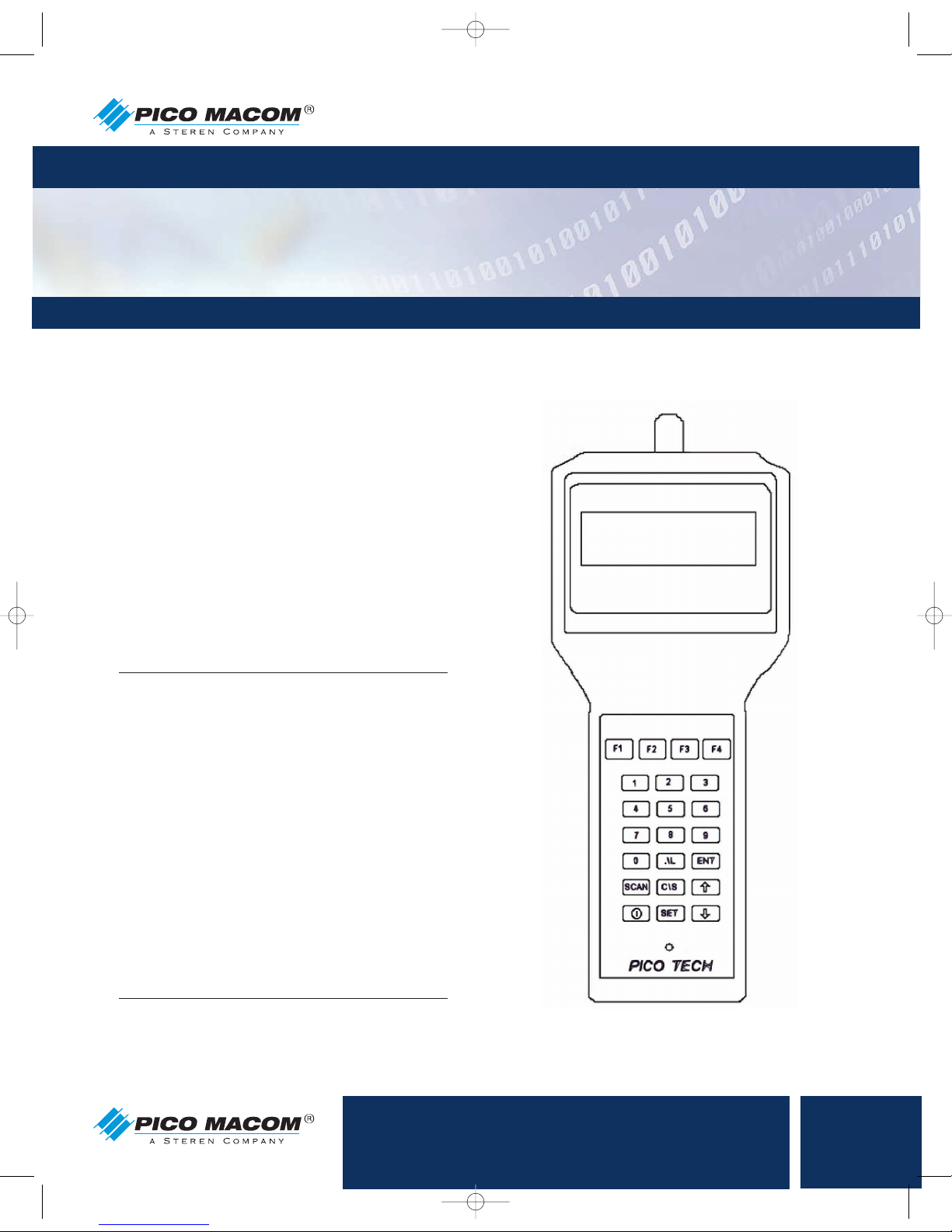

Page 2
PICO-TECH
Specifications
Signal Analysis Meter
Frequency
Frequency range 46~870 MHz
Resolution ratio 10 kHz
Measured bandwidth 280 kHz
Level Measur
ement
Measurement range -35 ~ 60 dBmV
Measurement accuracy ±1.5 dB
Resolution r
atio
0.1 dB
Method of detection Peak detection
Input resistance 75Ω
Voltage Measurement
Input range 0~80V AC/DC
Measurement accuracy ±2V
Resolution ratio 0.1V
Specifications
Ordering Information
PICO-TECH
Re
v
.
03/07
6260 Sequence Drive, San Diego, CA 92121
Ph: 858-546-5050 Fax: 858-546-5051
PICOTECH_fab07.qxd 3/30/07 4:59 PM Page 2
