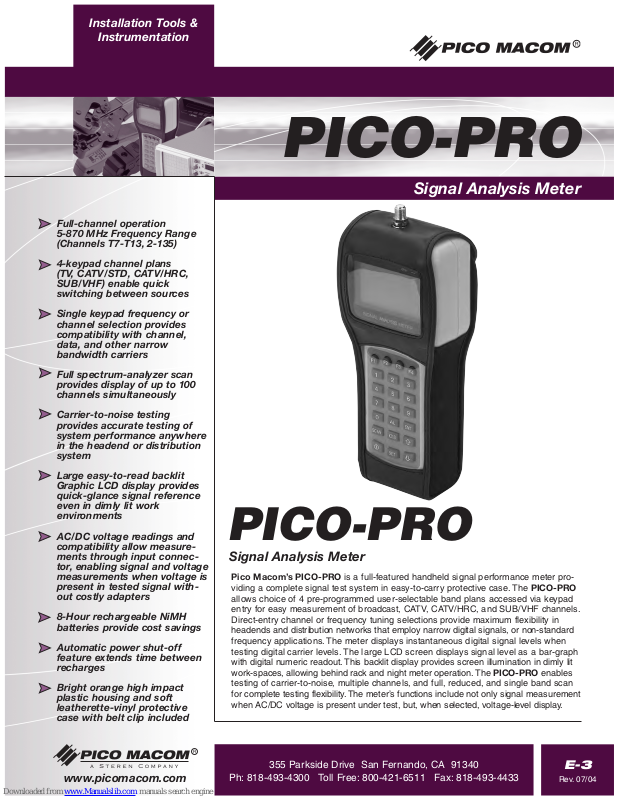

Page 1
Installation Tools &
Instrumentation
Full-channel operation
5-870 MHz Frequency Range
(Channels T7-T13, 2-135)
4-keypad channel plans
(TV, CATV/STD, CATV/HRC,
SUB/VHF) enable quick
switching between sources
Single keypad frequency or
channel selection provides
compatibility with channel,
data, and other narrow
bandwidth carriers
PICO-PRO
Signal Analysis Meter
Full spectrum-analyzer scan
provides display of up to 100
channels simultaneously
Carrier-to-noise testing
provides accurate testing of
system performance anywhere
in the headend or distribution
system
Large easy-to-read backlit
Graphic LCD display provides
quick-glance signal reference
even in dimly lit work
environments
AC/DC voltage readings and
compatibility allow measurements through input connector, enabling signal and voltage
measurements when voltage is
present in tested signal with
out costly adapters
8-Hour rechargeable NiMH
batteries provide cost savings
Automatic power shut-off
feature extends time between
recharges
Bright orange high impact
plastic housing and soft
leatherette-vinyl protective
case with belt clip included
-
PICO-PRO
Signal Analysis Meter
Pico Macom’s PICO-PRO is a full-featured handheld signal performance meter pro-
The
.
viding a complete signal test system in easy-to-carr
ws choice of 4 pre-programmed user-selectable band plans accessed via keypad
allo
entry for easy measurement of broadcast, CATV, CATV/HRC, and SUB/VHF channels.
Direct-entr
headends and distr
frequency applications. The meter displays instantaneous digital signal levels when
testing digital carr
with digital n
work-spaces, allowing behind rack and night meter operation. The
testing of carr
for complete testing flexibility. The meter’s functions include not only signal measurement
when AC/DC voltage is present under test, but, when selected, voltage-level display.
y channel or frequency tuning selections pro
ibution networks that employ narrow digital signals, or non-standard
The large LCD screen displays signal level as a bar-graph
.
els
v
ier le
umeric readout. This backlit display provides screen illumination in dimly lit
ier-to-noise
ultiple channels
, m
, and full, reduced, and single band scan
y protectiv
e case
vide maxim
PICO-PRO
xibility in
um fle
PICO-PRO enables
www.picomacom.com
355 Parkside Drive San Fernando, CA 91340
818-493-4300
Ph:
oll Free: 800-421-6511 Fax: 818-493-4433
T
E-3
.
v
Re
07/04
Page 2
Product Specifications
123
456
789
0
ENT
SCAN
C/S
./L
SET
F1 F2 F3 F4
1
SIGNAL ANALYSIS METER
Specifications
Frequency range: 5MHz ~ 870MHz
Frequency resolution ratio 10kHz
Measured band width: 280kHz
Level Measurment
Measurement range: -35dBmV ~ 60dBmV
Measurement accuracy: ± 1.5dB
Resolution ratio: 0.1dB
Method of detection: Peak detection
Input resistance: 75 ohm
Carrier-noise ratio (CN)
Signal input range: > 10dBmV
Measurement accuracy: + 2dB
PICO-PRO
Signal Analysis Meter
Voltage Measurement
Input range: 0 ~ 80V AC/DC
Measurement accuracy: ±2V
Resolution ratio: 0.1V
Dimensions: 4.3˝(L) x 2.6˝(D) x 10.0˝(H)
Weight: 2 lbs.
All the above technical indexes are under indoor temperature (25°C).
Ordering Information
PICO-PRO
E-4
Rev. 07/04
Specifications Subject to Change © Copyright 2004 Pico Macom, Inc.
