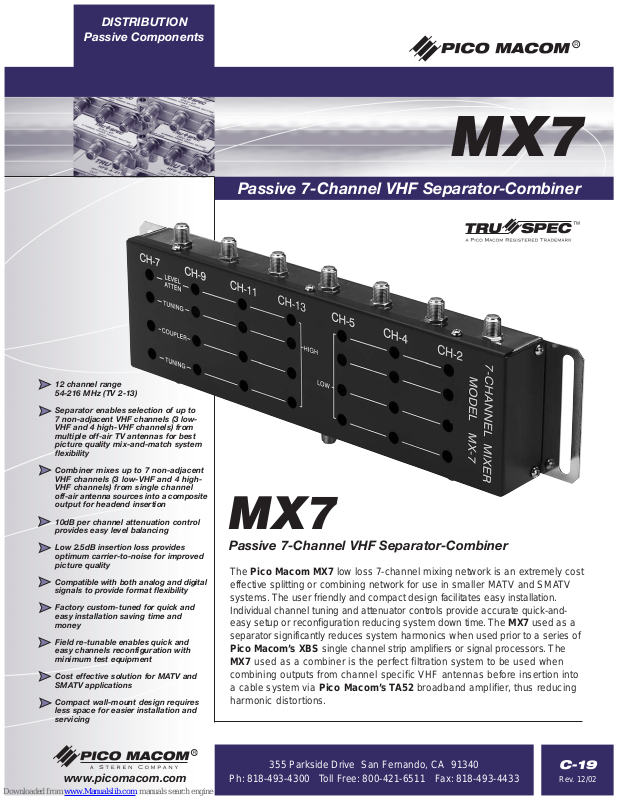

MX7
12 channel range
54-216 MHz (TV 2-13)
Separator enables selection of up to
7 non-adjacent VHF channels (3 lowVHF and 4 high-VHF channels) from
multiple off-air TV antennas for best
picture quality mix-and-match system
flexibility
Combiner mixes up to 7 non-adjacent
VHF channels (3 low-VHF and 4 highVHF channels) from single channel
off-air antenna sources into a composite
output for headend insertion
10dB per channel attenuation control
provides easy level balancing
Low 2.5dB insertion loss provides
optimum carrier-to-noise for improved
picture quality
Compatible with both analog and digital
signals to provide format flexibility
Factory custom-tuned for quick and
easy installation saving time and
money
Field re-tunable enables quick and
easy channels reconfiguration with
minimum test equipment
Cost effective solution for MATV and
SMATV applications
Compact wall-mount design requires
less space for easier installation and
servicing

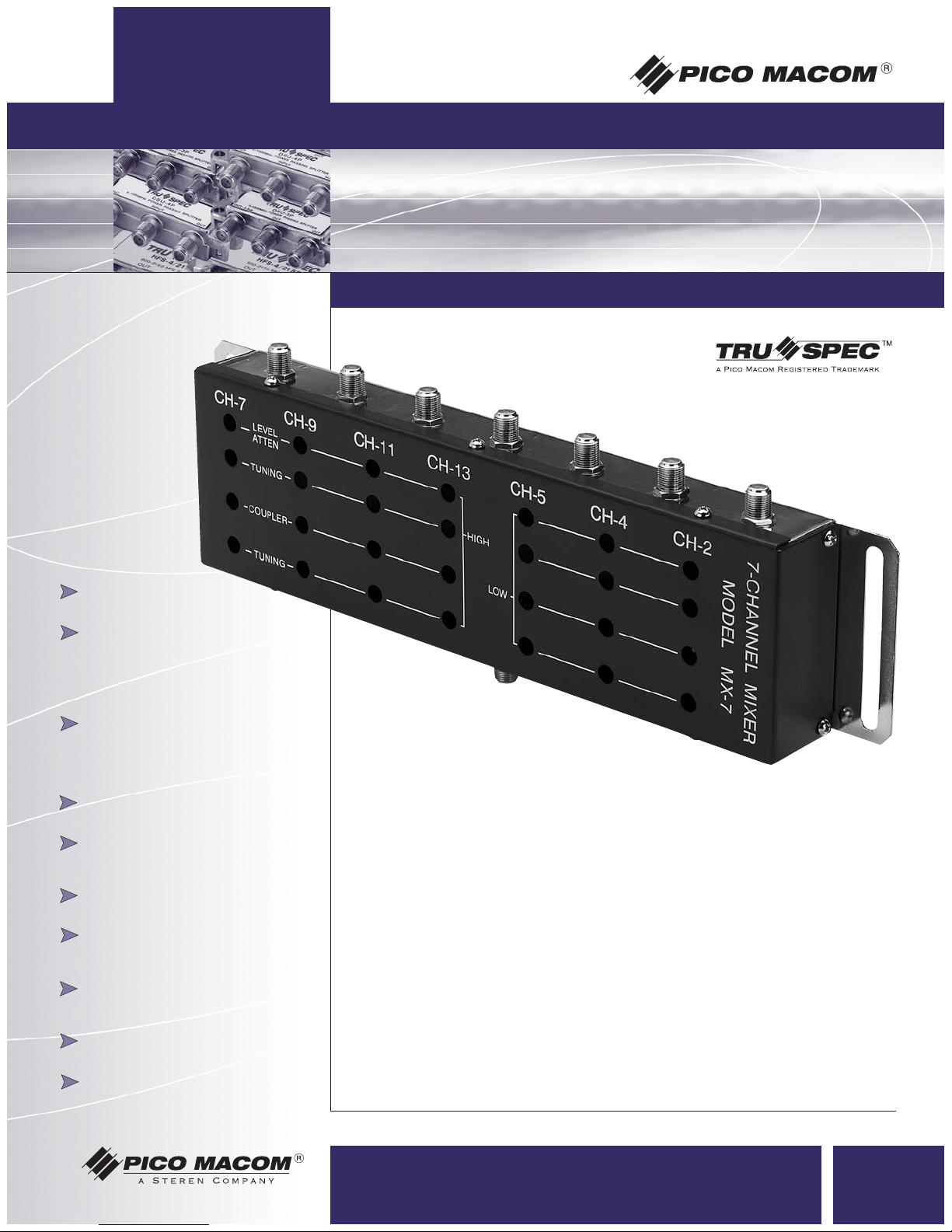

The Pico Macom MX7 low loss 7-channel mixing network is an extremely cost
effective splitting or combining network for use in smaller MATV and SMATV
systems.The user friendly and compact design facilitates easy installation.
Individual channel tuning and attenuator controls provide accurate quick-andeasy setup or reconfiguration reducing system down time.The MX7 used as a
separator significantly reduces system harmonics when used prior to a series of
Pico Macom’s XBS single channel str ip amplifiers or signal processors. The
MX7 used as a combiner is the perfect filtration system to be used when
combining outputs from channel specific VHF antennas before insertion into
a cable system via Pico Macom’s TA52 broadband amplifier, thus reducing
harmonic distortions.
Passive 7-Channel VHF Separator-Combiner
Passive 7-Channel VHF Separator-Combiner
www.picomacom.com
DISTRIBUTION
Passive Components
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
C-19
Rev. 12/02
MX7
Page 2
MX7
Channels: 3 Low band, 4 High band
Frequency Range: 54-215 MHz
Bandwidth: 6 MHz
Insertion Loss:
Low band: 2.5 dB
High band: 4.5 dB
Attenuator Range: 0 to 10 dB
Skirt Selectivity:
(Alternate Channel) 16 dB
Impedance: 75 Ohms
Dimensions: 13˝(L) x 17/16˝(D) x 31/4˝(H)
Weight: 11/4 lbs.
Specifications
Product Specifications
Passive 7-Channel VHF Separator-Combiner

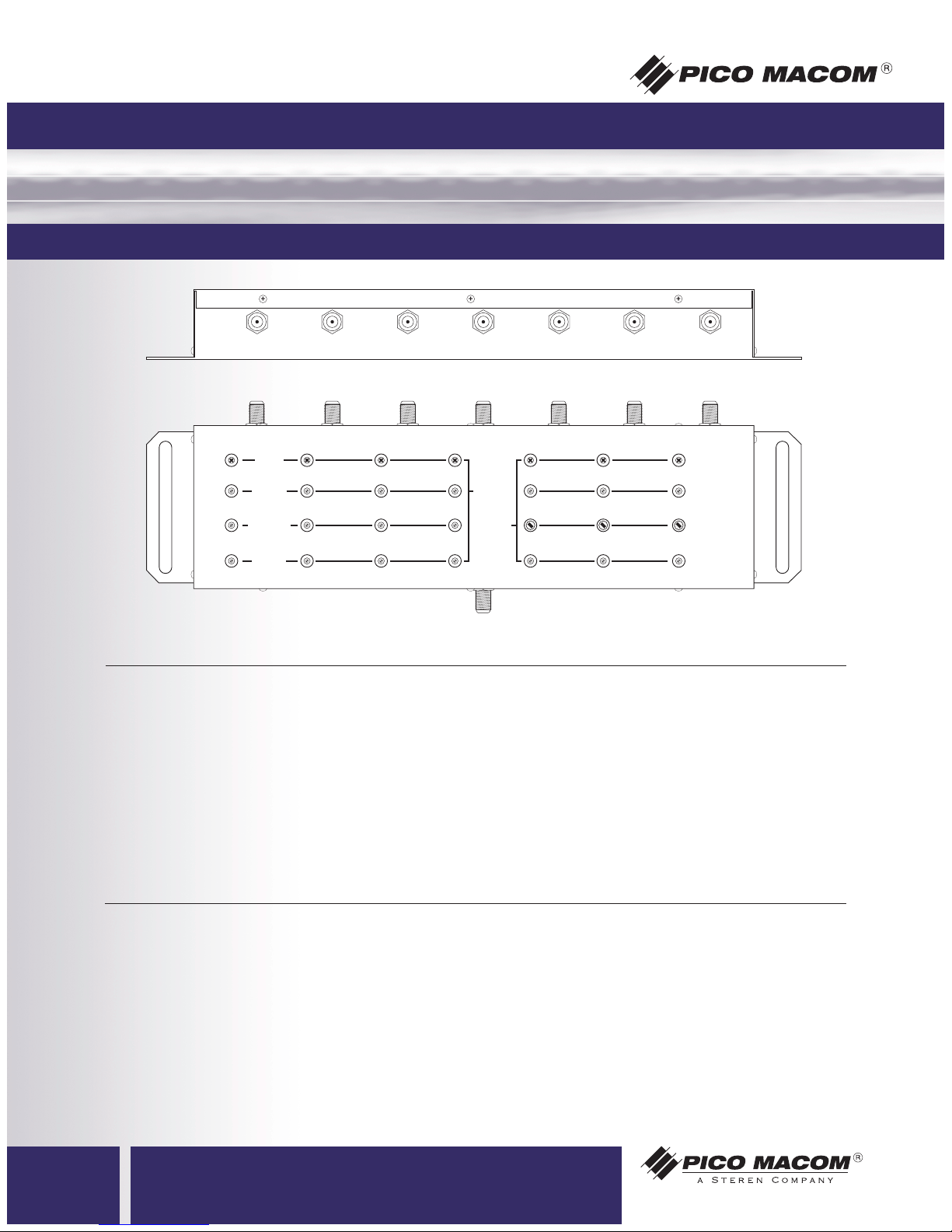

CH-7 CH-9 CH-11 CH-13 CH-5 CH-4 CH-2
7-CHANNEL MIXER
MODEL MX-7
LEVEL
ATTEN
TUNING
COUPLER
TUNING
HIGH
LOW
MX-7
Ordering Information
www.picomacom.com
C-20
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
Specifications Subject to Change © Copyright 2003 Pico Macom, Inc.
