Page 1
55 channel Range 470-806 MHz
(TV 14-69)
Extremely cost effective splitting/combining solution for
smaller MATV and SMATV
applications
Separator enables selection of
up to 4 non-adjacent UHF channels from multiple off-air TV
antennas for best picture quality mix-and-match system
flexibility
Combiner mixes up to 4 nonadjacent UHF channels from
single channel off-air antenna
sources into a composite output for headend insertion
Compatible with both analog
and digital signals to provide
format flexibility
Factory custom-tuned for quick
and easy installation saving
time and money
Field re-tunable enables quick
and easy channels reconfiguration with minimum test
equipment
Compact wall-mount design
requires less space for easier
installation and servicing
Compatible with international
channel plans and formats

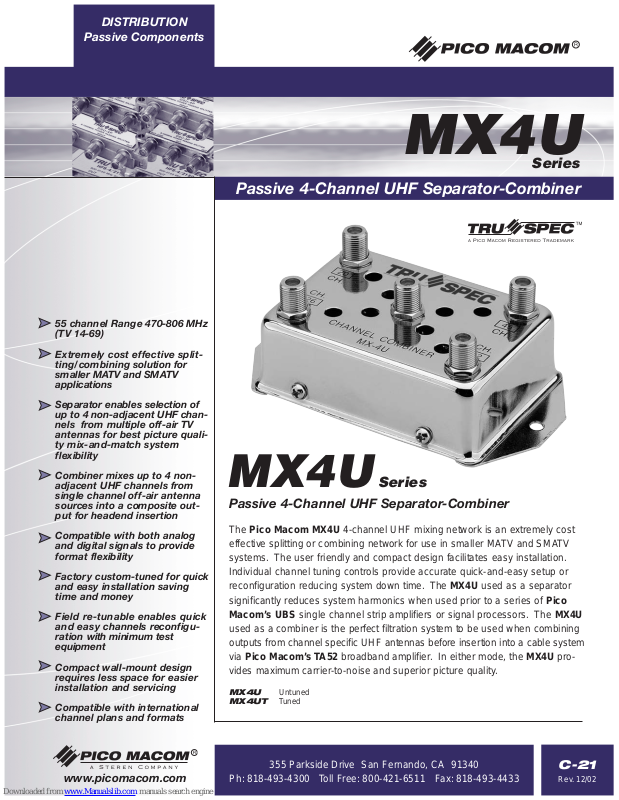

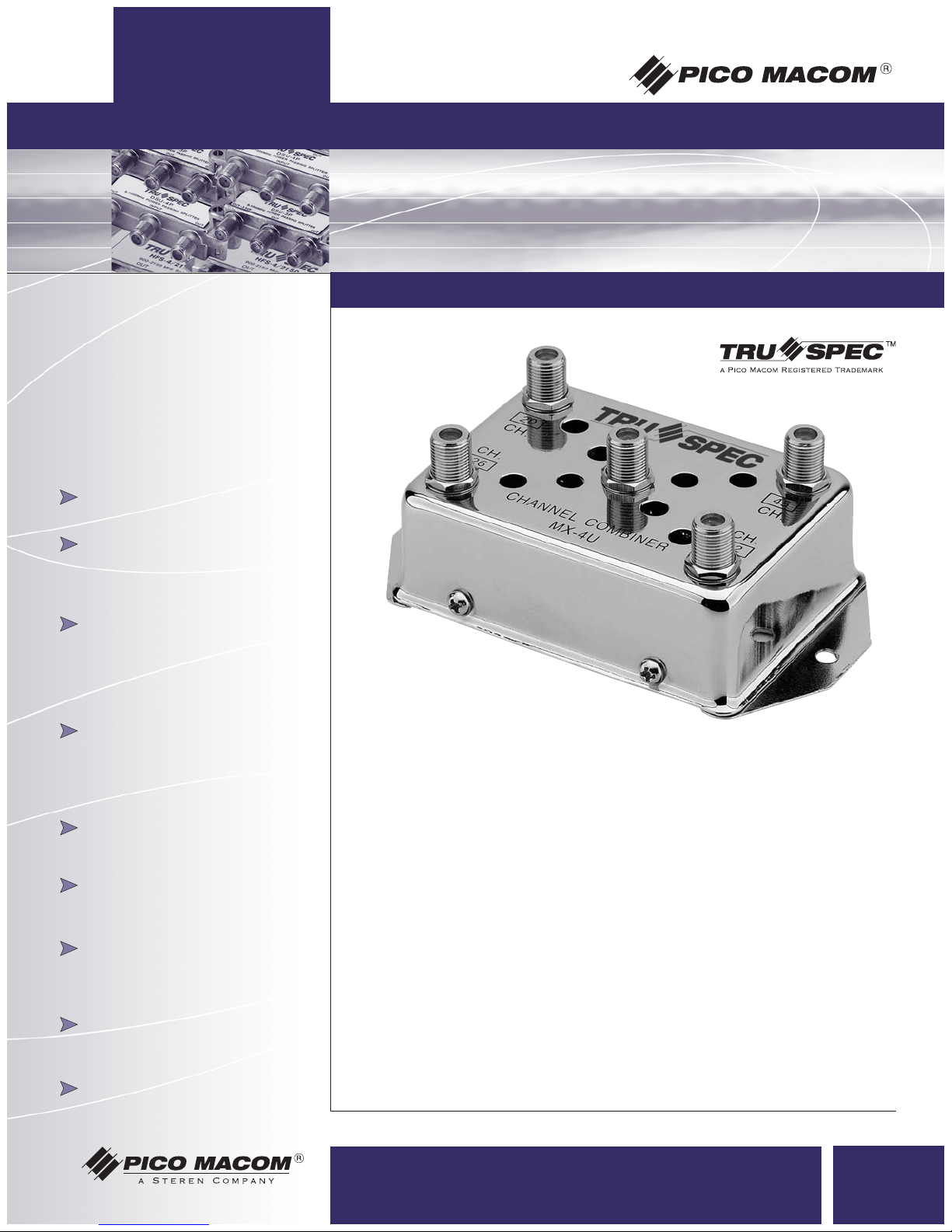

The Pico Macom MX4U 4-channel UHF mixing network is an extremely cost
effective splitting or combining network for use in smaller MATV and SMATV
systems. The user friendly and compact design facilitates easy installation.
Individual channel tuning controls provide accurate quick-and-easy setup or
reconfiguration reducing system down time. The MX4U used as a separator
significantly reduces system harmonics when used prior to a series of Pico
Macom’s UBS single channel strip amplifiers or signal processors. The MX4U
used as a combiner is the perfect filtration system to be used when combining
outputs from channel specific UHF antennas before insertion into a cable system
via Pico Macom’s TA52 broadband amplifier. In either mode, the MX4U pro-
vides maximum carrier-to-noise and superior picture quality.
MX4U Untuned
MX4UT Tuned
MX4U Series
Passive 4-Channel UHF Separator-Combiner
Passive 4-Channel UHF Separator-Combiner
www.picomacom.com
DISTRIBUTION
Passive Components
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
C-21
Rev. 12/02
MX4U
Series
Page 2

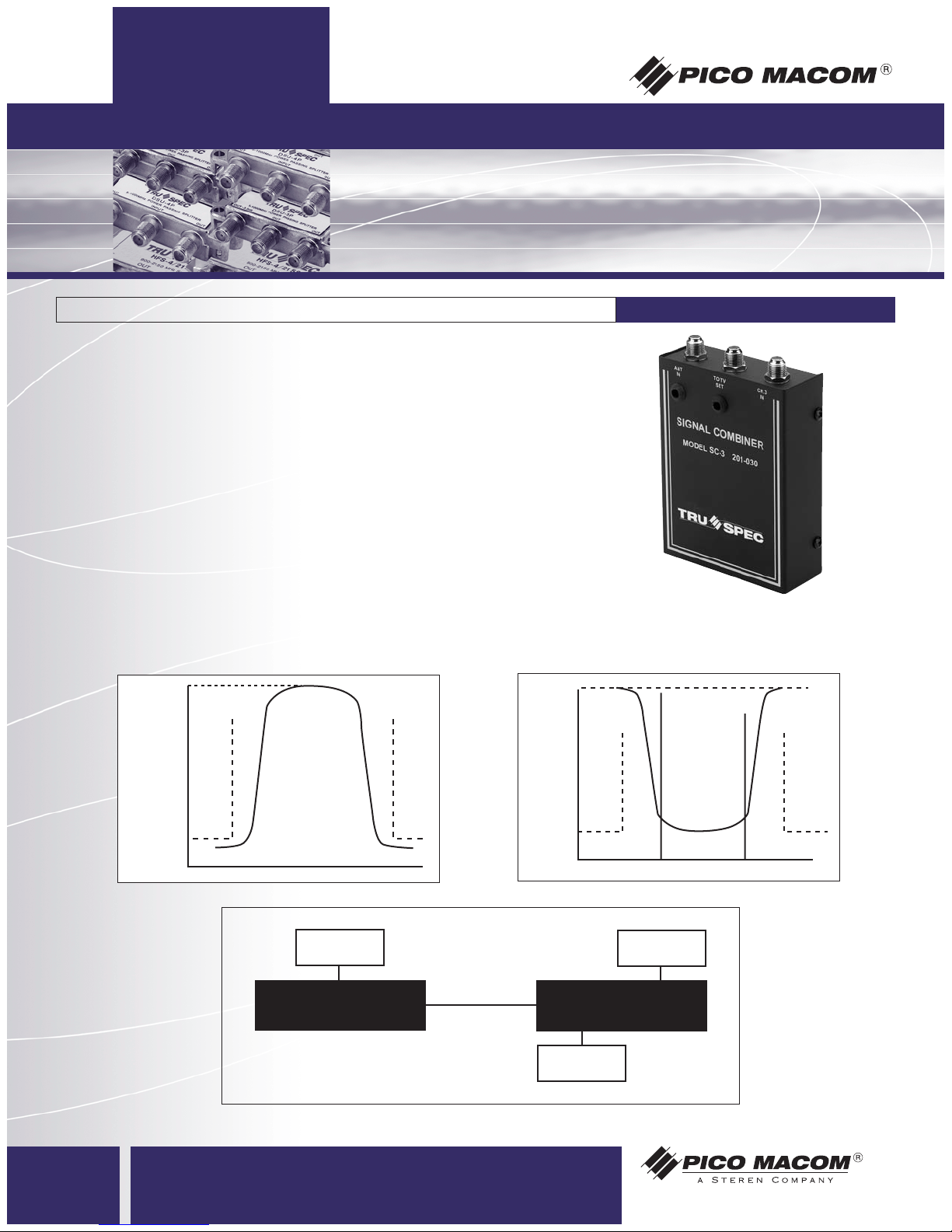

SC series
Channels 3/4 Channel Combiners
DISTRIBUTION
Passive Components
Cost effective high-quality channel combiners used with multiple TV sets for decoded programming, simultaneous premium-channel viewing and recording, TV remote switching between off-air
and premium channels – Precision-tuned 6-stage bandpass-bandstop filters provide 6MHz carrier-free environment for locally originated channel insertion – High Skirt Selectivity Sharp frequency Cut Off – Easy Balancing Adjustment Tuning – High Unwanted Signal Attenuation – Rejection
Depth >25 dB – Adjacent Channel Loss 5.5dB+1dB – Low Insertion Loss 3dB+2dB – Adjustable
Balancing Attenuators – F-type Connectors – Dimensions 3-3/8˝(L) x 1-1/8˝(D) x 3-3/4˝(H) – Weight
0.5 lbs
SC-3 Channel-3 Filter-Combiner Removes Channel-3
SC-4 Channel-4 Filter-Combiner Removes Channel-4
Channel Combiners
Originated Channel to TV Port
Antenna-In TV Port
Blocks out-of-band signals
emitted from pay TV unit.
Prevents interference to off-air channel.
Reduces overlapping off-air
signals from interfering with
originated channel.
www.picomacom.com
C-22
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
-4dB
OFF-AIR
CHANNEL
ORIGINATED
CHANNEL
OFF-AIR
CHANNEL
-1dB
OFF-AIR
CHANNEL
ORIGINATED
CHANNEL
OFF-AIR
CHANNEL
-25dB
SATELLITE
VCR/SAT
RECEIVER
Channel
3
-25dB
VIDEO AUDIO
ANTENNA
IN
SC-3
TV
