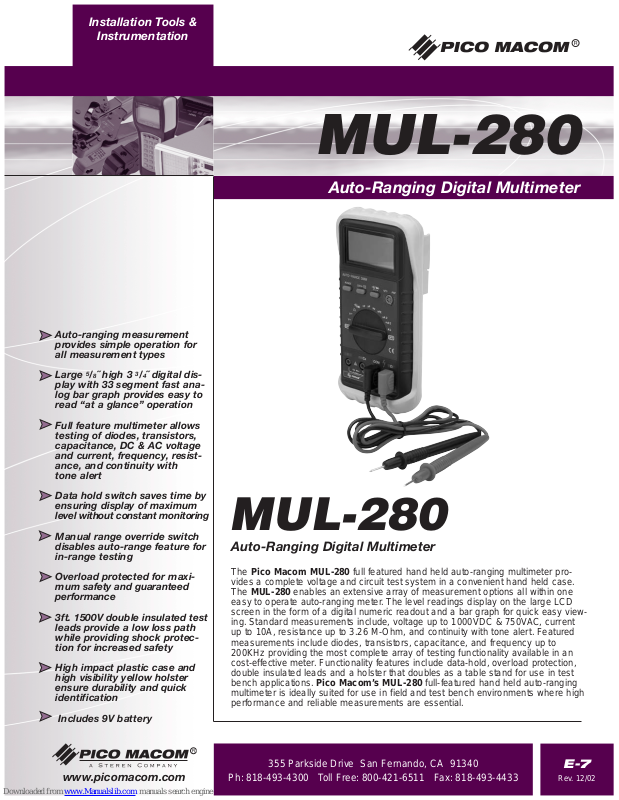

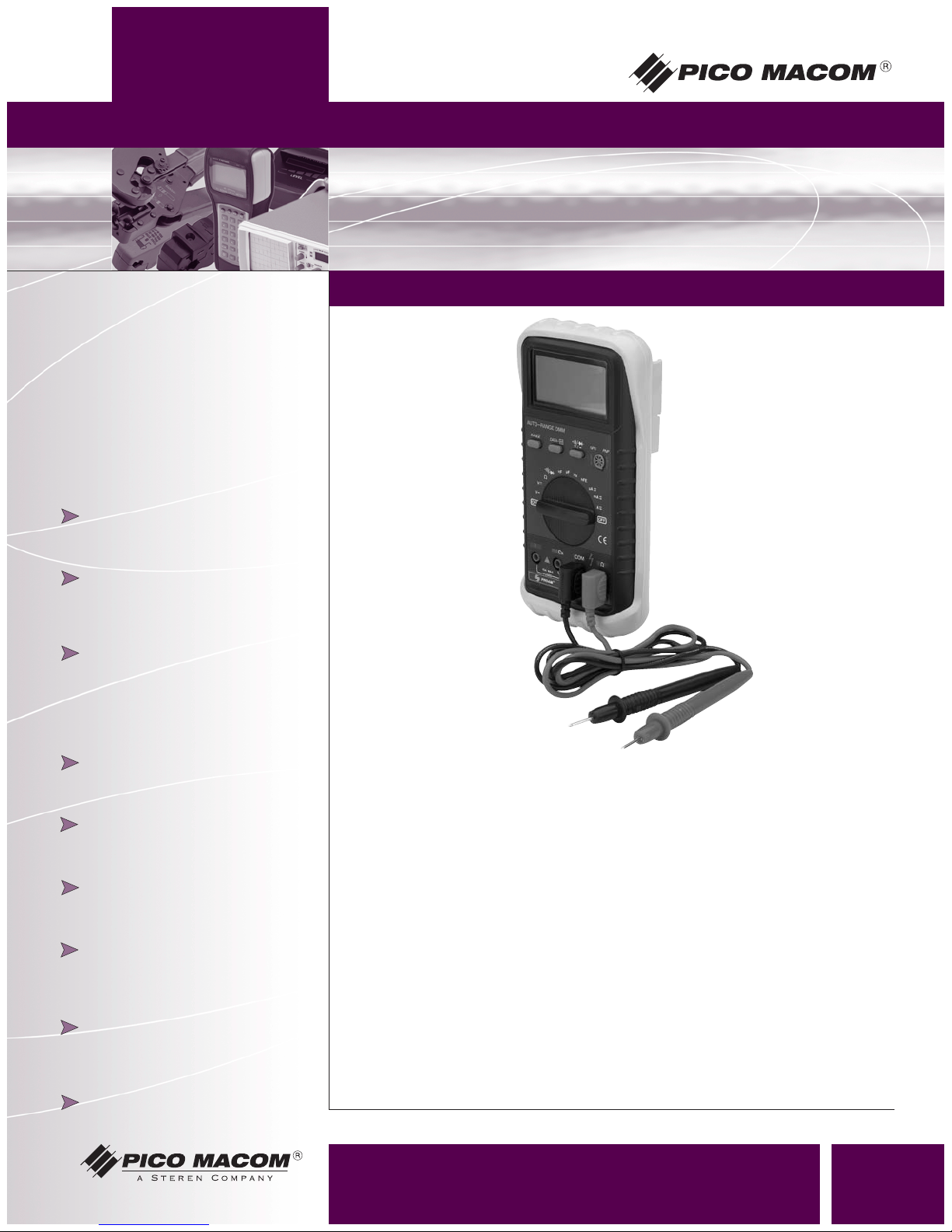

The Pico Macom MUL-280 full featured hand held auto-ranging multimeter pro-
vides a complete voltage and circuit test system in a convenient hand held case.
The MUL-280 enables an extensive array of measurement options all within one
easy to operate auto-ranging meter.The level readings display on the large LCD
screen in the form of a digital numeric readout and a bar graph for quick easy viewing. Standard measurements include, voltage up to 1000VDC & 750VAC, current
up to 10A, resistance up to 3.26 M-Ohm, and continuity with tone alert. Featured
measurements include diodes, transistors, capacitance, and frequency up to
200KHz providing the most complete array of testing functionality available in an
cost-effective meter. Functionality features include data-hold, overload protection,
double insulated leads and a holster that doubles as a table stand for use in test
bench applications. Pico Macom’s MUL-280 full-featured hand held auto-ranging
multimeter is ideally suited for use in field and test bench environments where high
performance and reliable measurements are essential.
MUL-280
Auto-Ranging Digital Multimeter
MUL-280
Auto-ranging measurement
provides simple operation for
all measurement types
Large 5/8˝ high 3 3/4˝ digital display with 33 segment fast analog bar graph provides easy to
read “at a glance” operation
Full feature multimeter allows
testing of diodes, transistors,
capacitance, DC & AC voltage
and current, frequency, resistance, and continuity with
tone alert
Data hold switch saves time by
ensuring display of maximum
level without constant monitoring
Manual range override switch
disables auto-range feature for
in-range testing
Overload protected for maximum safety and guaranteed
performance
3ft. 1500V double insulated test
leads provide a low loss path
while providing shock protection for increased safety
High impact plastic case and
high visibility yellow holster
ensure durability and quick
identification
Includes 9V battery
Page 2
www.picomacom.com
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
E-8
Rev. 12/02

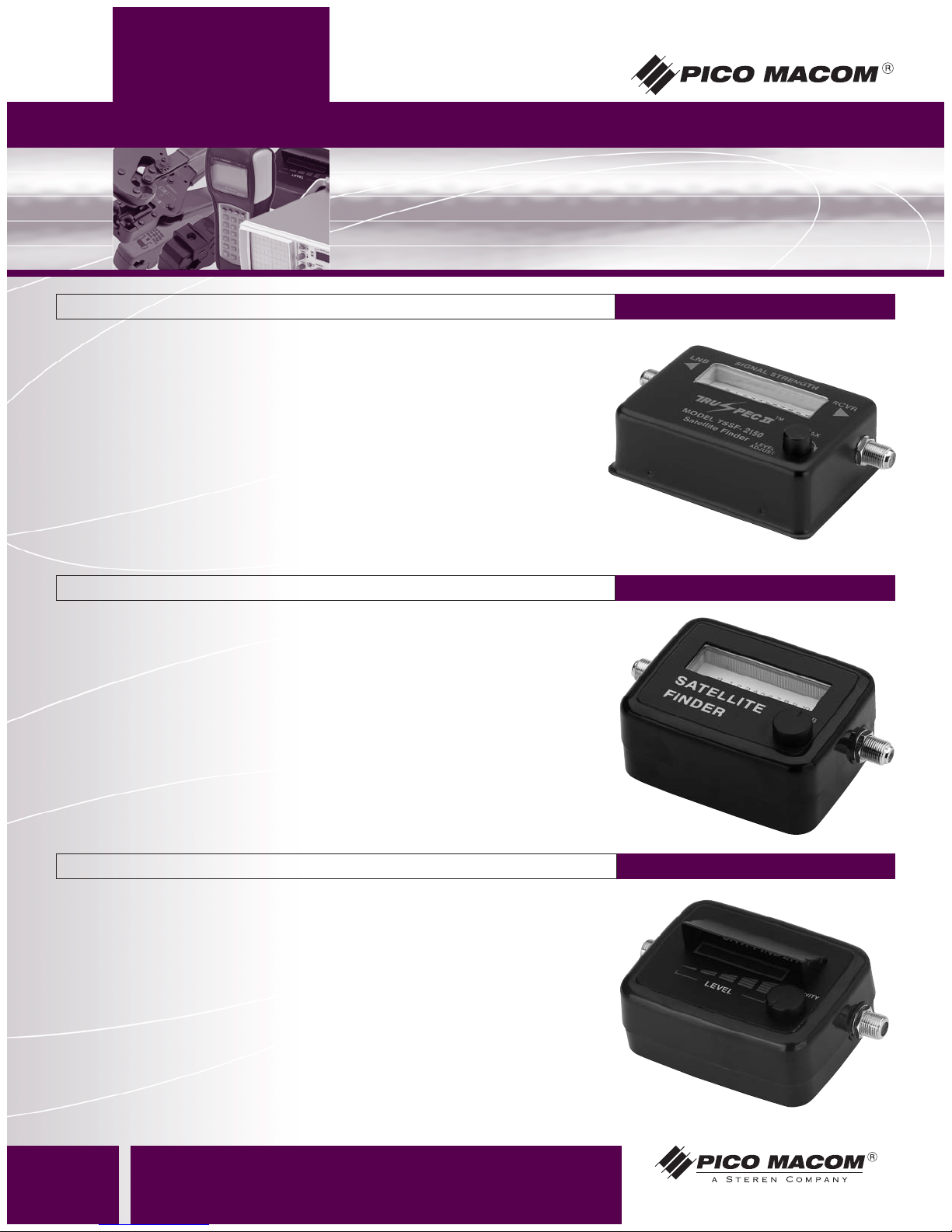

Satellite-Antenna
Positioning Meters
TSSF-2150
Deluxe Pocket Satellite Finder Meter
Installation Tools &
Instrumentation
Analog Satellite Positioning Pocket Meter – Heavy-Duty Shielded Metal Housing –
Large Easy-to-Read Illuminated Display – Wide 950-2150 MHz bandwidth provides for stacked
polarity applications – Built-in buzzer with pitched tone for audible alignment reference without
looking away from the dish – High Sensitivity –25dBm to –75dBm (7mV@55dB) – RF and DC
Pass-Through – Front Panel Sensitivity Control – Power Requirements 13-18VDC – 75 Ohm
Impedance – Use TruSpec’s PPFAM-10 Attenuator Pad for input levels > –25dBm
TSSF-993
Economy Bar-Graph Pocket Satellite Finder Meter
LED Bar-Graph Satellite Positioning Pocket meter – Cost Effective Durable ABS Plastic
Housing – Large Easy-to-Read Illuminated Display – Wide 950-2050 MHz bandwidth provides
for stacked polarity applications – Built-in buzzer with pitched tone for audible alignment reference without looking away from the dish – High Sensitivity –25dBm to –75dBm (7mV@55dB) –
RF and DC Pass-Through – Front Panel Sensitivity Control – Power Requirements 13-18VDC
– 75 Ohm Impedance – Requires 6dB Attenuator for 60-65dB LNB Gain – Use TruSpec’s
PPFAM-10 Attenuator Pad for input levels > –25dBm
TSSF-992
Economy Pocket Satellite Finder Meter
Analog Satellite Positioning Pocket Meter – Cost Effective Durable ABS Plastic Housing –
Large Easy-to-Read Display – Wide 950-2300 MHz bandwidth provides for stacked polarity
applications – Built-in buzzer with pitched tone for audible alignment reference without looking
away from the dish – High Sensitivity –25dBm to –75dBm (7mV@55dB) – RF and DC PassThrough – Front Panel Sensitivity Control – Power Requirements 13-18VDC – 75 Ohm
Impedance – Use TruSpec’s PPFAM-10 Attenuator Pad for input levels > –25dBm
