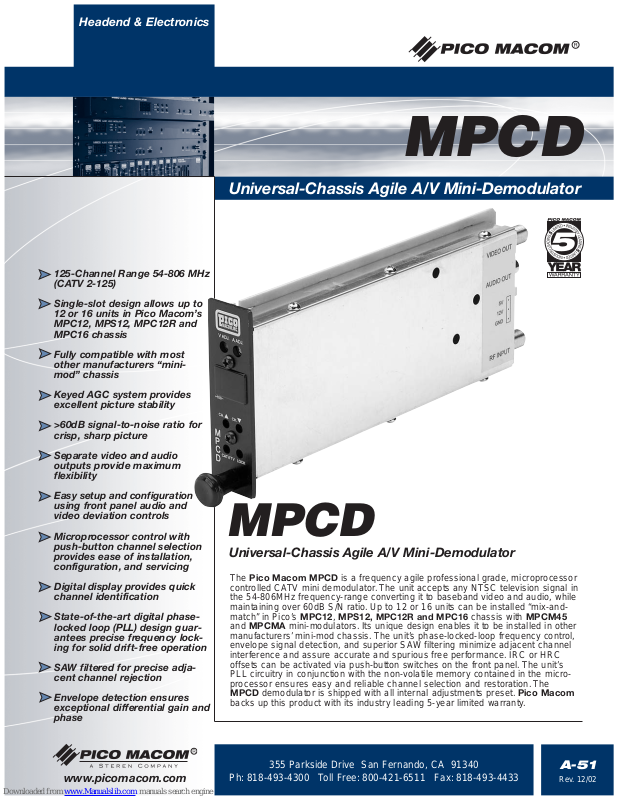

Page 1
MPCD
125-Channel Range 54-806 MHz
(CATV 2-125)
Single-slot design allows up to
12 or 16 units in Pico Macom’s
MPC12, MPS12, MPC12R and
MPC16 chassis
Fully compatible with most
other manufacturers “minimod” chassis
Keyed AGC system provides
excellent picture stability
>60dB signal-to-noise ratio for
crisp, sharp picture
Separate video and audio
outputs provide maximum
flexibility
Easy setup and configuration
using front panel audio and
video deviation controls
Microprocessor control with
push-button channel selection
provides ease of installation,
configuration, and servicing
Digital display provides quick
channel identification
State-of-the-art digital phaselocked loop (PLL) design guarantees precise frequency locking for solid drift-free operation
SAW filtered for precise adjacent channel rejection
Envelope detection ensures
exceptional differential gain and
phase

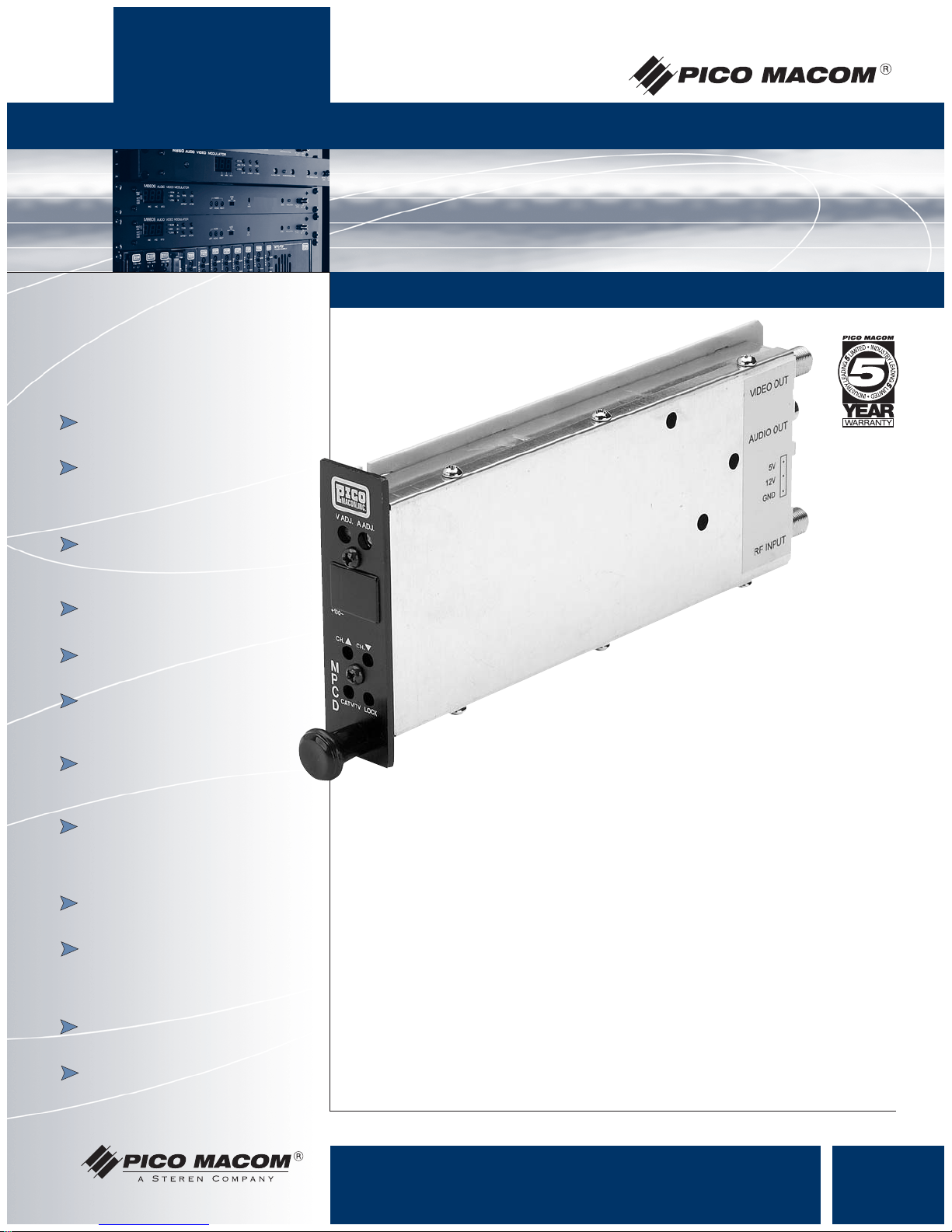

The Pico Macom MPCD is a frequency agile professional grade, microprocessor
controlled CATV mini demodulator.The unit accepts any NTSC television signal in
the 54-806MHz frequency-range converting it to baseband video and audio, while
maintaining over 60dB S/N ratio. Up to 12 or 16 units can be installed “mix-andmatch” in Pico’s MPC12, MPS12,
MPC12R and MPC16 chassis with MPCM45
and MPCMA mini-modulators. Its unique design enables it to be installed in other
manufacturers’mini-mod chassis. The unit’s phase-locked-loop frequency control,
envelope signal detection, and superior SAW filtering minimize adjacent channel
interference and assure accurate and spurious free performance. IRC or HRC
offsets can be activated via push-button switches on the front panel. The unit’s
PLL circuitry in conjunction with the non-volatile memory contained in the microprocessor ensures easy and reliable channel selection and restoration.The
MPCD demodulator is shipped with all internal adjustments preset. Pico Macom
backs up this product with its industry leading 5-year limited warranty.
MPCD
Universal-Chassis Agile A/V Mini-Demodulator
Universal-Chassis Agile A/V Mini-Demodulator
www.picomacom.com
Headend & Electronics
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
A-51
Rev. 12/02
Page 2
MPCD
Channels: 125 Channel
(CATV 2-125)
Input Frequencies: 54 – 806 MHz
Input Impedance: 75 Ohms
Noise Figure: 5 dB-VHF Band, 7 dB-UHF Band
Input Return Loss: 14 dB-VHF Band, 8 dB-UHF Band
Video Output Impedance: 75 Ohms
Video Output Level: 1.0 V p-p
Video S/N: -60 dB minimum (weighted)
Differential Gain: <5% (10 to 90% APL)
Differential Phase: <5° (10 to 90% APL)
Chrominance Luminance delay: See note
Note: Meets FCC group delay predistortion correction for
color transmission.
Power Input: +12 Vdc, +5 Vdc
Operating Temperature: -10° C to +50° C
Dimensions: 2.07˝(W) x 8˝(D) x 3.45˝(H)
Weight: 0.7 lbs.
Connectors: Video Out - F type, Audio Out -
RCA, Power-center 3-pin
receptacle
Audio Output Impedance: 600 Ohms
Audio Output Level: 800 mV minimum
Deemphasis: 75 microseconds
Flatness: 1.5 dB max.50 Hz to 15 kHz
RF
Video
Audio
General
Product Specifications

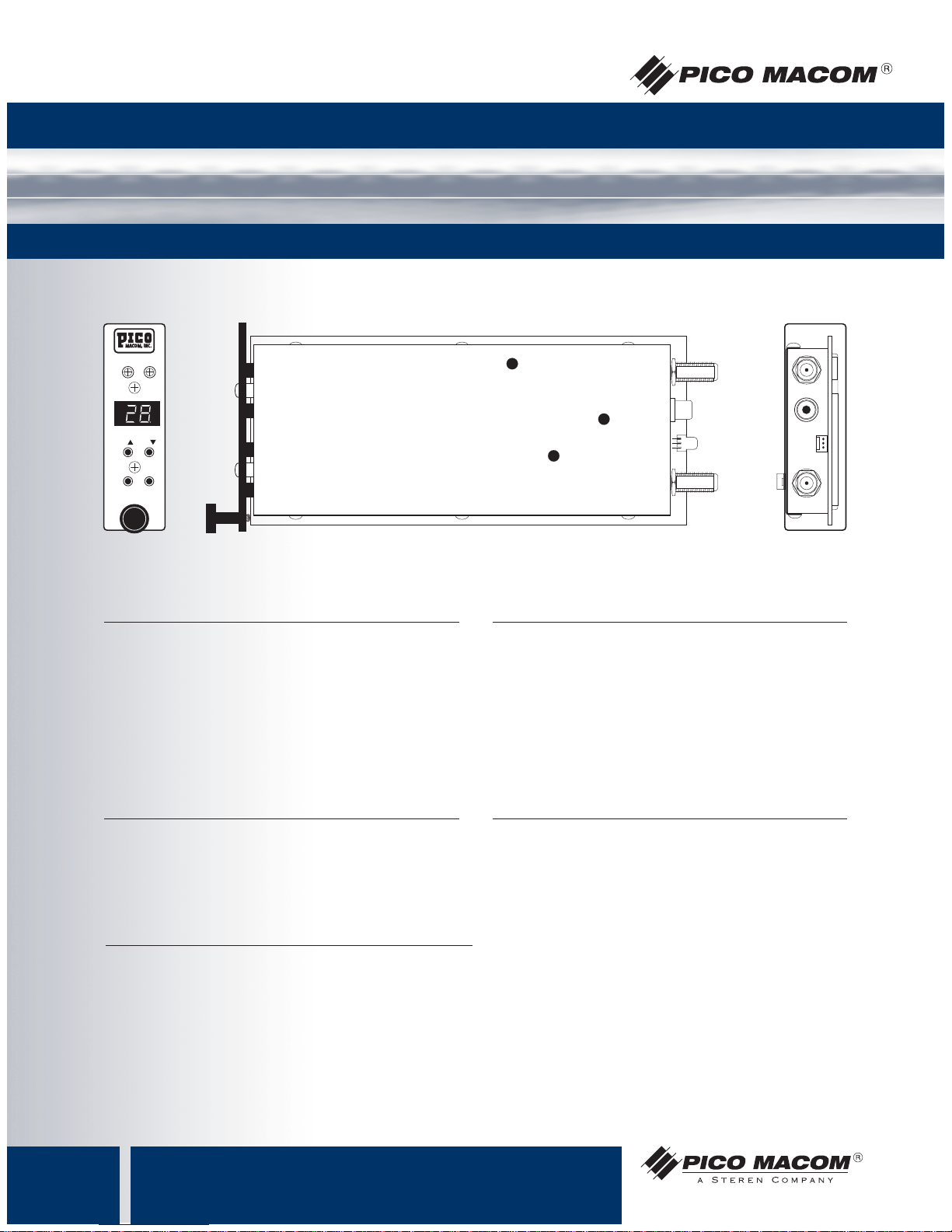

Universal-Chassis Agile A/V Mini-Demodulator
M
P
C
D
V ADJ. A ADJ.
CH. CH.
+100~
LOCK
CATV/TV
Ordering Information
MPCD
www.picomacom.com
A-52
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
Specifications Subject to Change © Copyright 2003 Pico Macom, Inc.
