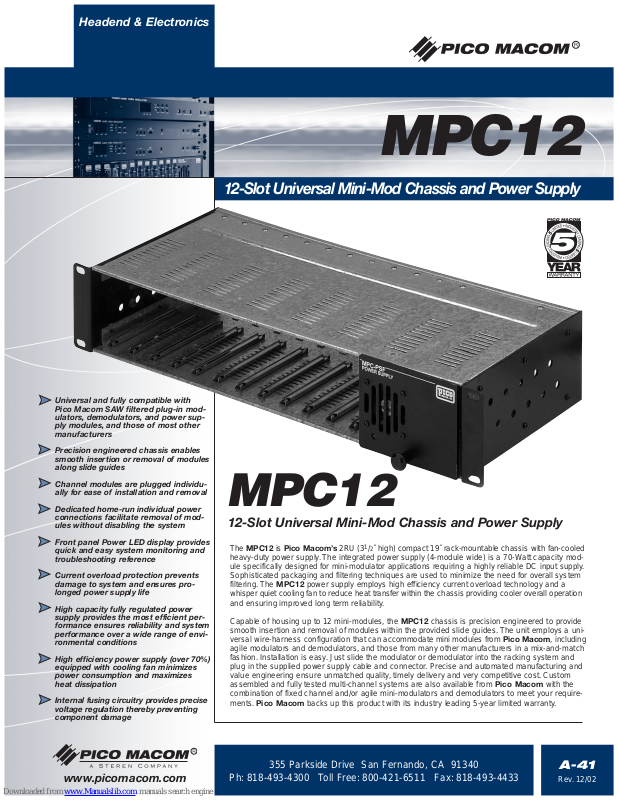

MPC12
Universal and fully compatible with
Pico Macom SAW filtered plug-in modulators, demodulators, and power supply modules, and those of most other
manufacturers
Precision engineered chassis enables
smooth insertion or removal of modules
along slide guides
Channel modules are plugged individually for ease of installation and removal
Dedicated home-run individual power
connections facilitate removal of modules without disabling the system
Front panel Power LED display provides
quick and easy system monitoring and
troubleshooting reference
Current overload protection prevents
damage to system and ensures prolonged power supply life
High capacity fully regulated power
supply provides the most efficient performance ensures reliability and system
performance over a wide range of environmental conditions
High efficiency power supply (over 70%)
equipped with cooling fan minimizes
power consumption and maximizes
heat dissipation
Internal fusing circuitry provides precise
voltage regulation thereby preventing
component damage

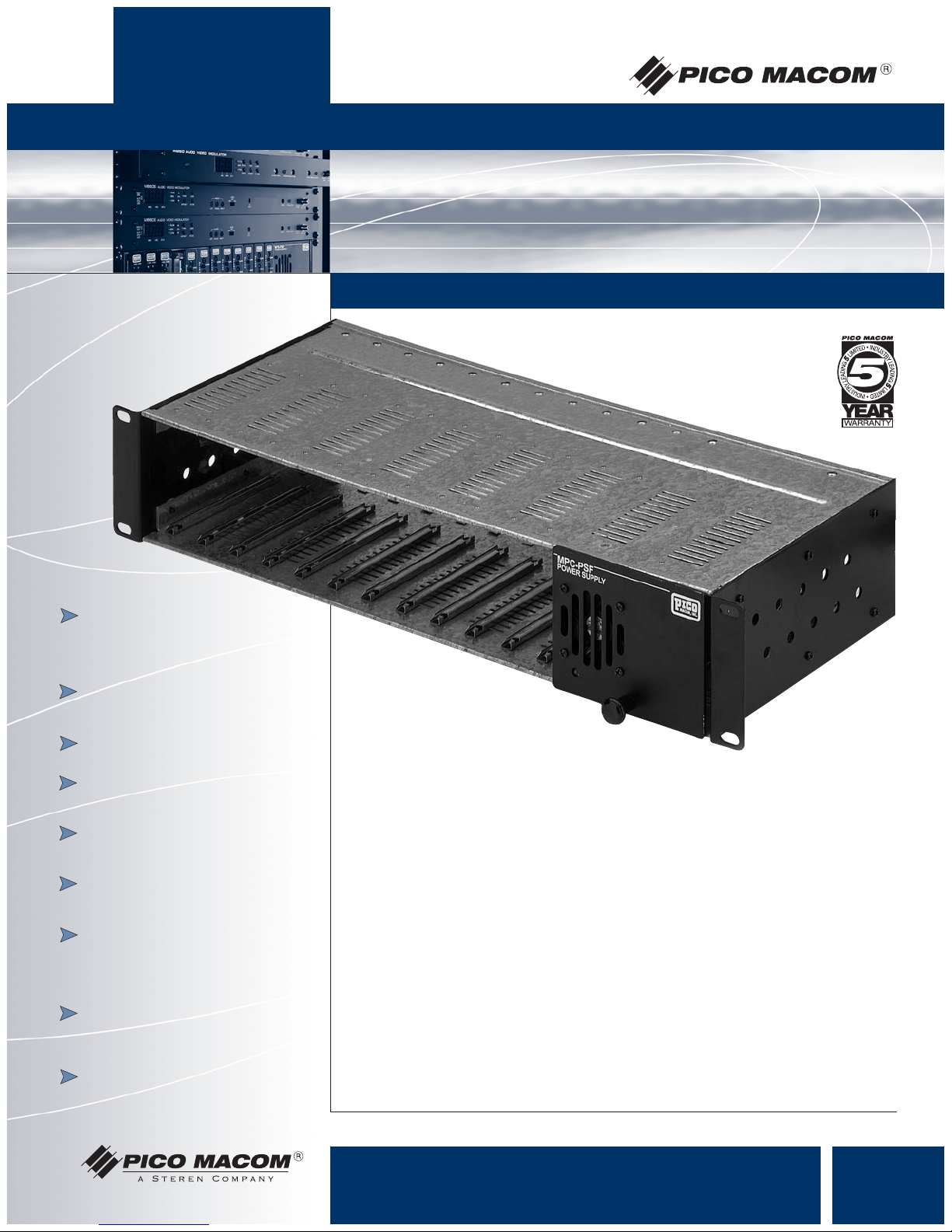

The MPC12 is Pico Macom’s 2RU (3
1
/2˝ high) compact 19˝ rack-mountable chassis with fan-cooled
heavy-duty power supply.The integrated power supply (4-module wide) is a 70-Watt capacity module specifically designed for mini-modulator applications requiring a highly reliable DC input supply.
Sophisticated packaging and filtering techniques are used to minimize the need for overall system
filtering.The MPC12 power supply employs high efficiency current overload technology and a
whisper quiet cooling fan to reduce heat transfer within the chassis providing cooler overall operation
and ensuring improved long term reliability.
Capable of housing up to 12 mini-modules, the MPC12 chassis is precision engineered to provide
smooth insertion and removal of modules within the provided slide guides.The unit employs a universal wire-harness configuration that can accommodate mini modules from Pico Macom, including
agile modulators and demodulators, and those from many other manufacturers in a mix-and-match
fashion. Installation is easy. Just slide the modulator or demodulator into the racking system and
plug in the supplied power supply cable and connector. Precise and automated manufacturing and
value engineering ensure unmatched quality, timely delivery and very competitive cost. Custom
assembled and fully tested multi-channel systems are also available from Pico Macom with the
combination of fixed channel and/or agile mini-modulators and demodulators to meet your requirements. Pico Macom backs up this product with its industry leading 5-year limited warranty.
MPC12
12-Slot Universal Mini-Mod Chassis and Power Supply
12-Slot Universal Mini-Mod Chassis and Power Supply
www.picomacom.com
Headend & Electronics
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
A-41
Rev. 12/02
Page 2
MPC12
Input Voltage Range: 90 to 260 VAC
Input Frequency: 47-63 Hz
Output Specifications: V1 5 VDC/4 A
V2 12 VDC/3.5 A
V3 30 VDC/.27 A
Efficiency: >70% typical
Input Inrush Current: <30 A @ 115 VAC @ 25°C
Line Protection: PCB AC line fuse
DC Output Ripple: Within 1% (Vpp) at maximum
load @ 25°C @ PS output
terminal
Line/Load Regulation: ±1%
Minimum Load: 10% of full rated load
Operating Temperature: 0° to 60°C
Storage Temperature: -40° to 85°C
Overcurrent Protection: No damage to outputs when
shorted to ground
Power Supply
Product Specifications
12-Slot Universal Mini-Mod Chassis and Power Supply
MPC-PSF
POWER SUPPLY

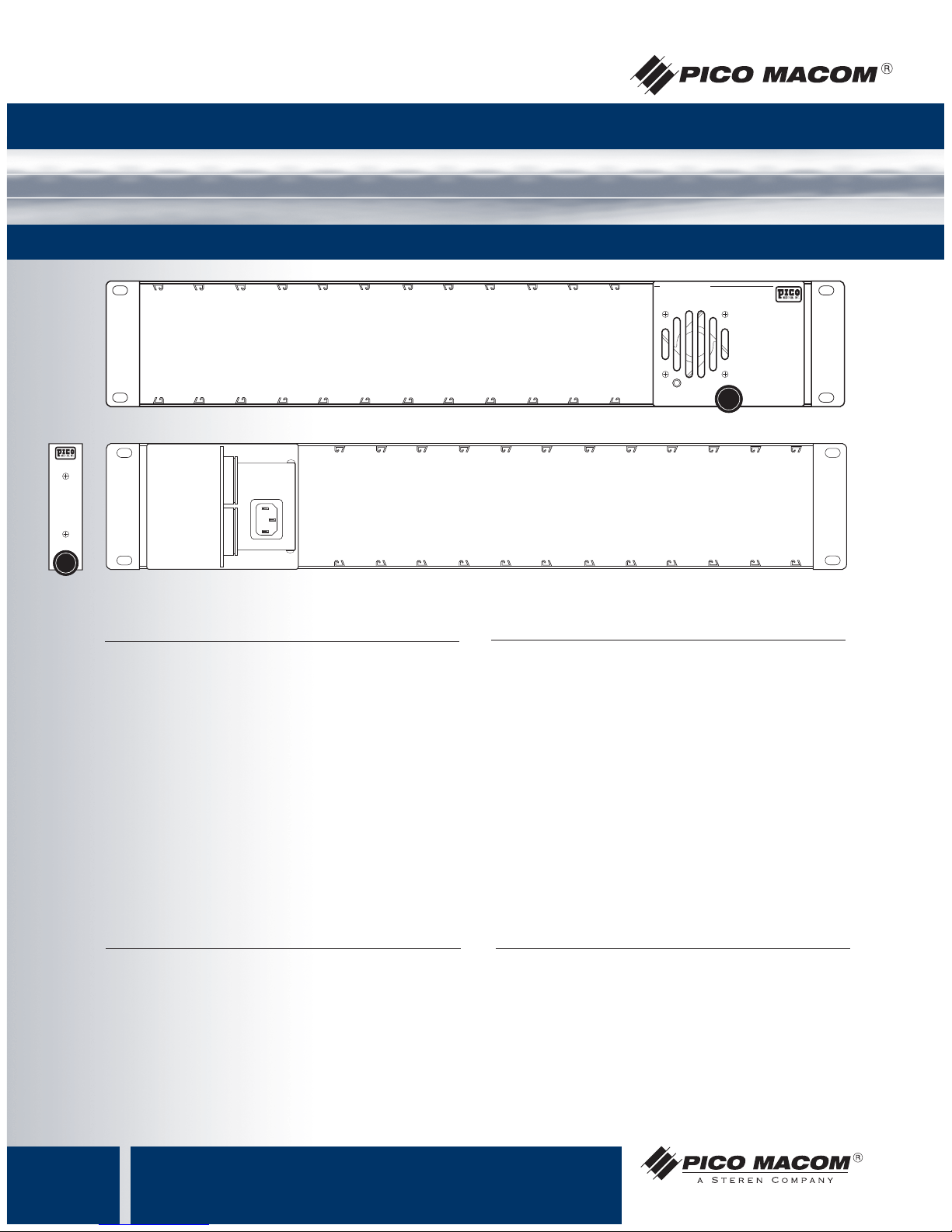

Front View
MPC-BP
Cover
Plate
Rear View
MPC-12
12-Mini-Mod Chassis and Power Supply
MPC-PSF
Power Supply Module with Wire
Harness for MPC12
MPC-12C
Universal Chassis (chassis only)
MPC-BP
Blank Cover Plate
Ordering Information
Connectors Input (on back plane): IEC 320 inlet connector
Dimensions: 19˝(L) x 71/
2˝(D) x 3
1
/
2˝(H)
Weight: 7.8 lbs. (Chassis and
Power Supply)
Chassis
Input (on back plane): IEC 320 inlet connector
Output (on back plane/
each connector): 12 Pin: Pins 1,5,9 - 5 VDC
Pins 2,6,10 - 12 VDC
Pins 3,7,11 - Ground
Pins 4,8,12 - 30 VDC
4 Pin: Pins 1 - 5 VDC
Pins 2 - 12 VDC
Pins 3 - Ground
Pins 4 - 30 VDC
Connectors
www.picomacom.com
A-42
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
Specifications Subject to Change © Copyright 2003 Pico Macom, Inc.
