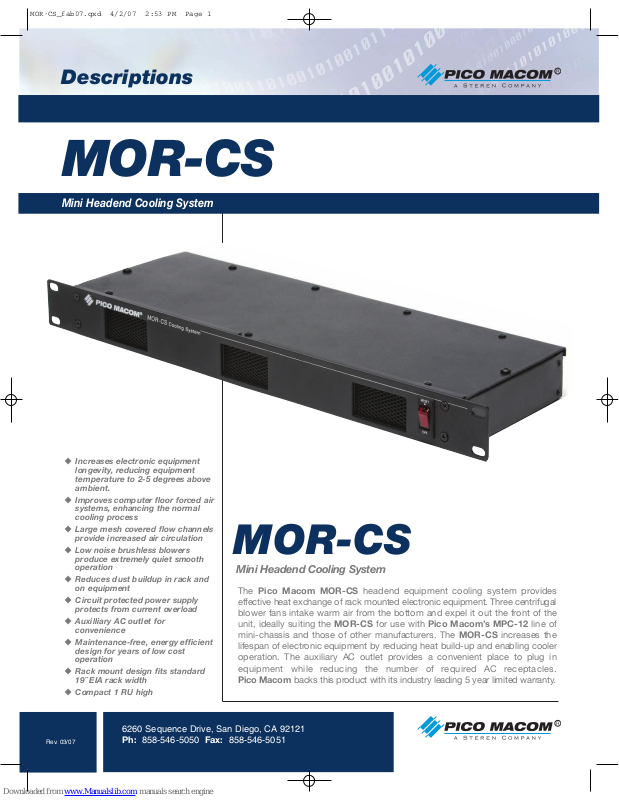

Page 1
MOR-CS
Descriptions
The Pico Macom MOR-CS headend equipment cooling system provides
effective heat exchange of rack mounted electronic equipment. Three centrifugal
blower fans intake warm air from the bottom and expel it out the front of the
unit, ideally suiting the
MOR-CS for use with Pico Macom’s MPC-12 line of
mini-chassis and those of other manufacturers. The MOR-CS increases the
lifespan of electronic equipment by reducing heat build-up and enabling cooler
operation. The auxiliary AC outlet provides a convenient place to plug in
equipment while reducing the number of required AC receptacles.
Pico Macom backs this product with its industry leading 5 year limited warranty.
Mini Headend Cooling System
MOR-CS
u Increases electronic equipment
longevity, reducing equipment
temperature to 2-5 degrees above
ambient.
u Improves computer floor forced air
systems, enhancing the normal
cooling process
u Large mesh covered flow channels
provide increased air circulation
u Low noise brushless blowers
produce extremely quiet smooth
operation
u Reduces dust buildup in rack and
on equipment
u Circuit protected power supply
protects from current overload
u Auxilliary AC outlet for
convenience
u Maintenance-free, energy efficient
design for years of low cost
operation
u Rack mount design fits standard
19˝ EIA rack width
u Compact 1 RU high
Mini Headend Cooling System
Rev. 03/07
6260 Sequence Drive, San Diego, CA 92121
Ph: 858-546-5050 Fax: 858-546-5051
MOR-CS_fab07.qxd 4/2/07 2:53 PM Page 1
Page 2
MOR-CS
Specifications
Mini Headend Cooling System
Front View
Rear View
AC power requirements: 100-240Vac, 50/60Hz, 0.6A
DC power requirements:
Rated fan voltage 12 Vdc
Operating voltage 8-12 Vdc
Fan mechanical specs:
Fan Speed 2500 rpm
Max. air flow 27.99 m3/n
Max. air pressure 12.13CmH20
Operating Temperature: 0° to 50°C
Dimensions: 19˝W x 7.5˝D x 1.75˝H
Weight: 6.15 lbs.
Specifications
Ordering Information
MOR-CS Mini Headend Cooling System
Rev. 03/07
6260 Sequence Drive, San Diego, CA 92121
Ph: 858-546-5050 Fax: 858-546-5051
MOR-CS_fab07.qxd 4/2/07 2:53 PM Page 2
