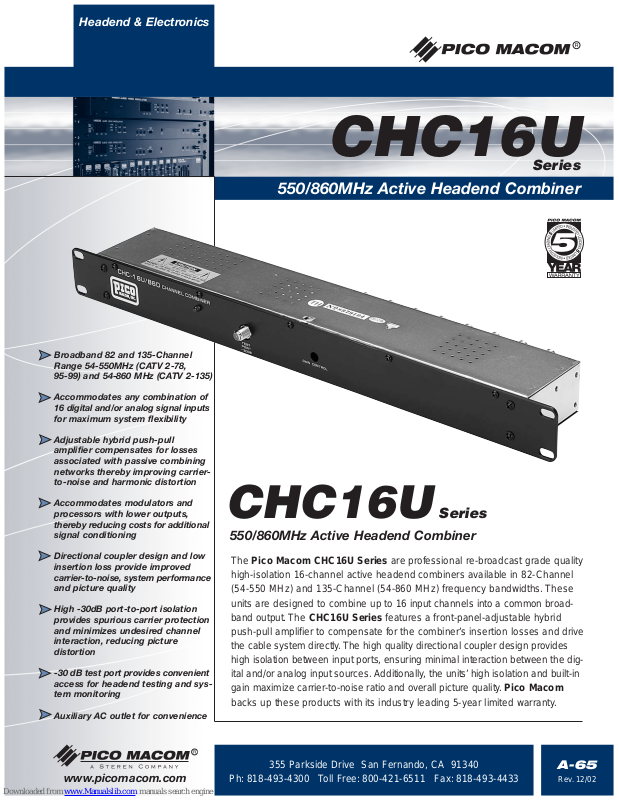

Page 1
CHC16U
Broadband 82 and 135-Channel
Range 54-550MHz (CATV 2-78,
95-99) and 54-860 MHz (CATV 2-135)
Accommodates any combination of
16 digital and/or analog signal inputs
for maximum system flexibility
Adjustable hybrid push-pull
amplifier compensates for losses
associated with passive combining
networks thereby improving carrierto-noise and harmonic distortion
Accommodates modulators and
processors with lower outputs,
thereby reducing costs for additional
signal conditioning
Directional coupler design and low
insertion loss provide improved
carrier-to-noise, system performance
and picture quality
High -30dB port-to-port isolation
provides spurious carrier protection
and minimizes undesired channel
interaction, reducing picture
distortion
-30 dB test port provides convenient
access for headend testing and system monitoring
Auxiliary AC outlet for convenience

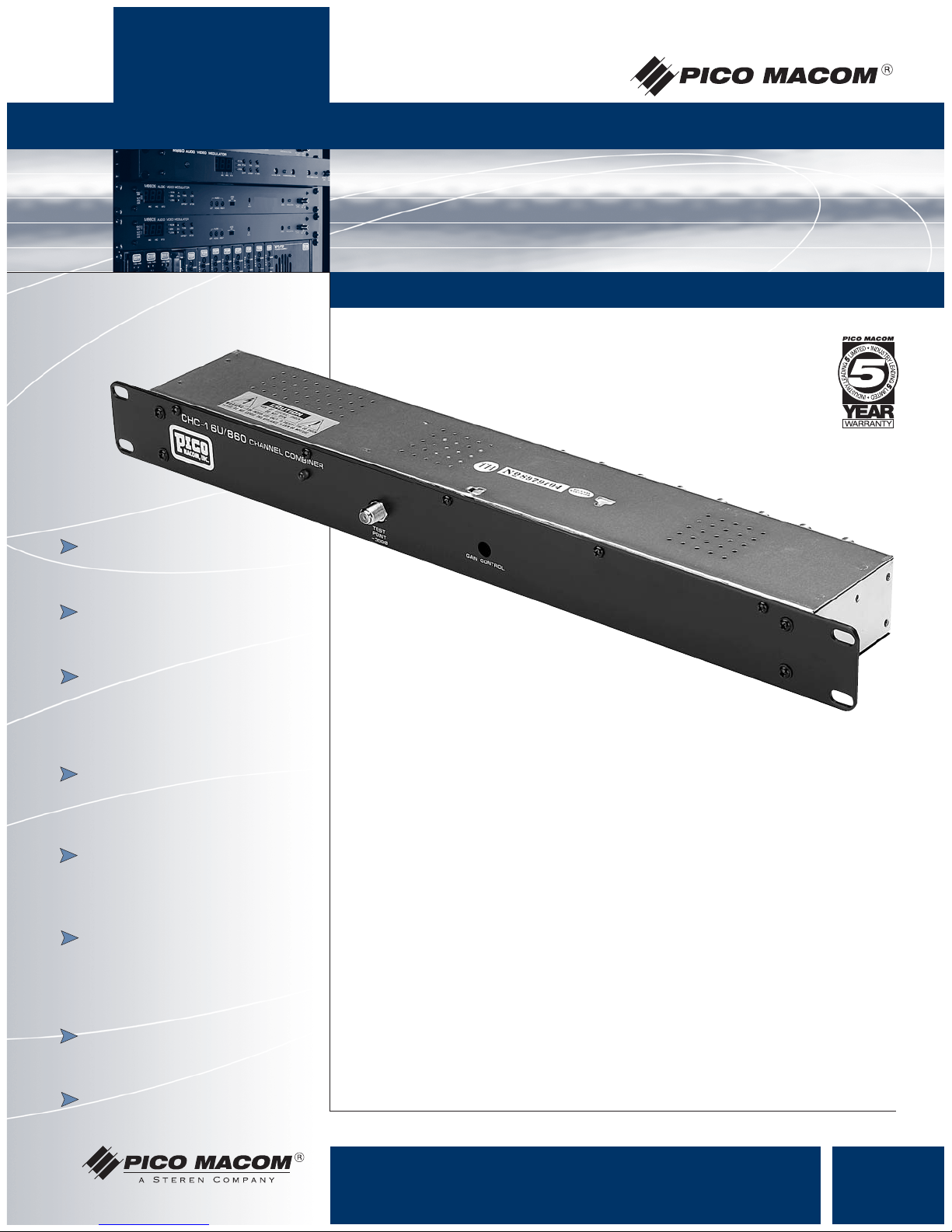

The Pico Macom CHC16U Series are professional re-broadcast grade quality
high-isolation 16-channel active headend combiners available in 82-Channel
(54-550 MHz) and 135-Channel (54-860 MHz) frequency bandwidths.These
units are designed to combine up to 16 input channels into a common broadband output.The CHC16U Series features a front-panel-adjustable hybrid
push-pull amplifier to compensate for the combiner’s insertion losses and drive
the cable system directly.The high quality directional coupler design provides
high isolation between input ports, ensuring minimal interaction between the digital and/or analog input sources. Additionally, the units’high isolation and built-in
gain maximize carrier-to-noise ratio and overall picture quality. Pico Macom
backs up these products with its industry leading 5-year limited warranty.
CHC16USeries
550/860MHz Active Headend Combiner
550/860MHz Active Headend Combiner
www.picomacom.com
Headend & Electronics
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
A-65
Rev. 12/02
Series
Page 2
CHC16USeries
Channels: CHC16U550 83 Channel (2-78, 95-99)
CHC16U860 135 Channel (2-135)
Frequency Range:
CHC16U550 54-550 MHz
CHC16U860 54-860 MHz
Gain: 6-12 dB adjustable
Port-to-Port Isolation: -30 dB Minimum
Maximum Input Level: 42 dBmV
Input Return Loss: 16 dB
Output Return Loss: 16 dB
Impedance: 75 Ohms
Power Input: 115 VAC, 60Hz, 3 W
Operating Temperature: -10° C to 50° C
Dimension: 19˝(L) x 3˝(D) x 13/4˝(H)
Weight: 4.1 lbs.
Specifications
Product Specifications
550/860 MHz Active Headend Combiner
CHANNEL COMBINER
TEST
POINT
-30dB
CHC-16U/860
GAIN CONTROL
OUT
AC 120V
60Hz
22W
600VA MAX
IN

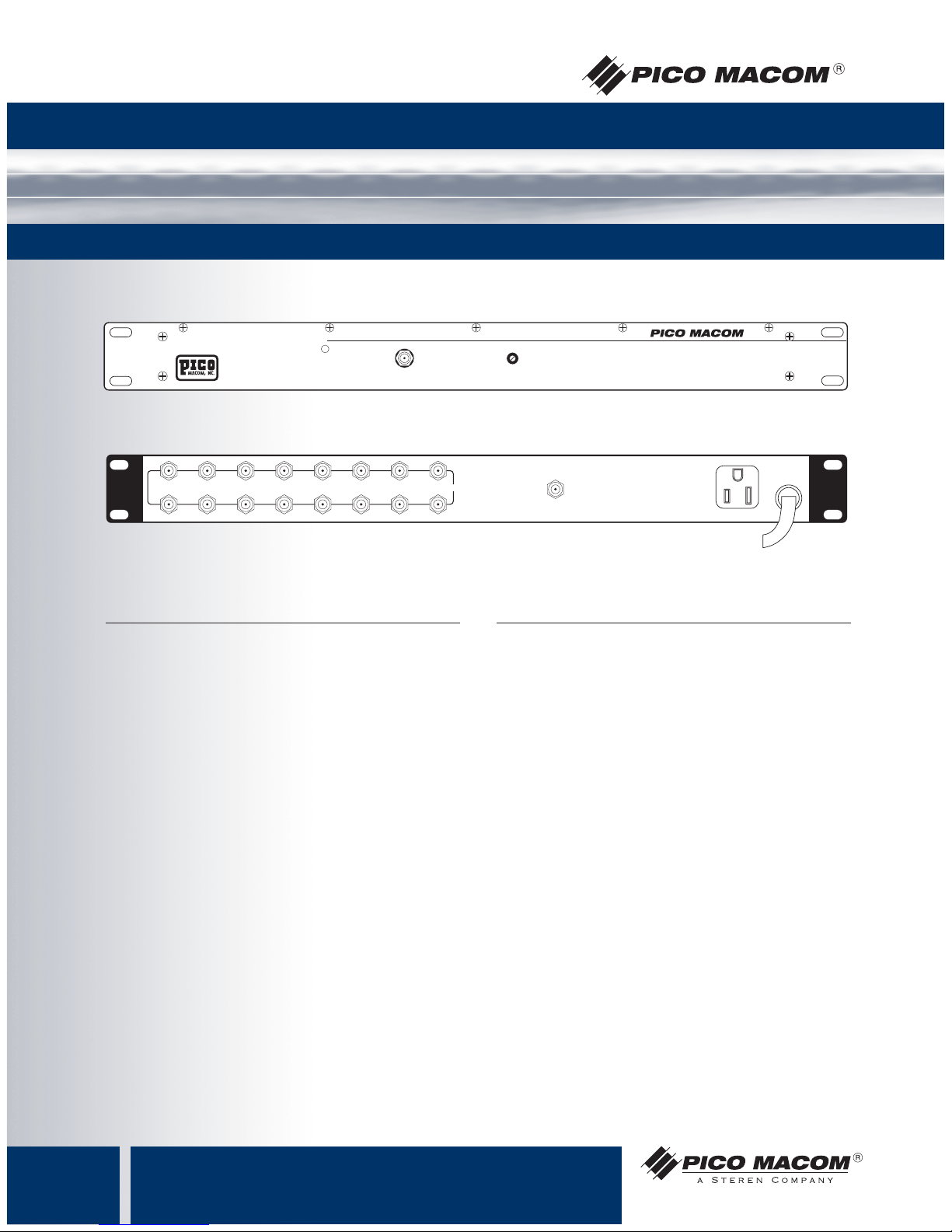

Front View
Rear View
Ordering Information
CHC16U/550 550 MHz
CHC16U/860 860 MHz
www.picomacom.com
A-66
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
Specifications Subject to Change © Copyright 2003 Pico Macom, Inc.
