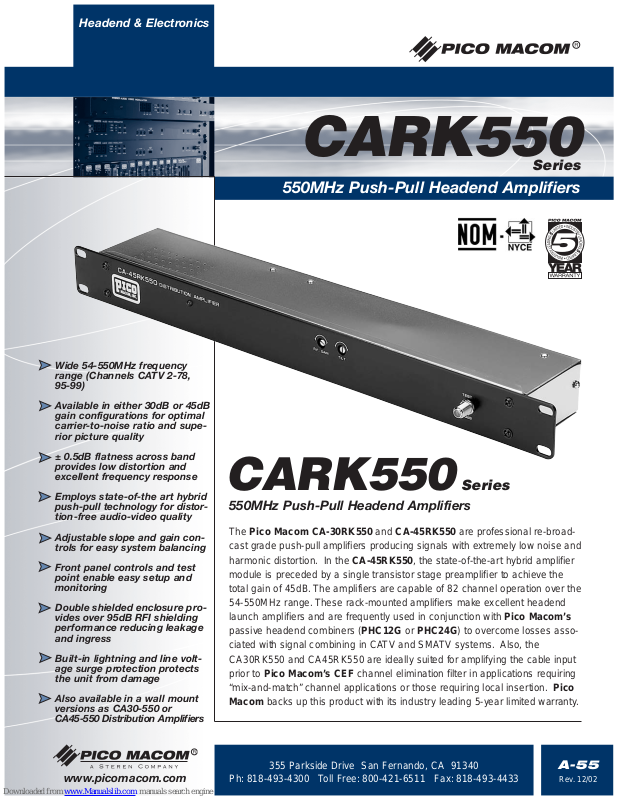

Page 1
Wide 54-550MHz frequency
range (Channels CATV 2-78,
95-99)
Available in either 30dB or 45dB
gain configurations for optimal
carrier-to-noise ratio and superior picture quality
± 0.5dB flatness across band
provides low distortion and
excellent frequency response
Employs state-of-the art hybrid
push-pull technology for distortion-free audio-video quality
Adjustable slope and gain controls for easy system balancing
Front panel controls and test
point enable easy setup and
monitoring
Double shielded enclosure provides over 95dB RFI shielding
performance reducing leakage
and ingress
Built-in lightning and line voltage surge protection protects
the unit from damage
Also available in a wall mount
versions as CA30-550 or
CA45-550 Distribution Amplifiers

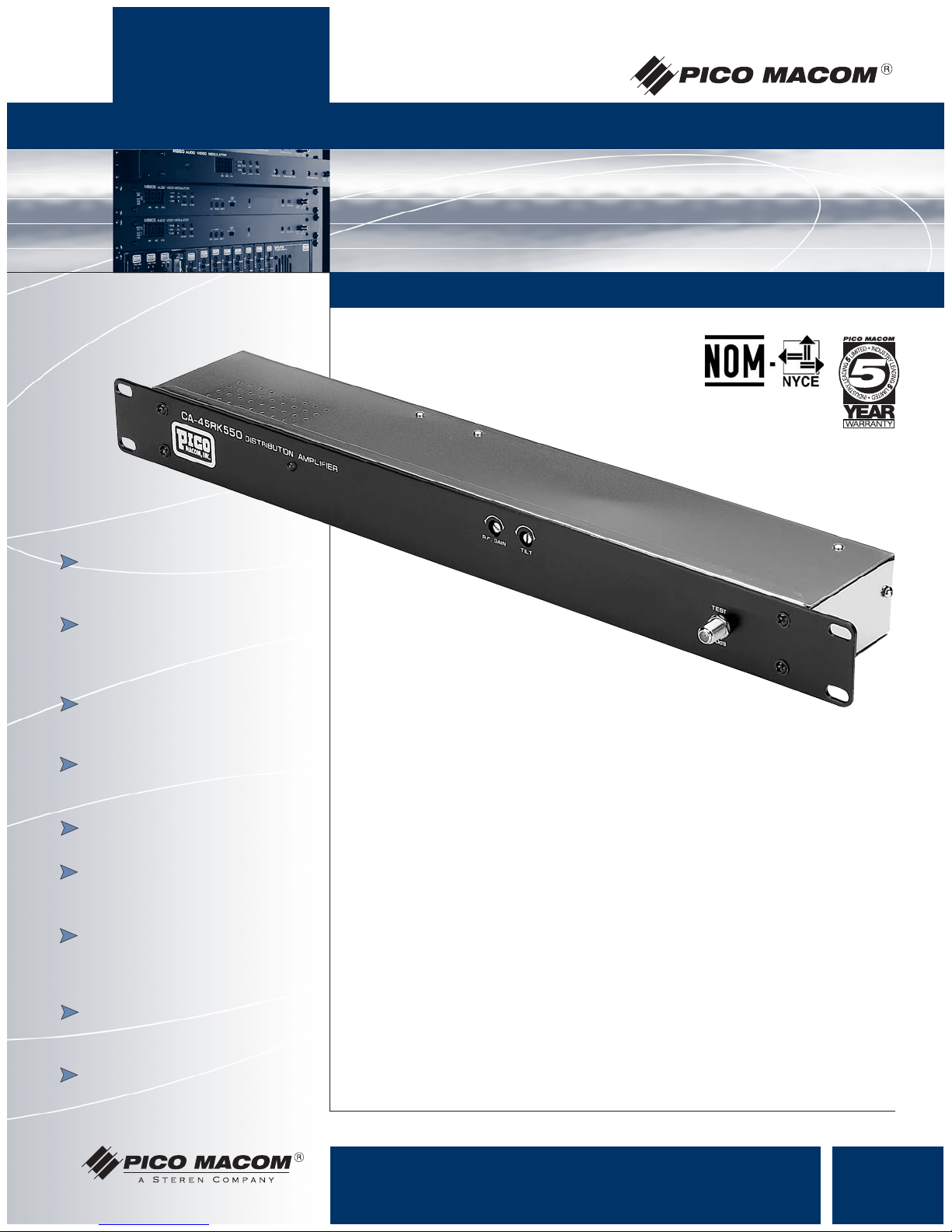

The Pico Macom CA-30RK550 and CA-45RK550 are professional re-broadcast grade push-pull amplifiers producing signals with extremely low noise and
harmonic distortion. In the CA-45RK550, the state-of-the-art hybrid amplifier
module is preceded by a single transistor stage preamplifier to achieve the
total gain of 45dB.The amplifiers are capable of 82 channel operation over the
54-550MHz range.These rack-mounted amplifiers make excellent headend
launch amplifiers and are frequently used in conjunction with Pico Macom’s
passive headend combiners (PHC12G or PHC24G) to overcome losses associated with signal combining in CATV and SMATV systems. Also, the
CA30RK550 and CA45RK550 are ideally suited for amplifying the cable input
prior to Pico Macom’s CEF channel elimination filter in applications requiring
“mix-and-match” channel applications or those requiring local insertion. Pico
Macom backs up this product with its industry leading 5-year limited warranty.
CARK550
Series
550MHz Push-Pull Headend Amplifiers
CARK550
550MHz Push-Pull Headend Amplifiers
www.picomacom.com
Headend & Electronics
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
A-55
Rev. 12/02
Series
Page 2
Bandwidth: 54-550 MHz
Gain: 30 dB or 45 dB
Gain Adjust Range: 0 to 8 dB
Slope: 0 to 8 dB variable
Flatness: ± .5 dB per channel
Max. Output (@ Max Slope): 45 dB (54 channels)
-57 dB (cross modulation)
Noise:
CA-30RK550 5.0 dB
CA-45RK550 6.5 dB
Second Order Beats: -70 dB
Composite Triple Beat: -61 dB
Return Loss In: 16 dB
Return Loss Out: 16 dB
RF
Product Specifications
550MHz Push-Pull Headend Amplifiers
7 44 dBmV 29 dBmV 66 dBmV
12 41 dBmV 26 dBmV 63 dBmV
36 32 dBmV 17 dBmV 54 dBmV
54 23 dBmV 8 dBmV 45 dBmV
78 18 dBmV 5 dBmB 40 dBmV
Total # of
Channels
CA-30RK550
Max. Input Level
CA-45RK550
Max. Input Level
Max. Output Level
(@ Max. Slope)
-30 dB
R.F. GAIN TILT
CA-45RK550
DISTRIBUTION AMPLIFIER
OUT
IN
120VAC
60Hz 40W

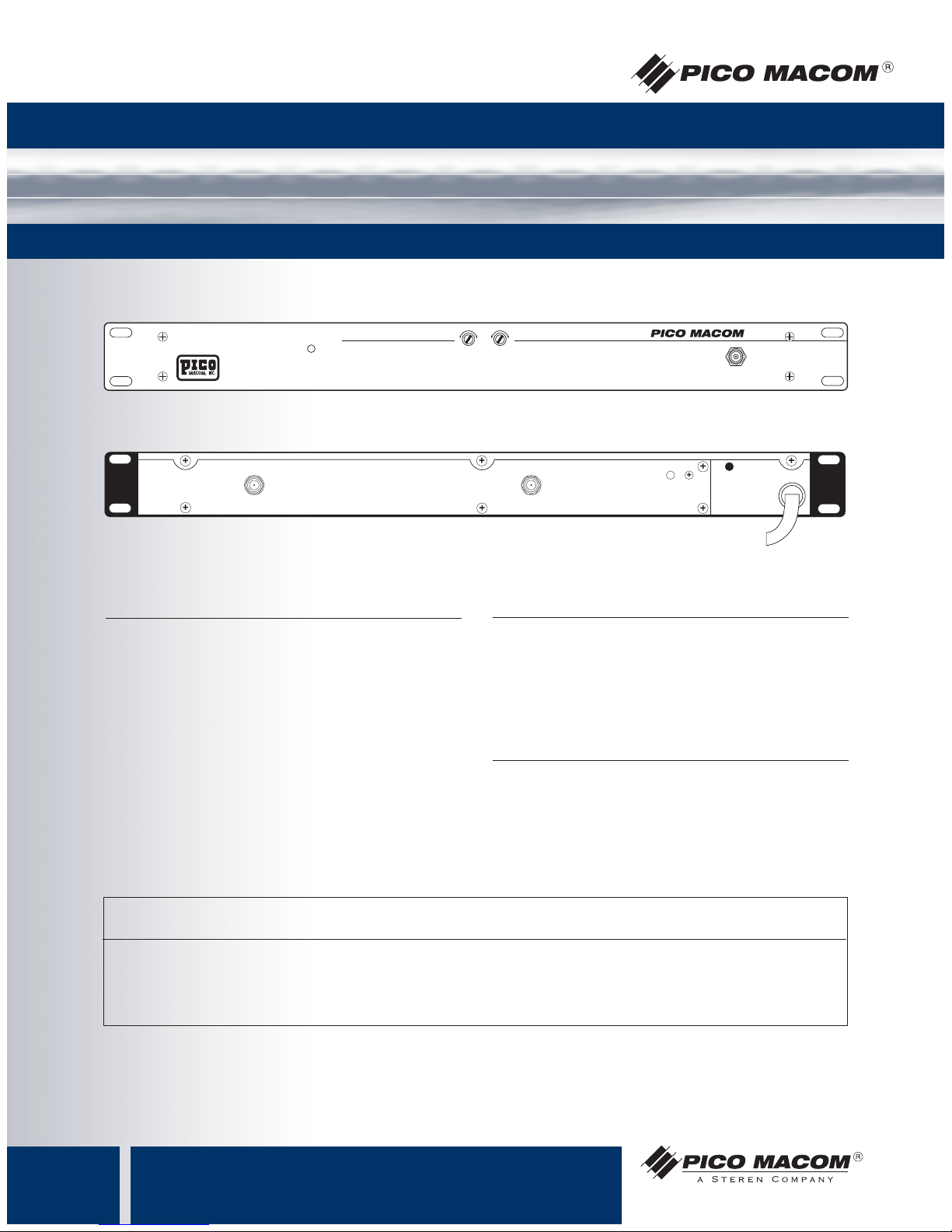

Front View
Rear View
CA-30RK550 30 dB Gain Amplifier
CA-45RK550 45 dB Gain Amplifier
Ordering Information
CARK550 Series
Power Input: 115 VAC 60 Hz 4 W
Operating Temperature: -10° to +50° C
Dimensions: 19˝(L) x 3˝(D) x 13/4˝(H)
Weight: 3.8 lbs.
Test Points: -30 dB
General
www.picomacom.com
A-56
Rev. 12/02
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free:800-421-6511 Fax: 818-493-4433
Channel Loading Specifications
Specifications Subject to Change © Copyright 2003 Pico Macom, Inc.
