NOTE: Select PICO models come factory
equipped with a LaserMax Laser or Light housing.
Visit Beretta.com to purchase grip housing separately.
LASERMAX INSTALLATION
Please refer to your Beretta PICO manual for grip housing removal and
installation.
LASERMAX OPERATION

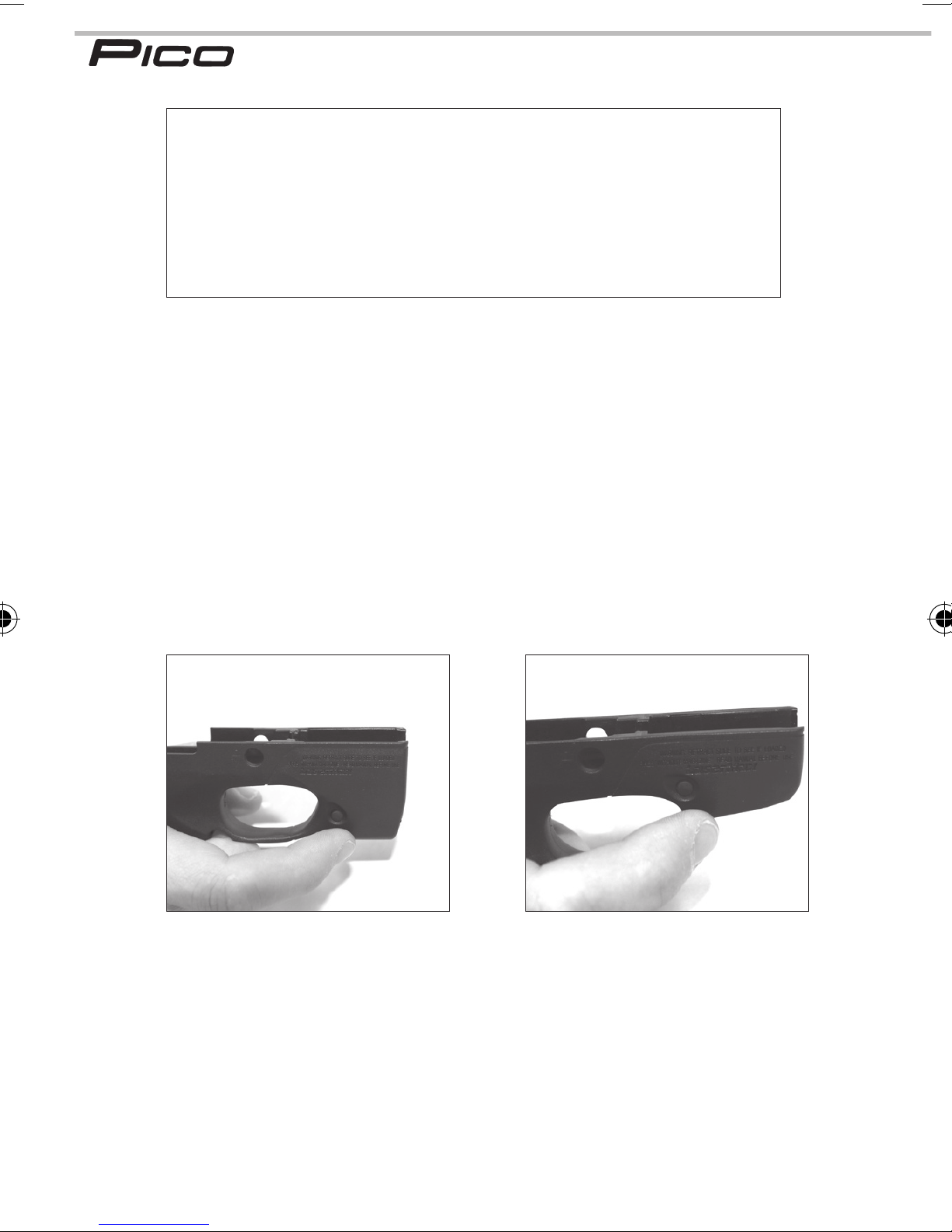

There is a tap-on/tap-off activation switch on either side of
the grip housing. Tap the button once to activate the light or laser. Tap
again to deactivate.
.
To change the laser or light from constant to pulsing mode, first, turn
the laser on, then press and hold the activation switch for approximately
three seconds. Repeat the process to return to previous mode.
54
BATTERY INSTALL ATION
LI GHT:
Remove battery cover with Phillips head screwdriver (not included).
Insert CR2 Lithium battery and reinstall battery cover.
TIP: Battery cover tab must line up with grip housing notch.
LASER:
Remove battery cover with Phillips head screwdriver (not included).
Only remove the screw labeled “BATTERY.” Insert 1/3N battery and
reinstall battery cover.
TIP: Battery cover notch must line up with the grip housing tab.
55
ALIGNING THE LASER
WARNING: Make sure the pistol is unloaded. If not, unload it following
the “UNLOADING” instructions in this manual (pages 22-23).
While pointing the muzzle in a safe diretion, turn windage screw
clockwise for right, counterclockwise for left. Turn elevation screw
clockwise (as viewed from above firearm) for down, counterclockwise
for up.
NOTE: You may experience a one-time shift in alignment after firing
the first few rounds. Recheck alignment and adjust if necessary.
Windage
Windage
56
Elevation
Elevation
CLEANING
WARNING: Make sure the pistol is unloaded. If not, unload it following
the “UNLOADING” instructions in this manual (pages 22-23).
Over time, your laser or light lens could become clouded with powder
residue. In order to remove this residue:
Keep firearm pointed in a safe direction. Confirm laser or light is off.
Take a standard cotton swab and dampen end with
isopropyl alcohol.
Apply dampened swab to the laser or light lens and rotate in a small
circular pattern removing any residue. Be sure to clean around the
edges of the lens.
For best results, it is recommended that the laser or light lens be
cleaned along with your firearm after each use.
SPARE PARTS
LMS-AT50 Adjustment tool (for laser)
LMS -2 x13N 1/3N battery (2 pack for laser)
LMS-CR2 CR2 battery (for light)
For patent information, please visit:
www.lasermax.com/sevice/patents.aspx.
01785- 0 -54
5/14
57
IF YOU EXPERIENCE
AN ISSUE WITH
YOUR PICO, PLEASE
DO NOT RETURN IT
TO THE STORE.
For firearm function issues, contact Beretta:
1-800 -237-3882
For light/laser function issues, contact LaserMax:
1-800-527-3703
DANGER
Laser radiation is emitted from the
front aperture of the laser when
the switch is activated.
WARNING
Avoid direct eye exposure to beam.
LMS-PICO-L
70 Lumen LED
Vison Advisory Claim
RG-2: CAUTION. Do not stare at
exposed lamp in operation. May be
harmful to the eyes.
REMINDER
Aiming a laser beam at moving vehicles
including boats, aircraft, trains, and
construction equipment may be illegal.
Check current applicable laws and follow
them accordingly.
The FDA requires that the label supplied
with your laser be affixed to the outside
of the gun with the arrow pointing
towards the laser aperture.
Do not point laser/light at anything you
do not wish to destroy.
58
LMS-PICO-R
Red Laser
CLASS 3R VISIBLE LASER
Output Power: <5mW
Wavelength: 650nm
