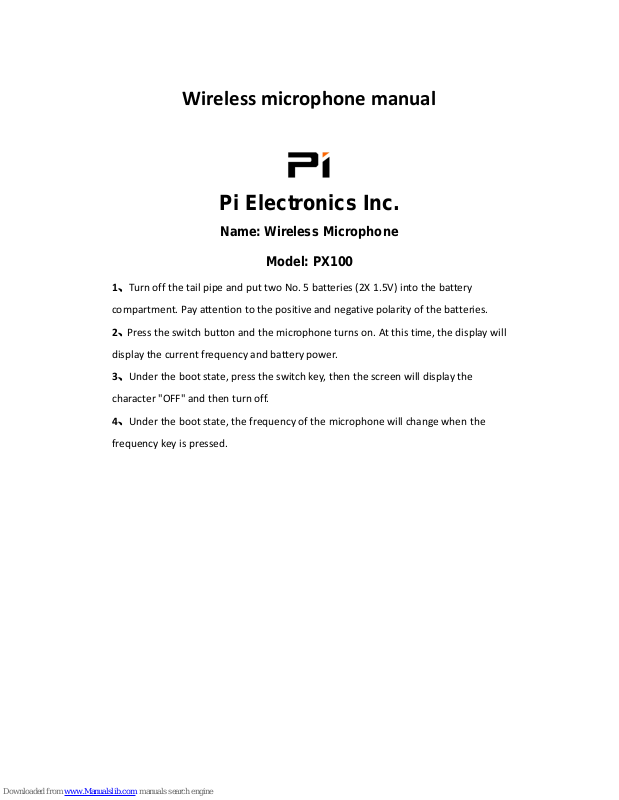

Wireless microphone manual
Pi Electronics Inc.
Name: Wireless Microphone
Model: PX100
1、Turn off the tail pipe and put two No. 5 batteries (2X 1.5V) into the battery
compartment. Pay attention to the positive and negative polarity of the batteries.
2、Press the switch button and the microphone turns on. At this time, the display will
display the current frequency and battery power.
3、Under the boot state, press the switch key, then the screen will display the
character "OFF" and then turn off.
4、Under the boot state, the frequency of the microphone will change when the
frequency key is pressed.
Page 2
Battery
storehouse
Display
Power
Button
Frequency
conversion
key
Microphone working frequency
PX100
Frequency
Frequency
1
570.0
585.0
2
570.5
585.5
3
571.0
586.0
4
571.5
586.5
5
572.0
587.0
6
572.5
587.5
7
573.0
588.0
8
573.5
588.5
9
574.0
589.0
10
574.5
589.5
11
575.0
590.0
12
575.5
590.5
13
576.0
591.0
14
576.5
591.5
15
577.0
592.0
16
577.5
592.5
17
578.0
593.0
18
578.5
593.5
19
579.0
594.0
20
579.5
594.5
21
580.0
595.0
22
580.5
595.5
23
581.0
596.0
24
581.5
596.5
25
582.0
597.0
26
582.5
597.5
27
583.0
598.0
28
583.5
598.5
29
584.0
599.0
30
584.5
599.5
Caudal
tube
Page 3
FCC Warning:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
ISED Statement
‐ English: This device complies with Industry Canada license‐exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause in
terference, and (2) This device must accept any interference, including interference t
hat may cause undesired operation of the device.
The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
‐ French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (
1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit acc
epter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'enco
mpromettre le fonctionnement.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
