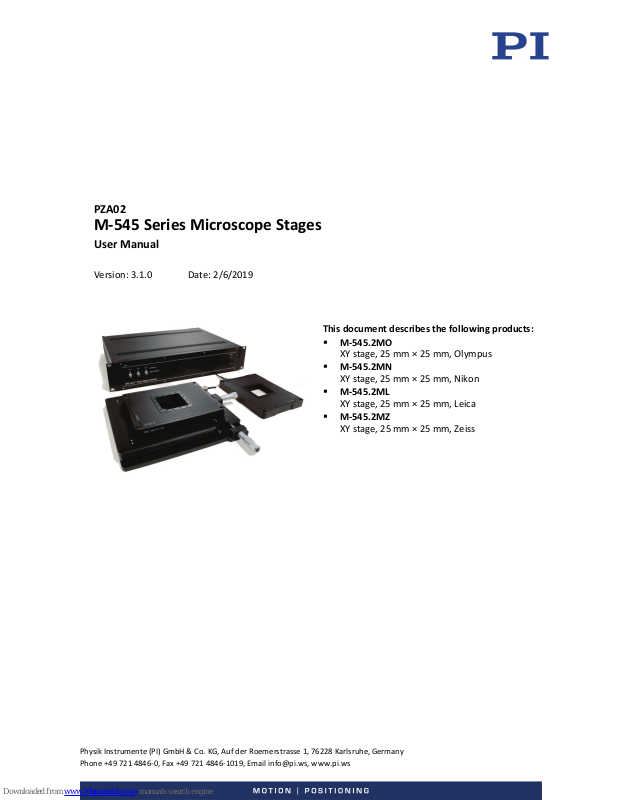

PZA02
M
-545 Series Microscope Stages
User Manual
Version: 3.1.0
Date: 2/6/2019
This document describes the following products:
M-545.2MO
XY stage, 25 mm × 25 mm, Olympus
M-545.2MN
XY stage, 25 mm × 25 mm, Nikon
M-545.2ML
XY stage, 25 mm × 25 mm, Leica
M-545.2MZ
XY stage, 25 mm × 25 mm, Zeiss
Page 2
© 2019 Physik Instrumente (PI) GmbH & Co. KG, Karlsruhe, Germany. The text, photographs and drawings in
this manual are protected by copyright. With regard thereto, Physik Instrumente (PI) GmbH & Co. KG retains
all the rights. The use of any text, images and drawings is permitted only in part and only when indicating the
source.
Original instructions
First printing: 2/6/2019
Document number: PZA02
Document version: 3.1.0
Page 3
Contents
1 Model Survey 3
2 Compatibility 3
3 Accessories 4
3.1 Adapter Plates ............................................................................................................ 4
3.2 Specimen Holders ....................................................................................................... 5
3.3 Drive Sets .................................................................................................................... 7
4 Dimensions 8
4.1 M-545.2MO and M-545.2MN Dimensions ................................................................. 8
4.2 M-545.2ML Dimensions ............................................................................................. 9
4.3 M-545.2MZ Dimensions ........................................................................................... 10
5 Mounting 11
5.1 M-545.2MO Mounting (for Olympus Microscopes) ................................................. 11
5.2 M-545.2MN Mounting (for Nikon Microscopes) ...................................................... 12
5.3 M-545.2ML Mounting (for Leica Microscopes) ........................................................ 13
5.4 M-545.2MZ Mounting (for Zeiss Microscopes) ........................................................ 14
6 Technical Information 15
6.1 Focal Point Location ................................................................................................. 15
Page 4
1 Model Survey
M-545 Series Microscope Stages PZA02 Version: 3.1.0 3
1 Model Survey
The M-545 series of stages is designed for use with inverted microscopes from the leading
manufacturers (Nikon, Olympus, Leica and Zeiss). The stages are designed to allow full rotation
of the lense turret throughout the Z motion range of the turret.
M-545. 2 M x
2 Compatibility
The M-545 is designed to provide a highly stable mounting platform for the PInano® series of
piezoelectric nanopositioning stages. The PInano® was designed for microscopy applications
and has accessories that facilitate mounting the sample near the bottom surface of the stage
and within the focal range of the microscopes.
The M-545 also has mounting holes for a variety of other PI nanopositioning stages.
The following is a list of PI stages that can be used with the M-545:
P-545
PInano® series XY and XYZ stages, all versions
P-736.ZR1S
and .ZR2S
PInano® series Z high-speed Z scanner
P-736.AP1 adapter plate required
P-5x7 and
P-528
PI multi-axis piezo scanner, all versions
P-561 and
P-562
PIMars XYZ nanopositioning stage, all versions
P-541 and
P-542
PI low-profile nanopositioning stage, all versions
P-733 Compact, high-precision XYZ nanopositioning stage
All versions
P-733.AP1 adapter plate required
“2” Two active axes (XY)
“M” Manual micrometer drive
“x” stands for the microscope manufacturer:
“N” Nikon
“O” Olympus
“L” Leica
“Z” Zeiss
Page 5
3 Accessories
M-545 Series Microscope Stages PZA02 Version: 3.1.0 4
3 Accessories
The following accessories are available for the M-545 stage. Accessory kits can be ordered from
PI and are supplied with fasteners.
3.1 Adapter Plates

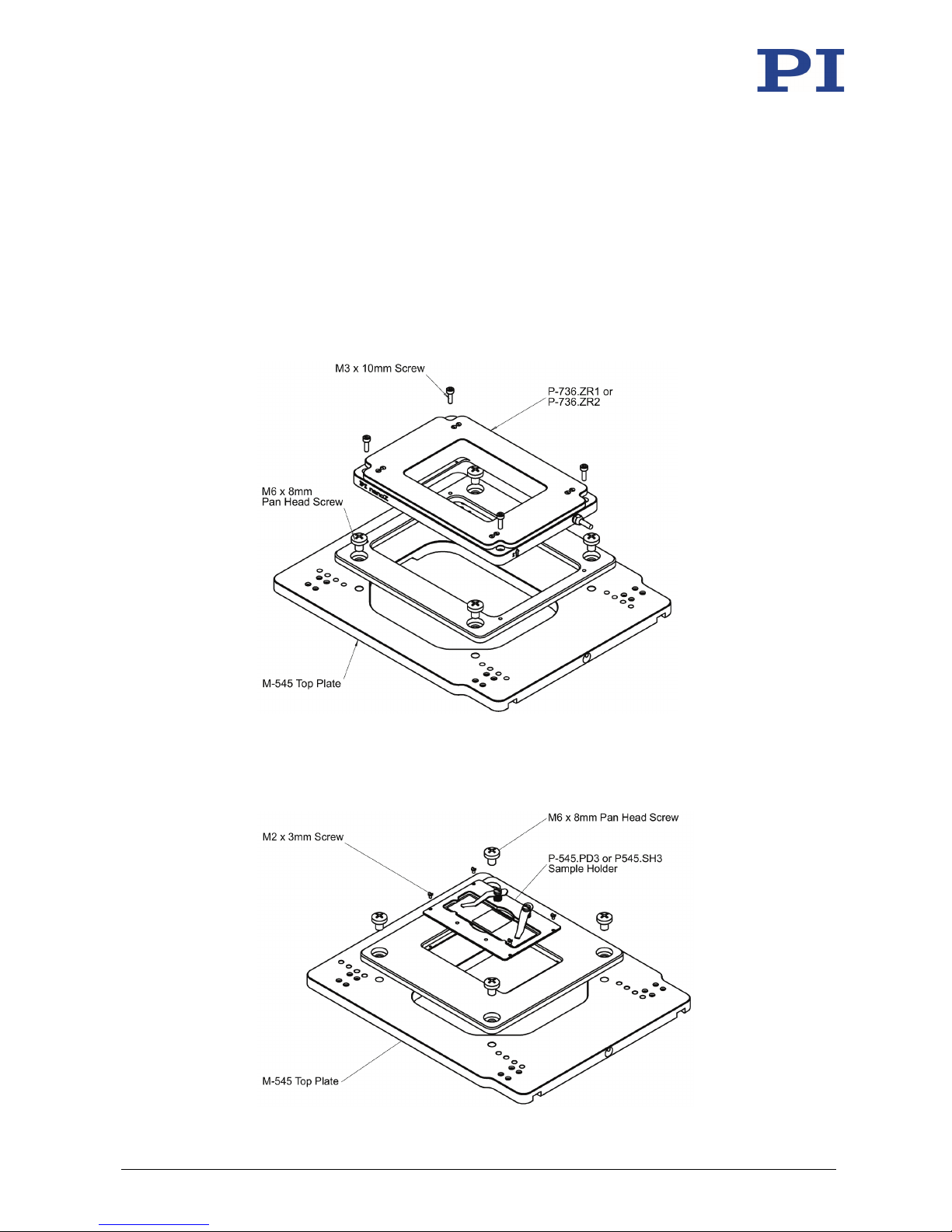

P-736.AP1 adapter plate
For mounting P-736.ZRx PInano® Z piezo scanners onto M-545 XY stages

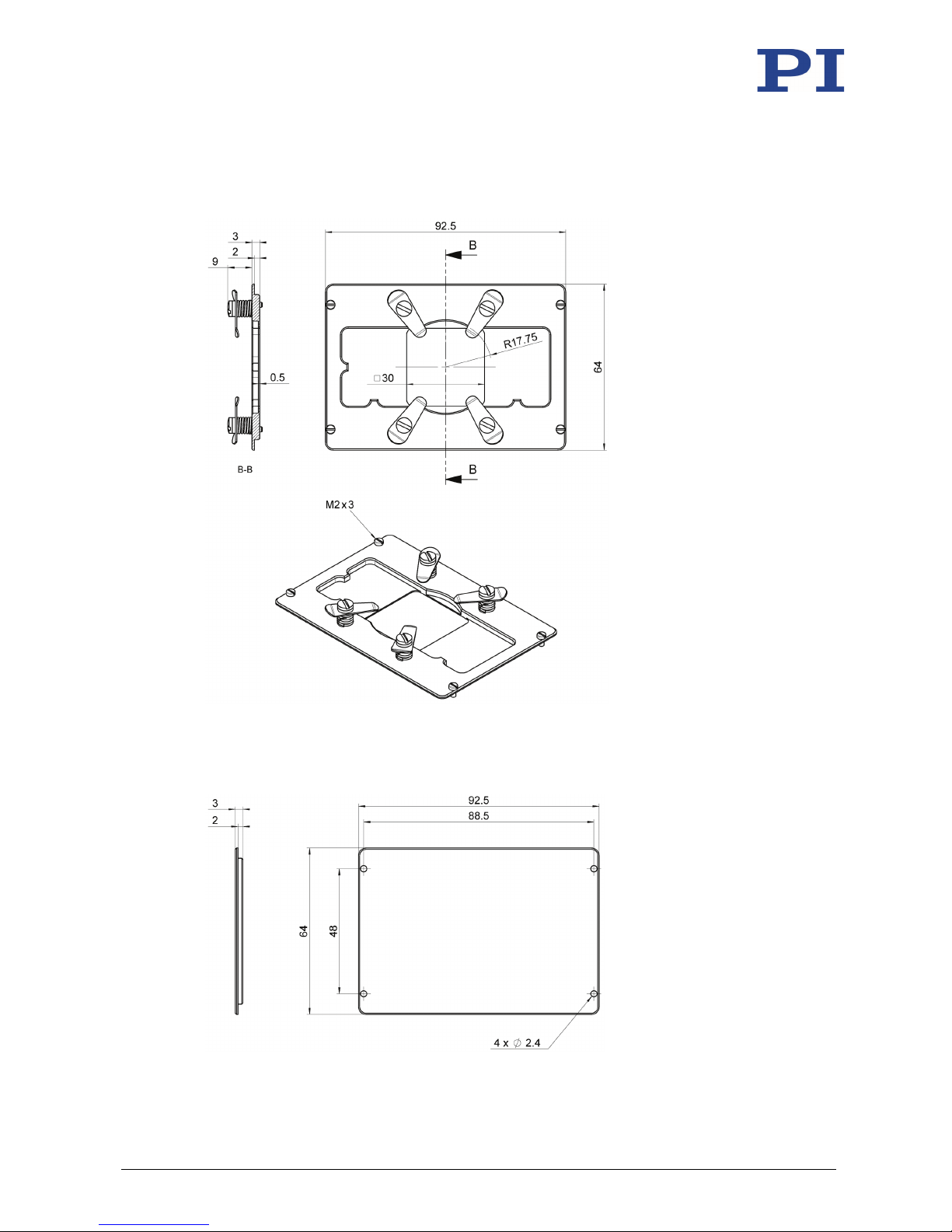

M-545.SHP adapter plate
For microscope sample holders, i.e., for mounting 1 × 3 microscope slides or 35 mm Petri dishes
directly to the M-545 XY stage
Page 6
3 Accessories
M-545 Series Microscope Stages PZA02 Version: 3.1.0 5

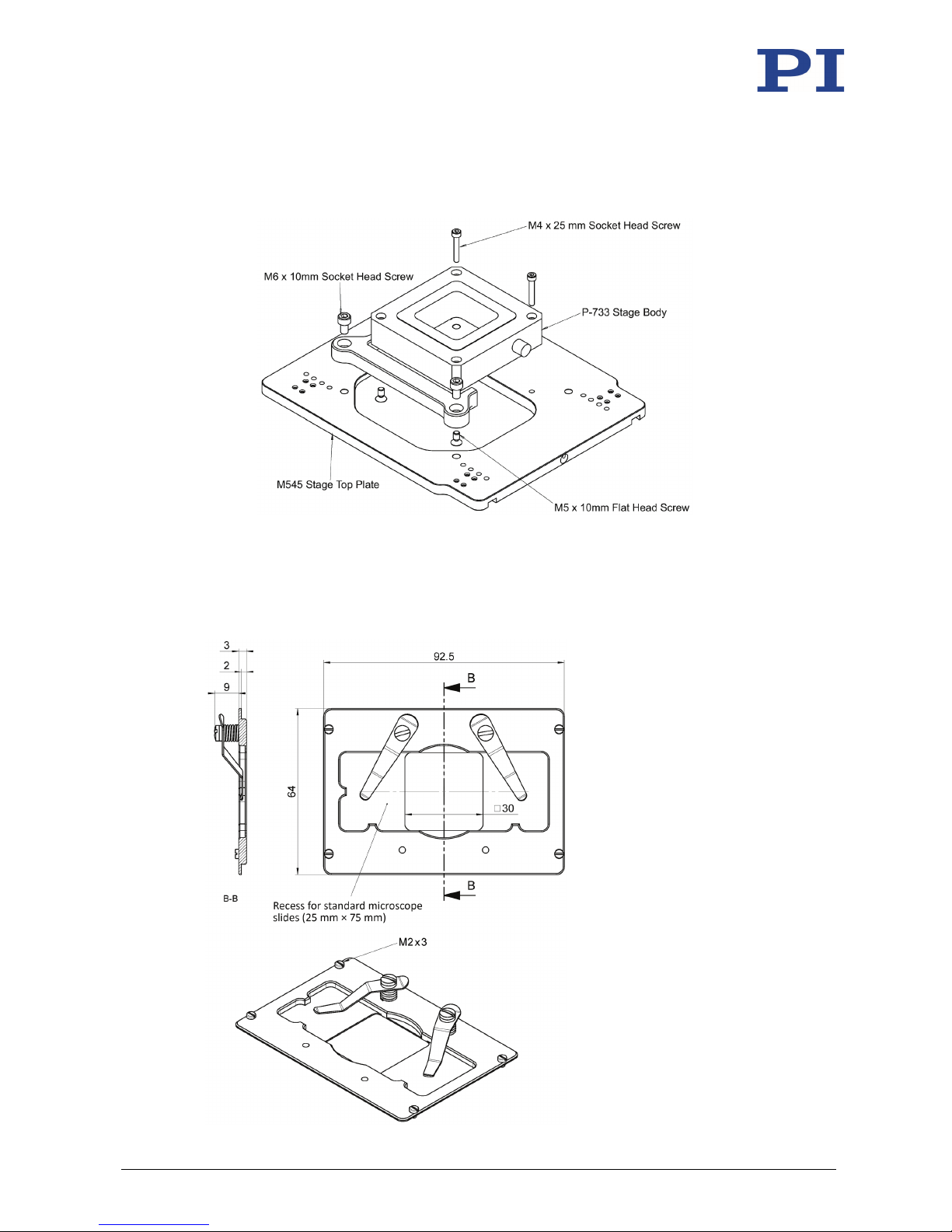

P-733.AP1 adapter plate
For mounting a P-733 piezo stage onto the M-545 XY stage
3.2 Specimen Holders
P-545.SH3
Microscope slide holder for PInano® piezo stages
Page 7
3 Accessories
M-545 Series Microscope Stages PZA02 Version: 3.1.0 6
P-545.PD3
Petri dish holder, 35 mm, for PInano® piezo stages
P-545.PP3
Universal holding plate for accessory for PInano® piezo stages
Page 8
3 Accessories
M-545 Series Microscope Stages PZA02 Version: 3.1.0 7

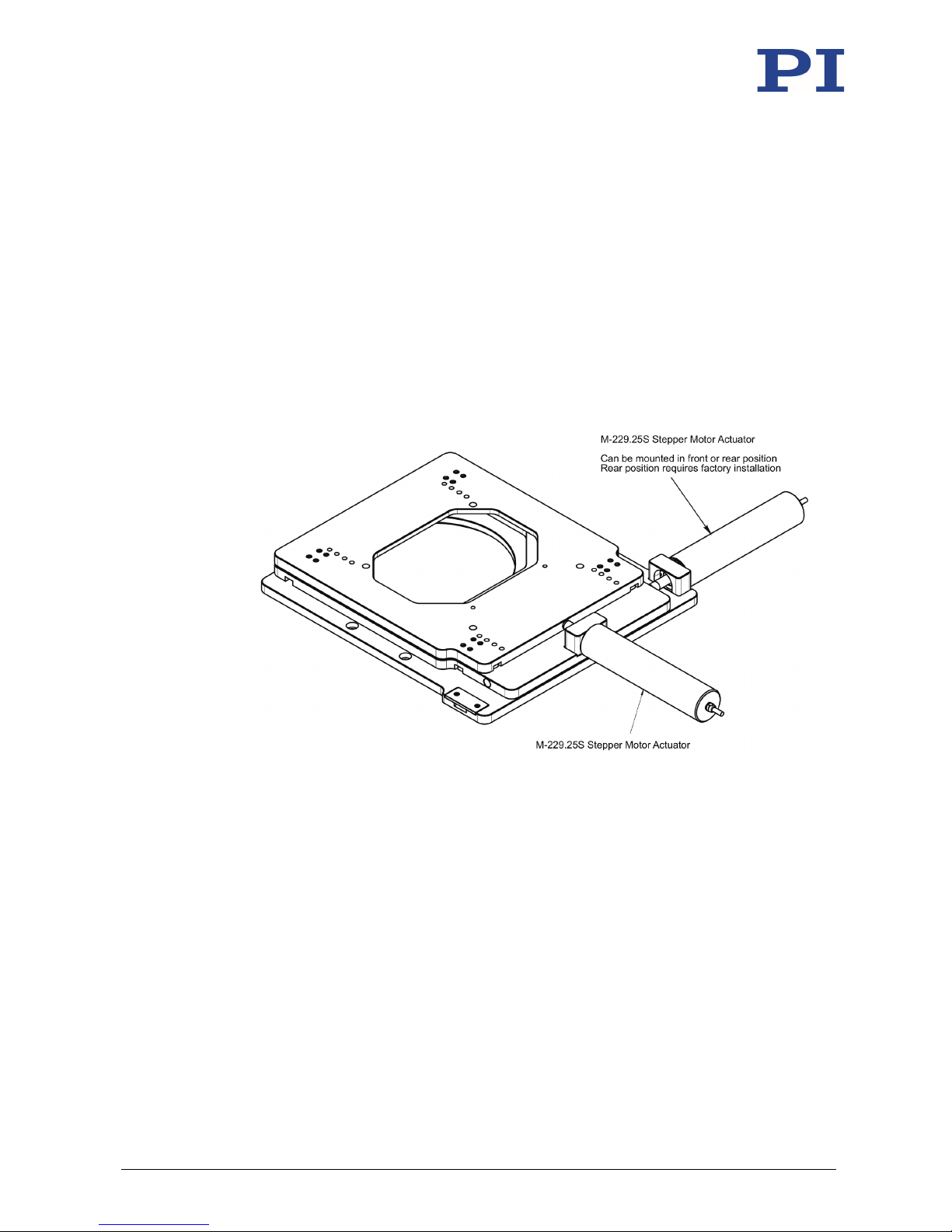

3.3 Drive Sets
M-545.USx drive sets for M-545 stages (all models except M-545.2MZ)
The following drive sets are available:
M-545.USG
Drive set for M-545 XY stage: Includes stepper motor linear actuators*
* A suitable controller can be ordered separately.
M-545.USC
Drive set for M-545 XY stage: Includes stepper motor linear actuators, controller and
joystick
The drive sets include M-229 stepper motor actuators.
Page 9
4 Dimensions
M-545 Series Microscope Stages PZA02 Version: 3.1.0 8
4 Dimensions

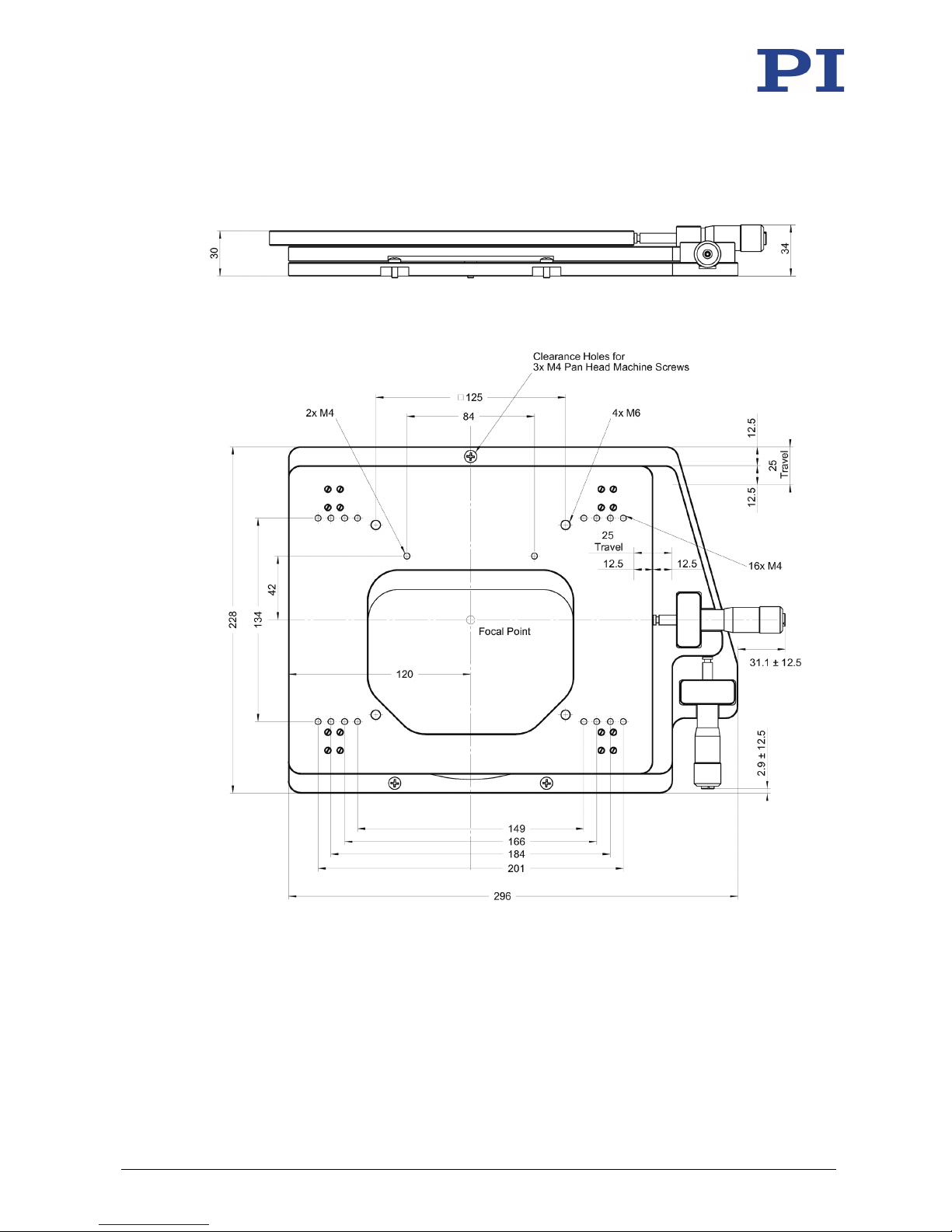

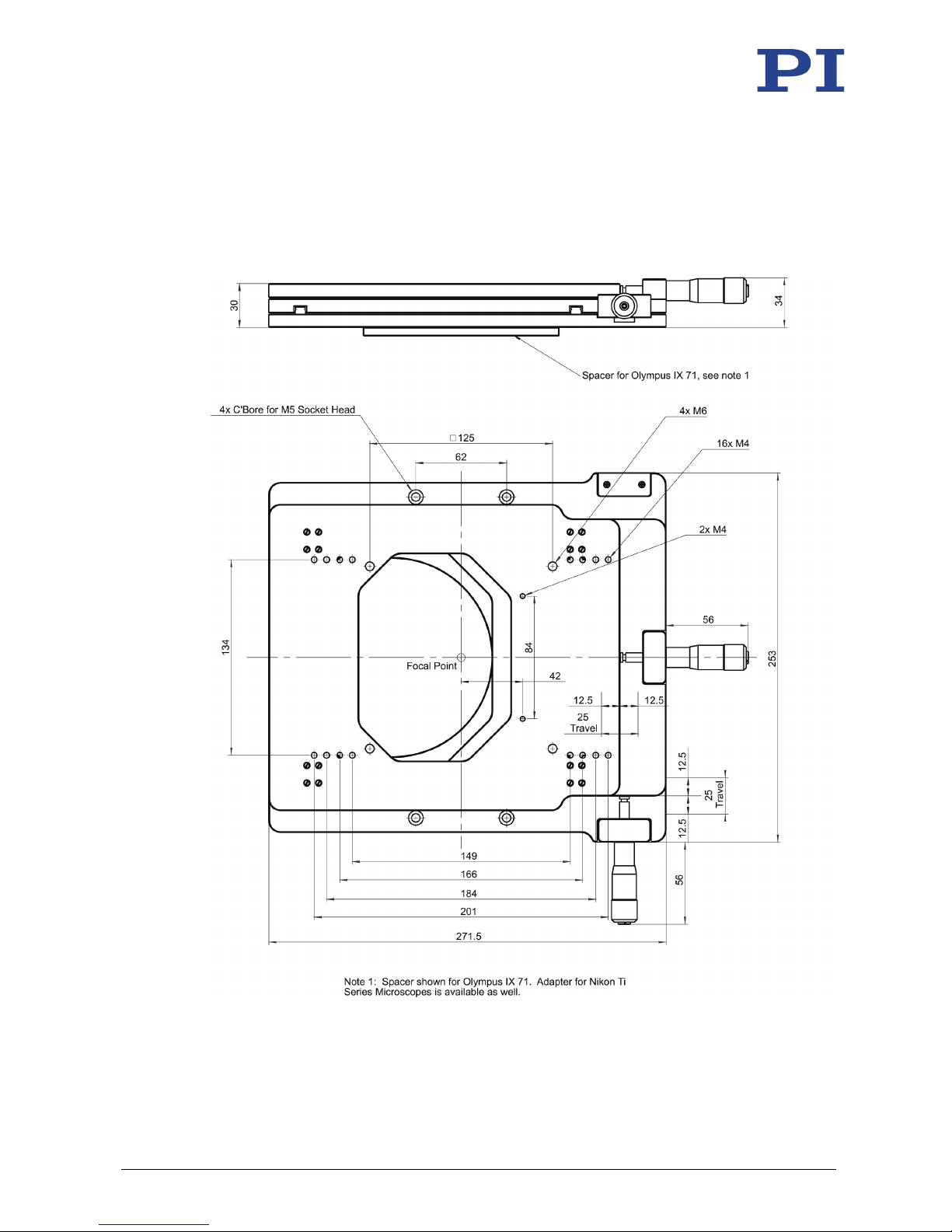

4.1 M-545.2MO and M-545.2MN Dimensions
Page 10
4 Dimensions
M-545 Series Microscope Stages PZA02 Version: 3.1.0 9

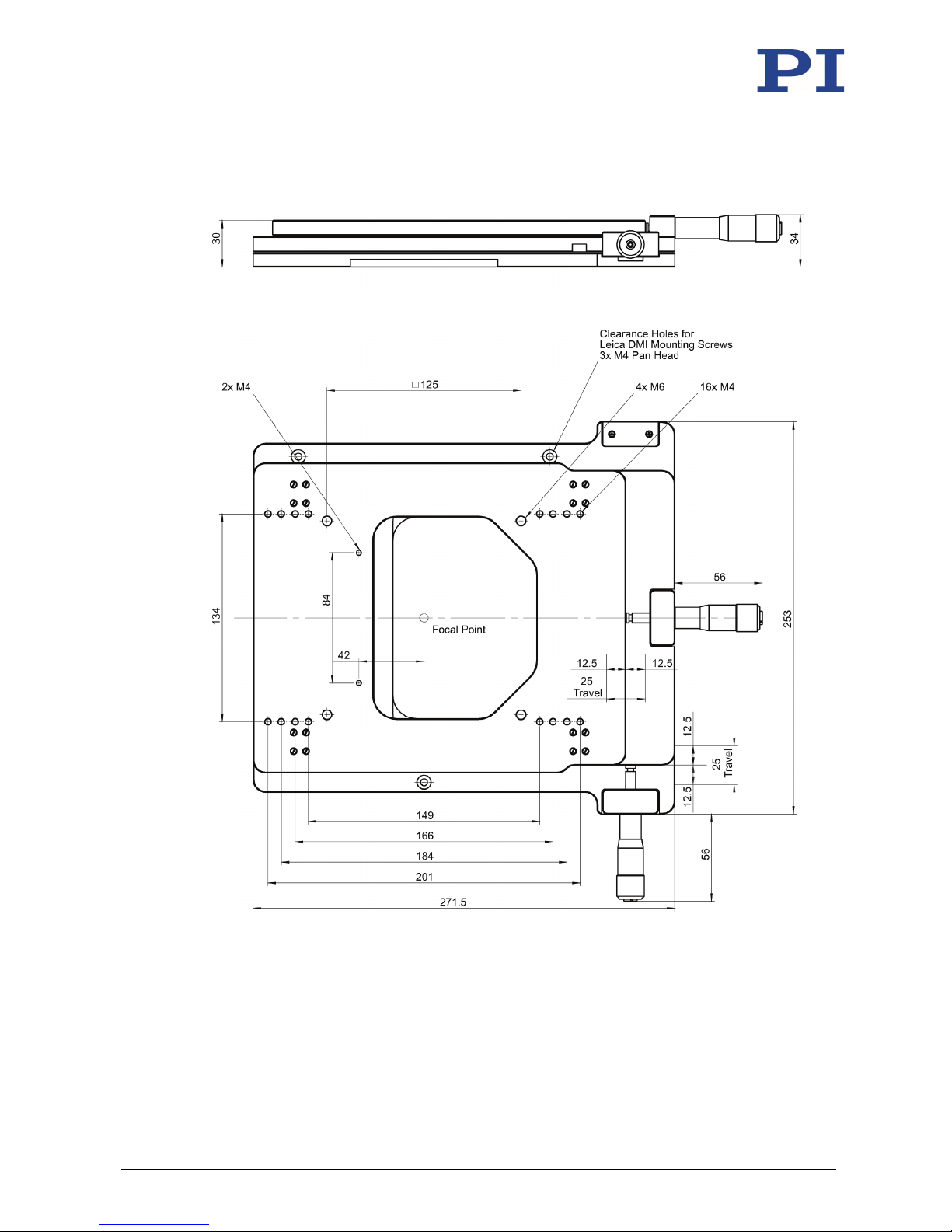

4.2 M-545.2ML Dimensions
Page 11
4 Dimensions
M-545 Series Microscope Stages PZA02 Version: 3.1.0 10
4.3 M-545.2MZ Dimensions
Page 12
5 Mounting
M-545 Series Microscope Stages PZA02 Version: 3.1.0 11
5 Mounting

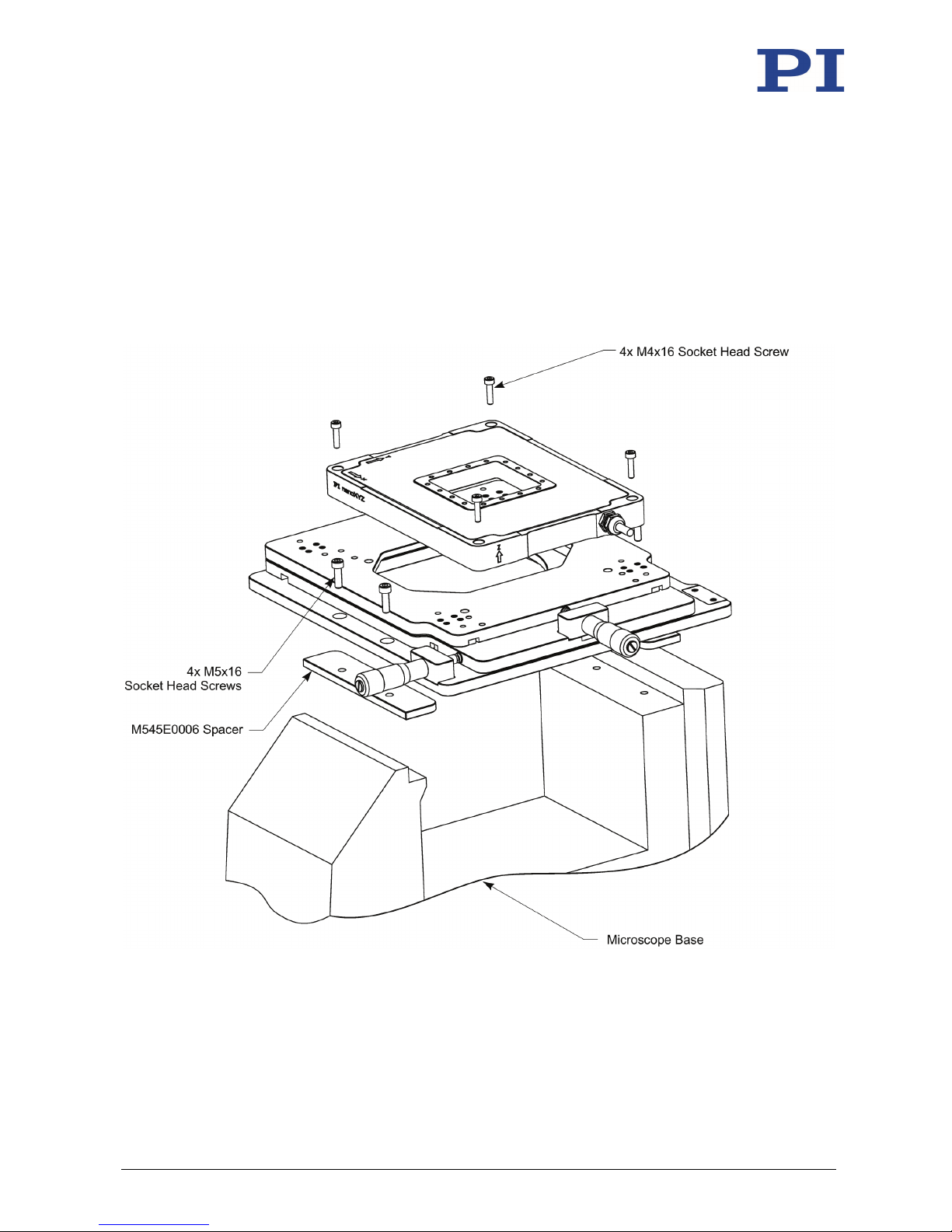

5.1 M-545.2MO Mounting (for Olympus Microscopes)
Spacer plates are used to adapt the M-545 stage to the Olympus IX2 / IX3 microscope base.
The proper hardware sizes are shown below.
Page 13
5 Mounting
M-545 Series Microscope Stages PZA02 Version: 3.1.0 12

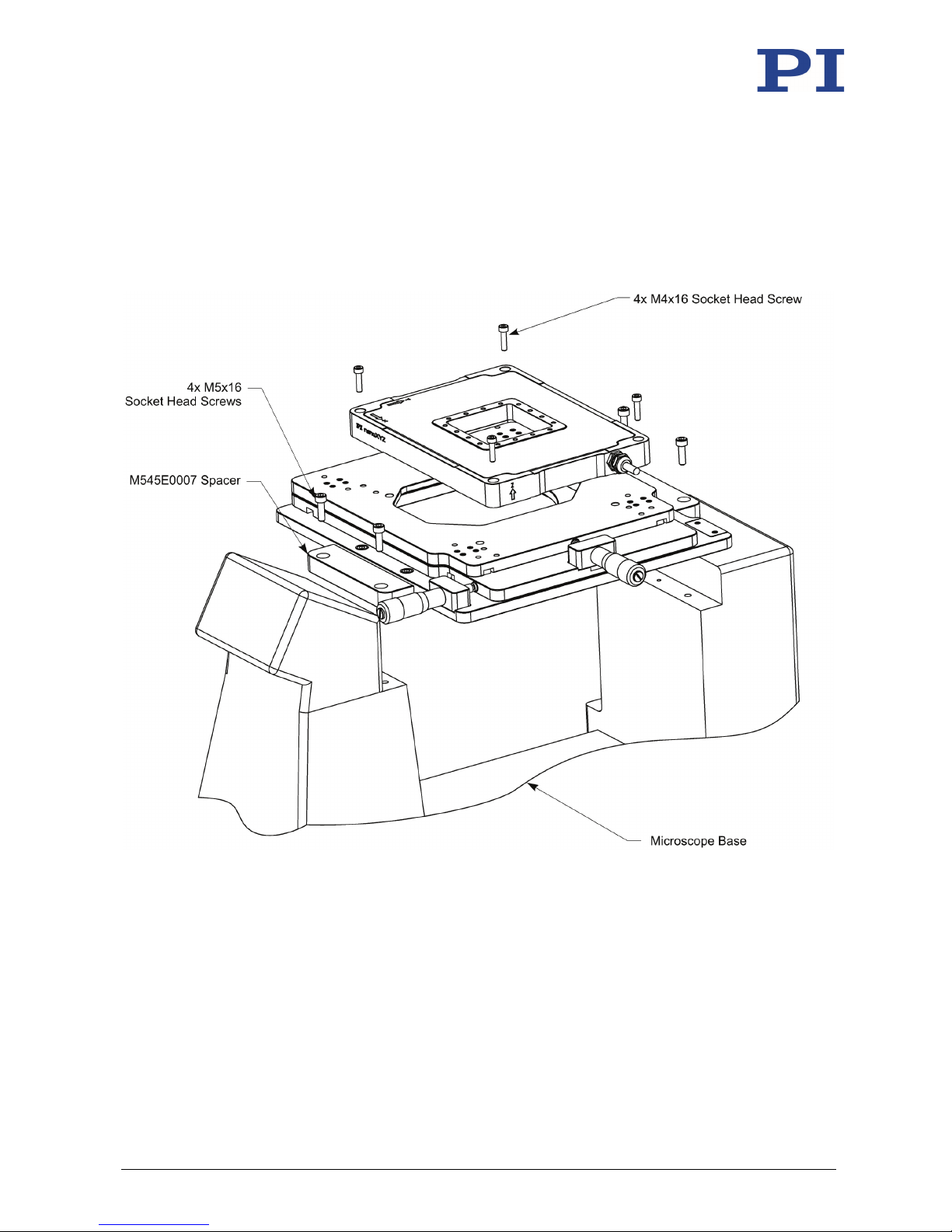

5.2 M-545.2MN Mounting (for Nikon Microscopes)
Spacer plates are used to adapt the M-545 stage to the Nikon TI microscope base.
The proper hardware sizes are shown below.
Page 14
5 Mounting
M-545 Series Microscope Stages PZA02 Version: 3.1.0 13

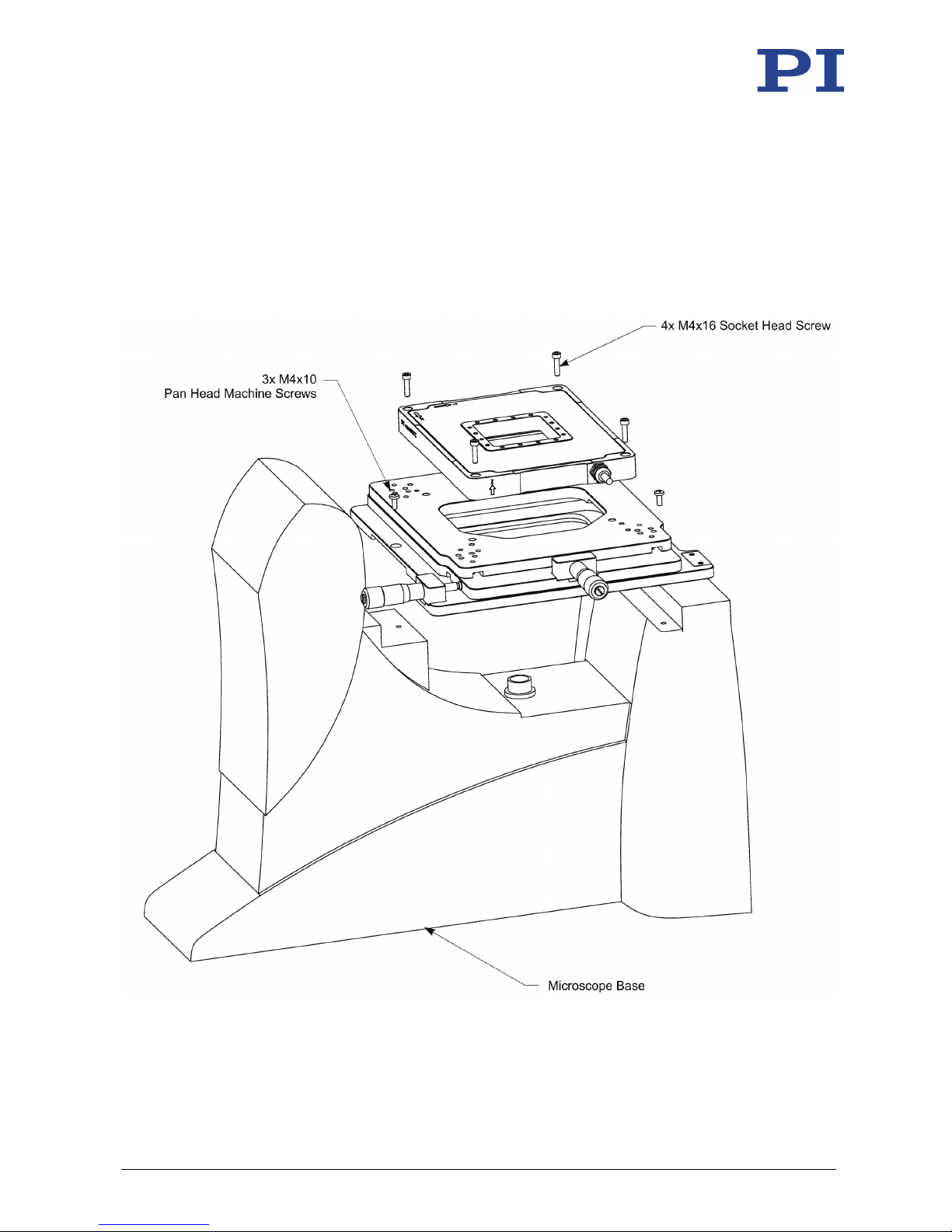

5.3 M-545.2ML Mounting (for Leica Microscopes)
No spacers or adapters are required for the Leica DMI microscope base.
Fits Leica models DMI 4000, DMI 5000 and DMI 6000.
The proper hardware sizes are shown below.
Page 15
5 Mounting
M-545 Series Microscope Stages PZA02 Version: 3.1.0 14

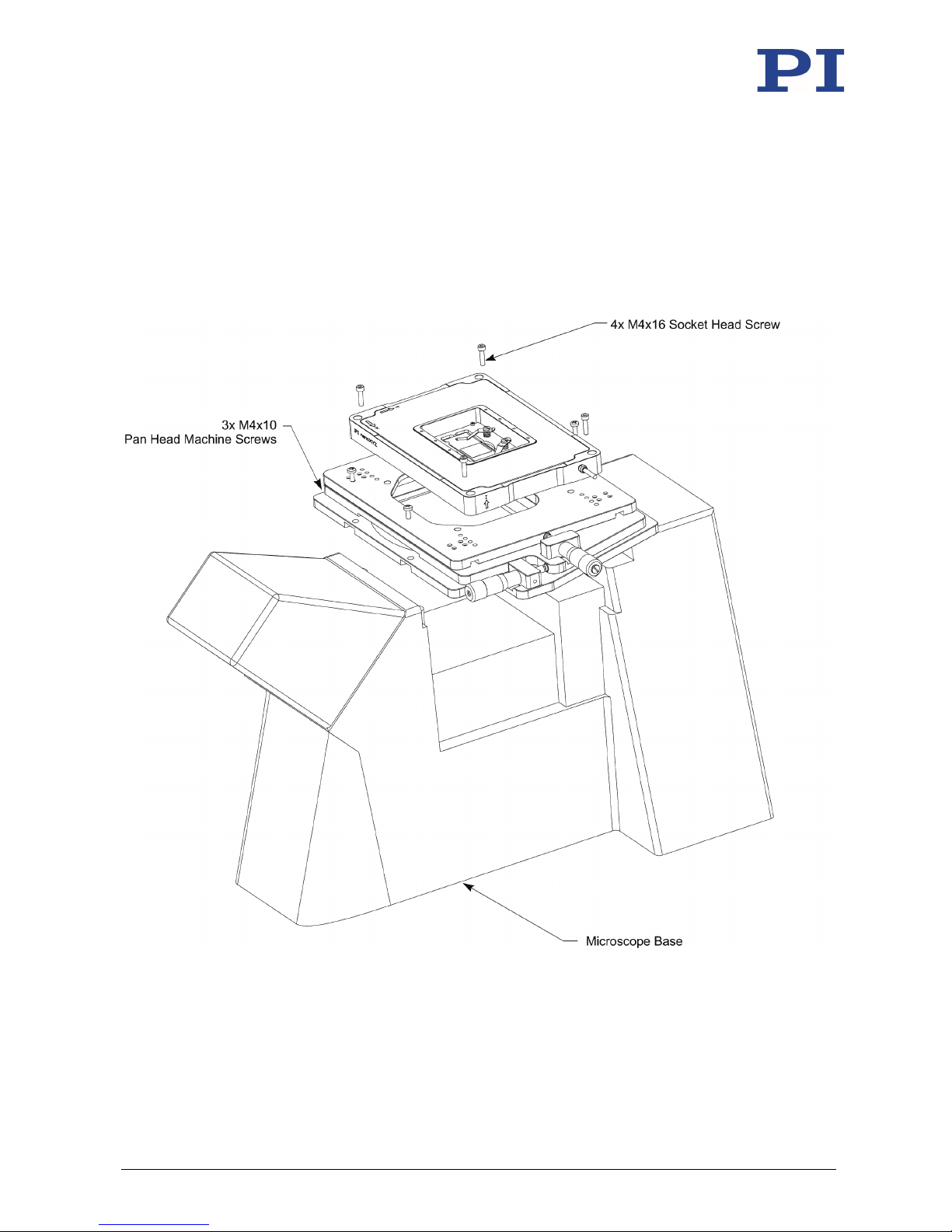

5.4 M-545.2MZ Mounting (for Zeiss Microscopes)
No spacers or adapters are required for the Zeiss Observer microscope base.
Fits Zeiss Axio Observer models A1, D1 and Z1 and Z1m.
The proper hardware sizes are shown below.
Page 16
6 Technical Information
M-545 Series Microscope Stages PZA02 Version: 3.1.0 15
6 Technical Information
6.1 Focal Point Location
PI has designed the M-545 stage to easily integrate the P-545 stage into commercial
microscopes. M-545 stages are available for Nikon, Olympus, Zeiss and Leica inverted
microscopes. These stages mount directly to the microscope base and accept the P-545.3R8H
and P-545.2R8H as well as several other PI stages. The M-545 stages can be manually driven
through micrometers or using PI’s precision motorized actuators. Contact your PI sales
representative for details.

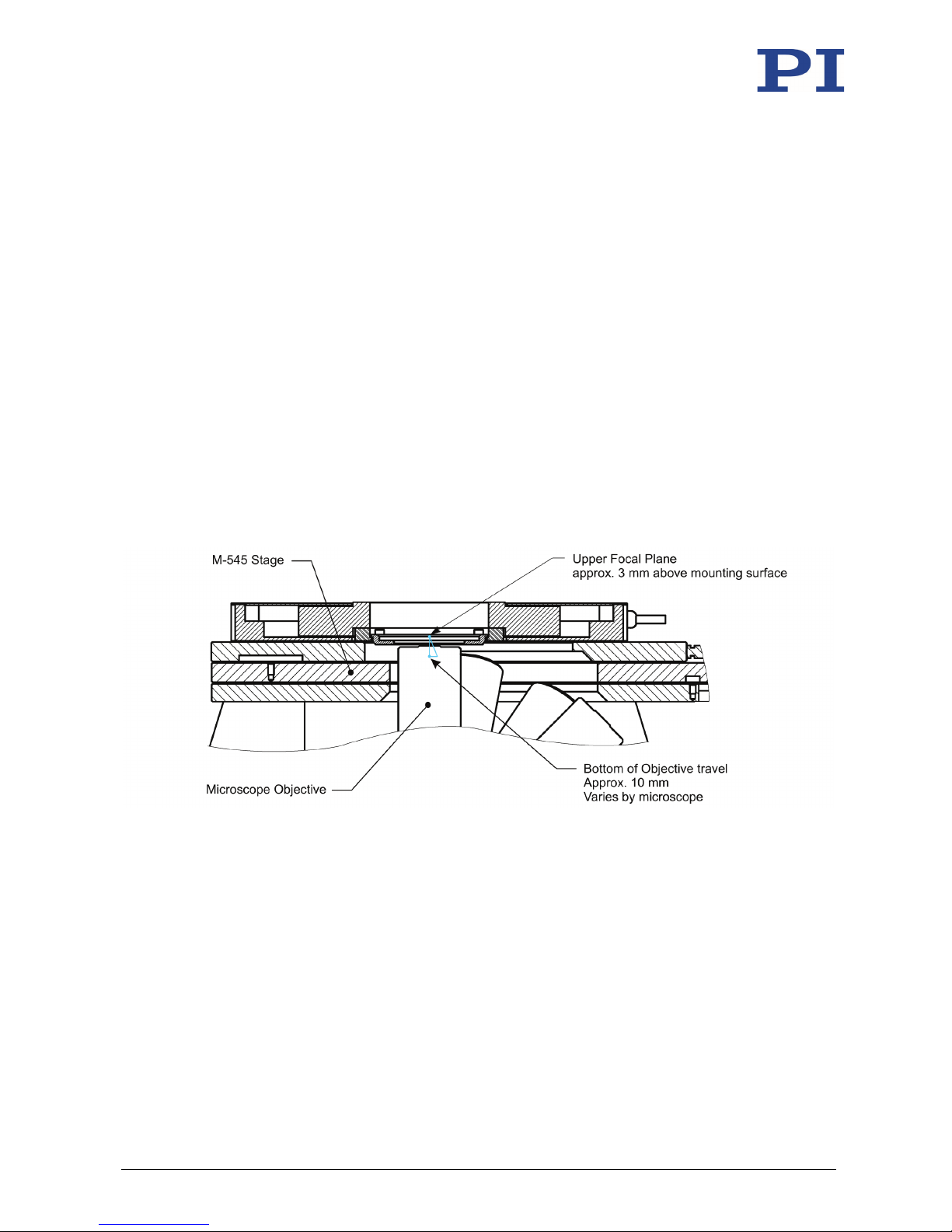

When used in a microscope application, the focal plane for the microscope is located near the
bottom of the stage. It is for this reason that the stage has a lower mounting surface. The figure
below shows the nominal location of the focal plane. Vertical travel of the objective varies
based on the microscope used.
A series of accessories is available from PI to assist with mounting a sample holder to the stage.
The M-545.SHP is available to hold standard 1” × 3” (25 mm × 75 mm) microscope slides and
the P-545.PD3 is offered for holding 35 mm Petri dishes.
