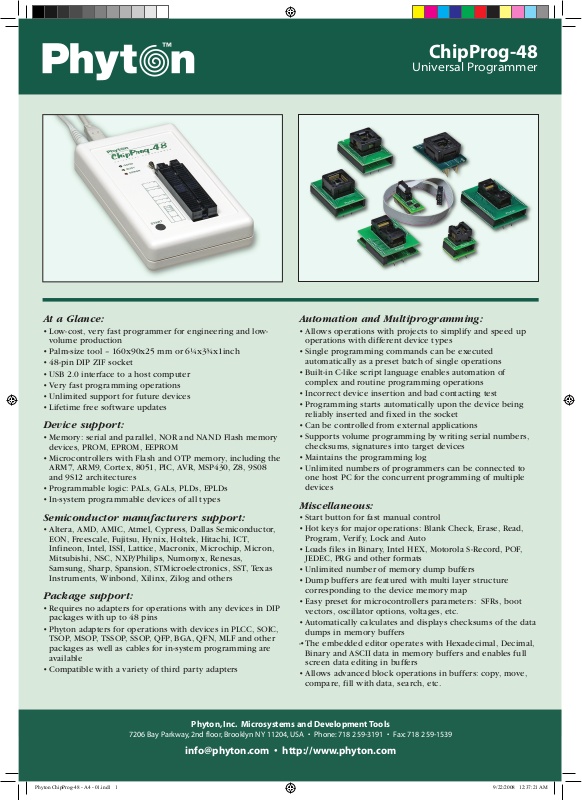

PHYTON ChipProg-48 Universal Programmer

ChipProg-48

Universal Programmer

Phyton, Inc. Microsystems and Development Tools

7206 Bay Parkway, 2nd floor, Brooklyn NY 11204, USA • Phone: [phone] • Fax: [phone]

[e-mail] • http://www.phyton.com

At a Glance:

• Low-cost, very fast programmer for engineering and low­volume production

• Palm-size tool – 160x90x25 mm or 6¼x3¾x1inch

• 48-pin DIP ZIF socket

• USB 2.0 interface to a host computer

• Very fast programming operations

• Unlimited support for future devices

• Lifetime free software updates

Device support:

• Memory: serial and parallel, NOR and NAND Flash memory
devices, PROM, EPROM, EEPROM

• Microcontrollers with Flash and OTP memory, including the
ARM7, ARM9, Cortex, 8051, PIC, AVR, MSP430, Z8, 9S08
and 9S12 architectures

• Programmable logic: PALs, GALs, PLDs, EPLDs

• In-system programmable devices of all types

Semiconductor manufacturers support:

• Altera, AMD, AMIC, Atmel, Cypress, Dallas Semiconductor,
EON, Freescale, Fujitsu, Hynix, Holtek, Hitachi, ICT,
Infineon, Intel, ISSI, Lattice, Macronix, Microchip, Micron,
Mitsubishi, NSC, NXP/Philips, Numonyx, Renesas,
Samsung, Sharp, Spansion, STMicroelectronics, SST, Texas
Instruments, Winbond, Xilinx, Zilog and others

Package support:

• Requires no adapters for operations with any devices in DIP
packages with up to 48 pins

• Phyton adapters for operations with devices in PLCC, SOIC,
TSOP, MSOP, TSSOP, SSOP, QFP, BGA, QFN, MLF and other
packages as well as cables for in-system programming are
available

• Compatible with a variety of third party adapters

Automation and Multiprogramming:

• Allows operations with projects to simplify and speed up
operations with different device types

• Single programming commands can be executed
automatically as a preset batch of single operations

• Built-in C-like script language enables automation of
complex and routine programming operations

• Incorrect device insertion and bad contacting test

• Programming starts automatically upon the device being
reliably inserted and fixed in the socket

• Can be controlled from external applications

• Supports volume programming by writing serial numbers,
checksums, signatures into target devices

• Maintains the programming log

• Unlimited numbers of programmers can be connected to
one host PC for the concurrent programming of multiple
devices

Miscellaneous:

• Start button for fast manual control

• Hot keys for major operations: Blank Check, Erase, Read,
Program, Verify, Lock and Auto

• Loads files in Binary, Intel HEX, Motorola S-Record, POF,
JEDEC, PRG and other formats

• Unlimited number of memory dump buffers

• Dump buffers are featured with multi layer structure
corresponding to the device memory map

• Easy preset for microcontrollers parameters: SFRs, boot
vectors, oscillator options, voltages, etc.

• Automatically calculates and displays checksums of the data
dumps in memory buffers

-• The embedded editor operates with Hexadecimal, Decimal,
Binary and ASCII data in memory buffers and enables full
screen data editing in buffers

• Allows advanced block operations in buffers: copy, move,
compare, fill with data, search, etc.
