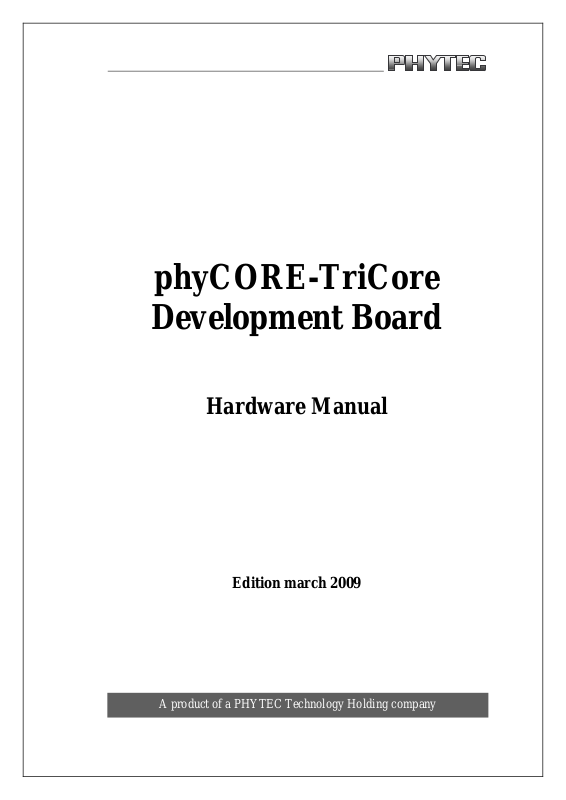

phyCORE-TriCore
Development Board
Hardware Manual
Edition march 2009
A product of a PHYTEC Technology Holding company
phyCORE-TriCore Development Board
In this manual are descriptions for copyrighted products that are not explicitly
indicated as such. The absence of the trademark (™) and copyright (©) symbols
does not imply that a product is not protected. Additionally, registered patents and
trademarks are similarly not expressly indicated in this manual.
The information in this document has been carefully checked and is believed to be
entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting
from the use of this manual or its associated product. PHYTEC Messtechnik
GmbH reserves the right to alter the information contained herein without prior
notification and accepts no responsibility for any damages which might result.
Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any
liability for damages arising from the improper usage or improper installation of
the hardware or software. PHYTEC Messtechnik GmbH further reserves the right
to alter the layout and/or design of the hardware without prior notification and
accepts no liability for doing so.
© Copyright 2009 PHYTEC Messtechnik GmbH, D-55129 Mainz. Rights including those of translation, reprint, broadcast, photomechanical or similar
reproduction and storage or processing in computer systems, in whole or in part are reserved. No reproduction may occur without the express written consent from
PHYTEC Messtechnik GmbH.
EUROPE NORTH AMERICA
Address: PHYTEC Technologie Holding AG
Robert-Koch-Str. 39
D-55129 Mainz
GERMANY
Ordering
Information:
Technical
Support:
Fax: +49 (6131) 9221-33 1 (206) 780-9135
Web Site: http://www.phytec.de http://www.phytec.com
+49 (800) 0749832
order@phytec.de
+49 (6131) 9221-31
support@phytec.de
PHYTEC America LLC
203 Parfitt Way SW, Suite G100
Bainbridge Island, WA 98110
USA
1 (800) 278-9913
sales@phytec.com
1 (800) 278-9913
support@phytec.com
preliminary Edition: Mar 2009
© PHYTEC Messtechnik GmbH 2009 L-730e_0
Table of Contents
Preface 1
1 The phyCORE-TriCORE Development Board...............................3
1.1 Concept of the phyCORE Development Board...........................3
1.2 phyCORE-TriCORE Development Board Connectors and
Jumpers.........................................................................................5
1.2.1 Connectors.......................................................................5
1.2.2 Jumpers on the phyCORE-TriCORE Development
Board...............................................................................7
1.3 Functional Components on the phyCORE-TriCORE
Development Board....................................................................10
1.3.1 Power Supply at X1 ......................................................10
1.3.2 Activating the Bootstrap Loader...................................11
1.3.3 First Serial Interface at Socket P1A..............................14
1.3.4 Second Serial Interface at Socket P1B..........................15
1.3.5 First CAN Interface at Plug P2A ..................................16
1.3.6 Second CAN Interface at Plug P2B..............................19
1.3.7 RJ45 Ethernet Connector X7 ........................................22
1.3.8 Programmable LED D3 ................................................22
1.3.9 Pin Assignment Summary of the phyCORE, the
Expansion Bus and the Patch Field...............................23
1.3.10 DS2401 Silicon Serial Number.....................................36
1.3.11 Pin Header Connectors X10..........................................37
1.3.12 USB Wiggler connector X11.......................................37
1.3.13 LCD connector..............................................................38
1.3.14 JTAG PLD connector only for phyCORE-TC1130 .....40
1.3.15 USB connector X12 ......................................................41
1.3.16 OCDS2 connector only for phyCORE-TC1796...........42
2 Revision History................................................................................43
Appendice A ...............................................................................................44
A.1 Release Notes.............................................................................44
Index ....................................................................................................45
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Index of Figures
Figure 1: Modular Development and Expansion Board Concept with the
phyCORE-TC1130 or phyCORE-TC1796................................ 4
Figure 2: Location of Connectors on the phyCORE-TriCORE
Development Board................................................................... 6
Figure 3: Numbering of Jumper Pads ....................................................... 7
Figure 4: Location of the Jumpers (View of the Component Side).......... 7
Figure 5: Default Jumper Settings of the phyCORE-TriCORE
Development Board for Standard phyCORE-TC1130..............8
Figure 6: Default Jumper Settings of the phyCORE-TriCORE
Development Board for Standard phyCORE-TC1796.............9
Figure 7: Connecting the Supply Voltage at X1..................................... 10
Figure 8: Pin Assignment of the DB-9 Socket P1A as First RS-232
(Front View) ............................................................................ 14
Figure 9: Pin Assignment of the DB-9 Socket P1A as Second RS-232
(Front View) ............................................................................ 15
Figure 10: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
phyCORE-TC1130, Front View) ............................................ 16
Figure 11: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
Development Board)................................................................17
Figure 12: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
Development Board with Galvanic Separation)...................... 18
Figure 13: Pin Assignment of the DB-9 Plug P2B (CAN Transceiver on
phyCORE-TC1130, Front View) ............................................ 19
Figure 14: Pin Assignment of the DB-9 Plug P2B (CAN Transceiver on
Development Board)................................................................20
Figure 15: Pin Assignment of the DB-9 Plug P2B (CAN Transceiver on
Development Board with Galvanic Separation)...................... 21
Figure 16: Pin Assignment Scheme of the Expansion Bus....................... 24
Figure 17: Pin Assignment Scheme of the Patch Field............................. 24
Figure 18: Connection of the DS2401 Silicon Serial Number................. 36
© PHYTEC Messtechnik GmbH 2009 L-730e_0
Table of Contents
Index of Tables
Table 1:
JP12 Configuration of the Boot Button ..................................11
Table 2: JP20, JP21, JP13 Configuration of Boot via RS-232 .............12
Table 3: Jumper Configuration for the First RS-232 Interface..............14
Table 4: Jumper Configuration for the Second RS-232 Interface .........15
Table 5: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the phyCORE-TC1130 or phyCORE-TC179616
Table 6: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the Development Board ..................................17
Table 7: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the Development Board with Galvanic
Separation.................................................................................18
Table 8: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the phyCORE-TC1130 or phyCORE-TC179619
Table 9: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the Development Board ..................................20
Table 10: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the Development Board with Galvanic
Separation.................................................................................21
Table 11: JP2-6 ,JP10,JP11, Configuration of the Ethernet Interface ..... 22
Table 12: JP18 Configuration of the Programmable LED D3................22
Table 13: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board .............26
Table 14: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board .............29
Table 15: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board .............31
Table 16: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board .............33
Table 17: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board .............33
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Table 18: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board............. 34
Table 19: Pin Assignment Power Supply for the phyCORE-TC1130 /
Development Board / Expansion Board.................................. 34
Table 20: Pin Assignment for the phyCORE-TC1130, phyCORE-
TC1796 and Development Board / Expansion Board............. 35
Table 21: JP1 Jumper Configuration for Silicon Serial Number Chip.... 36
Table 22: Jumper Configuration for T6963C LCD-Controller ............... 38
Table 23: Jumper Configuration for HD61202, HD44780...................... 39
Table 24: contrast Configuration LCD.................................................... 39
Table 25: Pin assignemt JTAG_PLD connector for................................ 40
Table 26: Jumper Configuration for X12 USB connector for phyCORE-
TC1130 .................................................................................... 41
Table 27: Jumper Configuration for X12 USB connector for phyCORE-
TC1796 .................................................................................... 41
© PHYTEC Messtechnik GmbH 2009 L-730e_0
Preface
Preface
This Hardware Manual describes only the functions of PHYTEC
phyCORE-TriCORE Development Board for the phyCORE-TC1130
and phyCORE-TC1796 module. The controllers and modules are not
described herein. Precise specifications for Infineon’s TC1130 or
TC1796 Tricore microcontroller series controller can be found in the
enclosed microcontroller Data Sheet/User's Manual. If software is
included please also refer to additional documentation for this
software.
In this hardware manual and in the attached schematics, low active
signals are denoted by a "/" in front of the signal name (i.e.: /RD). A
"0" indicates a logic-zero or low-level signal, while a "1" represents a
logic-one or high-level signal.
Declaration of Electro Magnetic Conformance of the
PHYTEC phyCORE-TriCORE Development Board
PHYTEC Single Board Computers (henceforth products) are designed
for installation in electrical appliances or as dedicated Evaluation
Boards (i.e.: for use as a test and prototype platform for
hardware/software development) in laboratory environments.
Caution:
PHYTEC products lacking protective enclosures are subject to
damage by ESD and, hence, may only be unpacked, handled or
operated in environments in which sufficient precautionary measures
have been taken in respect to ESD-dangers. It is also necessary that
only appropriately trained personnel (such as electricians, technicians
and engineers) handle and/or operate these products. Moreover,
PHYTEC products should not be operated without protection circuitry
if connections to the product's pin header rows are longer than 3 m.
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
1
phyCORE-TriCore Development Board
PHYTEC products fulfill the norms of the European Union’s
Directive for Electro Magnetic Conformance only in accordance to the
descriptions and rules of usage indicated in this hardware manual
(particularly in respect to the pin header row connectors, power
connector and serial interface to a host-PC).
Implementation of PHYTEC products into target devices, as well as
user modifications and extensions of PHYTEC products, is subject to
renewed establishment of conformity to, and certification of, Electro
Magnetic Directives. Users should ensure conformance following any
modifications to the products as well as implementation of the
products into target systems.
This Development Board supports the phyCORE-TC1130 and the
phyCORE-TC1796.
PHYTEC supports all common 8- and 16-bit as well as selected 32-bit
controllers in two ways:
(1) as the basis for Rapid Development Kits which serve as a
reference and evaluation platform
(2) as insert-ready, fully functional micro-, mini- and phyCORE
OEM modules, which can be embedded directly into the user’s
peripheral hardware, design.
PHYTEC's microcontroller modules allow engineers to shorten
development horizons, reduce design costs and speed project concepts
from design to market.
2 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1 The phyCORE-TriCORE Development Board
PHYTEC Development Boards are fully equipped with all mechanical
and electrical components necessary for the speedy and secure start-up
and subsequent communication to and programming of applicable
PHYTEC Single Board Computer (SBC) modules. Development
Boards are designed for evaluation, testing and prototyping of
PHYTEC Single Board Computers in labratory environments prior to
their use in customer designed applications.
1.1 Concept of the phyCORE Development Board
The phyCORE-TriCORE Development Board in EURO-card
dimensions (160 x 100 mm.) provides a flexible development platform
enabling quick and easy start-up and subsequent programming of the
phyCORE-TC1130 or phyCORE-TC1796 Single Board Computer
module. The Development Board design allows easy connection of
additional expansion boards featuring various functions that support
fast and convenient prototyping and software evaluation.
This modular development platform concept is depicted in Figure 1
and includes the following components:
• The actual Development Board (1), which offers all essential
components and connectors for start-up including: a power socket
enabling connection to an external power adapter (2) and serial
interfaces (3) of the SBC module at DB-9 connectors (depending
on the module, up to two RS-232 interfaces and up to two RS-485
or CAN interfaces).
• All of the signals from the SBC module mounted on the
Development Board extend to two mating receptacle connectors.
A strict 1:1 signal assignment is consequently maintained from the
phyCORE-connectors on the module to these expansion connectors. Accordingly, the pin assignment of the expansion bus (4)
depends entirely on the pinout of the SBC module mounted on the
Development Board.
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
3
phyCORE-TriCore Development Board
• As the physical layout of the expansion bus is standardized across
all applicable PHYTEC Development Boards, we are able to offer
various expansion boards (5) that attach to the Development
Board at the expansion bus connectors. These modular expansion
boards offer supplemental I/O functions (6) as well as peripheral
support devices for specific functions offered by the controller
populating the SBC module (9) mounted on the Development
Board.
• All controller and on-board signals provided by the SBC module
mounted on the Development Board are broken out 1:1 to the
expansion board by means of its patch field (7). The required
connections between SBC module / Development Board and the
expansion board are made using patch cables (8) included with the
expansion board.
Figure 1 illustrates the modular development platform concept:
Figure 1: Modular Development and Expansion Board Concept with the
phyCORE-TC1130 or phyCORE-TC1796
4 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.2 phyCORE-TriCORE Development Board Connectors
and Jumpers
1.2.1 Connectors
As shown in
Figure 2, the following connectors are available on the
phyCORE-TriCORE Development Board:
X1- low-voltage socket for power supply connectivity
X2- mating receptacle for expansion board connectivity
P1- dual DB-9 sockets for serial RS-232 interface connectivity
P2- dual DB-9 connectors for CAN interface connectivity
TP1- GND connector (for connection of GND signal of
measuring devices such as an oscilliscope)
X3- phyCORE-connector enabling mounting of applicable
phyCORE modules
X11 - connectors for on-board USB Wiggler
X12 - USB connector
OCDS2 - connector OCDS2 for phyCORE-TC1796 only
X7 - RJ45 socket for connection to 10 Mbit TP Ethernet cable
LCD- connector for graphic LCD
X10 - voltage supply for external devices and subassemblies
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
5
phyCORE-TriCore Development Board
Figure 2: Location of Connectors on the phyCORE-TriCORE Development
Board
Please note that all module connections are not to exceed their
expressed maximum voltage or current. Maximum signal input values
are indicated in the corresponding controller User’s Manual/Data
Sheets. As damage from improper connections varies according to use
and application, it is the user's responsibility to take appropriate safety
measures to ensure that the module connections are protected from
overloading through connected peripherals.
6 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.2.2 Jumpers on the phyCORE-TriCORE Development Board
Peripheral components of the phyCORE-TriCORE Development
Board can be connected to the signals of the phyCORE-TC1130 or
phyCORE-TC1796 by setting the applicable jumpers.
The Development Board’s peripheral components are configured for
use with the phyCORE-TC1130 or phyCORE-TC1796 by means of
insertable jumpers. If no jumpers are set, no signals connect to the
DB-9 connectors, the control and display units and the CAN
transceivers.
Figure 3 illustrates the numbering of the jumper pads,
while
Figure 4 indicates the location of the jumpers on the Development
Board.
z.B.: JP28
z.B.: JP23
z.B.: JP24
Figure 3: Numbering of Jumper Pads
Figure 4: Location of the Jumpers (View of the Component Side)
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
7
phyCORE-TriCore Development Board
Figure 55 shows the factory default jumper settings for operation of
the phyCORE-TriCORE Development Board with the standard
phyCORE-TC1130 (use of two RS-232 interfaces, the Boot button etc.
on the Development Board). Jumper settings for other functional
configurations of the phyCORE-TC1130 module mounted on the
Development Board are described in section
1.3.
Figure 5: Default Jumper Settings of the phyCORE-TriCORE Development
Board for Standard phyCORE-TC1130
8 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Figure 56 shows the factory default jumper settings for operation of
the phyCORE-TriCORE Development Board with the standard
phyCORE-TC1796 (use of two RS-232 interfaces, the Boot button etc.
on the Development Board). Jumper settings for other functional
configurations of the phyCORE-TC1796 module mounted on the
Development Board are described in section
1.3.
Figure 6: Default Jumper Settings of the phyCORE-TriCORE Development
Board for Standard phyCORE-TC1796
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
9
phyCORE-TriCore Development Board
1.3 Functional Components on the phyCORE-TriCORE
Development Board
This section describes the functional components of the
phyCORE-TriCORE Development Board supported by the phyCORETC1130 or phyCORE-TC1796 and appropriate jumper settings to
activate these components. Depending on the specific configuration of
the phyCORE-TC1130 or phyCORE-TC1796 module, alternative
jumper settings can be used. These jumper settings are different from
the factory default settings shown in
enable alternative or additional functions on the phyCORE-TriCORE
Development Board depending on user needs.
1.3.1 Pow er Supply at X1 Caution:
Do not use a laboratory adapter to supply power to the Development
Board! Power spikes during power-on could destroy the phyCORE
module mounted on the Development Board! Do not change modules
or jumper settings while the Development Board is supplied with
power!
Permissible input voltage: +/-5 VDC regulated.
The required current load capacity of the power supply depends on the
specific configuration of the phyCORE-TC1130 or phyCORETC1796 mounted on the Development Board as well as whether an
optional expansion board is connected to the Development Board. An
adapter with a minimum supply of 1.5 A is recommended.
Figure 55 and Figure 6 and
polarity:
-- +
+5VDC
≥
1.5 A
GND
Figure 7: Connecting the Supply Voltage at X1
center hole
1.3mm
3.5mm
10 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.2 Activating the Bootstrap Loader
The Infineon Tricore-TC1130 and TC1796 microcontroller contains
an on-chip Bootstrap Loader that provides basic communication and
programming functions. The combination of this Bootstrap Loader
and the corresponding Flash download software installed on the PC
allows for Flash programming with application code via an RS-232
interface.
In order to start the on-chip Bootstrap Loader on the
phyCORE-TC1130 and phyCORE-TC1796, the configuration inputs
HWCFG0-3 of the microcontroller must provide a certain bit pattern
at the time the Reset signal changes from its active to the inactive
state. This bit pattern is created by solder jumpers on the module and
pass through to the controller with the help of an electronic switch.
Applying a low-level signal at pin X1C9 of the phyCORE-TC1130
or phyCORE-TC1796 (via the Boot input) activates the electronic
switch.
The phyCORE-TriCORE Development Board provides two different
options to activate the on-chip Bootstrap Loader:
1. The Boot button (S1) can be connected to GND via Jumper JP12
which is located next the the Boot and Reset buttons at S1 and S2.
This configuration enables start-up of the on-chip Bootstrap Loader
if the Boot button is pressed during a hardware reset or
power-on.
Jumper Setting Description
JP12 1 + 2
(default)
Boot button (in conjunction with Reset button
or connection of the power supply) starts the
Bootstrap Loader on the TC1130/TC1796
Table 1: JP12 Configuration of the Boot Button
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
11
phyCORE-TriCore Development Board
2. It is also possible to start the Bootstrap Loader via external signals
applied to the DB-9 socket P1A. This requires control of the signal
transition on the Reset line via pin 7 while a static low-level is
applied to pin 4 for the Boot signal.
Jumper Setting Description
JP20 1 + 2 Pin 7 (CTS) of the DB-9 socket P1A as RESET signal
for the phyCORE-TC1130 or phyCORE-TC1796
2 + 3 Pin 7 (CTS) of the DB-9 socket P1A as BOOT signal
for the phyCORE-TC1130 or phyCORE-TC1796
open
(default)
JP21 1 + 2 Pin 4 (DSR) of the DB-9 socket P1A as BOOT signal
2 + 3 Pin 4 (DSR) of the DB-9 socket P1A as RESET signal
open
(default)
JP13 1 + 2 Low-level Boot signal connected with the BOOT input
2 + 3 Jumper setting generates high-level on Boot input
open
(default)
function not used
for the phyCORE-TC1130 or phyCORE-TC1796
for the phyCORE-TC1130 or phyCORE-TC1796
function not used
of the phyCORE-TC1130 or phyCORE-TC1796
of the phyCORE-TC1130 or phyCORE-TC1796
function not used
Table 2: JP20, JP21, JP13 Configuration of Boot via RS-232
Caution:
JP20 and JP21 must have the same setting at any time:
JP20,JP21 = 1+2
or
JP20,JP21 = 2+3
12 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
13
phyCORE-TriCore Development Board
1.3.3 First Serial Interface at Socket P1A
Socket P1A is the lower socket of the double DB-9 connector at P1.
P1A is connected via jumpers to the first serial interface of the
phyCORE-TC1130 or phyCORE-TC1796.
All Signals from P1A are accessible at connector X9
When connected to a host-PC, the phyCORE-TC1130 or phyCORETC1796 can be rendered in Bootstrap mode via signals applied to the
socket P1A (refer to section
Jumper Setting Description
JP22 closed
(default)
JP23 closed
(default)
1.3.2).
Pin 2 of DB-9 socket P1A connected with RS-232
interface signal TxD0 of the phyCORE-TC1130 or
phyCORE-TC1796
Pin 3 of DB-9 socket P1A connected with RS-232
interface signal RxD0 from the
phyCORE-TC1130 or phyCORE-TC1796
Table 3: Jumper Configuration for the First RS-232 Interface
1
6
2
7
3
8
4
9
5
Figure 8: Pin Assignment of the DB-9 Socket P1A as First RS-232
Pin 2: TxD0
Pin 3: RxD0
Pin 5: GND
(Front View)
14 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.4 Second Serial Interface at Socket P1B
Socket P1B is the upper socket of the double DB-9 connector at P1.
P1B is connected via jumpers to the second serial interface of the
phyCORE-TC1130 or phyCORE-TC1796.
Handshake signals from P1A are accessible at connector X8
Jumper Setting Description
JP15 closed
(default)
J16 closed
(default)
Table 4: Jumper Configuration for the Second RS-232 Interface
Pin 2 of DB-9 socket P1B connected with RS-232
interface signal TxD1 of the phyCORE-TC1130
or phyCORE-TC1796
Pin 3 of DB-9 socket P1B connected with RS-232
interface signal RxD1 from the
phyCORE-TC1130 or phyCORE-TC1796
1
6
2
7
3
8
4
9
5
Pin 2: TxD1
Pin 3: RxD1
Pin 5: GND
Figure 9: Pin Assignment of the DB-9 Socket P1A as Second RS-232
(Front View)
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
15
phyCORE-TriCore Development Board
1.3.5 First CAN Interface at Plug P2A
Plug P2A is the lower plug of the double DB-9 connector at P2. P2A
is connected to the first CAN interface (CAN0) of the
phyCORE-TC1130 or phyCORE-TC1796 via jumpers. Depending on
the configuration of the CAN transceivers and their power supply, the
following three configurations are possible:
1. CAN transceiver populating the phyCORE-TC1130 or phyCORE-
TC1796 is enabled and the CAN signals from the module extend
directly to plug P2A.
Jumper Setting Description
JP25 1 + 2
(default)
JP24 1 + 2
(default)
JP14 open
(default)
JP19 closed
(default)
Pin 7 of DB-9 plug P2A connected with CAN_H0 from
on-board transceiver on the phyCORE-TC1130
or phyCORE-TC1796
Pin 2 of DB-9 plug P2A connected with CAN_L0 from
on-board transceiver on the phyCORE-TC1130
or phyCORE-TC1796
No supply voltage to CAN transceiver and opto-coupler
on the phyCORE-TriCORE Development Board
GND potential at CAN transceiver and opto-coupler on
the phyCORE-TriCORE Development Board
Table 5: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the phyCORE-TC1130 or phyCORE-TC1796
5
9
4
8
3
7
2
6
1
Pin 3: GND (Development Board Ground)
Pin 7: CAN-H0 (not galvanically separated)
Pin 2: CAN-L0 (not galvanically separated)
Pin 6: GND (Development Board Ground)
Figure 10: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
phyCORE-TC1130, Front View)
16 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
2. The CAN transceiver populating the phyCORE-TC1130 or
phyCORE-TC1796 is disabled; CAN signals generated by the CAN
transceiver (U3) on the Development Board extending to connector
P2A without galvanic seperation:
Jumper Setting Description
JP25 1 + 3
2 + 4
JP24 1 + 3
2 + 4
JP14 2 + 3 Supply voltage for CAN transceiver and opto-coupler
JP19 closed CAN transceiver and opto-coupler on the Development
Table 6: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the Development Board
Pin 7 of DB-9 plug P2A connected with CAN-H0 from
CAN transceiver U5 on the Development Board
Pin 2 of DB-9 plug P2A connected with CAN-L0 from
CAN transceiver U5 on the Development Board
derived from local supply circuitry on the
phyCORE-TriCORE Development Board
Board connected with local GND potential
5
9
4
8
3
7
2
6
1
Pin 3: GND (Development Board Ground)
Pin 7: CAN-H0 (not galvanically separated)
Pin 2: CAN-L0 (not galvanically separated)
Pin 6: GND (Development Board Ground
Figure 11: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
Development Board)
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
17
phyCORE-TriCore Development Board
3. The CAN transceiver populating the phyCORE-TC1130 or
phyCORE-TC1796 is disabled; CAN signals generated by the
CAN transceiver (U3) on the Development Board extend to
connector P2A with galvanic separation. This configuration
requires connection of an external CAN supply voltage of
7 to 13 V. The external power supply must be only connected to
either P2A or P2B.
Jumper Setting Description
JP25 1 + 3
2 + 4
JP24 1 + 3
2 + 4
JP14 1 + 2 Supply voltage for CAN transceiver and opto-coupler
JP19 open CAN transceiver and opto-coupler on the Development
Pin 7 of DB-9 plug P2A connected with CAN-H0 from
CAN transceiver U5 on the Development Board
Pin 2 of DB-9 plug P2A connected with CAN-L0 from
CAN transceiver U5 on the Development Board
on the Development Board derived from external source
(CAN bus) via on-board voltage regulator
Board disconnected from local GND potential
Table 7: Jumper Configuration for CAN Plug P2A Using the CAN
Transceiver on the Development Board with Galvanic Separation
5
9
4
8
3
7
2
6
1
Figure 12: Pin Assignment of the DB-9 Plug P2A (CAN Transceiver on
Development Board with Galvanic Separation)
Pin 9: VCAN+
Pin 3: VCAN-
Pin 7: CAN-H0 (galvanically separated)
Pin 2: CAN-L0 (galvanically separated)
Pin 6: VCAN-
18 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.6 Second CAN Interface at Plug P2B
Plug P2B is the upper plug of the double DB-9 connector at P2. P2B is
connected to the second CAN interface (CAN1) of the
phyCORE-TC1130 or phyCORE-TC1796 via jumpers. Depending on
the configuration of the CAN transceivers and their power supply, the
following three configurations are possible:
1. CAN transceiver populating the phyCORE-TC1130 is enabled and
the CAN signals from the module extend directly to plug P2B.
Jumper Setting Description
JP27 1 + 2
(default)
JP26 1 + 2
(default)
JP14 open
(default)
JP19 closed
(default)
Pin 7 of the DB-9 plug P2B is connected to CAN-H1
from on-board transceiver on the phyCORE module
Pin 2 of the DB-9 plug P2B is connected to CAN-L1
from on-board transceiver on the phyCORE module
CAN transceiver and opto-coupler on the Development
Board disconnected from supply voltage
No GND potential at CAN transceiver and opto-coupler
on the phyCORE-TriCORE Development Board
Table 8: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the phyCORE-TC1130 or phyCORE-TC1796
5
9
4
8
3
7
2
6
1
Transceiver on phyCORE-TC113
Pin 3: GND (Development Board Ground)
Pin 7: CAN-H1 (not galvanically separated)
Pin 2: CAN-L1 (not galvanically separated)
Pin 6: GND (Development Board Ground)
Figure 13: Pin Assignment of the DB-9 Plug P2B
0, Front View)
(CAN
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
19
phyCORE-TriCore Development Board
2. The CAN transceiver populating the phyCORE-TC1130 or
phyCORE-TC1796 is disabled; CAN signals generated by the
CAN transceiver (U4) on the Development Board extending to
connector P2B without galvanic seperation:
Jumper Setting Description
JP27 1 + 3
2 + 4
JP26 1 + 3
2 + 4
JP14 2 + 3 Supply voltage for CAN transceiver and opto-coupler
JP19 closed CAN transceiver and opto-coupler on the Development
Table 9: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the Development Board
Pin 7 of DB-9 plug P2B connected with CAN-H1 from
CAN transceiver U4 on the Development Board
Pin 2 of DB-9 plug P2B connected with CAN-L1 from
CAN transceiver U4 on the Development Board
derived from local supply circuitry on the
phyCORE-TriCORE Development Board
Board connected with local GND potential
5
9
4
8
3
7
2
6
1
Pin 3: GND (Development Board Ground)
Pin 7: CAN-H1 (not galvanically separated)
Pin 2: CAN-L1 (not galvanically separated)
Pin 6: GND (Development Board Ground
Figure 14: Pin Assignment of the DB-9 Plug P2B (CAN Transceiver on
Development Board)
20 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
3. The CAN transceiver populating the phyCORE-TC1130 or
phyCORE-TC1796 is disabled; CAN signals generated by the
CAN transceiver (U4) on the Development Board extend to
connector P2B with galvanic separation. This configuration
requires connection of an external CAN supply voltage of 7 to 13
V. The external power supply must be only connected to either
P2A or P2B.
Jumper Setting Description
JP27 1 + 3
2 + 4
JP26 1 + 3
2 + 4
JP14 1 + 2 Supply voltage for CAN transceiver and opto-coupler
JP19 open CAN transceiver and opto-coupler on the Development
Pin 7 of DB-9 plug P2B connected with CAN-H1 from
CAN transceiver U3 on the Development Board
Pin 2 of DB-9 plug P2B connected with CAN-L1 from
CAN transceiver U3 on the Development Board
on the Development Board derived from external source
(CAN bus) via on-board voltage regulator
Board disconnected from local GND potential
Table 10: Jumper Configuration for CAN Plug P2B Using the CAN
Transceiver on the Development Board with Galvanic Separation
5
9
4
8
3
7
2
6
1
Pin 9: VCAN+
Pin 3: VCAN-
Pin 7: CAN-H1 (galvanically separated)
Pin 2: CAN-L1 (galvanically separated)
Pin 6: VCAN-
Figure 15: Pin Assignment of the DB-9 Plug P2B (CAN Transceiver on
Development Board with Galvanic Separation)
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
21
phyCORE-TriCore Development Board
1.3.7 RJ45 Ethernet Connector X7
The phyCORE-TriCORE Development Board provides the Ethernet
RJ45 jack with integrated magnetic at X7 to enable immediate
connection of the phyCORE-TC1130 or phyCORE-TC1796 to an
10/100 Mbit/s Ethernet network. Two status LEDs for LINK and LAN
are provided to display network status. The following jumper settings
are required:
Jumper Setting Description
JP10
JP2
JP3, JP4,
JP5, JP6
JP11
1 + 2
3 + 4
5 + 6
7 + 8
open
closed
open
open
closed
1+2
2+3
The Ethernet transformer module is connected to the
Ethernet signals on the phyCORE-TC1130 or
phyCORE-TC1796
configuration for phyCORE-TC1130 module
configuration for phyCORE-TC1796 module
configuration for phyCORE-TC1796
and phyCORE-TC1796
configuration for phyCORE-TC1130 module
configuration for phyCORE-TC1796 module
configuration for phyCORE-TC1796 module
configuration for phyCORE-TC1130 module
Table 11: JP2-6 ,JP10,JP11, Configuration of the Ethernet Interface
1.3.8 Programmable LED D3
The phyCORE-TriCORE Development Board offers a programmable
LED at D5 for user implementations. This LED can be connected to
port pin P2.11 of the phyCORE-TC1130 or P8.0 of the phyCORETC1796 which is available via signal GPIO0 (JP18 = closed). A lowlevel at port pin causes the LED to illuminate, LED D5 remains off
when writing a high-level to the appropriate port pin.
Jumper Setting Description
JP18 closed Port pin P2.11 (GPIO0) of the TC1130 controller
controls LED D5 on the Development Board
closed Port pin P8.0 (GPIO0) of the TC1130 controller
controls LED D5 on the Development Board
Table 12: JP18 Configuration of the Programmable LED D3
22 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.9 Pin Assignment Summary of the phyCORE, the
Expansion Bus and the Patch Field
As described in section
1.1, all signals from the
phyCORE-TC1130 or phyCORE-TC1796 extend in a strict 1:1
assignment to the Expansion Bus connector X2 on the Development
Board. These signals, in turn, are routed in a similar manner to the
patch field on an optional expansion board that mounts to the
Development Board at X2.
Please note that, depending on the design and size of the expansion
board, only a portion of the entire patch field is utilized under certain
circumstances. When this is the case, certain signals described in the
following section will not be available on the expansion board.
However, the pin assignment scheme remains consistent.
A two dimensional numbering matrix similar to the one used for the
pin layout of the phyCORE-connector is provided to identify signals
on the Expansion Bus connector (X2 on the Development Board) as
well as the patch field.
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
23
phyCORE-TriCore Development Board
However, the numbering scheme for Expansion Bus connector and
patch field matrices differs from that of the phyCORE-connector, as
shown in the following two figures:
D C
1
80
B A
1
80
Figure 16: Pin Assignment Scheme of the Expansion Bus
A B C D E F
1
54
Figure 17: Pin Assignment Scheme of the Patch Field
24 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
The pin assignment on the phyCORE-TC1130 and phyCORE-TC1796
, in conjunction with the Expansion Bus (X2) on the Development
Board and the patch field on an expansion board, is as follows:
Signal
phyCORE
TC1130
xD0 D0 18B 18B 33F
xD1 D1 19A 19A 34A
xD2 D2 20A 20A 34E
xD3 D3 20B 20B 34B
xD4 D4 21A 21A 34D
xD5 D5 21B 21B 34F
xD6 D6 22B 22B 35A
xD7 D7 23A 23A 35E
xD8 D8 28B 28B 37C
xD9 D9 29A 29A 37E
xD10 D10 30A 30A 37B
xD11 D11 30B 30B 37F
xD12 D12 31A 31A 38A
xD13 D13 31B 31B 38C
xD14 D14 32B 32B 38E
xD15 D15 33A 33A 38B
xD16 D16 37B 37B 40A
xD17 D17 38A 38A 40E
xD18 D18 38B 38B 40B
xD19 D19 39A 39A 40D
xD20 D20 40A 40A 40F
xD21 D21 40B 40B 41A
xD22 D22 41A 41A 41E
xD23 D23 41B 41B 41B
xD24 D24 42B 42B 41F
xD25 D25 43A 43A 42A
xD26 D26 43B 43B 42C
xD27 D27 44A 44A 42E
xD28 D28 45A 45A 42B
xD29 D29 45B 45B 42F
xD30 D30 46A 46A 43A
xD31 D31 46B 46B 43C
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
25
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
xA0 A0 8B 8B 30B
xA1 A1 9A 9A 30D
xA2 A2 10A 10A 30F
xA3 A3 10B 10B 31A
xA4 A4 11A 11A 31E
xA5 A5 11B 11B 31B
xA6 A6 12B 12B 31F
xA7 A7 13A 13A 31A
xA8 A8 13B 13B 32C
xA9 A9 14A 14A 32E
xA10 A10 15A 15A 32B
xA11 A11 15B 15B 32F
xA12 A12 16A 16A 33A
xA13 A13 16B 16B 33C
xA14 A14 17B 17B 33E
xA15 A15 18A 18A 33B
xA16 A16 23B 23B 35B
xA17 A17 24A 24A 35D
xA18 A18 25A 25A 35F
xA19 A19 25B 25B 36A
xA20 A20 26A 26A 36E
xA21 A21 26B 26B 36B
xA22 A22 27B 27B 36F
xA23 A23 28A 28A 37A
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
Table 13: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Development Board / Expansion Board
26 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
P00 P82 /
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
13C 13C 4F
FCLP1A
P01 P83 /
13D 13D 5A
SON0
P03 P84 / FCLN1 14C 14C 5C
P02 P85 / SOP1A 15C 15C 5E
P04 P86 / SON0 15D 15D 5B
P05 /HOLD 35B 35B 39B
P06 /HLDA 36A 36A 39D
P07 /BREQ 36B 36B 39F
P08 P10 2B 2B 28E
P09 P11 3A 3A 28B
P010 P12 3B 3B 28F
P011 /CS1 6B 6B 29F
P10 AN9 / P09 74C 74C 25C
Expansion Bus Patch
P11 AN11 / P011 73C 73C 24F
P12 AN10 / P010 73D 73D 25A
P13 AN12 / P012 72D 72D 24B
P14 AN14 / P014 71C 71C 24A
P15 AN13 / P013 71D 71D 24E
P16 AN16 / P40 70C 70C 23D
P17 AN15 / P015 70D 70D 23F
P18 AN17 / P41 69C 69C 23B
P19 AN19 / P43 68C 68C 23A
P110 AN18 / P42 68D 68D 23E
P111 AN20 / P44 67D 67D 22F
P112 AN22 / P46 66C 66C 22B
P113 AN21 / P45 66D 66D 22D
P114 AN24 / P48 65C 65C 22A
P115 AN23 / P47 65D 65D 22E
P20 /
RxD0_TTL
P21 /
TxD0_TTL
P22 / MRST0 MRST0 27D 27D
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
P50 /
RxD0_TTL
P51 /
TxD0_TTL
16D 16D
17D 17D
6A
6C
9B
27
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
P23 / MTSR0 MTSR0 28D 28D
P24 / SCLK0 SCLK0 30D 30D
P25 / MRST1 P65 / MRST1 26C 26C
P26 / MTSR1 P64 / MTSR1 28C 28C
P27 / SCLK1 P66 / SCLK1 29C 29C
P28 /
RxD1_TTL
P29 /
TxD1_TTL
P210 P81 / SOP0A 12D 12D
P211 P80 /
Signal
phyCORE
phyCORE-TC1130
phyCORE-TC1796
TC1796
P52 /
19C 19C
RxD1_TTL
P53 /
20C 20C
TxD1_TTL
11D 11D
Expansion Bus Patch Field
10A
10B
9A
9F
10C
6F
7A
4B
4A
FCLP0A
P212 / SDA0 SDA0 32D 32D
P213 / SCL0 SCL0 31C 31C
P214 / SDA1 SDA1 24C 24C
P215 / SCL1 SCL1 25C 25C
11C
10F
8B
8D
P30 P75 50D 50D 17E
P31 P76/
51C 51C 17B
AD1EMUX0
P32 P77/
51D 51D 17D
AD1EMUX1
P33 AN43 52D 52D 17F
P34 AN41 / P57 53C 53C 18A
P35 AN42 53D 53D 18E
P36 AN40 / P98 54C 54C 18B
P37 AN38 / P96 55C 55C 18D
P38 AN39 / P97 55D 55D 18F
P39 AN36 / P94 56C 56C 19A
P310 AN37 / P95 56D 56D 19E
P311 AN35 / P93 57D 57D 19B
P312 AN33 / P91 58C 58C 19F
P313 AN34 / P92 58D 58D 20A
P314 AN32 / P90 59C 59C 20C
P315 AN31 / P415 60C 60C 20E
P40 /
P55 46C 46C 15F
USBCLK
P41 / RVCI P56 46D 46D 16A
28 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
P42 / VPI P70 47D 47D 16C
P43 / VMI P71/
P44 / VPO P72/
P45 / VMO P73/
P46 / USBOE P74 50C 50C 17A
P47 /
/BRKOUT_A
Table 14: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Signal
phyCORE
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
TC1796
48C 48C 16E
AD0EMUX2
48D 48D 16B
AD0EMUX0
49C 49C 16F
AD0EMUX1
/BRKOUT 40C 40C 13D
Development Board / Expansion Board
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
29
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
EGPIO0 P23 / SLSO3 80A 80A 54E
EGPIO1 P22 / SLSO2 80B 80B 54B
EGPIO3 P26 / SLSO6 78A 78A 53B
EGPIO2 P24 / SLSO4 79A 79A 54A
EGPIO4 P25 / SLSO5 78B 78B 53F
EGPIO5 P27 / SLSO7 77B 77B 53E
EGPIO6 P29 76A 76A 53A
EGPIO7 P28 76B 76B 53C
EGPIO8 P211 75A 75A 52B
EGPIO9 P210 75B 75B 52F
EGPIO11 P214 73A 73A 52A
EGPIO10 P212 74A 74A 52E
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
EGPIO12 P213 73B 73B 52C
EGPIO13 P215 72B 72B 51F
EGPIO14 P31 71A 71A 51E
EGPIO15 P30 71B 71B 51B
EGPIO16 P33 70A 70A 50F
EGPIO17 P32 70B 70B 51A
EGPIO18 P34 69A 69A 50D
EGPIO19 P36 68A 68A 50E
EGPIO20 P35 68B 68B 50B
EGPIO21 P37 67B 67B 50A
EGPIO22 P39 66A 66A 49D
EGPIO23 P38 66B 66B 49F
EGPIO24 P311 65A 65A 49E
EGPIO25 P310 65B 65B 49B
EGPIO26 P312 64A 64A 49A
EGPIO27 P314 63A 63A 48B
EGPIO28 P313 63B 63B 48F
EGPIO29 P315 62B 62B 48E
EGPIO30 P14 61A 61A 48A
EGPIO31 P13 61B 61B 48C
30 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
EGPIO32 P16 60A 60A 47B
EGPIO33 P15 60B 60B 47F
EGPIO34 P17 59A 59A 47E
EGPIO35 P18 58A 58A 47A
EGPIO36 P19 58B 58B 47C
EGPIO37 P110 57B 57B 46F
EGPIO38 P111 56A 56A 46E
EGPIO39 P112 56B 56B 46B
EGPIO40 P113 55A 55A 45F
Table 15: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Development Board / Expansion Board
Signal
phyCORE
TC1130
REFA VAREF0 80D 80D 27E
ADC0 AN0 / P00 80C 80C 27A
ADC1 AN1 / P01 79C 79C 26F
ADC2 AN2 / P02 78D 78D 26B
ADC3 AN3 / P03 78C 78C 26E
ADC4 AN4 / P04 77D 77D 26C
ADC5 AN5 / P05 76D 76D 26A
ADC6 AN6 / P06 76C 76C 25F
ADC7 AN7 / P07 75D 75D 25B
DAC0 AN8 / P08 75C 75C 25E
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
31
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
/HDRST /HDRST 10C 10C 3D
/PORESET /PORST 11C 11C 4E
/NMI /NMI 4A 4A 29A
/TRST /TRST 41C 41C 14A
TCK TCK 43D 43D 15A
TDI TDI 40D 40D 13F
TDO TDO 41D 41D 14E
TMS TMS 42D 42D 14B
/TRCLK /TRCLK 38C 38C 13A
/BRKIN /BRKIN 39C 39C 13B
xHWCFG2 AN29 / P413 61D 61D 21A
xHWCFG1 AN30 / P414 61C 61C 20F
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
xHWCFG0 VAREF1 60D 60D 20B
MII_TXCLK AN25 / P49 64C 64C 21F
MII_RXCLK AN26 / P410 63D 63D 21B
MII_MDIO AN28 / P412 62D 62D 21C
/E_INT 5V_VBUS 30C 30C 10E
E_DUPLEX P54 25D 25D 8F
E_NWAYEN /SLSI0 26D 26D 9E
x/CS3 /CS3 5A 5A 29E
x/CS2 /CS2 5B 5B 29B
/CSCOMB /CSCOMB 47B 47B 43E
x/BC0 /BC0 8A 8A 30E
x/BC1 /BC1 33B 33B 38F
x/BC2 /BC2 52B 52B 45A
x/BC3 /BC3 53B 53B 45B
x/RD /RD 7B 7B 30A
x/WR /WR 49A 49A 44A
xALE /ADV 6A 6A 29D
x/BAA /BAA 51B 51B 44F
xADV /ADV 50B 50B 44B
x/WAIT /WAIT 34A 34A 39A
32 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
/RESIN /RESIN 10D 10D 3F
/BOOT /BOOT 9C 9C 3B
FL_VPEN /CS0 35A 35A 39E
xMR / W MR / W 48B 48B 43F
xBFCLKI BFCLKI 50A 50A 44E
xBFCLKO BFCLKO 51A 51A 44D
Table 16: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Signal
phyCORE
phyCORE-TC1130
phyCORE-TC1796
TC1796
Development Board / Expansion Board
Expansion Bus Patch Field
Signal
phyCORE
TC1130
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
CAN_H0 CAN_H0 21D 21D 7D
CAN_L0 CAN_L0 20D 20D 7E
CAN_H1 CAN_H1 18C 18C 6E
CAN_L1 CAN_L1 18D 18D 6B
CAN_H2 CAN_H2 44C 44C 15C
CAN_L2 CAN_L2 43C 43C 14F
CAN_H3 CAN_H3 45D 45D 15B
CAN_L3 CAN_L3 45C 45C 15E
RXD0 RXD0 22D 22D 7F
TXD0 TXD0 23D 23D 8E
RXD1 RXD1 21C 21C 7B
TXD1 TXD1 23C 23C 8A
ETH_Link
LED
ETH_Lan
LED
ETH_Link
LED
ETH_Lan
LED
33C 33C 11E
34C 34C 11F
ETH_RXD- ETH_RXD- 35C 35C 12A
ETH_TXD- ETH_TXD- 36C 36C 12B
ETH_RXD+ ETH_RXD+ 35D 35D 12E
ETH_TXD+ ETH_TXD+ 36D 36D 12D
D+ D+ 37D 37D 12F
D- D- 38D 38D 13E
Table 17: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Development Board / Expansion Board
Signal Signal phyCORE-TC1130 Expansion Bus Patch Field
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
33
phyCORE-TriCore Development Board
phyCORE
TC1130
RTC_
CLKOUT
phyCORE
TC1796
RTC_
CLKOUT
phyCORE-TC1796
1B 1B 28C
/IRTC /IRQRTC 33D 33D 11B
Tout NC 8D 8D 3A
Table 18: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Development Board / Expansion Board
Signal
phyCORE
TC1130
Signal
phyCORE
TC1796
phyCORE-TC1130
phyCORE-TC1796
Expansion Bus Patch Field
3V3_IN 3V3 1C, 2C, 1D, 2D 1C, 2C, 1D, 2D 1A, 1C
1V5_IN NC 4C, 5C not connected to
Expansion Bus
4C, 5C = 5V 2A, 1B
VBAT_IN VBAT_IN 6C 6C 2B
GND 2A, 7A, 12A, 17A,
22A, 27A, 32A, 37A,
42A, 47A, 52A, 57A,
62A, 67A, 72A, 77A,
4B, 9B, 14B, 19B,
24B, 29B, 34B, 39B,
44B, 49B, 54B, 59B,
64B, 69B, 74B, 79B,
3C, 7C, 12C, 17C,
22C, 27C, 32C, 37C,
42C, 47C, 52C, 57C,
62C, 67C, 72C, 3D,
9D, 14D, 19D, 24D,
29D, 34D, 39D, 44D,
49D, 54D, 59D, 64D,
69D,
2A, 7A, 12A,
17A, 22A, 27A,
32A, 37A, 42A,
47A, 52A, 57A,
62A, 67A, 72A,
77A, 4B, 9B,
14B, 19B, 24B,
29B, 34B, 39B,
44B, 49B, 54B,
59B, 64B, 69B,
74B, 79B, 3C,
7C, 12C, 17C,
22C, 27C, 32C,
37C, 42C, 47C,
52C, 57C, 62C,
67C, 72C, 3D,
3C, 4C, 7C, 8C, 9C,
12C, 13C, 14C, 17C,
18C, 19C, 22C, 23C,
24C, 27C, 29C, 30C,
31C, 34C, 35C, 36C,
39C, 40C, 41C, 44C,
45C, 46C, 49C, 50C,
51C, 54C, 4D, 5D, 6D,
9D, 10D, 11D, 14D,
15D, 16D, 19D, 20D,
21D, 24D, 25D, 26D,
28D, 31D, 32D, 33D,
36D, 37D, 38D, 41D,
42D, 43D, 46D, 47D,
48D, 51D, 52D, 53D,
1E, 2E, 1F
9D, 14D, 19D,
24D, 29D, 34D,
39D, 44D, 49D,
54D, 59D, 64D,
69D,
AGND 77C, 74D, 79D 77C, 74D, 79D GND
Table 19: Pin Assignment Power Supply for the phyCORE-TC1130 /
Development Board / Expansion Board
34 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Signal
phyCORE
TC1130
PLD_TMS LAN_/CS
PLD_TCK /CS_RAM2 53A 53A 45E
PLD_TDO P115 54A 54A 45D
PLD_TDI P114 55B 55B 46A
SPIEEPWP P87 16C 16C 5F
ICCEEPWP AN27 / P411 63C 63C 21E
NC NC 1A, 4D,5D, 6D, 7D 1A, 4D,5D, 6D,
Table 20: Pin Assignment for the phyCORE-TC1130, phyCORE-TC1796 and
Signal
phyCORE
phyCORE-TC1130
phyCORE-TC1796
TC1796
48A 48A 43B
(W5300)
Development Board / Expansion Board
Expansion Bus Patch Field
28A,2C,1D,
7D
2D,2F
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
35
phyCORE-TriCore Development Board
1.3.10 DS2401 Silicon Serial Number
Communication to a DS2401 Silicon Serial Number can be
implemented in various software applications for the definition of a
node address or as copy protection in networked applications. The
DS2401 is optionally populated on U2 on the Development Board.
The Silicon Serial Number Chip mounted on the phyCORE-TriCORE
Development Board can be connected to port pin P2.10 of the TC1130
or port pin P8.0 of the TC1796.
Jumper Setting Description
JP1 closed Port pin P2.10 of the TC1130
is used to access the Silicon Serial Number
JP1 closed Port pin P8.1 of the TC1796
is used to access the Silicon Serial Number
Table 21: JP1 Jumper Configuration for Silicon Serial Number Chip
not
connected
NUMPORT
GPIO Po rt
JP1
Figure 18: Connection of the DS2401 Silicon Serial Number
36 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.11 Pin Header Connectors X10
Connector X10 supplies 5 VDC at pin 1 and provides the phyCORETriCORE Development Board GND potential at pin 2.
The maximum current draw depends on the power adapter used.
1.3.12 USB Wiggler connector X11
The phyCORE-TriCORE Development Board provides the USB jack
X11 to enable access to the JTAG of the phyCORE-TC1130 or
phyCORE-TC1796 via the DAS Server JTAG over USB Chip.
Make sure the Latest DAS released is installed on your PC.
Please contact your prefered debug vendor for support of DAS.
If DAS is installed on the PC, the driver for the USB Wiggler will
automatically be installed after connecting the The phyCORE TriCORE Development Board with the PC.
Two status LEDs for USB Wiggler status are provided:
LED D4 (green): LED is ON if a working connection is established
with the DAS Server on the PC
LED D6 (red): LED is ON when DAS Server is disconnected after
being connected
Caution:
When using USB Wiggler connector X11, make sure there is NO
or tristated connection on the JTAG connector of the
phyCORE-TC1130 (X2) or phyCORE-TC1796 (X1)
and the OCDS2 connector phyCORE-TriCORE Development Board
is NOT used
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
37
phyCORE-TriCore Development Board
1.3.13 LCD connector
The connector LCD on the phyCORE-TriCORE Development Board
enable connection of an optional LCD – Display.
Signals for the following Display-Controller are provided
T6963C (default) , HD61202, HD44780
Depending on the used LCD controller the following jumper
configuration are required:
Jumper Setting Description
JP30
JP31
JP32
JP36
JP34
JP35
2+3
(default)
2+3
(default)
1+2
(default)
1+2
3+4
5+6
7+8
open
(default)
1+2
2+3
1+2
2+3
connect /RD signal of TC1130 or TC1796 to Pin5
of LCD connector
connect /WR signal of TC1130 or TC1796 to Pin6
of LCD connector
connect /CS signal of TC1130 or TC1796 to Pin6
of LCD connector
select /CS0 for LCD ( TC1796 only)
select /CS1 for LCD ( TC1796 only)
select /CS2 for LCD
select /CS3 for LCD
No chipselect is used for display
Note the caution on bottom of this page regarding
J36
Connect 5V to Pin22 of LCD connector
Connect GND to Pin22 of LCD connector
Connect 5V to Pin23 of LCD connector
Connect GND to Pin23 of LConD cnector
Table 22: Jumper Configuration for T6963C LCD-Controller
Caution:
J36 must be left open as long no free chip select is provided by the
phyCORE-TC1130 or phyCORE-TC1796 HW-configuration
On standard phyCORE-TC1796 no /CSx is free=> JP36 = open
On standard phyCORE-TC1130 only /CS2 is free => JP36 = 5+6
When setting JP36, only selection of one /CSx for the LCD is allowed
38 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
Jumper Setting Description
JP30
JP31
JP32
JP36
1+2
1+2
2+3
1+2
3+4
5+6
7+8
connect (A3 +/CSx) signal of TC1130 or TC1796 to
Pin5
of LCD connector
connect (/A+/CSx) signal of TC1130 or TC1796 to
Pin6 of LCD connector
connect LCD_EN signal of TC1130 or TC1796 to
Pin6
of LCD connector
select /CS0 for LCD ( TC1796 only)
select /CS1 for LCD ( TC1796 only)
select /CS2 for LCD
select /CS3 for LCD
Table 23: Jumper Configuration for HD61202, HD44780
LCD-Controller
Control Signals for the supported LCD-controller are:
- Adressline A1 is used for R/W Signal for the HD61202, HD44780
- Adressline A2 is used for C/D Signal für the T6963C
and (D/I) for HD61202 and HD44780 LCD-Controller
- Adressline A3 is used for CS_LS Signal für the HD61202
- Adressline /A3 is used für for CS_RS Signal für the HD61202
-5 V negative
contrast voltage
from U17
R53= 4k7 R54= 15k R53 = 0R
RT4= 5k RT4= 5k RT4 = 5k
R59= 0R R56= 0R R56 = 4k7
R58= 0R R58= 0R R58 = 0R
5 V contrast
voltage from
Dev. Board
negative contrast
voltage from LCD
(default)
(default for AC049)
Table 24: contrast Configuration LCD
Please contact PHYTEC for information of available LCD-Displays
for the phyCORE-TriCORE Development Board
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
39
phyCORE-TriCore Development Board
1.3.14 JTAG PLD connector only for phyCORE-TC1130
As shon in Table 26 the 6 Pin connector JTAG_PLD provides all
signals for connection of a PLD-Programmer. to load software to the
onboard PLD of the phyCORE-TC1130
JTAG_PLD
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
Signal
3,3V
PLD_TDO
PLD_TDI
PLD_TMS
GND
PLD_TCK
Table 25: Pin assignemt JTAG_PLD connector for
phyCORE- TC1130
Caution:
JTAG_PLD connector on the Development board must not be used
when using the phyCORE-TC1796 module on the phyCORETriCORE Development Board.
40 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
phyCORE-TriCore Development Board
1.3.15 USB connector X12
Depending on the used phyCORE-module on the Development Board,
the USB connector X12 provides the following connection.
For the phyCORE-TC1130: X12 enables the connection to the
TC1130 USB feature
For the phyCORE-TC1130 the following jumper settings are required:
Jumper Setting Description
JP9
JP28
Open
2+3
Disconnect 5V from USB Bus
Table 26: Jumper Configuration for X12 USB connector for
phyCORE-TC1130
For the phyCORE-TC1796: X12 enables the connection to the
TC1796 onboard USB to UART
Bridge.
For the phyCORE-TC1796 the following jumper settings are required:
Jumper Setting Description
JP9
JP28
Closed
open
configuration for phyCORE-TC1796 module
configuration for phyCORE-TC1796 module
Table 27: Jumper Configuration for X12 USB connector for
phyCORE-TC1796
Caution:
USB to UART Bridge can not be used with the standard phyCORE
TC1796 module, due to the module HW-configuration.
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
41
phyCORE-TriCore Development Board
1.3.16 OCDS2 connector only for phyCORE-TC1796
OCDS2 debugging requires additional Trace Signals of the CPU with
the OCDS1 Signals. With phyCORE-TriCORE Development Board,
a 60 Pin Highspeed connector OCDS2, both signals are available.
Caution:
When using OCDS2 Trace connector OCDS2 on the phyCORETriCORE Development Board , make sure there is NO or tristated
connection on the JTAG connector of the phyCORE-TC1130 (X2) or
phyCORE-TC1796 (X1) and
X11 must NOT be connected with the PC
42 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
Appendice A
2 Revision History
Date Version numbers
12-March-2009 Manual L-730e_0
KSP-0150-B0
PCB# 2200.0-001
Changes in this manual
Preliminary edition.
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
43
phyCORE-TriCore Development Board
Appendice A
A.1 Release Notes
The following paragraph describes the differences between the
technical facts provided in this manual and the currently available
hardware revisions.
44 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
Index
Index
B
Bootstrap Loader 11
C
Concept of the Development
Board 3
Connector X4 36
D
Development Board Connectors
and Jumpers 5
DS2401 35
E
EMC 1
Expansion Bus 22
R
Release Notes 43
RJ45 21
S
Second CAN Interface 18
Second Serial Interface 14
Silicon Serial Number 35
Socket P1A (First RS-232) 13
Socket P1B (Second RS-232) 14
X
X7 21
F
First CAN Interface 15
First Serial Interface 13
Functional Components on the
phyCORE Development Board
10
J
JP17 21
Jumper Configuration 7
L
LED D3 21
P
Patch Field 22
Pin Assignment 22
Plug P2A 15
Plug P2B 18
Power Supply 10
© PHYTEC Meßtechnik GmbH 2009 L-730e_0
45
phyCORE-TriCore Development Board
Document: phyCORE-TriCORE Development Board
Document number: L-730e_0, Mar 2009
How would you improve this manual?
Did you find any mistakes in this manual? page
Submitted by:
Customer number:
Name:
Company:
Address:
Return to:
PHYTEC Technologie Holding AG
Postfach 100403
D-55135 Mainz, Germany
Fax : +49 (6131) 9221-33
46 © PHYTEC Meßtechnik GmbH 2009 L-730e_0
Published by
© PHYTEC Meßtechnik GmbH 2009 Ordering No. L-730e_0
Printed in Germany
Loading...
