Phytec phyCARD-M Hardware Manual

Download

Page 1

A product of a PHYTEC Technology Holding company

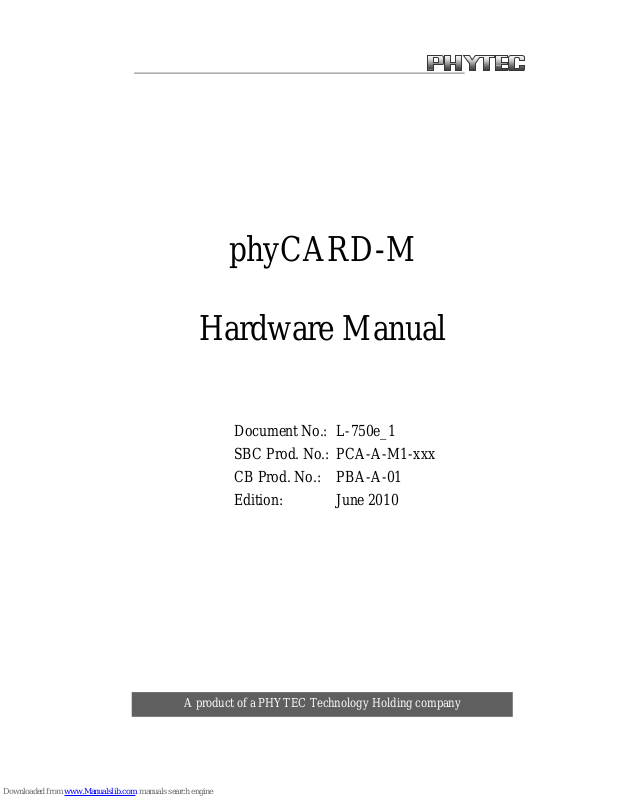

phyCARD-M

Hardware Manual

Document No.: L-750e_1 SBC Prod. No.: PCA-A-M1-xxx CB Prod. No.: PBA-A-01 Edition: June 2010

Page 2

phyCARD-M [PCA-A-M1-xxx]

In this manual are descriptions for copyrighted products that are not explicitly indicated as such. The absence of the trademark (™) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2010 PHYTEC Messtechnik GmbH, D-55129 Mainz. Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without the express written consent from PHYTEC Messtechnik GmbH.

EUROPE NORTH AMERICA Address:

PHYTEC Technologie Holding AG Robert-Koch-Str. 39 D-55129 Mainz GERMANY

PHYTEC America LLC 203 Parfitt Way SW, Suite G100 Bainbridge Island, WA 98110 USA

Ordering Information:

+49 (800) 0749832

order@phytec.de

1 (800) 278-9913

sales@phytec.com

Technical Support:

+49 (6131) 9221-31

support@phytec.de

1 (800) 278-9913

support@phytec.com

Fax: +49 (6131) 9221-33 1 (206) 780-9135 Web Site: http://www.phytec.de http://www.phytec.com

Edition June 2010

Page 3

Contents

Index of Figures ...........................................................................................3

Index of Tables.............................................................................................5

Conventions, Abbreviations and Acronyms..............................................1

Preface...........................................................................................................3

1 Introduction.........................................................................................7

1.1 Block Diagram ...........................................................................10

1.2 View of the phyCARD-M..........................................................11

1.3 Minimum Requirements to Operate the phyCARD-M..............13

2 Pin Description..................................................................................14

3 Jumpers..............................................................................................22

4 Power..................................................................................................27

4.1 Primary System Power (VCC_3V3)..........................................27

4.2 Standby Voltage (VBAT)...........................................................28

4.3 On-board Voltage Regulator (U1)..............................................28

4.4 Supply Voltage for external Logic.............................................30

5 Power Management ..........................................................................31

6 System Configuration and Booting .................................................34

7 System Memory.................................................................................38

7.1 DDR2-SDRAM (U8 - U11).......................................................38

7.2 NAND Flash Memory (U13) .....................................................39

7.3 I²C EEPROM (U6).....................................................................39

7.3.1 Setting the EEPROM Lower Address Bits (J1, J3, J4).40

7.3.2 EEPROM Write Protection Control (J16) ....................41

7.4 Memory Model...........................................................................41

8 SD / MMC Card Interfaces..............................................................42

9 Serial Interfaces.................................................................................44

9.1 Universal Asynchronous Interface.............................................45

9.2 USB-OTG Interface ...................................................................46

9.3 USB-Host Interface....................................................................47

9.4 Ethernet Interface.......................................................................48

9.4.1 PHY Physical Layer Transceiver (U7) .........................48

9.4.2 MAC Address................................................................50

9.5 I2C Interface ...............................................................................50

9.6 SPI Interface...............................................................................51

9.7 Synchronous Serial Interface (SSI)............................................51

10 General Purpose I/Os........................................................................53

11 Debug Interface (X1) ........................................................................54

12 LVDS Display Interface....................................................................57

12.1 Signal configuration (J22)..........................................................58

12.2 LVDS Display Interface pixel mapping.....................................58

13 LVDS Camera Interface...................................................................60

Page 4

phyCARD-M [PCA-A-M1-xxx]

13.1 Signal configuration (J21)..........................................................60

14 Technical Specifications................................................................... 61

15 Component Placement Diagram ..................................................... 64

16 Hints for Handling the phyCARD-M .............................................66

17 The phyCARD-M on the phyBase................................................... 67

17.1 Concept of the phyBASE Board................................................ 68

17.2 Overview of the phyBASE Peripherals..................................... 70

17.2.1 Connectors and Pin Header...........................................71

17.2.2 Switches........................................................................72

17.2.3 LEDs .............................................................................76

17.2.4 Jumpers .........................................................................78

17.3 Functional Components on the phyBASE Board...................... 82

17.3.1 phyCARD-M SBC Connectivity (X27)........................82

17.3.2 Power Supply (X28) .....................................................83

17.3.3 RS-232 Connectivity (P1)............................................. 86

17.3.4 Ethernet Connectivity (X10)......................................... 88

17.3.5 USB Host Connectivity (X7, X8, X9, X30, X33)........89

17.3.6 USB OTG Connectivity (X29).....................................91

17.3.7 Display / Touch Connectivity (X6, X32)......................92

17.3.7.1 Display Data Connector (X6)........................ 93

17.3.7.2 Display Power Connector (X32) ...................96

17.3.7.3 Touch Screen Connectivity ...........................97

17.3.8 Camera Interface (X5) ..................................................99

17.3.9 Audio Interface (X1,X2,X3)....................................... 101

17.3.10 I2C Connectivity..........................................................102

17.3.11 SPI Connectivity.........................................................104

17.3.12 User programmable GPIOs.........................................104

17.3.13 Expansion connectors (X8A, X9A)............................105

17.3.14 Security Digital Card/ MultiMedia Card (X26)..........108

17.3.15 Boot Mode Selection (JP1)......................................... 109

17.3.16 System Reset Button (S1)........................................... 111

17.3.17 RTC at U3...................................................................112

17.3.18 PLD at U25 .................................................................113

17.3.19 Carrier Board Physical Dimensions............................114

18 Revision History.............................................................................. 115

Index .........................................................................................................116

Page 5

Contents

Index of Figures

Figure 1: Block Diagram of the phyCARD-M........................................10

Figure 2: Top view of the phyCARD-M (controller side) ......................11

Figure 3: Bottom view of the phyCARD-M (connector side)................. 12

Figure 4: Pin-out of the phyCARD-Connector (top view, with cross

section insert)........................................................................... 15

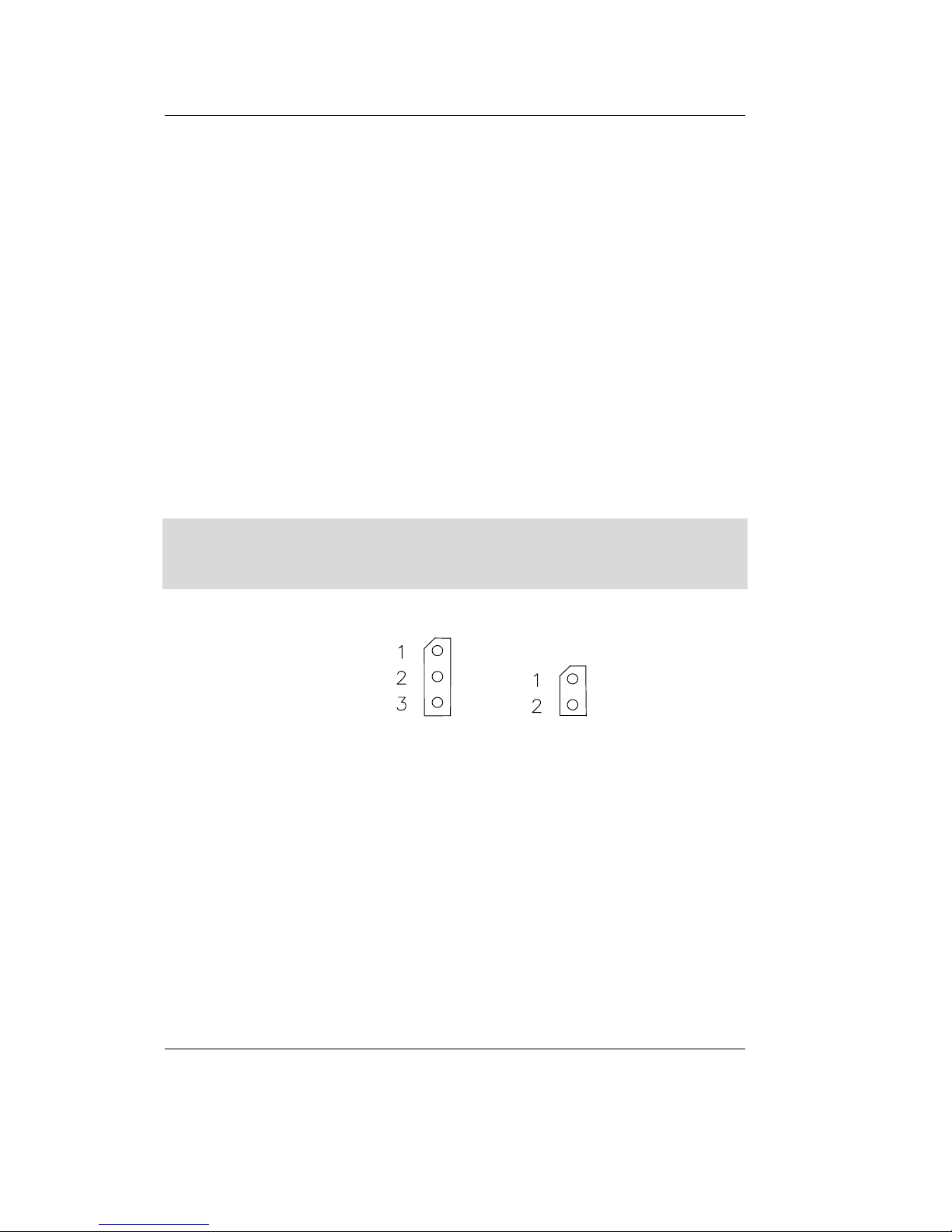

Figure 5: Typical jumper pad numbering scheme................................... 22

Figure 6: Jumper locations (top view).....................................................23

Figure 7: Jumper locations (bottom view)...............................................24

Figure 8: Power Supply Diagram............................................................29

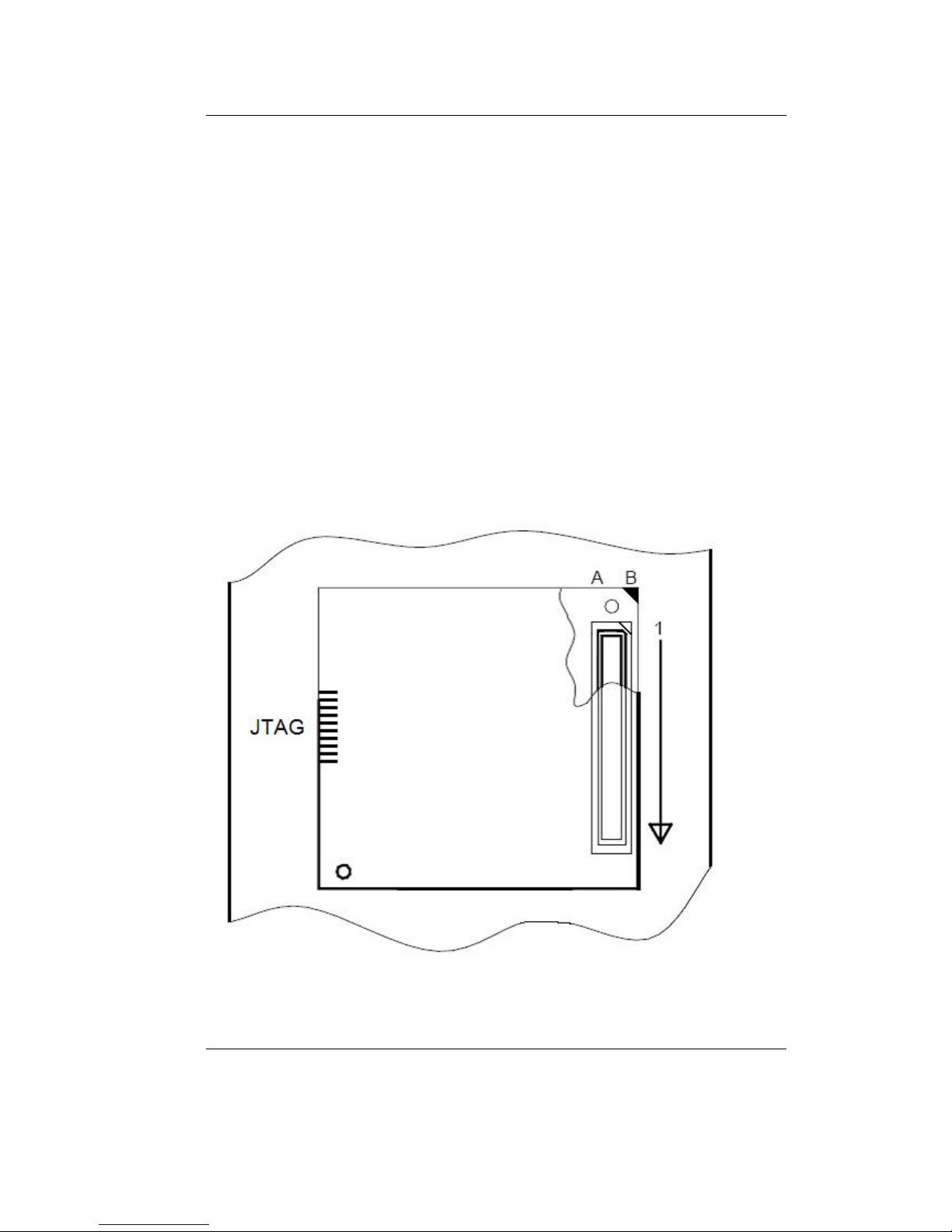

Figure 9: JTAG interface at X1 (top view) ..............................................54

Figure 10: JTAG interface at X1 (bottom view) ........................................55

Figure 11: Physical dimensions................................................................. 61

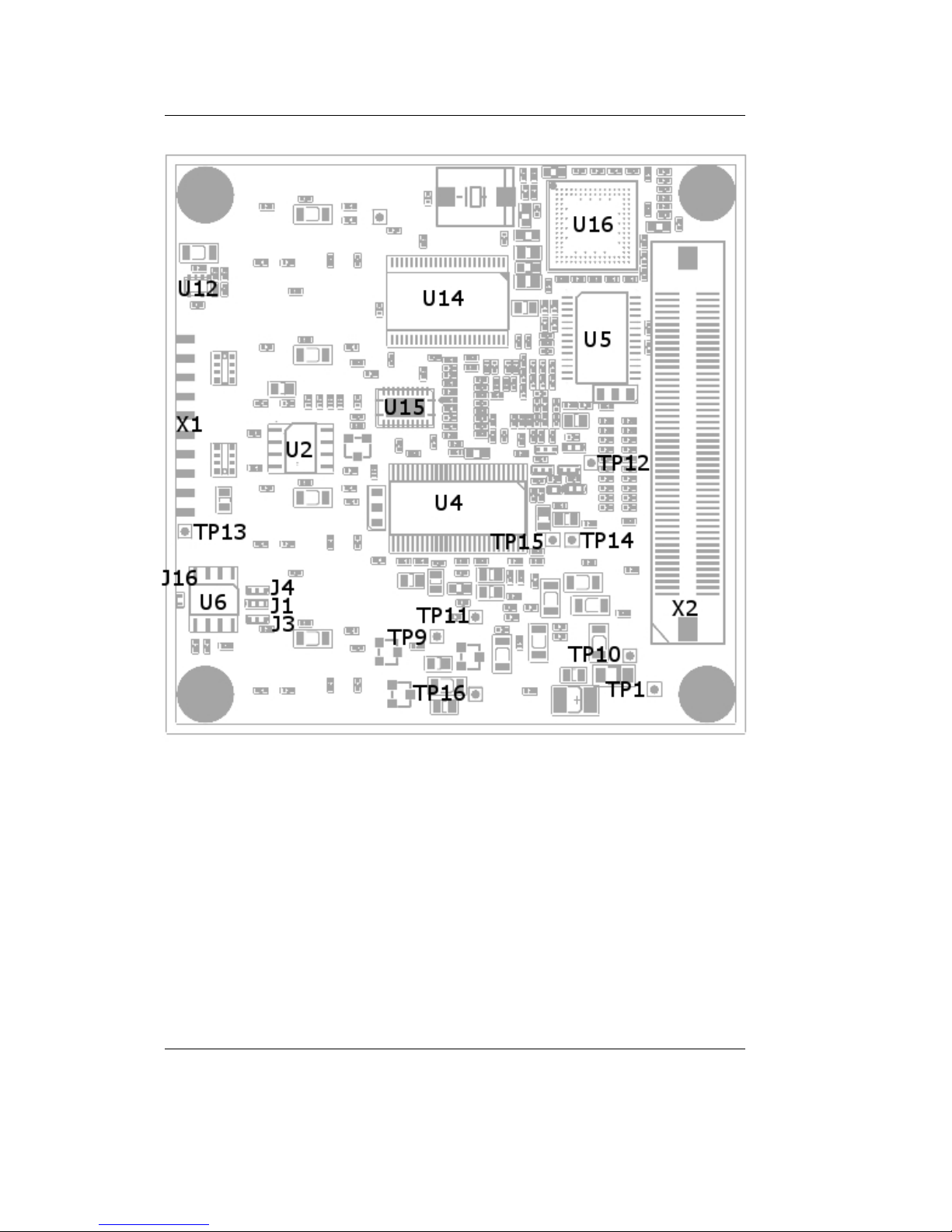

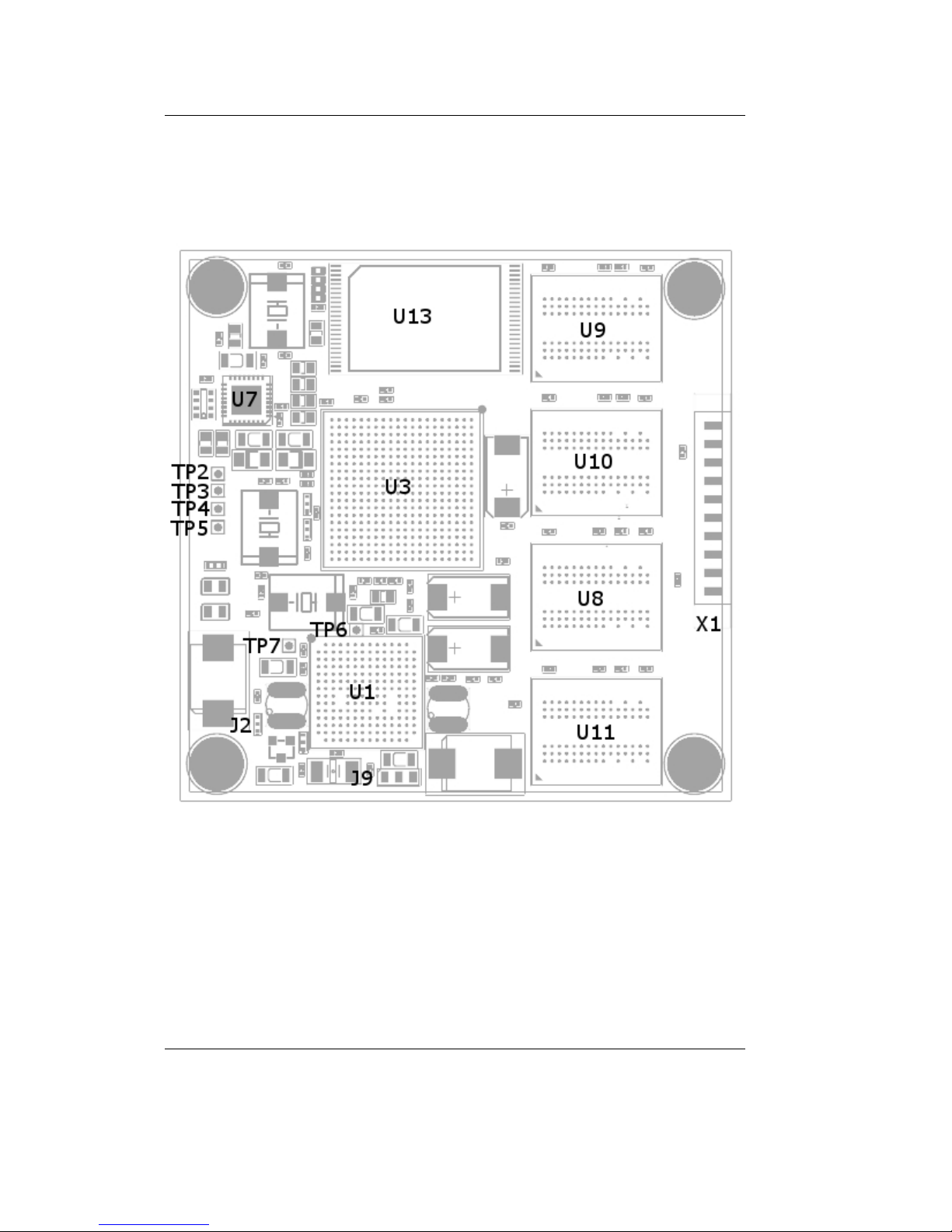

Figure 12: phyCARD-M component placement (top view)......................64

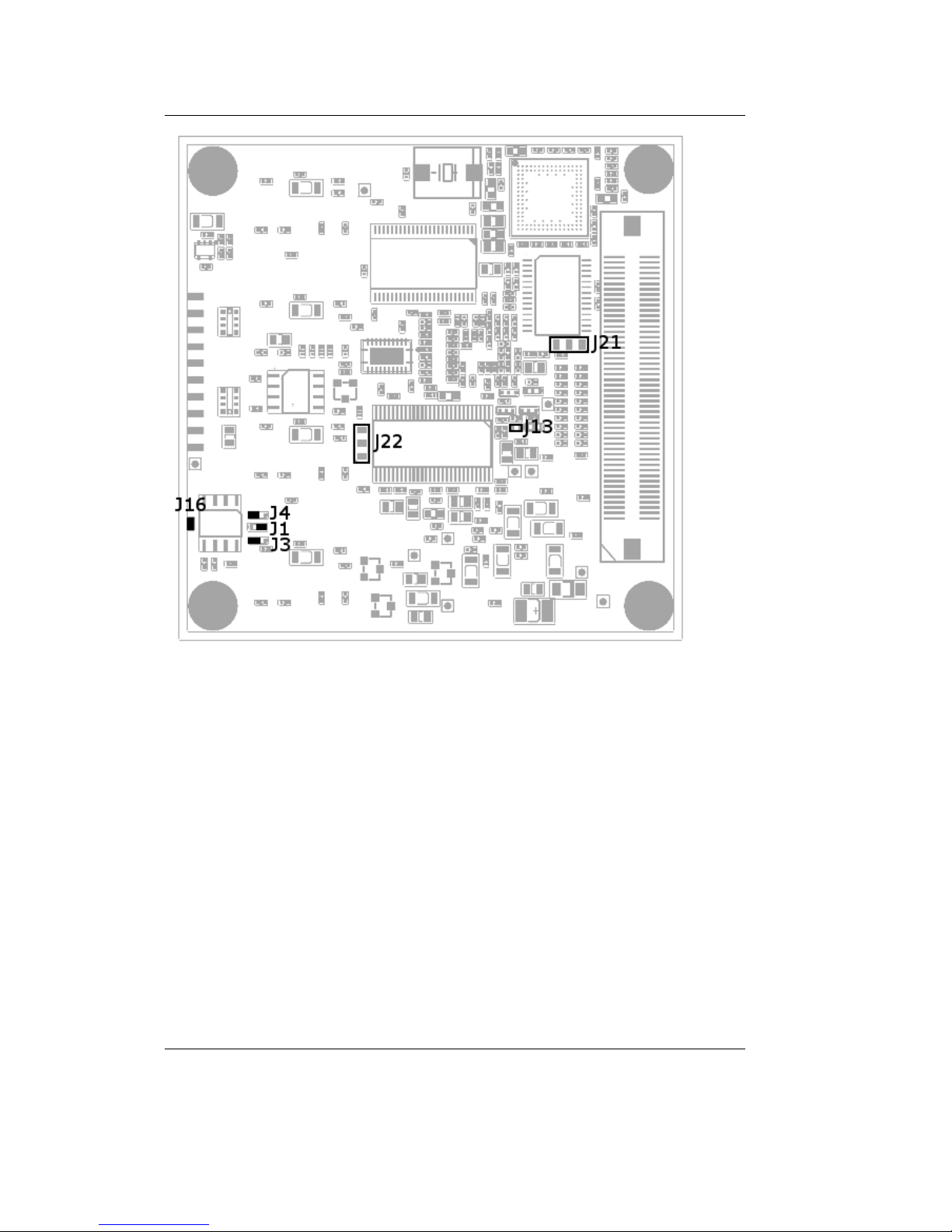

Figure 13: phyCARD-M component placement (bottom view)................65

Figure 14: phyBASE (phyCARD-M Carrier Board).................................69

Figure 15: phyBASE Overview of Connectors, LEDs and Buttons...........70

Figure 16: Typical jumper numbering scheme..........................................78

Figure 17: phyBASE jumper locations...................................................... 79

Figure 18: phyCARD-M SBC Connectivity to the Carrier Board............82

Figure 19: Power adapter...........................................................................83

Figure 20: Connecting the Supply Voltage at X28....................................84

Figure 21: UART1 connection interface at connector P1......................... 86

Figure 22: UART1 connector P1 signal description .................................87

Figure 23: Ethernet interface at connector X10........................................88

Figure 24: USB host interface at connector X7, X30, X33.......................89

Figure 25: USB OTG interface at connector X29.....................................91

Figure 26: Universal LVDS interface at connector X6..............................92

Page 6

phyCARD-M [PCA-A-M1-xxx]

Figure 27: Camera interface at connectors X5......................................... 99

Figure 28: Audio interface at connectors X1,X2,X3................................ 101

Figure 29: Expansion connector X8A, X9A............................................. 105

Figure 30: SD Card interface at connector X26 ..................................... 108

Figure 31: Boot Mode Selection Jumper JP1.......................................... 109

Figure 32: System Reset Button S1.......................................................... 111

Figure 33: Carrier Board Physical Dimensions....................................... 114

Page 7

Contents

Index of Tables

Table 1: Abbreviations and Acronyms used in this Manual....................2

Table 2: X-Arc Bus Pin-out....................................................................17

Table 3: Pin-out of the phyCARD-Connector X2.................................. 21

Table 4: Jumper settings.........................................................................26

Table 5: Power Management Pins..........................................................31

Table 6: Power States.............................................................................32

Table 7: Power management jumpers J2 and J9 ....................................33

Table 8: Boot Modes of i.MX35 module...............................................35

Table 9: Further Boot Configuration Pins..............................................36

Table 10: Compatible NAND Flash devices............................................39

Table 11: U6 EEPROM I²C address via J1, J3, and J4............................ 40

Table 12: EEPROM write protection states via J16.................................41

Table 13: Location of SD/ MMC Card interface signals......................... 42

Table 14: Location of the UART signals.................................................45

Table 15: Location of the USB-OTG signals...........................................46

Table 16: Location of the USB-Host signals ...........................................47

Table 17: Location of the Ethernet signals...............................................48

Table 18: Fast Ethernet controller memory map......................................49

Table 19: I2C Interface Signal Location................................................... 50

Table 20: SPI Interface Signal Location..................................................51

Table 21: SSI Interface Signal Location..................................................52

Table 22: Location of GPIO and IRQ pins ..............................................53

Table 23: JTAG connector X1 signal assignment....................................56

Table 24: Display Interface Signal Location............................................57

Table 25: Pixel mapping of 18-bit LVDS display interface ....................58

Table 26: Pixel mapping of 24-bit LVDS display interface ....................59

Page 8

phyCARD-M [PCA-A-M1-xxx]

Table 27: Camera Interface Signal Location ...........................................60

Table 28: phyBASE Connectors and Pin Headers................................... 71

Table 29: phyBASE push buttons descriptions ....................................... 72

Table 30: phyBASE DIP-Switch S3 descriptions.................................... 75

Table 31: phyBASE LEDs descriptions................................................... 76

Table 32: phyBASE jumper descriptions................................................. 81

Table 33: LEDs assembled on the Carrier Board .................................... 84

Table 34: Distribution of the USB hub's (U4) ports................................ 90

Table 35: Universal USB pin header X33 signal description.................. 90

Table 36: Display data connector signal description............................... 94

Table 37: SPI and GPIO connector selection........................................... 95

Table 38: LVDS power connector X32 signal description...................... 96

Table 39: Selection of the touch screen controller................................... 97

Table 40: PHYTEC camera connector X5............................................. 100

Table 41: Selection of the audio codec.................................................. 102

Table 42: I2C connectivity ..................................................................... 102

Table 43: I2C addresses in use ............................................................... 103

Table 44: SPI connector selection.......................................................... 104

Table 45: SPI and GPIO connector selection......................................... 106

Table 46: PHYTEC expansion connector X8A, X9A...........................107

Page 9

Conventions, Abbreviations and Acronyms

This hardware manual describes the PCA-A-M1 Single Board Computer in the following referred to as phyCARD-M. The manual specifies the phyCARD-M's design and function. Precise specifications for the Freescale i.MX35 microcontrollers can be found in the enclosed microcontroller Data Sheet/User's Manual.

Conventions

The conventions used in this manual are as follows:  Signals that are preceded by a "n", "/", or “#”character (e.g.: nRD,

/RD, or #RD), or that have a dash on top of the signal name (e.g.: RD) are designated as active low signals. That is, their active state is when they are driven low, or are driving low.

 A "0" indicates a logic zero or low-level signal, while a "1"

represents a logic one or high-level signal.

 Tables which describe jumper settings show the default position in

bold, blue text.

 Te xt i n blue italic indicates a hyperlink within, or external to the

document. Click these links to quickly jump to the applicable URL, part, chapter, table, or figure.

 References made to the phyCARD-Connector always refer to the

high density molex connector on the undersides of the phyCARDM Single Board Computer.

Abbreviations and Acronyms

Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar terms used in this document.

Abbreviation Definition

BSP Board Support Package (Software delivered with the

Development Kit including an operating system (Windows, or Linux) preinstalled on the module and Development Tools).

GPIO General purpose input and output.

Page 10

phyCARD-M [PCA-A-M1-xxx]

2 © PHYTEC Messtechnik GmbH 2010 L-750e_1

GPI General purpose input. GPO General purpose output. Sx User button Sx (e.g. S1, S2, etc.) used in reference to

the available user buttons, or DIP-Switches on the Carrier Board.

Sx_y Switch y of DIP-Switch Sx; used in reference to the

DIP-Swit ch on the Carrier Board.

CB Carrier Board; used in reference to the phyBASE

Development Kit Carrier Board. DFF D flip-flop. EMB External memory bus. EMI Electromagnetic Interference. IRAM Internal RAM; the internal static RAM on the

Freescale i.MX35 microcontroller. J Solder jumper; these types of jumpers require solder

equipment to remove and place. JP Solderless jumper; these types of jumpers can be

removed and placed by hand with no special tools. PCB Printed circuit board. POR Power-on reset RTC Real-time clock. SMT Surface mount technology. SBC Single Board Computer; used in reference to the

PCA-A-M1 /phyCARD-A-M1 Single Board

Computer VBAT SBC standby voltage input

Table 1: Abbreviations and Acronyms used in this Manual

Note: The BSP delivered with the phyCARD-M usually includes drivers and/or software for controlling all components such as interfaces, memory, etc.. Therefore programming close to hardware at register level is not necessary in most cases. For this reason, this manual contains no detailed description of the controller's registers, or information relevant for software development. Please refer to the i.MX35 Reference Manual, if such information is needed to connect customer designed applications.

Page 11

Preface

As a member of PHYTEC's new phyCARD product family the phyCARD-M is one of a series of PHYTEC Single Board Computers (SBCs) that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a variety of 8-/16- and 32-bit controllers in two ways:

(1) as the basis for Rapid Development Kits which serve as a

reference and evaluation platform

(2) as insert-ready, fully functional phyCARD OEM modules,

which can be embedded directly into the user’s peripheral hardware design.

Implementation of an OEM-able SBC subassembly as the "core" of your embedded design allows you to focus on hardware peripherals and firmware without expending resources to "re-invent" microcontroller circuitry. Furthermore, much of the value of the phyCARD module lies in its layout and test.

PHYTEC's new phyCARD product family consists of a series of extremely compact embedded control engines featuring various processing performance classes while using the newly developed XArc embedded bus standard. The standardized connector footprint and pin assignment of the X-Arc bus makes this new SBC generation extremely scalable and flexible. This also allows to use the same carrier board to create different applications depending on the required processing power. With this new SBC concept it is possible to design entire embedded product families around vastly different processor performances while optimizing overall system cost. In addition, future advances in processor technology are already considered with this new embedded bus standard making product upgrades very easy. Another major advantage is the forgone risk of potential system hardware redesign steps caused by processor or other critical component discontinuation. Just use one of PHYTEC's other phyCARD SBCs

Page 12

phyCARD-M [PCA-A-M1-xxx]

thereby ensuring an extended product life cycle of your embedded application. Production-ready Board Support Packages (BSPs) and Design Services for our hardware will further reduce your development time and risk and allow you to focus on your product expertise. Take advantage of PHYTEC products to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks. With this new innovative full system solution you will be able to bring your new ideas to market in the most timely and cost-efficient manner.

For more information go to:

http://www.phytec.com/services/

Ordering Information

The part numbering of the phyCARD has the following structure:

PCA-A-M1-xxxxxx

Generation

A = First generation

Performance class

S = small M = middle L = large XL = largest

Controller Number of specified performance class Assembly options (depending on model)

In order to receive product specific information on changes and updates in the best way also in the future, we recommend to register at

http://www.phytec.de/de/support/registrierung.html

You can also get technical support and additional information concerning your product.

4 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 13

Preface

The support section of our web site provides product specific information, such as errata sheets, application notes, FAQs, etc.

http://www.phytec.de/de/support/faq/faq-phyCARD-M.html

Declaration of Electro Magnetic Conformity of the PHYTEC phyCARD-M

PHYTEC Single Board Computers (henceforth products) are designed for installation in electrical appliances or as dedicated Evaluation Boards (i.e.: for use as a test and prototype platform for hardware/software development) in laboratory environments.

Caution:

PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be unpacked, handled or operated in environments in which sufficient precautionary measures have been taken in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians, technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be operated without protection circuitry if connections to the product's pin header rows are longer than 3 m.

PHYTEC products fulfill the norms of the European Union’s Directive for Electro Magnetic Conformity only in accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to the pin header row connectors, power connector and serial interface to a host-PC).

Implementation of PHYTEC products into target devices, as well as user modifications and extensions of PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro Magnetic Directives. Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.

Page 14

phyCARD-M [PCA-A-M1-xxx]

6 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 15

Introduction

1 Introduction

The phyCARD-M belongs to PHYTEC’s phyCARD Single Board Computer module family. The phyCARD SBCs represent the continuous development of PHYTEC Single Board Computer technology. Like its mini-, micro- and nanoMODUL predecessors, the phyCARD boards integrate all core elements of a microcontroller system on a subminiature board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware developments.

PHYTEC's phyCARD family introduces the newly developed X-Arc embedded bus standard. Apart from processor performance, a large number of embedded solutions require a corresponding number of standard interfaces. Among these process interfaces are for example Ethernet, USB, UART, SPI, I

C, audio, display and camera connectivity. The X-Arc bus exactly meets this requirement. As well the location of the commonly used interfaces as the mechanical specifications are clearly defined. All interface signals of PHYTEC's new X-Arc bus are available on a single, 100-pin, high-density pitch (0.635 mm) connector, allowing the phyCARDs to be plugged like a "big chip" into a target application. The reduced complexity of the phyCARD SBC as well as the smaller number of interface signals greatly simplifies the SBC carrier board design helping you to reduce your time-to-market.

As independent research indicates that approximately 70 % of all EMI (Electro Magnetic Interference) problems stem from insufficient supply voltage grounding of electronic components in high frequency environments approximately 20 % of all pin header connectors on the X-Arc bus are dedicated to Ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCARD boards even in high noise environments.

Page 16

phyCARD-M [PCA-A-M1-xxx]

8 © PHYTEC Messtechnik GmbH 2010 L-750e_1

phyCARD boards achieve their small size through modern SMD technology and multi-layer design. In accordance with the complexity of the module, 0402-packaged SMD components and laser-drilled microvias are used on the boards, providing phyCARD users with access to this cutting edge miniaturization technology for integration into their own design.

The phyCARD-M is a subminiature (60 x 60 mm) insert-ready Single Board Computer populated with the Freescale i.MX35 microcontroller. Its universal design enables its insertion in a wide range of embedded applications.

Precise specifications for the controller populating the board can be found in the applicable controller Reference Manual or datasheet. The descriptions in this manual are based on the Freescale i.MX35. No description of compatible microcontroller derivative functions is included, as such functions are not relevant for the basic functioning of the phyCARD-M.

The phyCARD-M offers the following features:

• Subminiature Single Board Computer ( 60 x 60 mm) achieved

through modern SMD technology

• Populated with the Freescale i.MX35 microcontroller (BGA400

packaging)

• Improved interference safety achieved through multi-layer PCB

technology and dedicated ground pins

• X-Arc bus including commonly used interfaces such as Ethernet,

USB, UART, SPI, I

C, audio, display and camera connectivity (both LVDS) available at one 100-pin high-density (0.635 mm) Molex connector, enabling the phyCARD-M to be plugged like a "big chip" into target application

• Max. 532 MHz core clock frequency

• Boot from NAND Flash

• 128 MByte (up to 1 GByte) on-board NAND Flash

• 32 MByte (up to 256 MByte) DDR 2 SDRAM on-board

• 4KB (up to 32kB) I

C EEPROM

Please contact PHYTEC for more information about additional module configurations.

Page 17

Introduction

• Serial interface with 4 lines (TTL) allowing simple hardware

handshake

• High-Speed USB OTG transceiver

• High-Speed USB HOST transceiver

• Auto HDX/FDX 10/100MBit Ethernet interface, with HP Auto

MDI/MDI-X support

• Single supply voltage of 3.3V (max. 600mA) with on-board power

management

• All controller required supplies generated on board

• 4 Channel LVDS (18Bit) LCD-Interface

• Support of standard 20 pin debug interface through JTAG

connector

• One I

C interfaces

• One SPI interfaces

• SD/MMC card interface with DMA

• SSI Interface (AC97)

• Optional LVDS Camera Interface

• 3 GPIO/IRQ ports

• 2 Power State outputs to support applications requiring a power

management

• 1 Wake Up input

Page 18

phyCARD-M [PCA-A-M1-xxx]

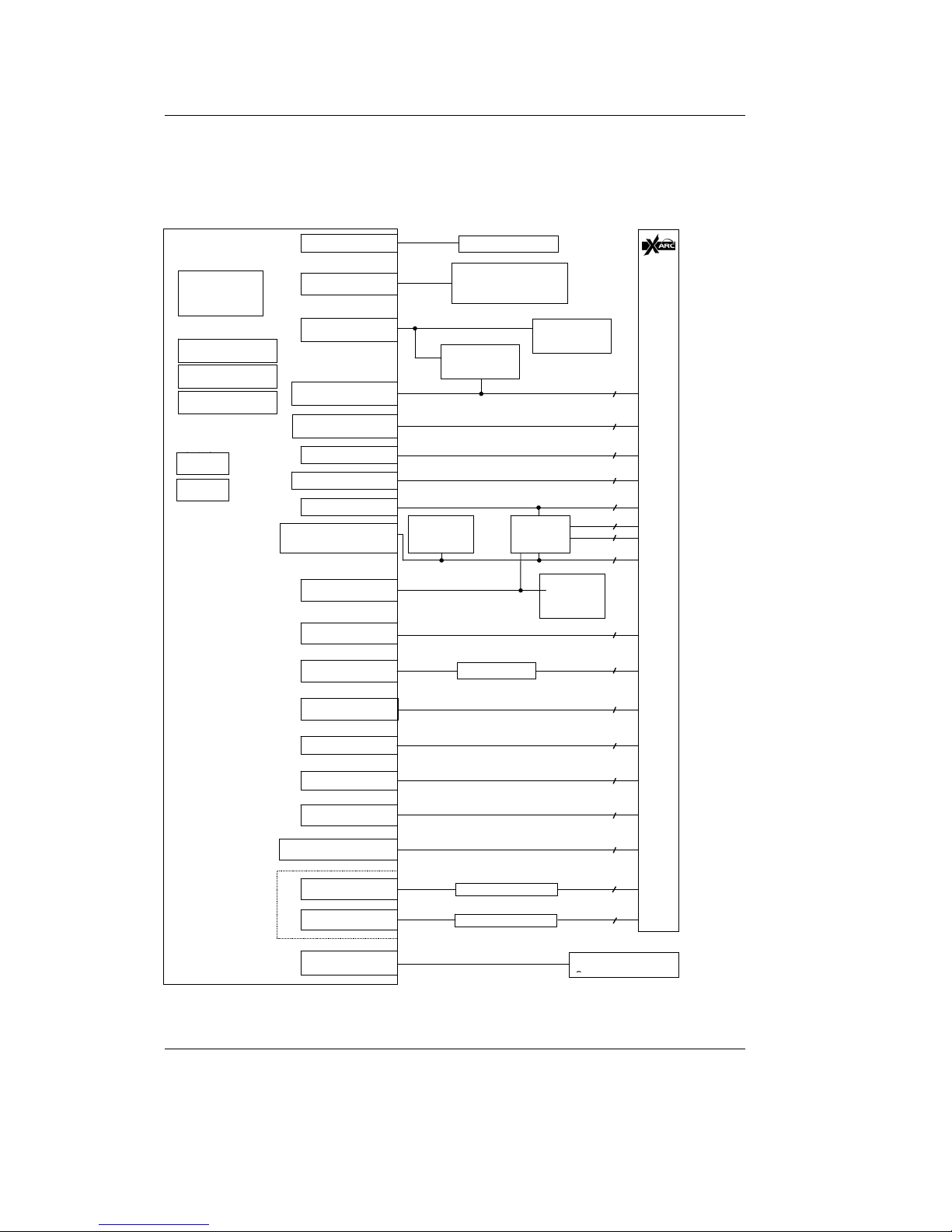

1.1 Block Diagram

10 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Figure 1: Block Diagram of the phyCARD-M

64 to

DDR2 SDRAM Bank I +

133MH z

32 bit

I2C1

DDR2 SDRAM

I2C-

EEPRO M

4KByt

Ethernet PHY

FEC

external 24MHz

532 MHz Clock

Powe

Managemen

Reset-Logic

JTA G

Memory Management Unit

Vector floating

oint Unit

i.MX3 5

VFP

MM U

RM1136JF-S

core

16k L1 D-cache

16k L1 I-cache 128k L2 cache

USB-OTG+ HS Ph

I2C3

24-BitLVDSTransmitte

10-Bit LVDS-Deserializer

SSI

SPI 1

UART

SDIO

GPIO1_1, GPIO2_7 /

128MB to 1GB

NAND Flash

8 bit

USB-Host Contr.

High-Speed

USB2-Host+ FS Phy

/RESET_IN_B; /POR_B

GPIO (GPIO3_0)

GPIO (GPIO2_29 / 30)

Boot_Mode 0 / 1

10/100 Mbit Ethernet

JTAG Debug-/ Test Port

Power

VBat

+3V3 +3V3

Reset Input / Reset

I2C Master

USB

Wake Up

Card-Edge

LVDS-Display Interface

LVDS-Camera Interface

C A R D - C o n n e c t o

High-S USB Ho

peed

1 1

Power State

Boot Configuration

+1V37 +1V

+2V77

+1V

C97 /

Synchronous

SPI

UART

SD / MMC-Card Interface

3 * GPIO / IRQ

Page 19

Introduction

1.2 View of the phyCARD-M

Figure 2: Top view of the phyCARD-M (controller side)

Page 20

phyCARD-M [PCA-A-M1-xxx]

Figure 3: Bottom view of the phyCARD-M (connector side)

12 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 21

Introduction

1.3 Minimum Requirements to Operate the phyCARD-M

Basic operation of the phyCARD-M only requires supply of a +3V3 input voltage with 600 mA load and the corresponding GND connection.

These supply pins are located at the phyCARD-Connector X2:

VDD_3V3_IN: X2 1A, 2A, 3A, 1B, 2B, 3B

Connect all +3.3V VCC input pins to your power supply and at least the matching number of GND pins.

Corresponding GND: X2 4A, 8A, 13A, 4B, 8B, 13B

Please refer to section 2 for information on additional GND Pins located at the phyCARD-Connector X2

Caution:

We recommend connecting all available +3V3 input pins to the power supply system on a custom carrier board housing the phyCARD-M and at least the matching number of GND pins neighboring the +3V3 pins.

In addition, proper implementation of the phyCARD-M module into a target application also requires connecting all GND pins neighboring signals that are being used in the application circuitry.

Please refer to section 4 for more information.

Page 22

phyCARD-M [PCA-A-M1-xxx]

14 © PHYTEC Messtechnik GmbH 2010 L-750e_1

2 Pin Description

Please note that all module connections are not to exceed their expressed maximum voltage or current. Maximum signal input values are indicated in the corresponding controller manuals/data sheets. As damage from improper connections varies according to use and application, it is the user's responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

As Figure 4 indicates, all X-Arc bus signals extend to one surface mount technology (SMT) connector (0.635 mm) lining on side of the module (referred to as phyCARD-Connector). This allows the phyCARD-M to be plugged into any target application like a "big chip".

The numbering scheme for the phyCARD-Connector is based on a two dimensional matrix in which column positions are identified by a letter and row position by a number. Pin 1A, for example, is always located in the upper left hand corner of the matrix. The pin numbering values increase moving down on the board. Lettering of the pin connector rows progresses alphabetically from left to right (refer to Figure 4).

The numbered matrix can be aligned with the phyCARD-M (viewed from above; phyCARD-Connector pointing down) or with the socket of the corresponding phyCARD Carrier Board/user target circuitry. The upper left-hand corner of the numbered matrix (pin 1A) is thus covered with the corner of the phyCARD-M marked with a triangle. The numbering scheme is always in relation to the PCB as viewed from above, even if all connector contacts extend to the bottom of the module.

The numbering scheme is thus consistent for both the module’s phyCARD-Connector as well as the mating connector on the

Page 23

Pin Description

phyBASE Carrier Board or target hardware, thereby considerably reducing the risk of pin identification errors.

Since the pins are exactly defined according to the numbered matrix previously described, the phyCARD-Connector is usually assigned a single designator for its position (X1 for example). In this manner the phyCARD-Connector comprises a single, logical unit regardless of the fact that it could consist of more than one physical socketed connector.

The following figure illustrates the numbered matrix system. It shows a phyCARD-M with SMT phyCARD-Connectors on its underside (defined as dotted lines) mounted on a Carrier Board. In order to facilitate understanding of the pin assignment scheme, the diagram presents a cross-view of the phyCARD-module showing these phyCARD-Connectors mounted on the underside of the module’s PCB.

Figure 4: Pin-out of the phyCARD-Connector (top view, with cross section

insert)

Page 24

phyCARD-M [PCA-A-M1-xxx]

16 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Table 2 shows the Pin-out of the X-Arc bus with the functional grouping of the signals, while Table 3 provides an overview of the Pin-out of the phyCARD-Connector with signal names and descriptions specific to the phyCARD-M. It also provides the appropriate signal level interface voltages listed in the SL (Signal Level) column and the signal direction.

The Freescale i.MX35 is a multi-voltage operated microcontroller and as such special attention should be paid to the interface voltage levels to avoid unintentional damage to the microcontroller and other onboard components. Please refer to the Freescale i.MX35 Reference Manual for details on the functions and features of controller signals and port pins.

Page 25

Pin Description

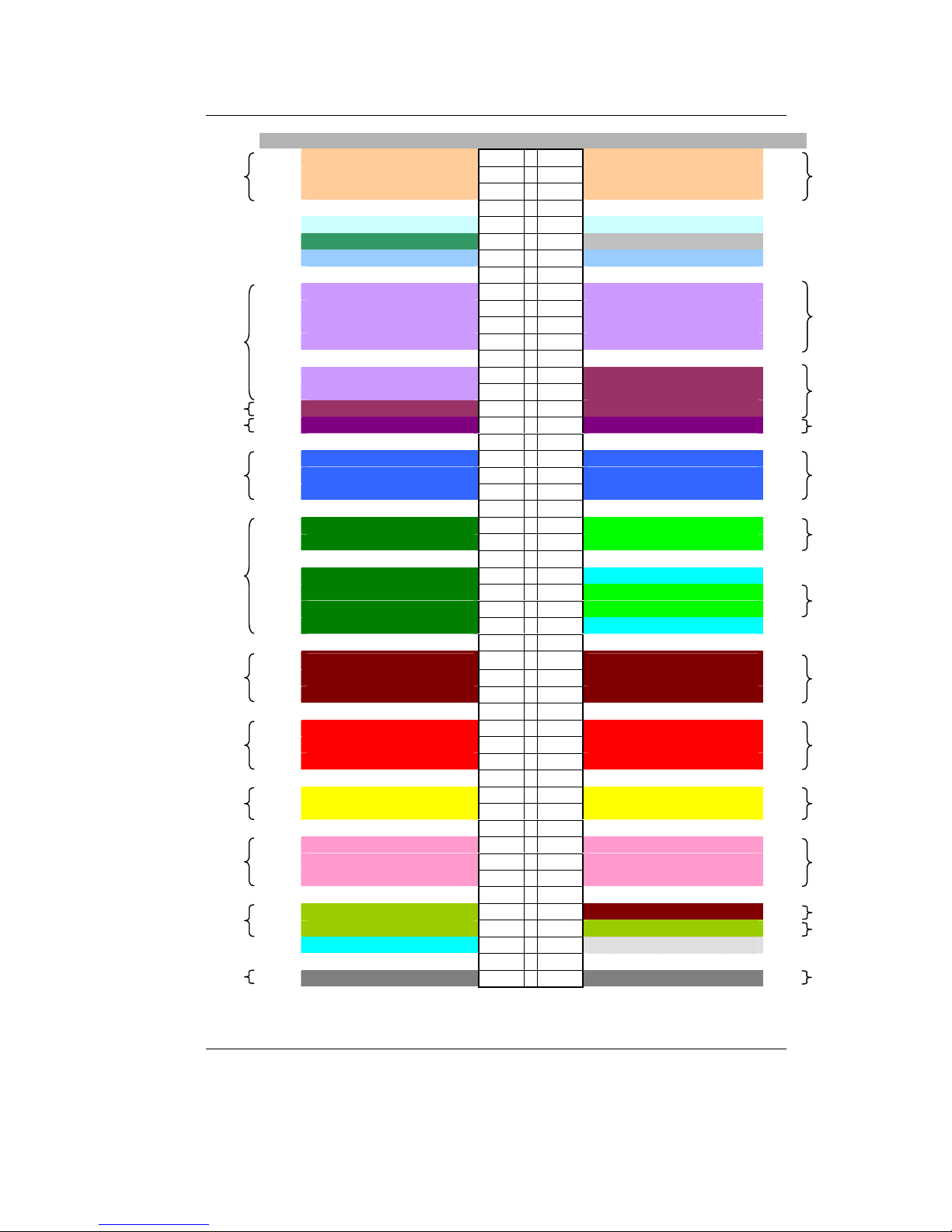

Table 2: X-Arc Bus Pin-out

I/O Signal Pin Pin Signal I/O In

VCC 1A 1B VCC In In VCC 2A 2B VCC In In VCC 3A 3B VCC In In GND 4A 4B GND In Out VCC_LOGIC 5A 5B VCC_LOGIC Out

- FEEDBACK 6A 6B VSTBY In In nRESET_IN 7A 7B nRESET_OUT Out

- GND 8A 8B GND Out LVDS_TX0+ 9A 9B LVDS_TX1+ Out Out LVDS_TX0- 10A 10B LVDS_TX1- Out Out LVDS_TX2+ 11A 11B LVDS_TX3+ Out Out LVDS_TX2- 12A 12B LVDS_TX3- Out

- GND 13A 13B GND Out LVDS_TXCLK+ 14A 14B LVDS_CAM_RX+ In Out LVDS_TXCLK- 15A 15B LVDS_CAM_RX- In Out LVDS_CAM_MCLK 16A 16B LVDS_CAM_nLOCK Out I2C_CLK 17A 17B I2C_DATA

- GND 18A 18B GND Out ETH_SPEED 19A 19B ETH_LINK Out Out ETH_TX+ 20A 20B ETH_RX+ In Out ETH_TX- 21A 21B ETH_RX- In

- GND 22A 22B GND Out USB_OTG_PWR1 23A 23B USB_PWR2 Out In USB_OTG_OC1 24A 24B USB_OC2 In

- GND 25A 25B GND Bi USB_OTG_VBUS1 26A 26B nSuspend_to_RAM Out Bi USB_OTG_D1- 27A 27B USB_D2- Bi Bi USB_OTG_D1+ 28A 28B USB_D2+ Bi In USB_OTG_UID1 29A 29B nPower_off Out

- GND 30A 30B GND Bi

SDIO_D0 31A 31B SDIO_D1

Bi SDIO_D2 32A 32B SDIO_D3 Bi Out SDIO_CLK 33A 33B SDIO_CMD Bi

- GND 34A 34B GND Out SPI_CS0 35A 35B SPI_CS1 Out In SPI_RDY 36A 36B SPI_MOSI Out Out SPI_CLK 37A 37B SPI_MISO In

- GND 38A 38B GND Out UART_TXD 39A 39B UART_RXD In In UART_RTS 40A 40B UART_CTS Out

- GND 41A 41B GND Bi HDA_SEL/AC97_INT 42A 42B AC97/HDA_BIT_CLK Bi Out AC97/HDA_SDATA_OUT 43A 43B AC97/HDA_SYNC Out In AC97/HDA_SDATA_IN 44A 44B AC97/HDA_nRESET Out

- GND 45A 45B GND Bi GPIO0/IRQ 46A 46B SDIO_CD In Bi GPIO2/IRQ/PWM 47A 47B GPIO1/IRQ Bi In nWKUP 48A 48B for internal use only Bi

- GND 49A 49B GND In CONFIG0 50A 50B CONFIG1 In

Supply

Dis

Camera

USB OTG

Ethernet

SD/MMC SPI

AC97/HDA

UART

GPIO

Boot Opt.

Supply

Display Camera

I2C Ethernet

SD/MMC SPI

AC97/HDA

UART

GPIO

Boot Opt.

SD/MMC

USB Host

Page 26

phyCARD-M [PCA-A-M1-xxx]

18 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Note:

SL is short for Signal Level (V) and is the applicable logic level to interface a given pin. Those pins marked as “N/A” have a range of applicable values that constitute proper operation.

Please refer to the phyCARD Design-In Guide (LAN-051) for layout recommendations and example circuitry.

Pin Row X2A

Pin # Signal I/O SL Description 1A

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

4A GND -

- Ground 0V

5A VDD_3V3_IN O

VDD_3V3 VCC Logic Output

6A VCC_FEEDBACK O

- Feedback Output to indicate the supply voltage required (3V3 or 5V)

7A X_MASTER_RESET I

VDD_3V3 Active low Reset In

8A GND -

- Ground 0V

9A X_TXOUT0+ O

LVDS LVDS Chanel 0 positive Output

10A X_TXOUT0- O

LVDS LVDS C hanel 0 negat ive Output

11A X_TXOUT2+ O

LVDS LVDS Chanel 2 positive Output

12A X_TXOUT2- O

LVDS LVDS C hanel 2 negat ive Output

13A GND -

- Ground 0V

14A X_TXCLKOUT+ O

LVDS LVDS Clock positive Output

15A X_TXCLKOUT- O

LVDS LVDS Cl ock negative output

16A X_CSI_MCLK O

VDD_3V3 Clock Output for Camera Interface

17A X_I2C3_SCL O

VDD_3V3 I2C Clock Output

18A GND -

- Ground 0V

19A X_ETH_SPEED O

VDD_3V3 Ethernet Speed Indicator (Open Drain)

20A X_ETH_TX+ O (I)

ETH Transmit positive output (normal)

Receive positive input (reversed)

21A X_ETH_TX- O (I)

ETH Transmit negative output (normal)

Receive negative input (reversed)

22A GND -

- Ground 0V

23A X_USBOTG_PWR O

VDD_3V3 USB-OTG Power switch output open

drain

24A X_USBOTG_OC I

VDD_3V3 USB-OTG over current input signal

25A GND -

- Ground 0V

Page 27

Pin Description

26A X_USBPHY1_VBUS I

5V USB VBUS Voltage

27A X_USBPHY1_DM I/O

USB USB transceiver cable interface, D-

28A X_USBPHY1_DP I/O

USB

USB transceiver cable interface, D+

29A X_USBPHY1_UID I

USB on the go transceiver cable ID resistor connection

30A GND -

0 Ground 0V

31A X_SD1_DATA0 I/O

VDD_3V3 SD/MMC Data line both in 1-bit and 4-bit

mode

32A X_SD1_DATA2 I/O

VDD_3V3 SD/MMC Data line both in 1-bit and 4-bit

mode

33A X_SD1_CLK O

VDD_3V3 SD/MMC Clock for MMC/SD/SDIO

34A GND -

- Ground 0V

35A X_CSPI1_SS0 O

VDD_3V3 SPI 1 Chip select 0

36A X_CSPI1_SPI_RDY O

VDD_3V3 SPI 1 SPI data ready in Master mode

37A X_CSPI1_SCLK O

VDD_3V3

SPI 1 clock

38A GND -

- Ground 0V

39A X_UART1_TXD O

VDD_3V3 Serial transmit signal UART 1

40A X_UART1_RTS O

VDD_3V3 Request to send UART 1

41A GND -

- Ground 0V

42A X_AC97_INT I/O

VDD_3V3 AC97 Interrupt Input

43A X_STXD4 O

VDD_3V3 AC97 Transmit Output

44A X_SRXD4 I

VDD_3V3 AC97 Receive Input

45A GND -

- Ground 0V

46A X_GPIO1_1 I/O

VDD_3V3 GPIO0 (µC port GPIO1_1 at L16)

47A X_GPIO2_7 I/O

VDD_3V3 GPIO2 (µC port GPIO2_7 at T7)

48A X_WKUP I

VDD_3V3 Wakeup Interrupt Input (µC port

GPIO3_0 at R4; PMIC port 'Power On 2')

49A GND -

- Ground 0V

50A X_BOOT0 I

VDD_3V3 Boot-Mode Input 0

Page 28

phyCARD-M [PCA-A-M1-xxx]

20 © PHYTEC Messtechnik GmbH 2010 L-750e_1

PIN ROW X2B

PIN # SIGNAL I/O SL DESCRIPTION

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

VDD_3V3_IN

Power 3.3V Primary Voltage Supply Input

4B GND -

- Ground 0V

VDD_3V3_IN

VDD_3V3 VCC Logic Output

6B VBAT -

Power Standby Voltage Input

7B RESET_PER -

VDD_3V3 Active low Reset output

8B GND -

- Ground 0V

9B X_TXOUT1+ O

LVDS LVDS Chanel 0 positive Output

10B X_TXOUT1- O

LVDS LVDS Chanel 0 negative Out put

11B X_TXOUT3+ O

LVDS LVDS Chanel 3 positive Output

12B X_TXOUT3- O

LVDS LVDS Chanel 3 negative Out put

13B GND -

- Ground 0V

14B X_RXIN+ O

LVDS LVDS Receive positive Input for

Camera

15B X_RXIN- O

LVDS LVDS Receive negative Input for

Camera

16B X_LOCK O

VDD_3V3 Lock Output for Camera Interface

17B X_I2C3_SDA I/O

VDD_3V3 I2C Data

18B GND -

- Ground 0V

19B X_ETH_LINK O

VDD_3V3 Ethernet Speed Indicator (Open Drain)

20B X_ETH_RX+ I (O)

ETH Receive positive input (normal)

Transmit positive output (reversed)

21B X_ETH_RX- I (O)

ETH Receive negative input (normal)

Transmit negative output (reversed)

22B GND -

- Ground 0V

23B X_USB_ PRW2 O

VDD_3V3 USB-HOST Power switch output open

drain

24B X_USB_OC2 I

VDD_3V3 USB-HOST over current input signal

25B GND -

- Ground 0V

26B nSuspend_to_RAM OC

VDD_3V3 Suspend to RAM Open Collector

Output (µC port GPIO2_29 at V2)

27B X_USB_DM2 I/O

USB USB HOST transceiver cable

interface, D-

28B X_USB_DP2 I/O

USB

USB HOST transceiver cable interface, D+

29B nPower_off OC

VDD_3V3

Power Off Open Collector Output

(µC port GPIO2_30 at T5)

Page 29

Pin Description

30B GND -

- Ground 0V

31B X_SD1_DATA1 I/O

VDD_3V3 SD/MMC Data line both in 1-bit and

4-bit mode

32B X_SD1_DATA3 I/O

VDD_3V3 SD/MMC Data line both in 1-bit and

4-bit mode

33B X_SD1_CMD O

VDD_3V3 SD/MMC Command for

MMC/SD/SDIO

34B GND -

- Ground 0V

35B X_CSPI1_SS1 O

VDD_3V3 SPI 1 Chip select 1

36B X_CSPI1_MOSI I/O

VDD_3V3 SPI 1 Master data out; slave data in

37B X_CSPI1_MISO I/O

VDD_3V3

SPI 1 Master data in; slave data out

38B GND -

- Ground 0V

39B X_UART1_RXD I

VDD_3V3 Serial data receive signal UART 1

40B X_UART1_CTS I

VDD_3V3 Clear to send UART 1

41B GND -

- Ground 0V

42B X_SCK4 I

VDD_3V3 AC97 Clock

43B X_STXFS4 O

VDD_3V3 AC97 SYNC

44B X_AC97_nRESET O

VDD_3V3 AC97 Reset

45B GND -

- Ground 0V

46B X_SDIO_CD I

VDD_3V3 SD/MMC Card Detect for

MMC/SD/SDIO

47B GPIO2_23 I/O

VDD_3V3 GPIO1 (µC port GPIO2_23 at V3)

48B X_OWIRE -

VDD_3V3 Hardware Introspection Interface

for internal use only

49B GND -

- Ground 0V

50B X_BOOT1 I

VDD_3V3 Boot-Mode Input 1

Table 3: Pin-out of the phyCARD-Connector X2

Page 30

phyCARD-M [PCA-A-M1-xxx]

3 Jumpers

For configuration purposes, the phyCARD-M has 25 solder jumpers, some of which have been installed prior to delivery. Figure 5 illustrates the numbering of the solder jumper pads, while Figure 6 and Figure 7 indicate the location of the solder jumpers on the board. 12 solder jumpers are located on the top side of the module (opposite side of connectors) and 12 solder jumpers are located on the bottom side of the module (connector side). Table 4 below provides a functional summary of the solder jumpers which can be changed to adapt the phyCARD-M to your needs. It shows their default positions, and possible alternative positions and functions. A detailed description of each solder jumper can be found in the applicable chapter listed in the table.

Note:

Jumpers not listed should not be changed as they are installed with regard to the configuration of the phyCARD-M.

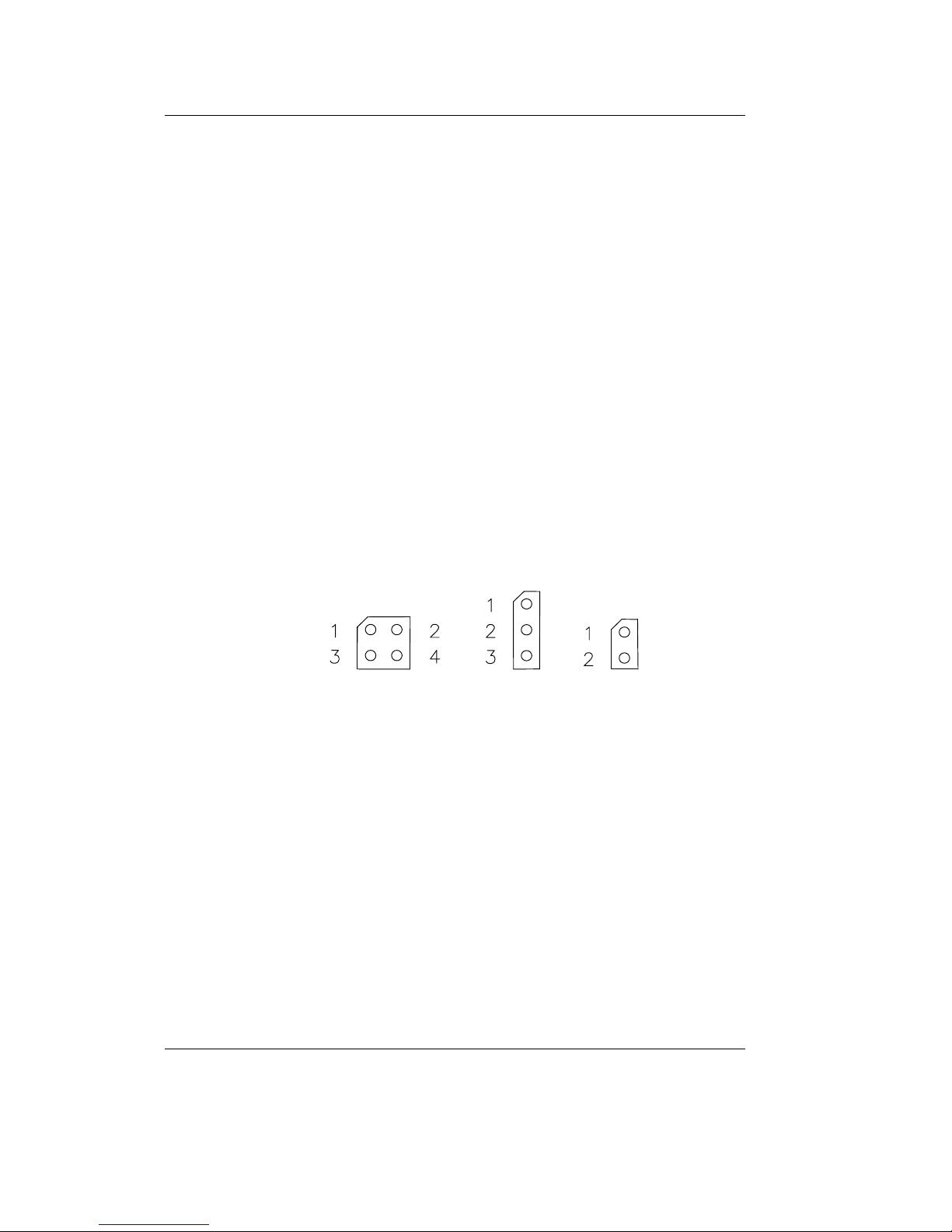

Figure 5: Typical jumper pad numbering scheme

e.g.: e.g.:

If manual jumper modification is required please ensure that the board as well as surrounding components and sockets remain undamaged while de-soldering. Overheating the board can cause the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to heat and loosen the bonds.

22 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 31

Jumpers

Please pay special attention to the "TYPE" column to ensure you are using the correct type of jumper (0 Ohms, 10k Ohms, etc…). The jumpers are either 0805 package or 0402 package with a 1/8W or better power rating.

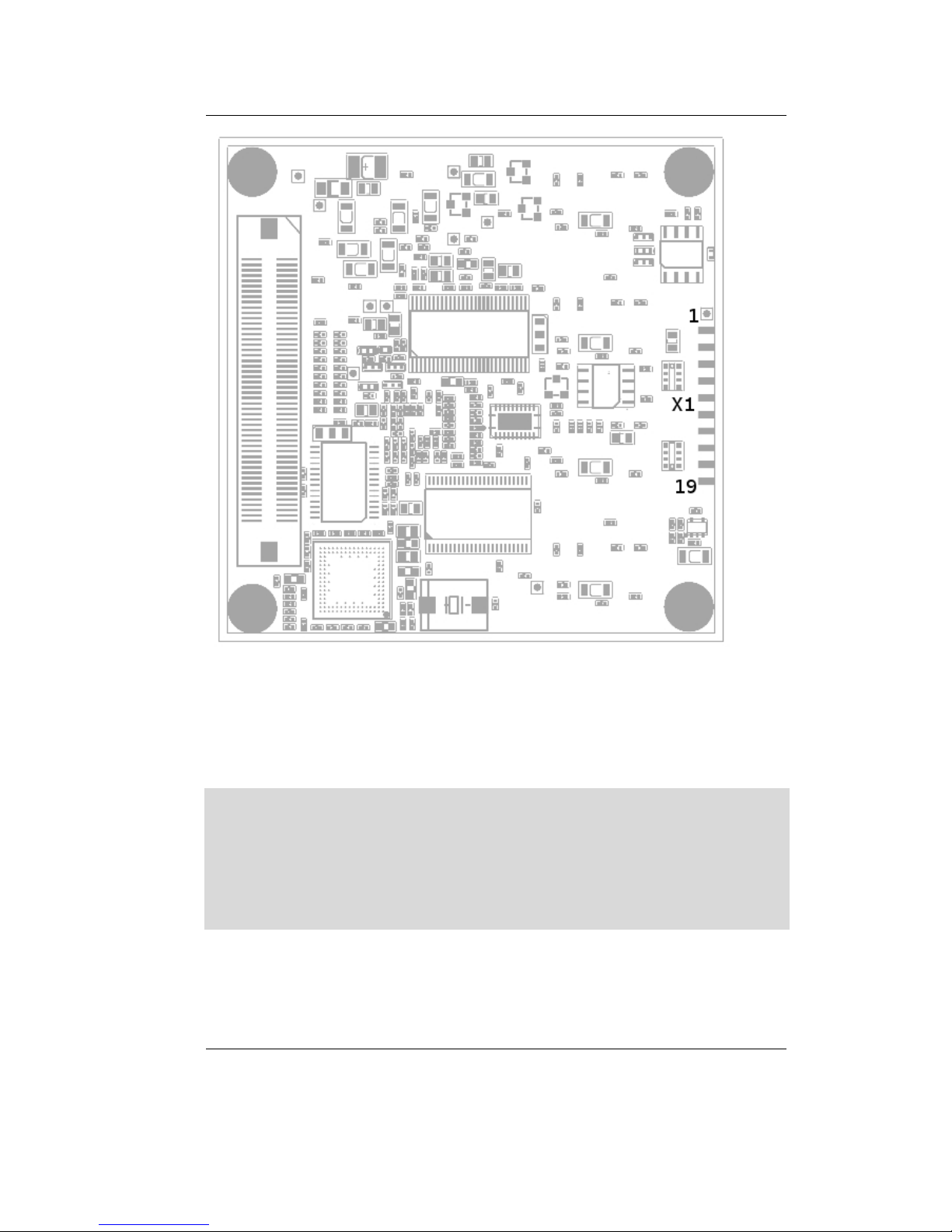

Figure 6: Jumper locations (top view)

Page 32

phyCARD-M [PCA-A-M1-xxx]

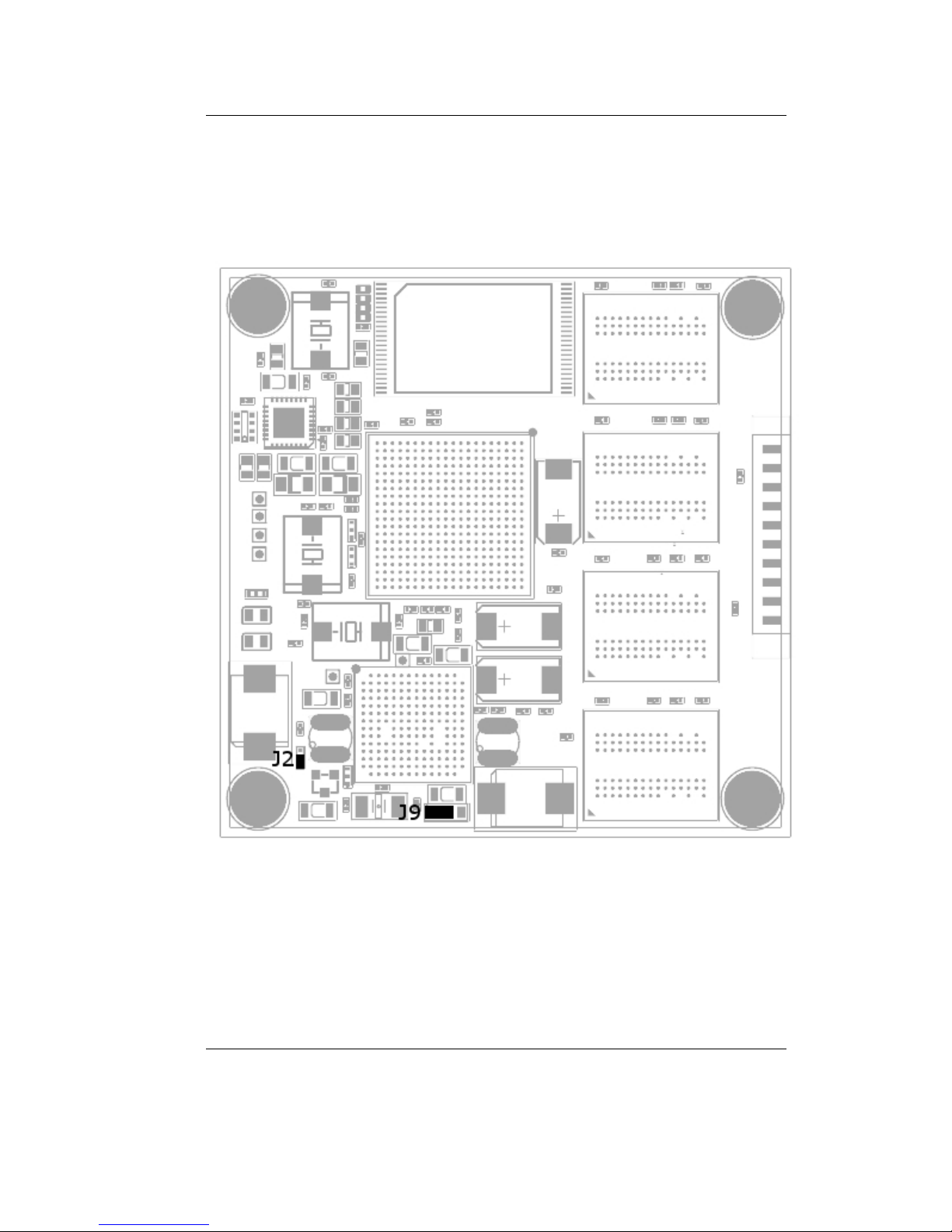

Figure 7: Jumper locations (bottom view)

24 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 33

Jumpers

The jumpers (J = solder jumper) have the following functions:

Jumper Description Type Chapter J4, J1, J3

J4, J1 and J3 define the slave addresses (A0 toA2) of the serial memory U6 on the I

C2 bus. In the high-

nibble of the address, I

C memory devices have the slave ID 0xA. The low-nibble is build from A2, A1, A0, and the R/W bit. .

(0402

)

all 2+3

A0 = 0, A1 = 1, A2= 0, => 0x4 / 0x5 (W/R) are selected as the low-nibble of the EEPROM's address

other

settings

please refer to Table 11 to find alternative addresses resulting from other combinations of jumpers J1, J3, and J4

7.3.1

J16

J16 connects pin 7 of the serial memory at U6 to GND. On many memory devices pin 7 enables/disables the activation of a write protect function. It is not guaranteed that the standard serial memory populating the phyCARD-M will have this write protection function.

Please refer to the corresponding memory data sheet for more detailed information.

(0402

)

open

EEPROM U6 is write protected

closed

EEPROM U6 is not write protected

7.3.2

J2 selects, if the fuse voltage VDD_FUSE is available only if the primary voltage VDD_3V3_IN is supplied, or if it is also available when only VBAT is supplied.

(0402)

1+2 Fuse voltage VDD_FUSE is not available

if VBAT is the only voltage source

2+3 Fuse voltage VDD_Fuse is also available

when VBAT is the only voltage source

J9 selects, if the 2.775V voltage rail is available only if the primary voltage VDD_3V3_IN is supplied, or if it is also available when only VBAT is supplied.

(0805

)

1+2 2.775V voltage rail is not available if

VBAT is the only voltage source

2+3 2.775V voltage rail is also available when

VBAT is the only voltage source

Page 34

phyCARD-M [PCA-A-M1-xxx]

26 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Jumper Description Type Chapter J13

J13 allows to attach a programming voltage to the IC Identification Module (IIM)

for programming and/or overriding identification and control information stored in on-chip fuse elements

(0402

)

open

VDD_FUSE not connected

closed

Only close Jumper when burning of fuses is required

7.3.2

J21

J21 selects rising, or falling edge strobe for the LVDS Deserializer at U5 used for the display connectivity of the phyCARD-M

10k

(0805

)

1+2

rising edge strobe used for the LVDS camera signals

2+3

fall

ing edge strobe used for the LVDS

camera signals

13.1

J22

J22 selects rising, or falling edge strobe for the LVDS Transmitter at U4 used for the display connectivity of the phyCARD-M.

10k

(0805

)

1+2

falling edge strobe used for the LVDS display signals

2+3

ris

ing edge strobe used for the LVDS

display signals

12.1

Table 4: Jumper settings

Page 35

Power

4 Power

The phyCARD-M operates off of a single power supply voltage.

The following sections of this chapter discuss the primary power pins on the phyCARD-Connector X2 in detail.

4.1 Primary System Power (VCC_3V3)

The phyCARD-M operates off of a primary voltage supply with a nominal value of +3.3V. On-board switching regulators generate the

1.375V, 1.5V, 1.8V, 2.775V, and 3.3V voltage supplies required by the i.MX35 MCU and on-board components from the primary 3.3V supplied to the SBC.

For proper operation the phyCARD-M must be supplied with a voltage source of 3.3V ±5 % with 600 mA load at the VCC pins on the phyCARD-Connector X2.

VDD_3V3_IN: X2 1A, 2A, 3A, 1B, 2B, 3B

Connect all +3.3V VCC input pins to your power supply and at least the matching number of GND pins.

Corresponding GND: X2 4A, 8A, 13A, 4B, 8B, 13B

Please refer to section 2 for information on additional GND Pins located at the phyCARD-Connector X2.

Caution:

As a general design rule we recommend connecting all GND pins neighboring signals which are being used in the application circuitry. For maximum EMI performance all GND pins should be connected to a solid ground plane.

Page 36

phyCARD-M [PCA-A-M1-xxx]

28 © PHYTEC Messtechnik GmbH 2010 L-750e_1

4.2 Standby Voltage (VBAT)

For applications requiring a standby mode a secondary voltage source of 3.3V can be attached to the phyCARD-M at pin X2B6. This voltage source is supplying the core and on-chip peripherals of the i.MX35 (e.g. EMI, PLL, etc.), as well as the SDRAM and the EEPROM at U6 while the primary system power (VCC_3V3) is removed. Applications not requiring a standby mode can connect the VBAT pin to the primary system power supply (VCC = 3.3V), or can leave it open.

4.3 On-board Voltage Regulator (U1)

The phyCARD-M provides an on-board switching regulator (U1) to source the five different voltages (1.375V, 1.5V, 1.8V, 2.775V, and

3.3V) required by the processor and on-board components. Figure 8 presents a graphical depiction of the powering scheme.

The switching regulator has two input voltage rails as can be seen in Figure 8. 3V3 and 3V3 Backup. 3V3 is supplied only from the primary voltage input pins VDD_3V3_IN of the phyCARD-M, whereas 3V3 Backup is supplied from the primary voltage input pins VDD_3V3_IN and the secondary voltage input pin VBAT. The following list summarizes the relation between the different voltage rails and the devices on the phyCARD-M:

External voltages: VCC_3V3 and VBAT (optional)

• VDD_3V3_IN: 3V3 Voltage Regulator, Reset Controller

• VBAT: 3V3 BACKUP Voltage Regulator

Page 37

Power

Internally generated voltages: 1V375, 1V5, 1V8 and 2V775

• 1V375 i.MX35 Core power supply

• 1V5 on-chip PLLs

• 1V8 NVCC_EMI of the i.MX35, DDR2 SDRAM

• 2V775 internal I²C-Bus, I

C EEPROM

3V3 Backup *

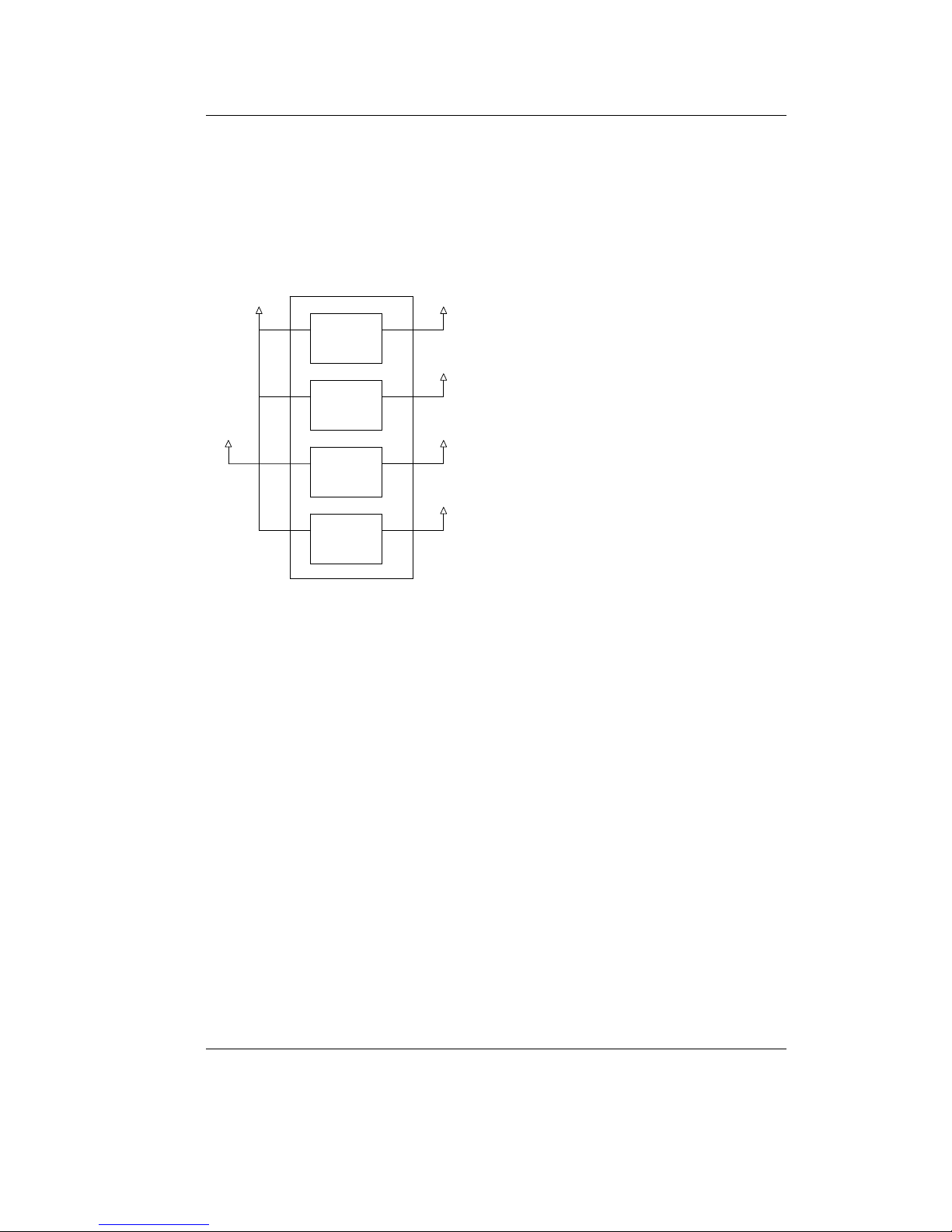

Figure 8: Power Supply Diagram

3V3 **

MC13892

DC/DC

Converte

DC/DC

Converte

LDO

1,5V

2,775V

1,8V

1,375V

i.MX35 Core

On-chip PLLs

internal I²C-Bus, I²C EEPROM

VCC_EMI of the i.MX35

DDR2 SDRAM

*: supplied from VDD_3V3_IN and VBAT

**: supplied from VDD_3V3_IN

LDO

Page 38

phyCARD-M [PCA-A-M1-xxx]

30 © PHYTEC Messtechnik GmbH 2010 L-750e_1

4.4 Supply Voltage for external Logic

The voltage level of the phyCARD's logic circuitry is VDD_3V3 (3.3V) and equals the supply voltage of the phyCARD-M. Thus connecting external devices to the phyCARD-M does not require any special precautions. This means that external devices could be supplied from the same power source as the phyCARD-M. Nonetheless we recommend to supply external devices with the voltage (VCC_Logic) brought out at pins X2A5 and X2B5 of the phyCARD-Connector and to use level shifters supplied with this voltage at one of the supply rails if you want to keep your application compatible to other phyCARDs with a different signal level. This means that use of level shifters supplied with VCC_Logic allows converting the signals according to the needs on the custom target hardware independently from the phyCARD mounted. Alternatively signals can be connected to an open drain circuitry with a pull-up resistor attached to VCC_Logic.

Page 39

Power Management

5 Power Management

The phyCARD-M was designed to support applications requiring a power management. Three pins of the X-Arc bus are designated for this purpose. nPower_off and nSuspend_to_RAM are output pins which can be used to indicate the power status of the phyCARD-M, whereas X_WAKEUP is an input pin to apply a wake up signal to the phyCARD-M.

All three pins lead to GPIOs of the i.MX. Thus their functionality can be programmed to your needs. In addition the X_WKUP input is connected to the PWRON2 input of the voltage regulator to allow implementing a power management by programming the power management IC.

The following table shows the location of the power management pins on the phyCARD-Connector and the corresponding GPIOs of the i.MX35.

Pin # Signal I/O SL Description X2A48 X_WKUP I

VDD_3V3 _BACKUP

Wakeup Interrupt Input (µC port GPIO3_0 (at R4) and PMIC PWRON2 input)

X2B26 nSuspend_to_RAM OC

VDD_3V3 _BACKUP

Suspend to RAM Open Collector Output (µC port GPIO2_29 (at V2))

X2B29 nPower_off OC

VDD_3V3 _BACKUP

Power Off Open Collector Output (µC port GPIO2_30 (at T5))

Table 5: Power Management Pins

With the two output signals nPower_off (pin X2B29) and nSuspend_to_RAM (pin X2B26) three different power states can be defined.

Page 40

phyCARD-M [PCA-A-M1-xxx]

32 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Power State

Signal

Power On Standby Off

nSuspend_to_RAM

High Low X

nPower_off

High High Low

VDD_3V3_IN

On Off Off

VBAT

X On Off

X=don’t care

Table 6: Power States

Please refer to the chapter "Power Management" in the phyCARD Design-In Guide for more information about the implementation of the power management into your design.

Caution:

According to the specification for the phyCARD family writing custom software to utilize pins nPower_off and nSuspend_to_RAM requires them to be configured as Open Collector Output.

Use of the power management features of the PMIC at U1 allows for a higher granularity in control of the power consumption. To implement power management with the PMIC it can be programmed via an I

interface. The MC13892 can be accessed at I

C address 0x10 / 0x11 (write/read). Please refer to the MC13892 User's Guide for more information.

As a third option jumpers J2 and J9 allow to switch off devices on the phyCARD-M, if VBAT is the only supply voltage.

Page 41

Power Management

Jumper Description Type Chapter J2

J2 selects, if the fuse voltage VDD_FUSE is available only if the primary voltage VDD_3V3_IN is supplied, or if it is also available when only VBAT is supplied.

(0402)

1+2 Fuse voltage VDD_FUSE is not available if

VBAT is the only voltage source

2+3 Fuse voltage VDD_FUSE is also available when

VBAT is the only voltage source

J9 selects, if the 2.775V voltage rail is available only if the primary voltage VDD_3V3_IN is supplied, or if it is also available when only VBAT is supplied.

(0805)

1+2 2.775V voltage rail is not available if VBAT is

the only voltage source

2+3 2.775V voltage rail is also available when VBAT

is the only voltage source

Table 7: Power management jumpers J2 and J9

Page 42

phyCARD-M [PCA-A-M1-xxx]

34 © PHYTEC Messtechnik GmbH 2010 L-750e_1

6 System Configuration and Booting

Although most features of the i.MX35 microcontroller are configured and/or programmed during the initialization routine, other features, which impact program execution, must be configured prior to initialization.

The system start-up configuration includes:

• Boot device select configuration (boot type)

• Memory configuration

• USB PHY configuration, etc.

The i.MX35 processor always begins fetching instruction from the internal bootstrap ROM, sync flash or CS0 space. The operational system boot mode of the i.MX35 processor is determined by the configuration of the two external input pins, BMOD[1:0] during the reset cycle. The settings of these pins control where the system is boot from. They are accessible via boot pins X_BOOT[1:0] (X2B50 and X2A50) of the X-Arc bus. These boot modes information are registered during the system reset.

The following table shows the different boot modes, which can be selected by configuring the two boot pins.

Page 43

System Configuration and Booting

phyCARD config pins X_BOOT[1:0]

Boot Mode Selection BMOD[1:0]

Boot Mode/ Device

Boot Details

00 01 Startup

mode

Mode for debug and/or development purpose using JTAG-capable development tools.

01 00 Internal

Boot

10 11 Serial boot

loader r

Load and execute code, via serial devices; e.g. the ATK Toolkit from Freescale

11 10 External

(direct) Boot

Boot from NAND Flash populated on the phyCARD-M

Table 8: Boot Modes of i.MX35 module

Note:

To conform to the phyCARD specification, BMOD0 is the inverse of the input level of X_BOOT0.

Because of pull-up resistors located on the phyCARD-M the default boot mode is External Boot which allows to boot from NAND Flash, if the boot pins X_BOOT[1:0] are left open. In other words, to boot from NAND Flash no further settings at X_BOOT[1:0] are necessary.

To enter other boot modes a low level must be applied to X_BOOT[0] (X2A50) and/or X_BOOT[1] (X2B50) according to Table 8.

Additional boot configuration settings are obtained either from programmable

eFuses or by contacts sampled at POR. On the phyCARD-M the boot configuration is set up by 10k pull-up/ pull-down resistors which are tied to the corresponding CSI-Signals. Table 9 lists the additional configuration settings and the default values.

Page 44

phyCARD-M [PCA-A-M1-xxx]

36 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Signal Name eFuse Definition Settings X_CSI_D8

BT_MEM_CTRL[0]

X_CSI_D9 BT_MEM_CTRL[1]

Boot memory control type

00 WEIM

01 NAND Flash

10 ATA HDD 11 Expansion Device (SD, MMC…)

X_CSI_D10

BT_MEM_TYPE[0]

X_CSI_D11 BT_MEM_TYPE[1]

Boot memory type

BT_MEM_CTRL=01:

00 3 address cycles

01 4 address cycles 10 5 address cycles 11 6 address cycles

BT_MEM_CTRL=other: See i.MX35 Reference Manual

X_CSI_D12

BT_PAGE_SIZE[0]

X_CSI_D13 BT_PAGE_SIZE[1]

NAND Flash page size

00 512 bytes

01 2Kbytes

10 4Kbytes 11 Reserved

X_CSI_D14 BT_ECC_SEL Defines

4- or 8-bit ECC

0 4-bit ECC

1 8-bit ECC

X_CSI_D15

BT_USB_SRC[0]

X_CSI_HSYNC BT_USB_SRC[1]

USB PHY selection

00 UTMI PHY

01 ULPI PHY 10 Serial PHY: ATLAS 11 Serial PHY: ISP1301

X_CSI_VSYNC BT_BUS_WIDTH Bus width BT_MEM_CTRL=01:

0 8 bit

1 16 bit

BT_MEM_CTRL=other: See i.MX35 Reference Manual

Table 9: Further Boot Configuration Pins1

: Defau lts for 128MB NAND Flash are in bold blue text

Page 45

System Configuration and Booting

The standard phyCARD-M module with 128MB NAND Flash comes with a boot configuration of ‘0001010001’, so the system will boot from the 8-bit NAND Flash at CS0.

For further information please see the i.MX35 Reference Manual.

Page 46

phyCARD-M [PCA-A-M1-xxx]

38 © PHYTEC Messtechnik GmbH 2010 L-750e_1

7 System Memory

The phyCARD-M provides three types of on-board memory:

• DDR2-SDRAM: 64MByte (up to 256MByte)

• NAND Flash: 128MByte (up to 1G Byte)

• I²C-EEPROM: 4KB (up to 32KByte)

The following sections of this chapter detail each memory type used on the phyCARD-M.

7.1 DDR2-SDRAM (U8 - U11)

The RAM memory of the phyCARD-M in comprised of up to four 16bit wide DDR2-SDRAM chips at U8 - U11. They are connected to the special SDRAM interface of the i.MX35 processor, configured for 32bit access, and operating at the maximum frequency of 133MHz.

The phyCARD-M can use one, or both of the DDR2-SDRAM banks on the i.MX35 depending on the SDRAM population density options.

Each RAM bank is comprised of two 16-bit wide DDR2-SDRAM chips, configured for 32-bit access, and operating at 133MHz. In lower density configurations, U9 and U11 populate the module and are accessed via SDRAM memory bank 0 using chip select signal /CSD0 starting at 0x8000 0000. In higher density configurations, U8 and U10 are also populated and are accessed via SDRAM memory bank 1 using chip select signal /CSD1 starting at 0x9000 0000.

Typically the DDR2-SDRAM initialization is performed by a boot loader or operating system following a power-on reset and must not be changed at a later point by any application code. When writing custom code independent of an operating system or boot loader, SDRAM must be initialized by accessing the appropriate SDRAM configuration registers on the i.MX35 controller. Refer to the i.MX35 Reference Manual for accessing and configuring these registers.

Page 47

System Memory

7.2 NAND Flash Memory (U13)

Use of Flash as non-volatile memory on the phyCARD-M provides an easily reprogrammable means of code storage. The following Flash devices can be used on the phyCARD-M:

Manufacturer NAND Flash P/N Density

(MByte)

Samsung K9F1G08UOC 128

Table 10: Compatible NAND Flash devices

Additionally, any parts that are footprint (48-TSOP) and functionally compatible with the NAND Flash devices listed above may also be used with the phyCARD-M.

These Flash devices are programmable with 3.3 V. No dedicated programming voltage is required.

As of the printing of this manual these NAND Flash devices generally have a life expectancy of at least 100,000 erase/program cycles and a data retention rate of 10 years.

The NAND Flash memory is connected to the NAND Flash Controller (NFC).

7.3 I²C EEPROM (U6)

The phyCARD-M is populated with an ST 24W32C1 non-volatile 4KByte EEPROM with an I²C interface at U6. This memory can be used to store configuration data or other general purpose data. This device is accessed through I²C port 1 on the i.MX35. The control registers for I²C port 1 are mapped between addresses 0x43F8 0000 and 0x43F8 3FFF. Please see the i.MX35 Reference Manual for detailed information on the registers.

: See the manufacturer’s data sheet for interfacing and operation.

Page 48

phyCARD-M [PCA-A-M1-xxx]

40 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Three solder jumpers are provided to set the lower address bits: J3, J4 and J5. Refer to section 7.3.1 for details on setting these jumpers.

Write protection to the device is accomplished via jumper J2. Refer to section 7.3.2 for further details on setting this jumper.

7.3.1 Setting the EEPROM Lower Address Bits (J1, J3,

J4)

The 4KB I²C EEPROM populating U6 on the phyCARD-M module has the capability of configuring the lower address bits A0, A1, and A2. The four upper address bits of the device are fixed at ‘1010’ (see ST 24W32C data sheet). The remaining three lower address bits of the seven bit I²C device address are configurable using jumpers J1, J3 and J4. J4 sets address bit A0, J1 address bit A1, and J3 address bit A2.

Table 11 below shows the resulting seven bit I²C device address for the eight possible jumper configurations.

U6 I²C Device Address J4 J1 J3

1010 010 2 + 3 2 + 3 2 + 3

1010 011 2 + 3 2 + 3 1 + 2 1010 000 2 + 3 1 + 2 2 + 3 1010 001 2 + 3 1 + 2 1 + 2 1010 110 1 + 2 2 + 3 2 + 3 1010 111 1 + 2 2 + 3 1 + 2 1010 100 1 + 2 1 + 2 2 + 3 1010 101 1 + 2 1 + 2 1 + 2

Table 11: U6 EEPROM I²C address via J1, J3, and J41

: Defau lts are in bold blue text

Page 49

System Memory

7.3.2 EEPROM Write Protection Control (J16)

Jumper J16 controls write access to the EEPROM (U6) device. Closing this jumper allows write access to the device, while removing this jumper will cause the EEPROM to enter write protect mode, thereby disabling write access to the device.

The following configurations are possible:

EEPROM Write Protection State J16

Write access allowed closed

Write protected open

Table 12: EEPROM write protection states via J161

7.4 Memory Model

There is no special address decoding device on the phyCARD-M, which means that the memory model is given according to the memory mapping of the i.MX35. Please refer to the i.MX35 Reference Manual for more information on the memory mapping.

: Defau lts are in bold blue text

Page 50

phyCARD-M [PCA-A-M1-xxx]

42 © PHYTEC Messtechnik GmbH 2010 L-750e_1

8 SD / MMC Card Interfaces

The X-Arc bus features an SD / MMC Card interface. On the phyCARD-M the interface signals extend from the controllers first Enhanced Secure Digital Host Controller (SDIO1) to the phyCARDConnector. Table 13 shows the location of the different interface signals on the phyCARD-Connector. The Secure Digital Host Controller is fully compatible with the SD Memory Card Specification

2.0 and SD I/O Specification 2.0 with 1 and 4 channel(s) and supports data rates from 25 Mbps to 200 Mbps (refer to the i.MX35 Reference Manual for more information).

Due to compatibility reasons a card detect signal (X_SDIO_CD) is added to the SD / MMC Card Interface. This signal connects to port GPIO3_1 of the i.MX35.

Pin # Signal I/O SL Description X2A31 X_SD1_DAT

I/O

VDD_3V3 SD/MMC Data line both in 1-

bit and 4-bit mode

X2A32 X_SD1_DAT

I/O

VDD_3V3 SD/MMC Data line both in 1-

bit and 4-bit mode

X2A33 X_SD1_CLK O

VDD_3V3 SD/MMC Clock for

MMC/SD/SDIO

X2B31 X_SD1_DAT

I/O

VDD_3V3 SD/MMC Data line both in 1-

bit and 4-bit mode

X2B32 X_SD1_DAT

I/O

VDD_3V3 SD/MMC Data line both in 1-

bit and 4-bit mode

X2B33 X_SD1_CMD O

VDD_3V3 SD/MMC Command for

MMC/SD/SDIO

X2B46 X_SDIO_CD I

VDD_3V3 SD/MMC Card Detect for

MMC/SD/SDIO

Table 13: Location of SD/ MMC Card interface signals

Page 51

SD / MMC Card Interfaces

Note:

The signal level of the SD / MMC card interface is 3.3V. Thus integration of an SD / MMC card slot on custom target hardware does not require any special precautions. Nonetheless use of level shifters supplied with the voltage at pins X2A5 and X2B5 at one of the supply rails is necessary if you want to keep your application compatible to other phyCARDs with a different signal level.

Please refer to the chapter "SD / MMC" in the phyCARD Design-In Guide for more information about connecting an SD / MMC Card slot to the phyCARD-M.

Page 52

phyCARD-M [PCA-A-M1-xxx]

44 © PHYTEC Messtechnik GmbH 2010 L-750e_1

9 Serial Interfaces

The phyCARD-M provides seven serial interfaces some of which are equipped with a transceiver to allow direct connection to external devices:

1. High speed UART (TTL, derived from UART1 of the i.MX35)

with up to 4.125Mbit/s and hardware flow control (RTS and CTS signals)

2. High speed USB OTG interface extend from the i.MX35 USB

OTG interface

3. Full speed USB HOST interface using the i.MX35 's internal USB

Host interface, or optional high speed USB HOST interface derived from an external USB HOST controller at U16.

4. Auto-MDIX enabled 10/100 Ethernet PHY supporting the

i.MX35 Ethernet MAC

5. I

C interface (derived from third I2C port of the i.MX35)

6. Serial Peripheral Interface (SPI) interface (extended from the first

SPI module of the i.MX35)

7. Synchronous Serial Interface (SSI) with AC97 support

(originating from the synchronous serial interface of the i.MX35)

The following sections of this chapter detail each of these serial interfaces and any applicable configuration jumpers.

Page 53

Serial Interfaces

Caution:

The signal level of some of the serial interfaces is VDD_3V3_IN, which is 3.3V and therefore identical with the voltage level of the primary supply voltage of the phyCARD-M. Therefore special precautions are not necessary when connecting to these interfaces. Nonetheless if you want to keep your application compatible with other phyCARDs and thus being able to change your application's processing power, level shifters supplied with the output voltage at pins X2A5 and X2B5 at one of the supply rails should be used when connecting these interfaces to external devices. Unlike on the phyCARD-M the voltage level of interface signals is different from the primary supply voltage on other phyCARDs. Please pay special attention to the Signal Level (SL) column in the following tables.

Please refer to the phyCARD Design-In Guide for more information about using the serial interfaces of the phyCARD-M in customer applications.

9.1 Universal Asynchronous Interface

The phyCARD-M provides a high speed universal asynchronous interface with up to 4 Mbit/s and hardware flow control (RTS and CTS signals). The following table shows the location of the signals on the phyCARD- Connector.

PIN # SIGNAL I/O SL DESCRIPTION

X2A39 X_UART1_T

VDD_3V3_IN Serial transmit signal UART 1

X2A40 X_UART1_R

VDD_3V3_IN Request to send UART 1

X2B39 X_UART1_R

VDD_3V3_IN Serial data receive signal

UART 1

X2B40 X_UART1_C

VDD_3V3_IN Clear to send UART 1

Table 14: Location of the UART signals

Page 54

phyCARD-M [PCA-A-M1-xxx]

46 © PHYTEC Messtechnik GmbH 2010 L-750e_1

The signals extend from UART1 of the i.MX35 directly to the phyCARD-Connector without conversion to RS-232 level. External RS-232 transceivers must be attached by the user if RS-232 levels are required.

9.2 USB-OTG Interface

The i.MX35 features an USB 2.0 OTG (up to 480 Mbps) controller with internal high-speed OTG PHY. The signals of the high-speed OTG PHY extend directly to the phyCARD-Connector X2. An external USB Standard-A (for USB host), USB Standard-B (for USB device), or USB mini-AB (for USB OTG) connector is all that is needed to interface the phyCARD-M USB OTG functionality. The applicable interface signals can be found on the phyCARD-Connector as shown in Table 15.

PIN # SIGNAL I/O SL DESCRIPTION

X2A23 X_USBOTG_PWR O

VDD_3V3 USB-OTG Power switch

output open drain

X2A24 X_USBOTG_OC I

VDD_3V3 USB-OTG over current input

signal

X2A26 X_USBPHY1_VB

5V USB VBUS Voltage

X2A27 X_USBPHY1_DM I/O

USB transceiver cable

interface, D-

X2A28 X_USBPHY1_DP I/O

USB transceiver cable interface, D+

X2A29 X_USBPHY1_UID I

USB on the go transceiver cable ID resistor connection

Table 15: Location of the USB-OTG signals

Page 55

Serial Interfaces

9.3 USB-Host Interface

The i.MX35 has an internal USB 2.0 Host with internal full-speed PHY. The phyCARD-M is optionally populated with an NXP ISP1760 High-Speed USB Host controller at U16 to also allow highspeed USB HOST connectivity. Jumpers J18 - J20 and J25 select either the internal PHY of the i.MX35 or the external USB HOST controller at U16. They are installed prior to delivery and must not be changed. An external USB Standard-A (for USB host connector is all that is needed to interface the phyCARD-M USB Host functionality. The applicable interface signals (D+/D-/ /PSW/FAULT) can be found on the phyCARD-Connector.

PIN # SIGNAL I/O SL DESCRIPTION

X2B23 X_USB_PRW2 O

VDD_3V3 USB-HOST Power switch

output open drain

X2B24 X_USB_OC2 I

VDD_3V3 USB-HOST over current

input signal

X2B27 X_USB_DM2 I/O

USB HOST transceiver

cable interface, D-

X2B28 X_USB_DP2 I/O

USB HOST transceiver cable interface, D+

Table 16: Location of the USB-Host signals

Page 56

phyCARD-M [PCA-A-M1-xxx]

48 © PHYTEC Messtechnik GmbH 2010 L-750e_1

9.4 Ethernet Interface

Connection of the phyCARD-M to the world wide web or a local area network (LAN) is possible using the integrated FEC (Fast Ethernet Controller) of the i.MX35. The FEC operates with a data transmission speed of 10 or 100 Mbit/s.

9.4.1 PHY Physical Layer Transceiver (U7)

With a physical layer transceiver mounted at U7 the phyCARD-M has been designed for use in 10Base-T and 100Base-T networks. The 10/100Base-T interface with its LED signals extends to phyCARDConnector X2.

PIN # SIGNAL I/O SL DESCRIPTION

X2A19 X_ETH_SPEED O

VDD_3V3 Ethernet Speed Indicator (Open

Drain)

X2A20 X_ETH_TX+ O (I)

V DD_3V3 Transmit positive output (normal)

Receive positive input (reversed)

X2A21 X_ETH_TX- O (I)

V DD_3V3 Transmit negative output

(normal) Receive negative input (reversed)

X2B19 X_ETH_LINK O

V DD_3V3 Ethernet Speed Indicator (Open

Drain)

X2B20 X_ETH_RX+ I (O)

V DD_3V3 Receive positive input (normal)

Transmit positive output (reversed)

X2B21 X_ETH_RX- I (O)

V DD_3V3 Receive negative input (normal)

Transmit negative output (reversed)

Table 17: Location of the Ethernet signals

The Ethernet PHY provides MII/RMII/SMII interfaces to transmit and receive data. In addition the PHY also supports HP Auto-MDIX technology, eliminating the need for the consideration of a direct connect LAN cable, or a cross-over patch cable. It detects the TX and RX pins of the connected device and automatically configures the

Page 57

Serial Interfaces

PHY TX and RX pins accordingly. The Ethernet PHY also features LinkMD cable diagnostics, which allows detection of common cabling plant problems such as open and short circuits.

The physical memory area for the Fast Ethernet controller is defined in Table 18.

Address Function

0x5003 8000 – 0x5003 81FF Control/Status Registers 0x5003 8200 – 0x5003 83FF MIB Block Counters

Table 18: Fast Ethernet controller memory map

In order to connect the module to an existing 10/100Base-T network some external circuitry is required. The required 49.9 Ohm +/-1% termination resistors on the analog signals (ETH_RX±, ETH_TX±) are already populated on the module. Connection to an external Ethernet magnetics should be done using very short signal traces. The TPI+/TPI- and TPO+/TPO- signals should be routed as 100 Ohm differential pairs. The same applies for the signal lines after the transformer circuit. The carrier board layout should avoid any other signal lines crossing the Ethernet signals.

An example for the external circuitry is shown in the phyCARD's Design Guide.

If you are using the applicable Carrier Board for the phyCARD-M (part number PBA-A-01), the external circuitry mentioned above is already integrated on the board (refer to section 17.3.4).

Caution!

Please see the datasheet of the Ethernet PHY as well as the phyCARD's Design Guide when designing the Ethernet transformer circuitry.

Page 58

phyCARD-M [PCA-A-M1-xxx]

50 © PHYTEC Messtechnik GmbH 2010 L-750e_1

9.4.2 MAC Address

In a computer network such as a local area network (LAN), the MAC (Media Access Control) address is a unique computer hardware number. For a connection to the Internet, a table is used to convert the assigned IP number to the hardware's MAC address.

In order to guarantee that the MAC address is unique, all addresses are managed in a central location. PHYTEC has acquired a pool of MAC addresses. The MAC address of the phyCARD-M is located on the bar code sticker attached to the module. This number is a 12-digit HEX value.

9.5 I2C Interface

The Inter-Integrated Circuit (I2C) interface is a two-wire, bidirectional serial bus that provides a simple and efficient method for data exchange among devices. The i.MX35 contains three identical and independent I

C modules. The interface of the third module is available on the phyCARD-Connector., whereas the first module connects to the on-board EEPROM (refer to section 7.3) and the Power Management IC at U1 (refer to section 5). The following table lists the I

C port on the phyCARD-Connector:

PIN # SIGNAL I/O SL DESCRIPTION

X2A17 X_I2C3_SCL O

VDD_3V3 I2C Clock Output

X2B17 X_I2C3_SDA I/O

VDD_3V3 I2C Data

Table 19: I2C Interface Signal Location

Page 59

Serial Interfaces

9.6 SPI Interface

The Serial Peripheral Interface (SPI) interface is a six-wire, bidirectional serial bus that provides a simple and efficient method for data exchange among devices. The i.MX35 contains two SPI modules. The interface signals of the first module (CSPI1) are made available on the phyCARD-Connector. This module is Master/Slave configurable. Due to the specification of the X-Arc bus, only two of the three chips-selects are available on the phyCARD-Connector. The following table lists the SPI signals on the phyCARD-Connector:

PIN # SIGNAL I/O SL DESCRIPTION

X2A35 X_CSPI1_SS0 O

VDD_3V3 SPI 1 Chip select 0

X2B35 X_CSPI1_SS1 O

VDD_3V3 SPI 1 Chip select 1

X2A36 X_CSPI1_SPI_R

VDD_3V3 SPI 1 SPI data ready in Master

mode

X2A37 X_CSPI1_SCLK O

VDD_3V3

SPI 1 clock

X2B36 X_CSPI1_MOSI I/O

VDD_3V3 SPI 1 Master data out; slave

data in

X2B37 X_CSPI1_MISO I/O

VDD_3V3

SPI 1 Master data in; slave data out

Table 20: SPI Interface Signal Location

9.7 Synchronous Serial Interface (SSI)

The Synchronous Serial Interface (SSI) interface of the phyCARD-M is a full-duplex, serial port that allows to communicate with a variety of serial devices, such as standard codecs, digital signal processors (DSPs), microprocessors, peripherals, and popular industry audio codecs that implement the inter-IC sound bus standard (I

S) and Intel

AC97 standard.

Page 60

phyCARD-M [PCA-A-M1-xxx]

52 © PHYTEC Messtechnik GmbH 2010 L-750e_1

With reference to the X-Arc bus specification, the main purpose of this interface is to connect to an external codec, such as AC97. In AC97 mode the clock and the frame sync signal are synchronous for the receive and transmit sections of the i.MX35 SSI module. Thus only four signals extend from the i.MX35 Digital Audio MUX (AUDMUX) to the phyCARD-Connector (X_STXD4, X_SRXD4, X_SCK4, X_STXFS4). X_AC97_INT and X_AC97_nRESET are two additional pins assisting the functionality of this interface. X_AC97_INT is used as input and output. As output it signals which codec is supported by the phyCARD. Use of this pin as an input enables to attach an external interrupt to port GPIO2_1 (at W14). X_AC97_nRESET is connected to port GPIO3_2 (at R5) of the i.MX35 allowing to perform a software reset for the device attached to the interface. Please also read the phyCARD Design-In Guide for more information about how to use the AC97 interface.

Pin # Signal I/O SL Description X2A42 X_AC97_INT I/O

VDD_3V3 AC97 Interrupt Input

X2A43 X_STXD4 O

VDD_3V3 AC97 Transmit Output

X2A44 X_SRXD4 I

VDD_3V3 AC97 Receive Input

X2B42 X_SCK4 I

VDD_3V3 AC97 Clock

X2B43 X_STXFS4 O

VDD_3V3 AC97 SYNC

X2B44 X_AC97_nRESET O

VDD_3V3 AC97 Reset

Table 21: SSI Interface Signal Location

Page 61

General Purpose I/Os

10 General Purpose I/Os

The X-Arc bus provides 3 GPIO / IRQ signals. Table 22 shows the location of the GPIO / IRQ pins on the phyCARD-Connector, as well as the corresponding ports of the i.MX35.

Pin # Signal I/O SL Description X2A46 X_GPIO1_1 I/O

VDD_3V3 GPIO0 connected to µC port

GPIO1_1 (at L16)

X2A47 X_GPIO2_7 I/O

VDD_3V3 GPIO2 connected to µC port

GPIO2_7 (at T7)

X2B47 X_GPIO2_23 I/O

VDD_3V3 GPIO1 connected to µC port

GPIO2_23 (at V3)

Table 22: Location of GPIO and IRQ pins

As can be seen in the table above the voltage level is VDD_3V3, which is 3.3V and equals the supply voltage of the phyCARD-M. Thus connecting external devices to the phyCARD-M does not require any special precautions. This means that external devices could be supplied from the same power source as the phyCARD-M. Nonetheless we recommend to supply external devices with the voltage (VCC_Logic) brought out at pins X2A5 and X2B5 of the phyCARD-Connector if you want to keep your application compatible to other phyCARDs with a different signal level (refer to section 4.4). Alternatively an open drain circuit with a pull-up resistor attached to VCC_Logic can be connected to the GPIOs of the phyCARD-M.

Please refer to the chapter "GPIOs" in the phyCARD Design-In Guide for more information about how to integrate the GPIO pins in your design.

Page 62

phyCARD-M [PCA-A-M1-xxx]

11 Debug Interface (X1)

The phyCARD-M is equipped with a JTAG interface for downloading program code into the external flash, internal controller RAM or for debugging programs currently executing. The JTAG interface extends to a 2.0 mm pitch pin header at X1 on the edge of the module PCB. Figure 9 and show the position of the debug interface (JTAG connector X1) on the phyCARD-M module.

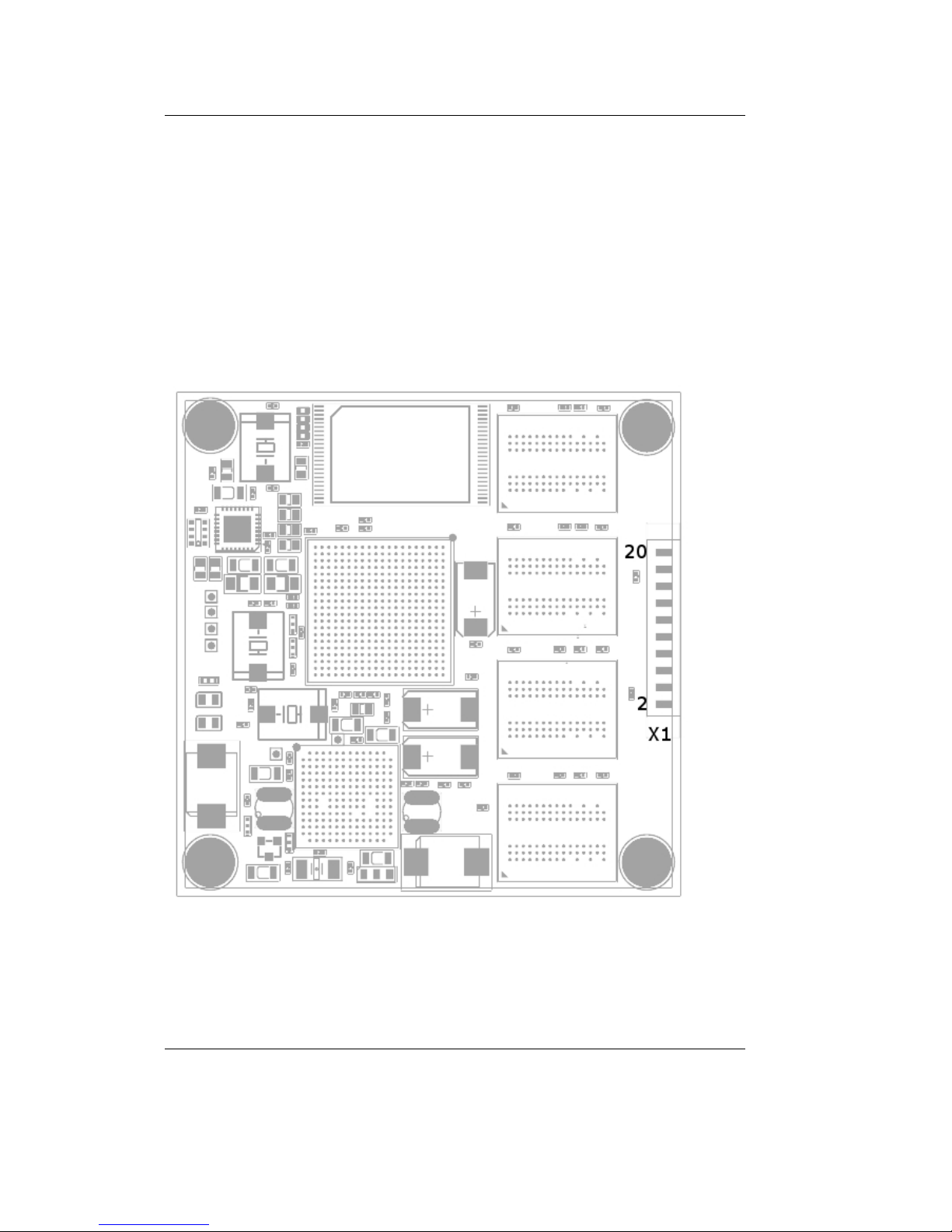

Figure 9: JTAG interface at X1 (top view)

54 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 63

Debug Interfaces

Figure 10: JTAG interface at X1 (bottom view)

Pin 1 of the JTAG connector X1 is on the connector side of the module. Pin 2 of the JTAG connector is on the controller side of the module.

Note:

The JTAG connector X1 only populates phyCARD-M modules with order code PCA-A-M1-D. JTAG connector X1 is not populated on phyCARD modules with order code PCA-A-M1. We recommend integration of a standard (2 mm pitch) pin header connector in the user target circuitry to allow easy program updates via the JTAG interface.

See Table 23 for details on the JTAG signal pin assignment.

Page 64

phyCARD-M [PCA-A-M1-xxx]

56 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Pin Row*

Signal

A B

Signal

VCCLOGIC 2 1 VTref (VDD_3V3 via 100

Ohm) GND 4 3 /x_CPU_TRST GND 6 5 x_CPU_TDI GND 8 7 x_CPU_TMS GND 10 9 x_CPU_TCK GND 12 11 x_CPU_RTCK GND 14 13 x_CPU_TDO GND 16 15 /x_RESET_MCU GND 18 17 /x_CPU_DE GND 20 19 J_DBGACK (10k Ohm pull-

down)

Table 23: JTAG connector X1 signal assignment

*Note: Row A is on the controller side of the module and row B is on the connector side of the module

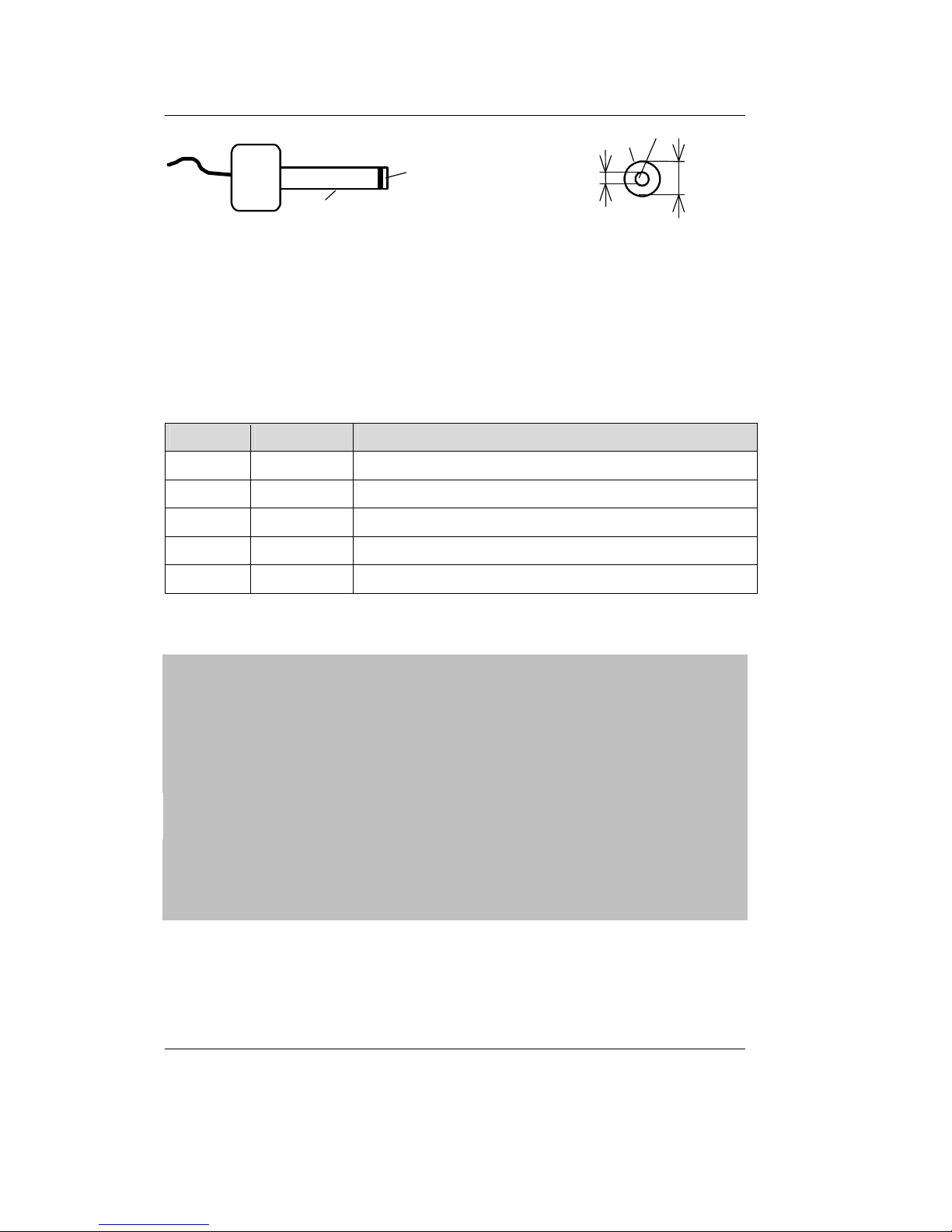

PHYTEC offers a JTAG-Emulator adapter (order code JA-002) for connecting the phyCARD-M to a standard emulator. The JTAGEmulator adapter extends the signals of the module's JTAG connector to a standard ARM connector with 2 mm pin pitch. The JA-002 therefore functions as an adapter for connecting the module's nonARM-compatible JTAG connector X1 to standard Emulator connectors.

Page 65

LVDS Display Interface

12 LVDS Display Interface

The phyCARD-M uses a DS90C383 4-Channel 24-Bit LVDS Transmitter (U32) to generate LVDS-Signals from the parallel TTL Display Interface. Thus you can connect a LVDS-Display to the phyCARD-M. The location of the applicable interface signals (X_TXOUT1-3+/X_TXOUT1-3-/X_TXCLK+/TXCLK-) can be found in the table below.

Pin # Signal I/O SL Description X2A9 X_TXOUT0+ O

LVDS LVDS Chanel 0 positive Output

X2A10 X_TXOUT0- O

LVDS LVDS Chanel 0 negative Output

X2A11 X_TXOUT2+ O

LVDS LVDS Chanel 2 positive Output

X2A12 X_TXOUT2- O

LVDS LVDS Chanel 2 negative Output

X2A14 X_TXCLKOU

T+

LVDS LVDS Clock positive Output

X2A15 X_TXCLKOU

T-

LVDS LVDS Clock negative output

X2B9 X_TXOUT1+ O

LVDS LVDS Chanel 0 positive Output

X2B10 X_TXOUT1- O

LVDS LVDS Chanel 0 negative Output

X2B11 X_TXOUT3+ O

LVDS LVDS Chanel 3 positive Output

X2B12 X_TXOUT3- O

LVDS LVDS Chanel 3 negative Output

Table 24: Display Interface Signal Location

Page 66

phyCARD-M [PCA-A-M1-xxx]

58 © PHYTEC Messtechnik GmbH 2010 L-750e_1

12.1 Signal configuration (J22)

J22 selects rising, or falling edge strobe for the LVDS Transmitter at U4 used for the display connectivity of the phyCARD-M.

Position Description Type

1+2 falling edge strobe used for the LVDS display

signals

10k (0805)

2+3 rising edge strobe used for the LVDS d isplay

signals

12.2 LVDS Display Interface pixel mapping

The phyCARD specification defines the pixel mapping of the LVDS display interface. The pixel mapping equates to the OpenLDI respectively Intel 24.0 standard. Thus you can connect 18-bit as well as 24-bit LVDS displays to the phyCARD. Table 25 and Table 26 show the recommended pixel mapping of the LVDS display. For further information please see the phyCARD Design Guide.

Note:

Make sure that the LVDS display you want to use provides the same pin mapping as the phyCARD. Normally this is only important for 24bit LVDS displays because due to the organization of the LVDS pixel mapping all common 18-bit LVDS displays should work.

18-bit LVDS Display

1 2 3 4 5 6 7 CLK 1 1 0 0 0 1 1 A0 G0 R5 R4 R3 R2 R1 R0 A1 B1 B0 G5 G4 G3 G2 G1 A2 DE VSYNC HSYNC B5 B4 B3 B2 A3 0 0 0 0 0 0 0

Table 25: Pixel mapping of 18-bit LVDS display interface

Page 67

LVDS Display Interface

24-bit LVDS Display

1 2 3 4 5 6 7 CLK 1 1 0 0 0 1 1 A0 G2 R7 R6 R5 R4 R3 R2 A1 B3 B2 G7 G6 G5 G4 G3 A2 DE VSYNC HSYNC B7 B6 B5 B4 A3 0 B1 B0 G1 G0 R1 R0

Table 26: Pixel mapping of 24-bit LVDS display interface

Page 68

phyCARD-M [PCA-A-M1-xxx]

60 © PHYTEC Messtechnik GmbH 2010 L-750e_1

13 LVDS Camera Interface

The phyCARD-M uses a DS92LV1212A 1-channel 10-Bit LVDS Random Lock Deserializer (U5) to receive LVDS-Signals from a LVDS Camera Interface. The LVDS Deserializer converts the LVDS signal to a 10-bit wide parallel data bus and separate clock which can be used as inputs for the i.MX35 Camera Sensor Interface. The 10-bit wide data bus consists of 8 color information bits and 2 sync bits (HSYNC/VSYNC).

The following table shows the location of the applicable interface signals (X_CSI_MCLK, X_LOCK, X_RXIN+, X_RXIN-) on the phyCARD-Connector.

Pin # Signal I/O SL Description X2A16 X_CSI_MCLK O

VDD_3V3_IN Clock Output for Camera

Interface

X2B14 X_RXIN+ O

LVDS LVDS Receive positive Input

for Camera

X2B15 X_RXIN- O

LVDS LVDS Receive negative Input

for Camera

X2B16 X_LOCK O

VDD_3V3_IN Lock Output for Camera

Interface

Table 27: Camera Interface Signal Location

13.1 Signal configuration (J21)

J21 selects rising, or falling edge strobe for the LVDS Deserializer at U5 used for the display connectivity of the phyCARD-M

Position Description Type

1+2

rising edge strobe used for the LVDS camera signals

10k

(0805)

2+3

fall

ing edge strobe used for the LVDS camera

signals

Page 69

Technical Specifications

14 Technical Specifications

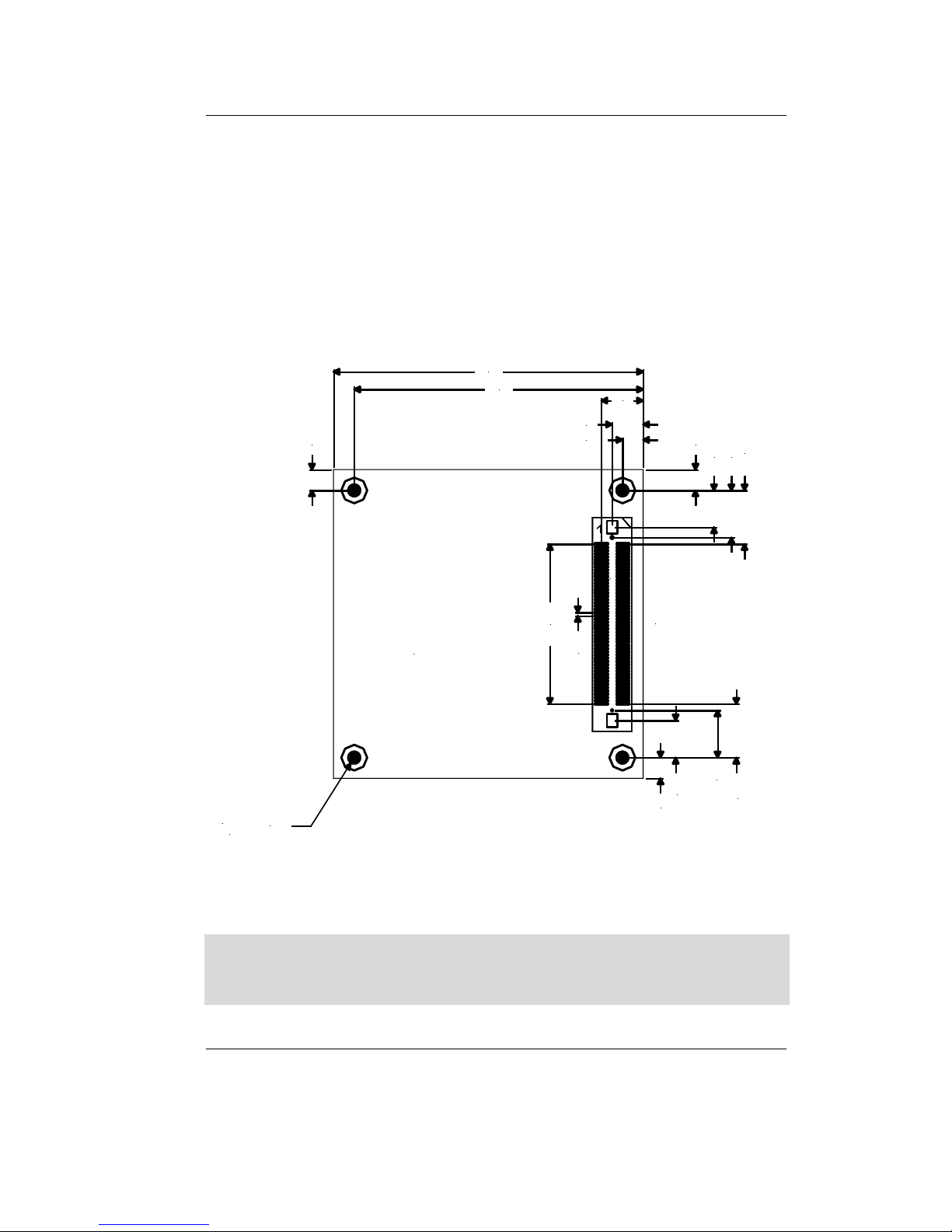

The physical dimensions of the phyCARD-M are represented in Figure 11. The module's profile is approximately 8.5 mm thick, with a maximum component height of 4.0 mm on the bottom (connector) side of the PCB and approximately 3.1 mm on the top (microcontroller) side. The board itself is approximately 1.4 mm thick.

Ref Des

9.17mm

10.44mm

7.17mm

56mm

31.11m m

0.635mm

8mm

4mm

7.24mm

4mm

10.45mm

9.2mm

60mm

6mm 4mm

D2.7mm

PhyCard S

HOLE

PAD D5.0mm

Ref Des

Figure 11: Physical dimensions

Note:

To facilitate the integration of the phyCARD-M into your design, the footprint of the phyCARD-M is available upon request.

Page 70

phyCARD-M [PCA-A-M1-xxx]

62 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Additional specifications:

Dimensions: 60 mm x 60 mm Weight: approximately 16 g with all

optional components mounted on

the circuit board Storage temperature: -40°C to +125°C Operating temperature: 0°C to +70°C (commercial)

-20°C to +85°C (industrial) Humidity: 95 % r.F. not condensed Operating voltage: VCC 3.3V

Power consumption: VCC 3.3 V/300mA typical

Max. 1.2 watts Conditions: VCC = 3.3 V, VBAT = 0 V, 128MB DDR2-RAM, 128MB NAND Flash, Ethernet, 400 MHz CPU frequency at 20°C

These specifications describe the standard configuration of the phyCARD-M as of the printing of this manual.

Page 71

Technical Specifications

Connectors on the phyCARD:

Manufacturer Molex Number of pins per contact rows 100 (2 rows of 50 pins each) Molex part number (lead free) 52885-1074 (receptacle)

Two different heights are offered for the receptacle sockets that correspond to the connectors populating the underside of the phyCARD—i.MX35. The given connector height indicates the distance between the two connected PCBs when the module is mounted on the corresponding carrier board. In order to get the exact spacing, the maximum component height (2.5 mm) on the bottom side of the phyCARD must be subtracted.

Component height 6 mm

Manufacturer Molex Number of pins per contact row 100 (2 rows of 50 pins each) Molex part number (lead free) 55091-1075/1074 (header)

Component height 10 mm

Manufacturer Molex Number of pins per contact row 100 (2 rows of 50 pins each) Molex part number (lead free) 53553-1079 (header)

Please refer to the corresponding data sheets and mechanical specifications provided by Molex (www.molex.com).

Page 72

phyCARD-M [PCA-A-M1-xxx]

15 Component Placement Diagram

Figure 12: phyCARD-M component placement (top view)

64 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 73

Component Placement Diagram

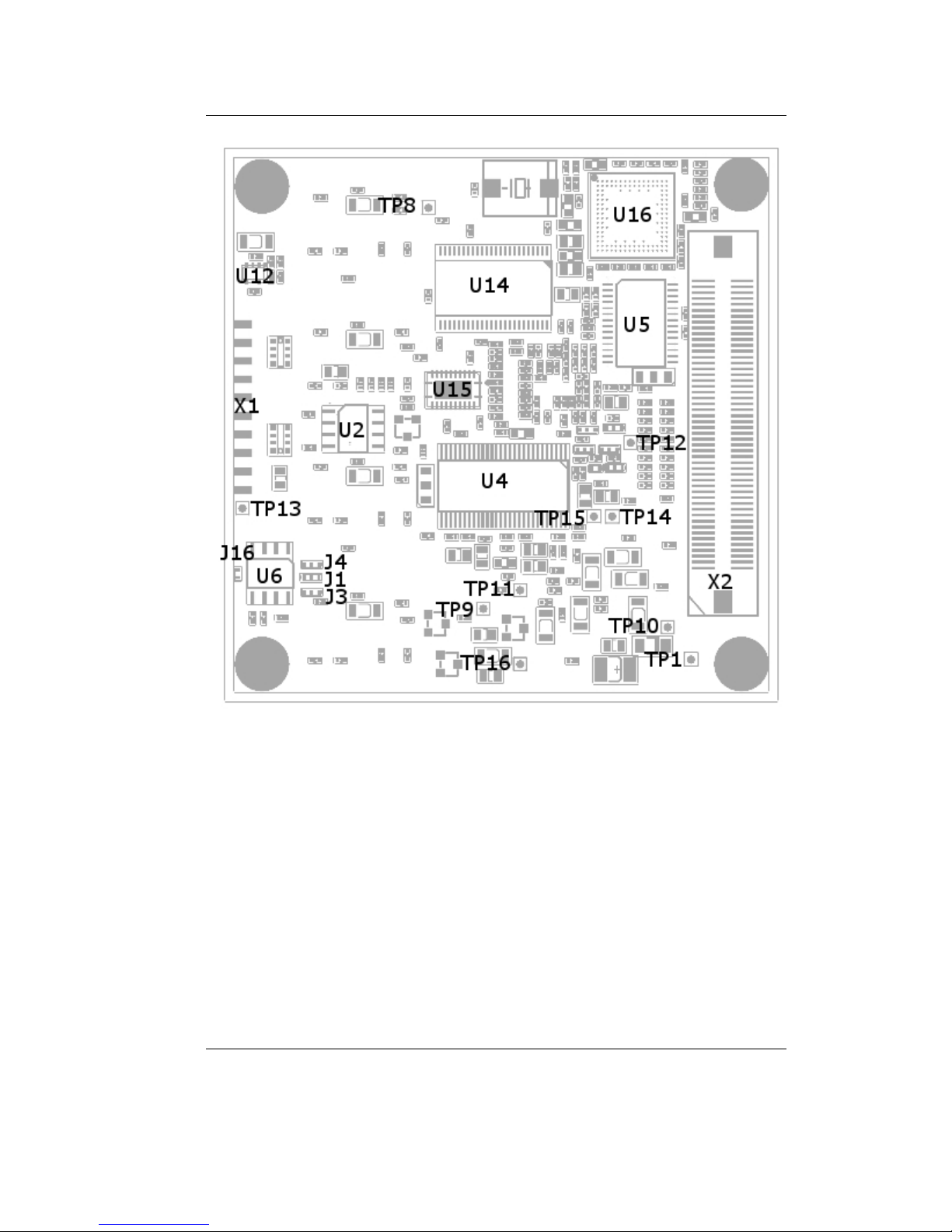

Figure 13: phyCARD-M component placement (bottom view)

Page 74

phyCARD-M [PCA-A-M1-xxx]

66 © PHYTEC Messtechnik GmbH 2010 L-750e_1

16 Hints for Handling the phyCARD-M

• Modifications on the phyCARD Module

Removal of various components, such as the microcontroller and the standard quartz, is not advisable given the compact nature of the module. Should this nonetheless be necessary, please ensure that the board as well as surrounding components and sockets remain undamaged while de-soldering. Overheating the board can cause the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to heat and loosen the bonds.

Caution!

If any modifications to the module are performed, regardless of their nature, the manufacturer guarantee is voided.

• Integrating the phyCARD into a Target Application

Successful integration in user target circuitry greatly depends on the adherence to the layout design rules for the GND connections of the phyCARD module. For best results we recommend using a carrier board design with a full GND layer. It is important to make sure that the GND pins that have neighboring signals which are used in the application circuitry are connected. Just for the power supply of the module at least 8 GND pins that are located right next to the VCC pins must be connected

Note!

Please refer to the phyCARD Design-In Guide (LAN-051) for additional information, layout recommendations and example circuitry.

Page 75

The phyCARD-M on the phyBASE

17 The phyCARD-M on the phyBase

PHYTEC phyBASE Boards are fully equipped with all mechanical and electrical components necessary for the speedy and secure start-up and subsequent communication to and programming of applicable PHYTEC Single Board Computer (SBC) modules. phyBASE Boards are designed for evaluation, testing and prototyping of PHYTEC Single Board Computers in laboratory environments prior to their use in customer designed applications.

The phyBASE supports the following features for the phyCARD-M modules:

• Power supply circuits to supply the modules and the peripheral

devices

• Support of different power modes of appropriate phyCARDs

• Full featured 4 line RS-232 transceiver supporting data rates of up

to 120kbps, hardware handshake and RS-232 connector

• Six USB-Host interfaces

• USB-OTG interface

• 10/100 Mbps Ethernet interface

• Complete Audio and Touchscreen interface

• LVDS display interface with separate connectors for data lines and

display / backlight supply voltage

• Circuitry to allow dimming of a backlight

• LVDS camera interface with I

C for camera control

• Security Digital Card / Multi Media Card Interface

• Two expansion connectors for customer prototyping purposes

featuring one USB, one I

C and on SPI interface, as well as on

GPIO/IRQ at either connector

• DIP-Switch to configure various interface options

• Jumper to configure the boot options for the phyCARD-M module

mounted

• RTC with battery supply/backup

Page 76

phyCARD-M [PCA-A-M1-xxx]

68 © PHYTEC Messtechnik GmbH 2010 L-750e_1

17.1 Concept of the phyBASE Board

The phyBASE Carrier Board provides a flexible development platform enabling quick and easy start-up and subsequent programming of the phyCARD Single Board Computer module. The Carrier Board design allows easy connection of additional expansion boards featuring various functions that support fast and convenient prototyping and software evaluation. The Carrier Board is compatible with all phyCARDs.

This modular development platform concept is depicted in Figure 14 below and includes the following components:

• the phyCARD-M Module populated with the i.MX35 processor

and all applicable SBC circuitry such as DDR SDRAM, Flash, PHYs, and transceivers to name a few.

• the phyBASE which offers all essential components and

connectors for start-up including: a power socket enabling connection to an external power adapter, interface connectors such as DB-9, USB and Ethernet allowing for use of the SBC's interfaces with standard cable.

Page 77

The phyCARD-M on the phyBASE

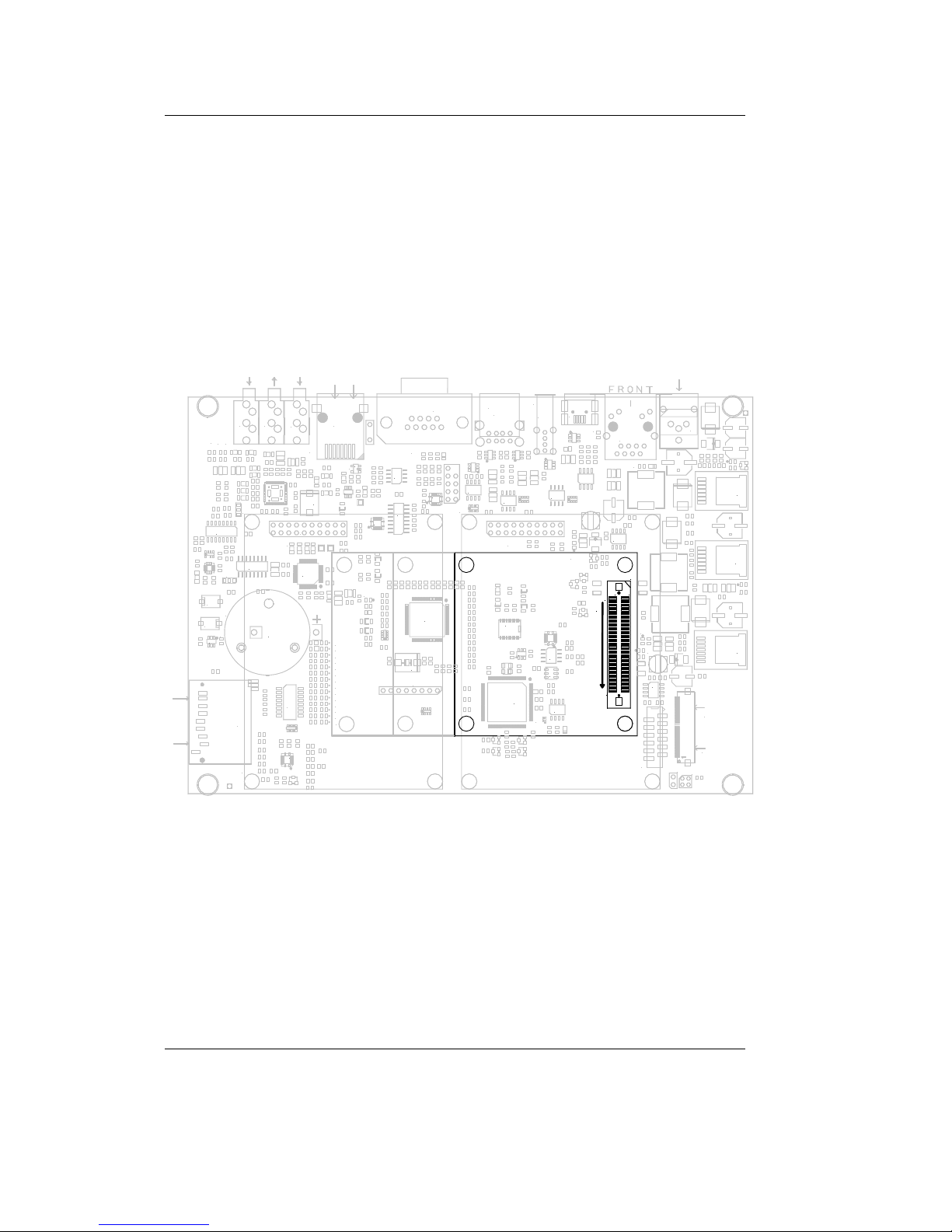

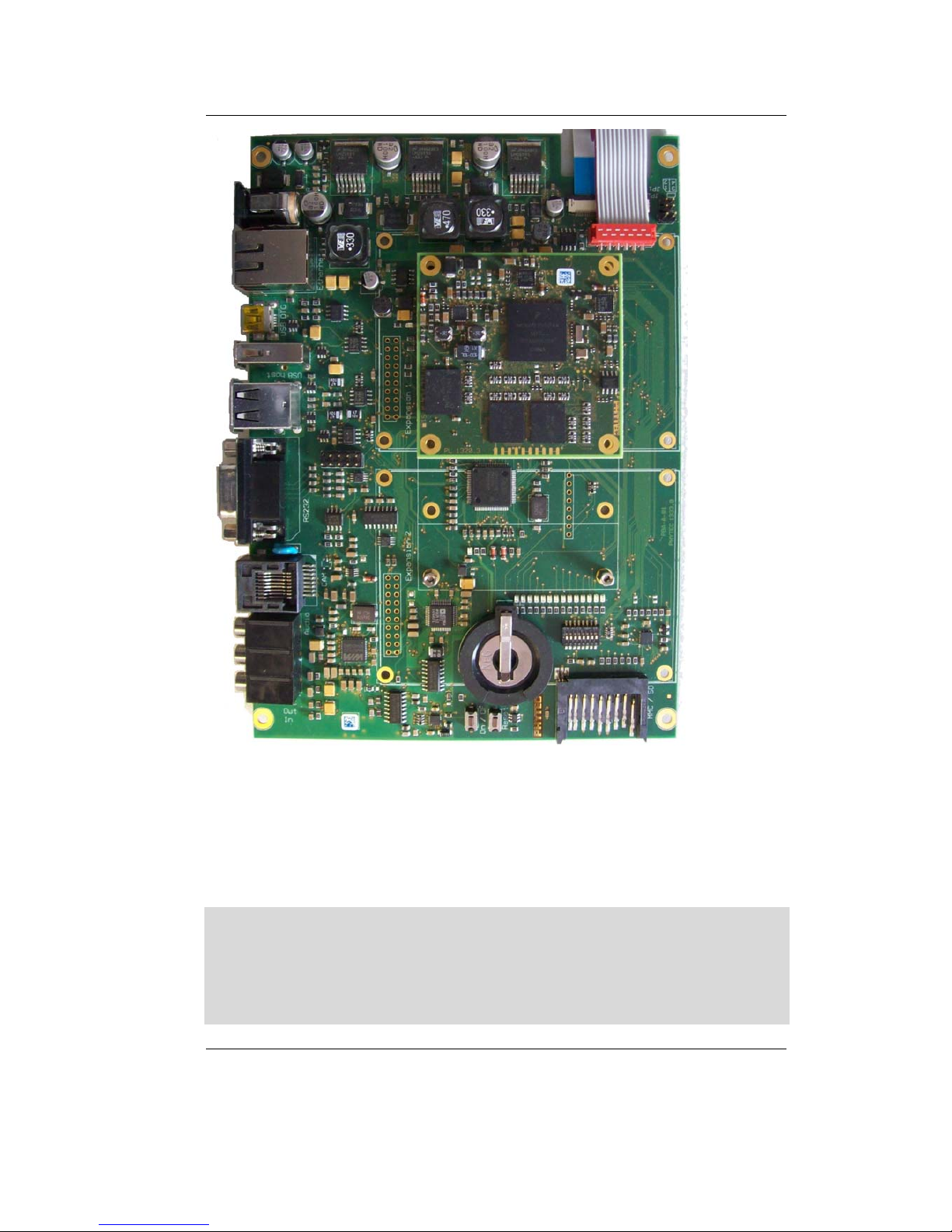

Figure 14: phyBASE (phyCARD-M Carrier Board)

The following sections contain specific information relevant to the operation of the phyCARD-M mounted on the phyBASE Carrier Board.

Note:

Only features of the phyBASE which are supported by the phyCARD-M are described. Jumper settings and configurations which are not suitable for the phyCARD-M are not described in the following chapters.

Page 78

phyCARD-M [PCA-A-M1-xxx]

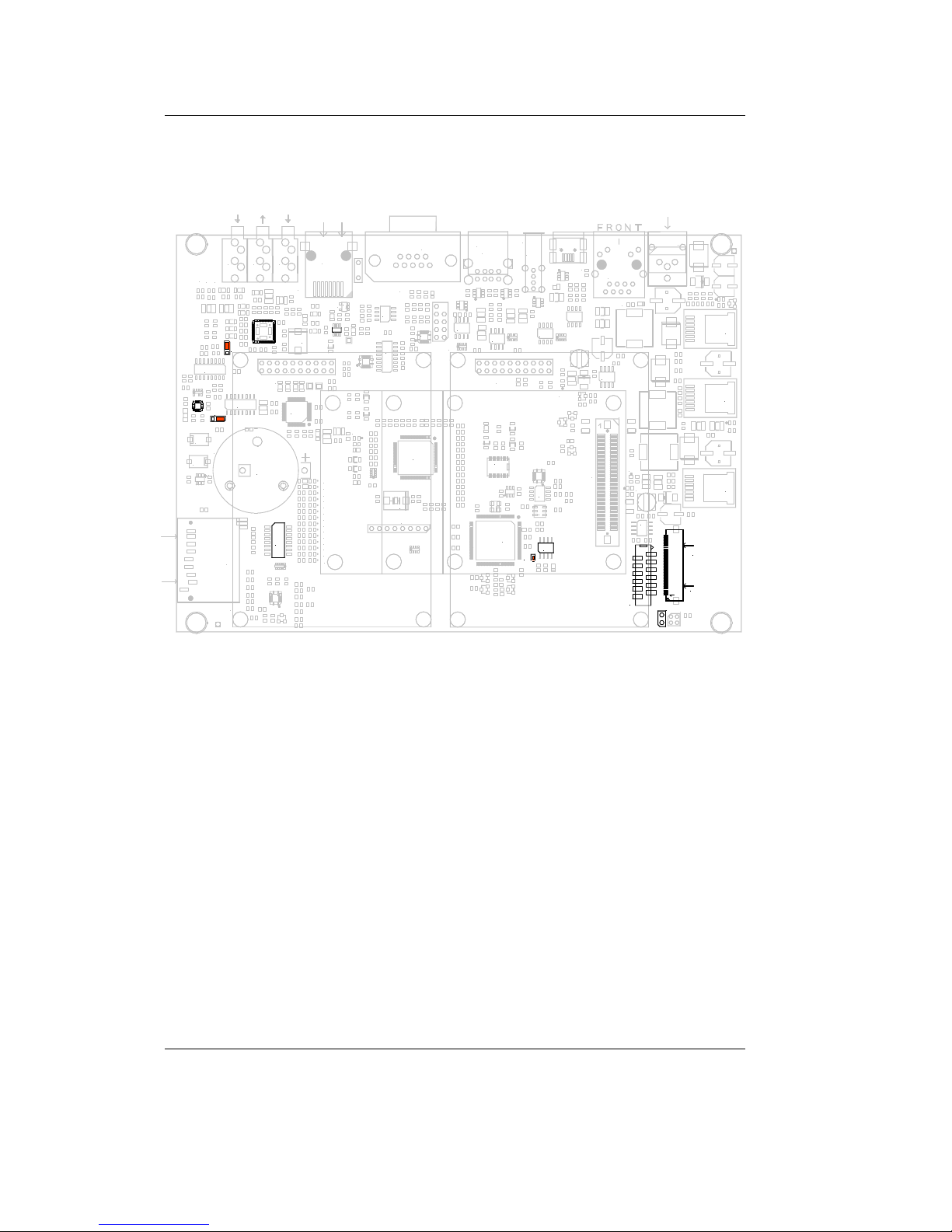

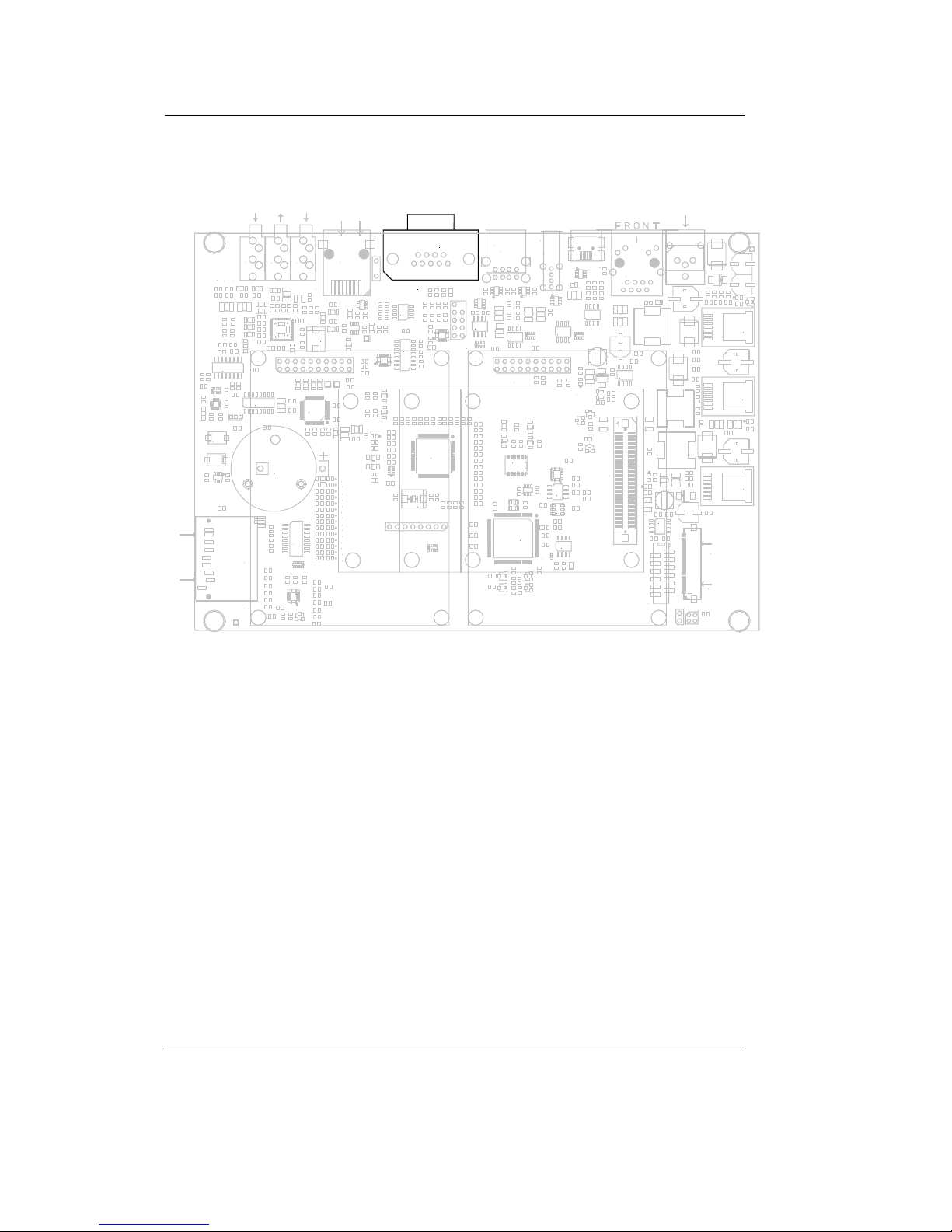

17.2 Overview of the phyBASE Peripherals

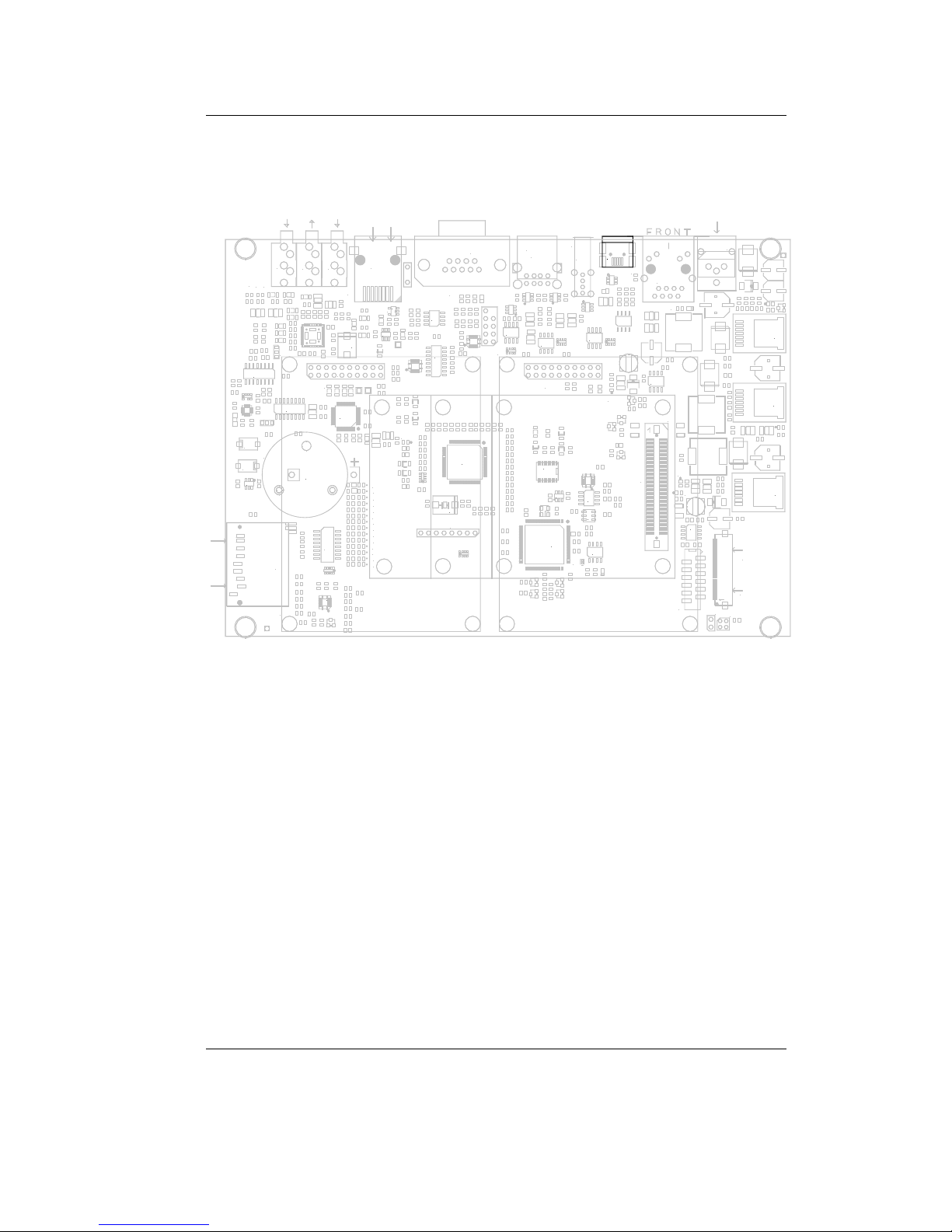

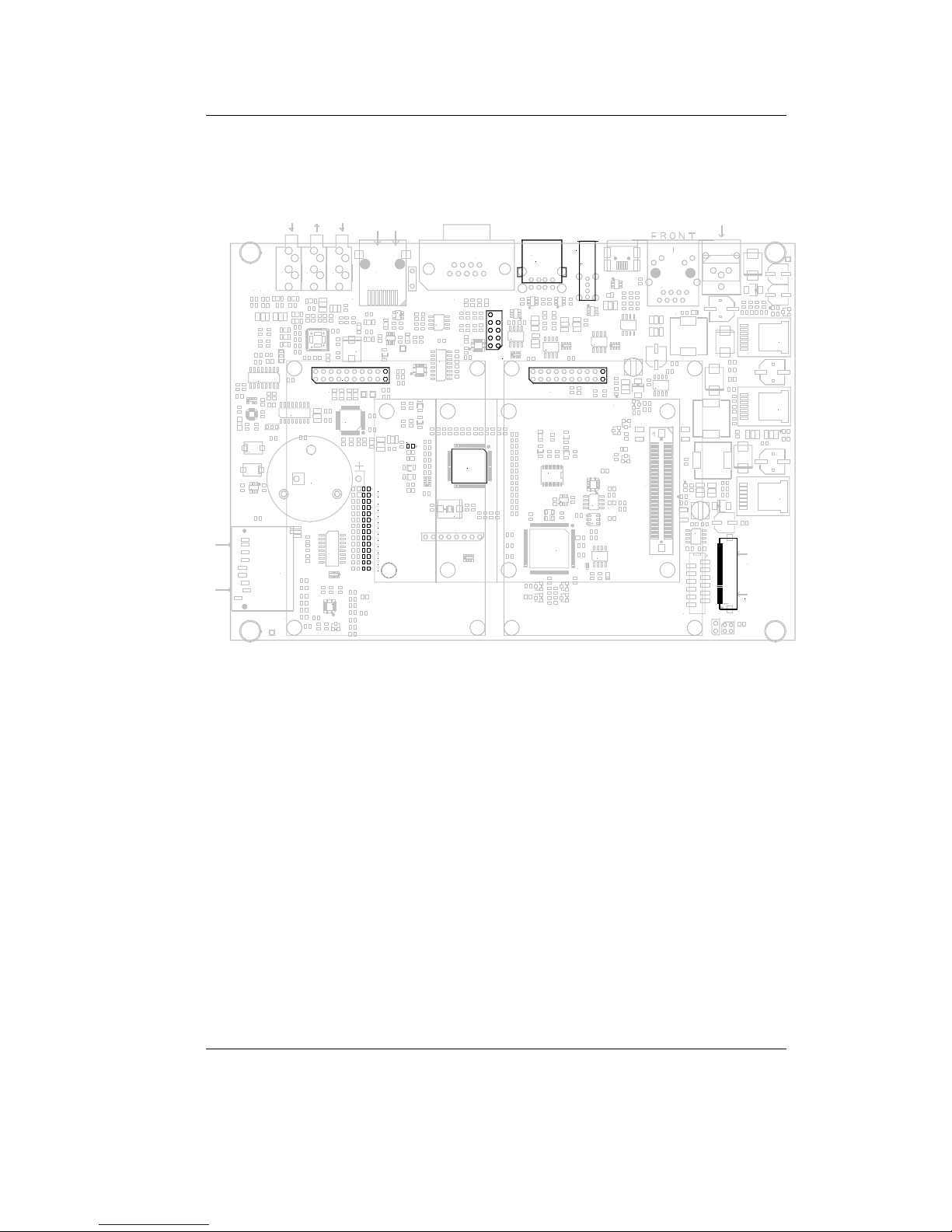

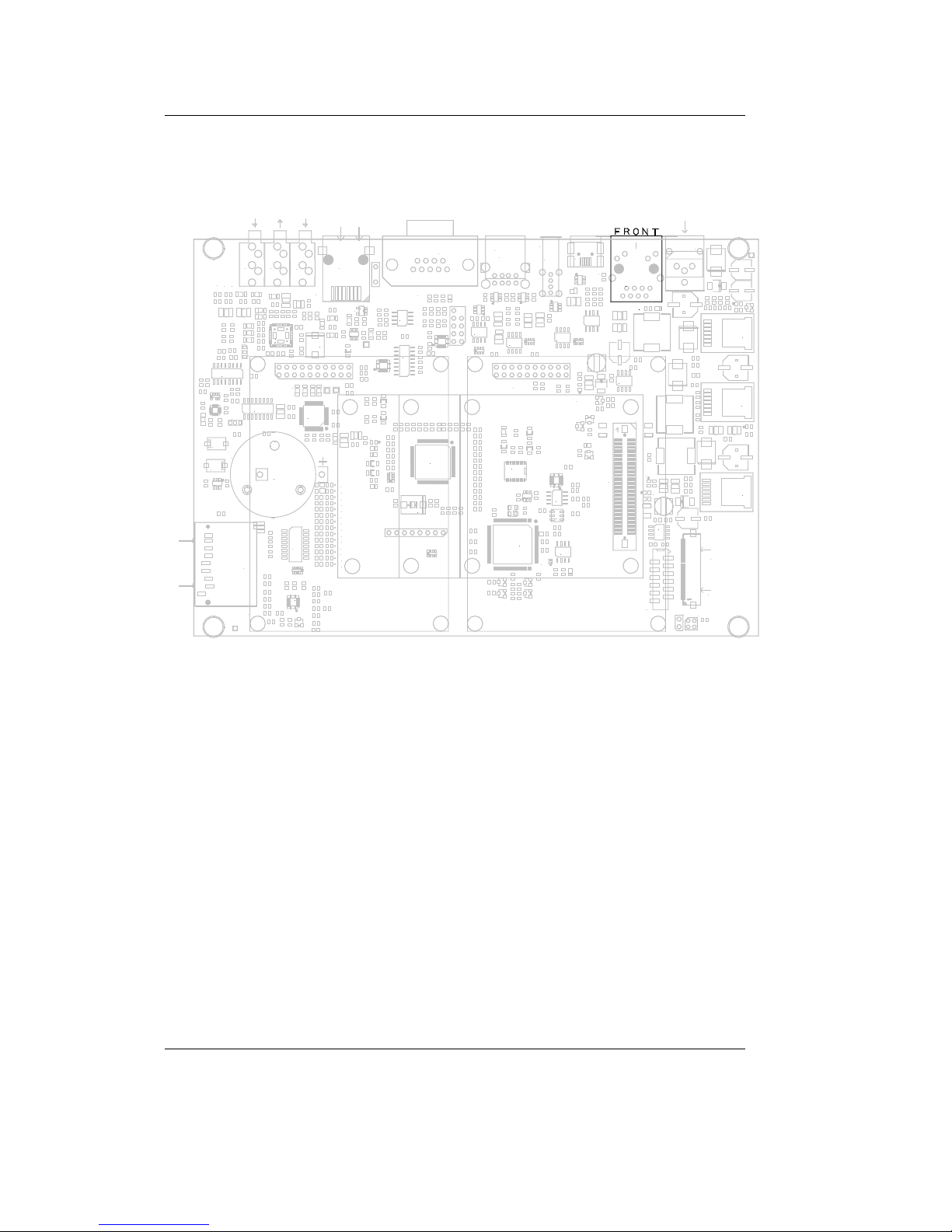

The phyBASE is depicted in Figure 15 and includes the following components and peripherals listed in Table 28, Table 29, Table 30 and Table 31. For a more detailed description of each peripheral refer to the appropriate chapter listed in the applicable table. Figure 15 highlights the location of each peripheral for easy identification.

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BA T1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

X33

D38

X10

X28

X29

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OF F

Reset

MMC / S D card

D29

D30

JP2

JP1

D26

D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D39

D40

D37

D41

Figure 15: phyBASE Overview of Connectors, LEDs and Buttons

70 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Page 79

The phyCARD-M on the phyBASE

17.2.1 Connectors and Pin Header

Table 28 lists all available connectors on the phyBASE. Figure 15 highlights the location of each connector for easy identification.

Reference

Designator

Description

See

Section

X1 Stereo Microphone input connector

17.3.9

X2 Stereo Line Out connector

17.3.9

X3 Stereo Line In connector

17.3.9

X5 Camera Interface, RJ45

17.3.8

X6 Display data connector

17.3.7.1

X7 Dual USB Host connector

17.3.5

X8A Expansion connector 0

17.3.13

X9A Expansion connector 1

17.3.13

X10

Ethernet connector, RJ45 with speed and link led

17.3.4

X26 Security Digital/MultiMedia Card slot

17.3.14

X27

phyCARD-Connector for mounting the phyCARD-M

17.3.1

X28

Wall adapter input power jack to supply main board power (+9 - +36 V)

17.3.2

X29 USB On-The-Go connector

17.3.6

X30 USB Host connector

17.3.5

X32

Display / Backlight supply voltage connector

17.3.7.2

X33 USB Host connector

17.3.5

X34 CPLD JTAG connector

for internal use only

P1 Serial Interface, DB-9F

17.3.3

Table 28: phyBASE Connectors and Pin Headers

Page 80

phyCARD-M [PCA-A-M1-xxx]

72 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Note:

Even though the signal levels of the phyCARD's I2C and SPI interface are already 3.3 V the interfaces are connected to level shifters on the phyCARD Carrier Board. This is essential to keep the phyCARD Carrier Board compatible with all phyCARDs. Ensure that all module connections are not to exceed their expressed maximum voltage or current. Maximum signal input values are indicated in the corresponding controller User's Manual/Data Sheets. As damage from improper connections varies according to use and application, it is the user‘s responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

17.2.2 Switches

The phyBASE is populated with some switches which are essential for the operation of the phyCARD-M module on the Carrier Board. Figure 15 shows the location of the switches and push buttons.

Button Description

See Section

S1 System Reset Button – system reset signal

generation

17.3.16

Power Button – powering on and off main supply voltages of the Carrier Board

17.3.2

Table 29: phyBASE push buttons descriptions

S1 Issues a system reset signal. Pressing this button will toggle the

nRESET_IN pin of the phyCARD microcontroller LOW, causing the controller to reset.

S2 Issues a power on/off event. Pressing this button less than 2

seconds will toggle the nPWR_KEY pin of the phyBASE CPLD LOW, causing the CPLD to turn on the supply voltages, pressing this button for more than 2 seconds causing the CPLD to turn off the supply voltages.

Page 81

The phyCARD-M on the phyBASE

Additionally a DIP-Switch is available at S3. The following table gives an overview of the functions of the DIP-switch.

Note:

The following table describes only settings suitable for the phyCARDM. Other settings must not be used with the phyCARD-M.

Page 82

phyCARD-M [PCA-A-M1-xxx]

74 © PHYTEC Messtechnik GmbH 2010 L-750e_1

Button Setting Description

See Section

S3_1/ S3_2

0/0

0/1

1/0

Switches 1 and 2 of DIP-Switch S3 select which device process the audio and touch panel signals.

Wolfson audio/touch contrl. (U1) selected for touch and audio

Wolfson audio/touch contrl. (U1) selected for audio, dedicated touch contrl. (U28) for touch Analog Devices audio contrl. (U17) selected for audio, dedicated touch contrl. (U28) for touch

17.3.9

S3_3/ S3_4

0/0

Switches 3 and 4 of DIP-Switch S3 configure the I

C address for the communication between CPLD and phyCARD.

CPLD Address 0x80

S3_5

Switch 5 of DIP-Switch S3 selects the interface used for the communication between CPLD and phyCARD.

I2C communication selected

S3_6

Switch 6 of DIP-Switch S3 turns the SPI Multiplexer on, or off

SPI multiplexer off

Page 83

The phyCARD-M on the phyBASE

S3_7/ S3_8

0/0

0/1

1/x

Switches 7 and 8 of DIP-Switch S3 map the two slave select signals of the SPI interface and the two GPIO_IRQ signals (GIO0_IRQ, GPIO1_IRQ) to two of the three available connectors.

SS0/GPIO0 -> expansion 0 (X8A), SS1/GPIO1 -> expansion 1 (X9A)

SS0/GPIO0 -> expansion 0 (X8A), SS1/GPIO1 -> display data connector (X6) SS0/GPIO0 -> expansion 1 (X9A), SS1/GPIO1 -> display data connector (X6)

17.3.7.1

17.3.11

17.3.12

17.3.13

Table 30: phyBASE DIP-Switch S3 descriptions1

Default settings are in bold blue text

Page 84

phyCARD-M [PCA-A-M1-xxx]

76 © PHYTEC Messtechnik GmbH 2010 L-750e_1

17.2.3 LEDs

The phyBASE is populated with numerous LEDs to indicate the status of the various USB-Host interfaces, as well as the different supply voltages. Figure 15 shows the location of the LEDs.

LED Color Description

See

Section D16 yellow USB1 amber led D17

yellow USB2 amber led

D18

yellow USB3 amber led

D19

yellow USB4 amber led

D20

yellow USB5 amber led

D21

yellow USB6 amber led

D22

yellow USB7 amber led

D23

green USB1 green led

D24

green USB2 green led

D25

green USB3 green led

D26

green USB4 green led

D27

green USB5 green led

D28

green USB6 green led

D29

green USB7 green led

D30

red USB HUB global led

17.3.5

D37

green 5V supply voltage for peripherals on the

phyBASE

D38

green supply voltage of the phyCARD

D39

green 3V3 supply voltage for peripherals on the

phyBASE

D40

green 3V3 standby voltage of the phyBASE

D41

green standby voltage of the phyCARD

17.3.2

Table 31: phyBASE LEDs descriptions

Page 85

The phyCARD-M on the phyBASE

Note:

Detailed descriptions of the assembled connectors, jumpers and switches can be found in the following chapters.

Page 86

phyCARD-M [PCA-A-M1-xxx]

17.2.4 Jumpers

The phyCARD Carrier Board comes pre-configured with 2 removable jumpers (JP) and 3 solder jumpers (J). The jumpers allow the user flexibility of configuring a limited number of features for development constraint purposes. Table 32 below lists the 5 jumpers, their default positions, and their functions in each position. Figure 16 depicts the jumper pad numbering scheme for reference when altering jumper settings on the development board. Note that pin 1 is always marked by a square footprint in the jumper location diagrams that follow.

Figure 17 provides a detailed view of the phyBase jumpers and their default settings.

Before making connections to peripheral connectors it is advisable to consult the applicable section in this manual for setting the associated jumpers.

e.g.: JP1 e.g.: e.g.: J1

Figure 16: Typical jumper numbering scheme

Table 32 provides a comprehensive list of all Carrier Board jumpers.

The table only provides a concise summary of jumper descriptions. For a detailed description of each jumper see the applicable chapter listing in the right hand column of the table.

Page 87

The phyCARD-M on the phyBASE

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BA T1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X28

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OF F

Reset

MMC / SD card

D29

D30

JP2

JP1

D26

D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D39

D40

D37

D41

X29

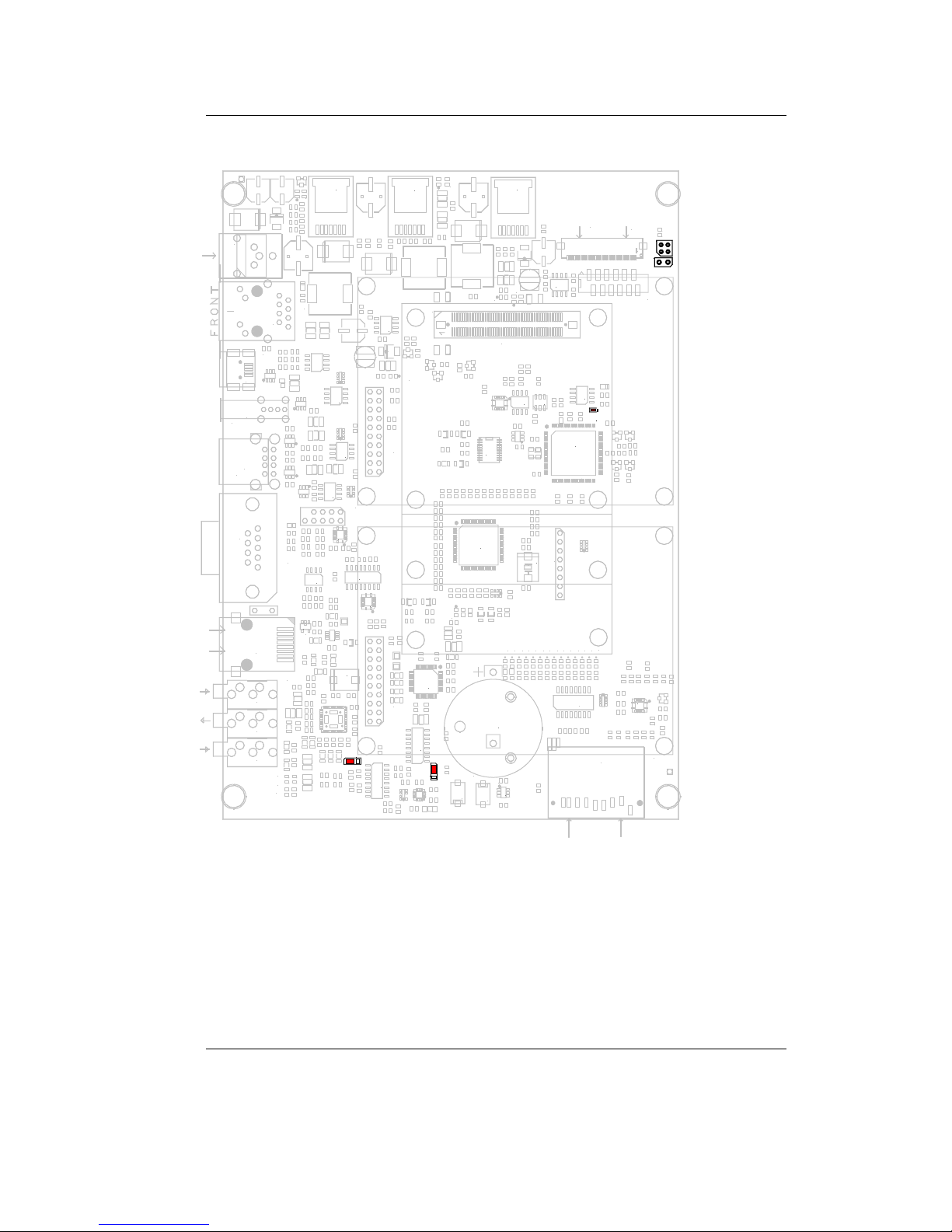

Figure 17: phyBASE jumper locations

The following conventions were used in the Jumper column of the jumper table (Table 32)

• J = solder jumper

• JP = removable jumper

Page 88

phyCARD-M [PCA-A-M1-xxx]

Jumper Setting Description

See

Section

open

Jumper JP1 selects the boot device of the phyCARD-M

External boot, FLASH enabled as Boot device

1+2 Serial Bootloader1 3+4 Internal Bootloader1

JP1

1+2, 3+4

Startup mode

17.3.3

open

Jumper JP2 connects the input voltage to connector X32 as supply voltage for a backlight.

VCC12V Backlight disabled

JP2

closed VCC12V Backlight connected to

power supply only 12V DC power supplies allowed

17.3.7.2

1+2

Jumper J1 selects the function of the AC97 interrupt

Pendown signal of the Audio/Touch controller at U1 is connected to AC97 interrupt

2+3 GPIO2_IRQ output of the Audio/Touch

controller at U1 connected to AC97 interrupt

17.3.7.3

closed

Jumper J2 configures the I

C address of

the LED dimmer at U21

C device address of LED dimmer

set to 0xC0

17.3.7.2

17.3.10

please see section 6 for more information on the different boot modes

Page 89

The phyCARD-M on the phyBASE

open I2C device address of LED dimmer set

to 0xC2

1+2

Jumper J3 configures the I2C address of the touch screen controller at U28

C device address set to 0x88

2+3 I

C device address set to 0x82

17.3.7.3

17.3.10

Table 32: phyBASE jumper descriptions8

Default settings are in bold blue text

Page 90

phyCARD-M [PCA-A-M1-xxx]

17.3 Functional Components on the phyBASE Board

This section describes the functional components of the phyBASE Carrier Board supporting the phyCARD-M. Each subsection details a particular connector/interface and associated jumpers for configuring that interface.

17.3.1 phyCARD-M SBC Connectivity (X27)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OFF

Reset

MMC / S D card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

X29

X28

D39

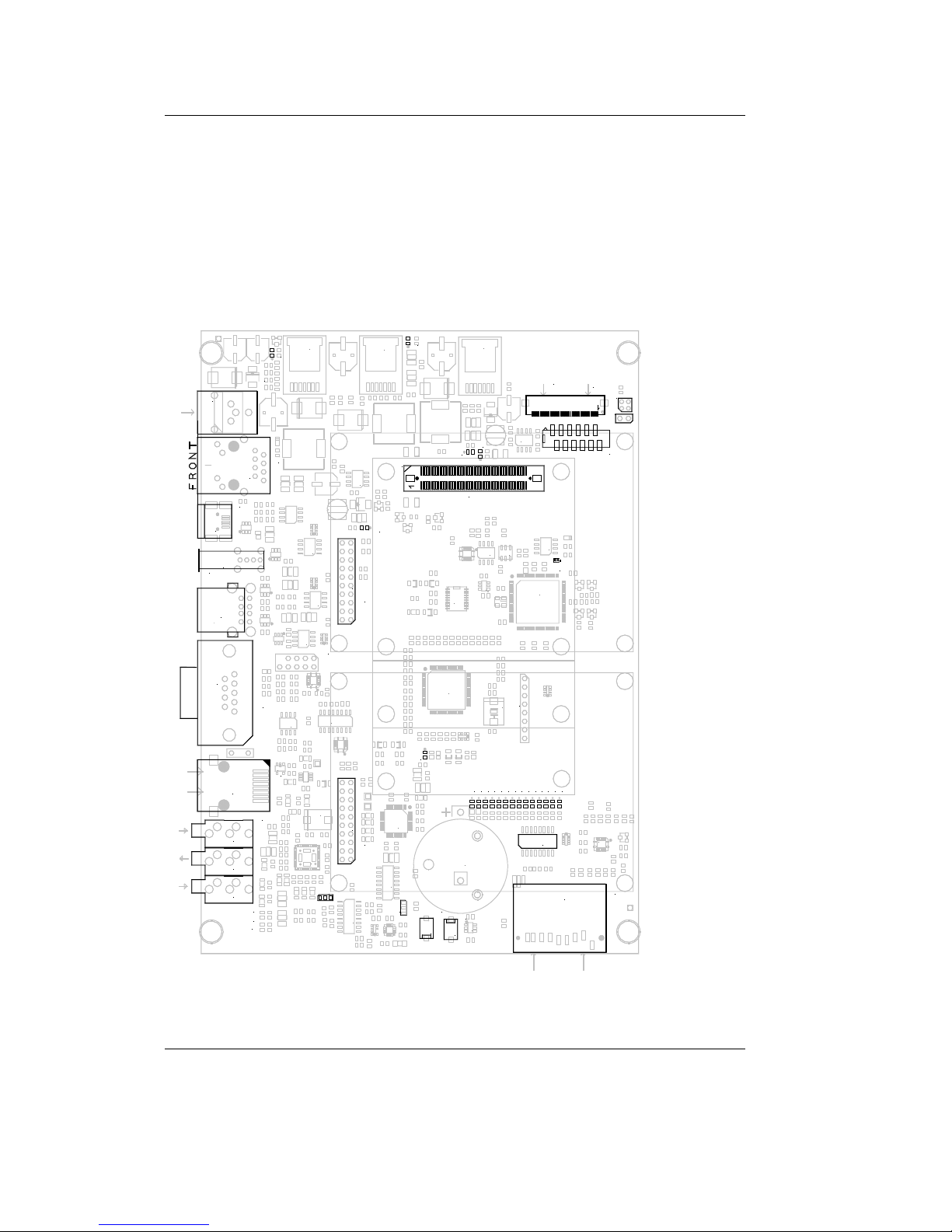

Figure 18: phyCARD-M SBC Connectivity to the Carrier Board

Connector X27 on the Carrier Board provides the phyCARD System on Module

connectivity. The connector is keyed for proper insertion of the SBC.

Figure 18 above shows the location of connector X27, along with

the pin numbering scheme as described in section 2.

Page 91

The phyCARD-M on the phyBASE

17.3.2 Power Supply (X28)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OFF

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D39

D40

D37

D41

X29

X28

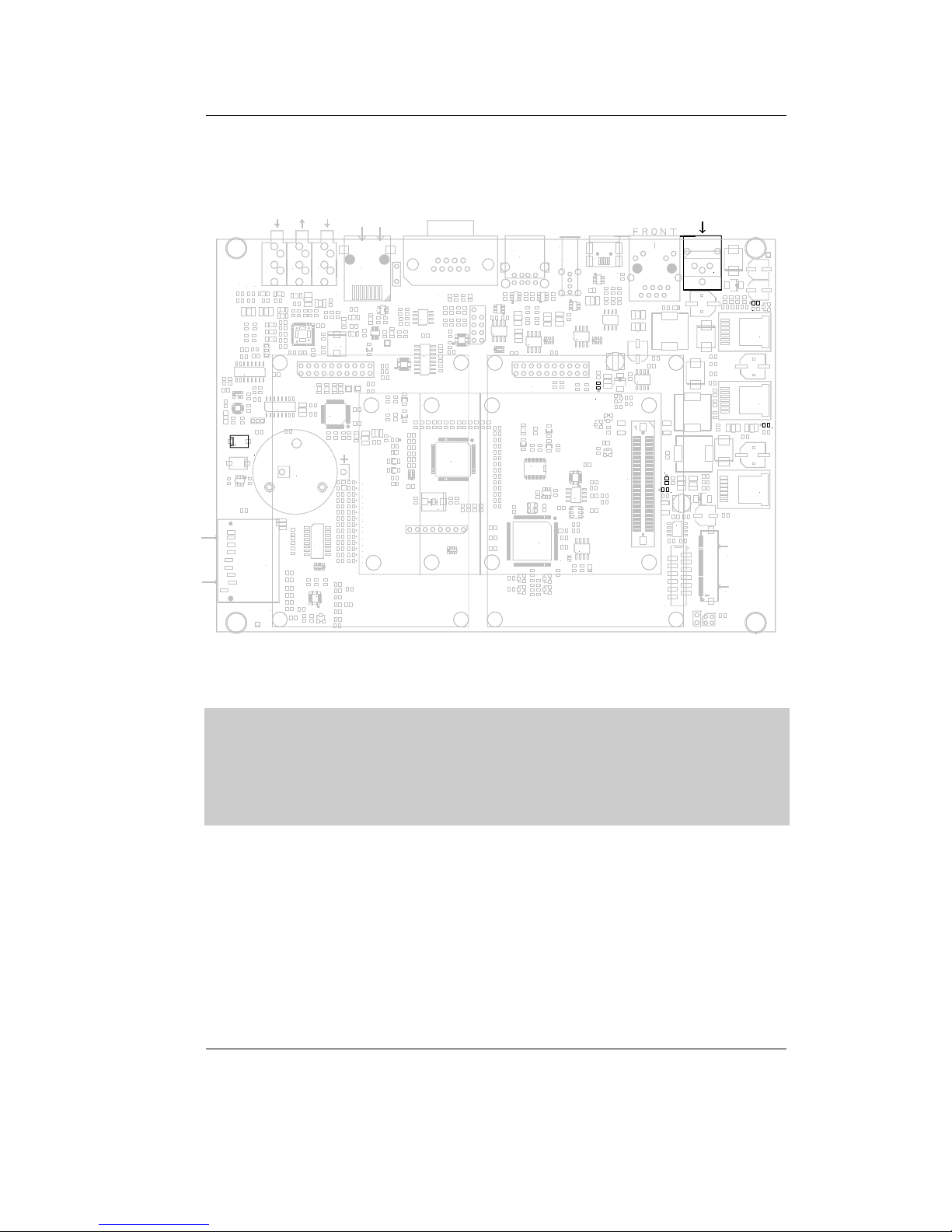

Figure 19: Power adapter

Caution:

Do not use a laboratory adapter to supply power to the Carrier Board! Power spikes during power-on could destroy the phyCARD-module mounted on the Carrier Board! Do not change modules or jumper settings while the Carrier Board is supplied with power!

Permissible input voltage at X28: +9 - +36 V DC unregulated.

The required current load capacity of the power supply depends on the specific configuration of the phyCARD mounted on the Carrier Board as well as whether an optional expansion board is connected to the Carrier Board. An adapter with a minimum supply of 2.0 A is recommended.

Page 92

phyCARD-M [PCA-A-M1-xxx]

+9 - 36 VDC

GND

≥ 2000 mA

Center Hole

2.5 mm

5.0 mm

-- +

Polarity:

Figure 20: Connecting the Supply Voltage at X28

No jumper configuration is required in order to supply power to the phyCARD module!

The phyBASE is assembled with a few power LEDs whose functions are described in the following table:

LEDs Color Description

D37 green VCC5V led D38 green VCC_PHYCARD led D39 green VCC3V3 led D40 green VCC3V3STBY led D41 green VSTBY led

Table 33: LEDs assembled on the Carrier Board

Note:

For powering up the phyCARD the following actions have to be done:

1. Plug in the power supply connector » All power LEDs should light up and the phyCARD puts

serial output to serial line 0 at P1.

2. For powering down the phyCARD-M button S2 should be pressed for a minimum time of 2000ms.

3. Press button S2 for a maximum time of 1000ms seconds.

» All power LEDs should light up and the phyCARD puts

serial output to serial line 0 at P1.

Page 93

The phyCARD-M on the phyBASE

Three different power states are possible RUN, OFF and SUSPEND.

• During RUN all supply voltages except VSTBY are on. This

means that the phyCARD-M is supplied by VCC_PHYCARD.

• In OFF state all supply voltages are turned off. Only the standby

voltage (VCC3V3STBY) of the phyBASE itself is still available to supply the PLD, the RTC and to provide a high-level voltage for the Reset and Power switch.

• In SUSPEND mode only the standby voltage VSTBY for the

phyCARD-M and the standby voltage (VCC3V3STBY) of the phyBASE itself are generated. This means the phyCARD-M is supplied only by VSTBY.

The RUN and OFF state can be entered using the power button S2 as described in the gray box above. It is also possible to enter OFF state with the help of the phyCARD's nPower_off signal (GPIO2_30 at T5 of the i.MX35). To enter OFF state signal nPower_off must be active (low).

SUSPEND state can be entered using signal nSuspend_to_RAM at pin X2A26B of the phyCARD Connector (GPIO2_29 at V2 of the i.MX35). nSuspend_to_RAM must be active (low) for at least 500ms.

Page 94

phyCARD-M [PCA-A-M1-xxx]

17.3.3 RS-232 Connectivity (P1)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X28

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OFF

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

X29

D39

Figure 21: UART1 connection interface at connector P1

Connector P1 is a DB9 sub-connector and provides a connection interface to UART1 of the i.MX35. The TTL level signals from the phyCARD-M are converted to RS-232 level signals. UART1 provides only two handshake signals: RTS and CTS. Figure 22 below shows the signal mapping of the RS-232 level signals to connector P1.

Page 95

The phyCARD-M on the phyBASE

1 2

3 4

8 9

Pin 2: TxD-RS232 Pin 7: RTS-RS232 Pin 3: RxD-RS232 Pin 8: CTS-RS232

Pin 5: GND

Figure 22: UART1 connector P1 signal description

The RS-232 interface is hard-wired and no jumpers must be configured for proper operation.

Page 96

phyCARD-M [PCA-A-M1-xxx]

17.3.4 Ethernet Connectivity (X10)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X28

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OF F

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

X29

X10

D39

Figure 23: Ethernet interface at connector X10

The Ethernet interface of the phyCARD is accessible at an RJ45 connector (X10) on the Carrier Board. Due to its characteristics this interface is hard-wired and can not be configured via jumpers. The LEDs for LINK and SPEED indication are integrated in the connector.

Page 97

The phyCARD-M on the phyBASE

17.3.5 USB Host Connectivity (X7, X8, X9, X30, X33)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X28

X29

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OFF

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

D39

Figure 24: USB host interface at connector X7, X30, X33

The USB host interface of the phyCARD is accessible via the USB hub controller U4 on the Carrier Board. The controller supports control of input USB devices such keyboard, mouse or USB key. The USB hub has 7 downstream facing ports. Three ports extend to standard USB connectors at X7 (dual USB A) and X30 (USB A). A fourth port connects to 9 pin header row X33. These interfaces are compliant with USB revision 2.0. The remaining ports are accessible at the display data connector X6 and the expansion connectors X8A and X9A. These three interfaces provide only the data lines D+ and D. They do not feature a supply line Vbus.

LEDs D16 to D30 signal use of the USB host interfaces. Table 31 shows the assignment of the LEDs to the different USB ports.

Page 98

phyCARD-M [PCA-A-M1-xxx]

Table 34 shows the distribution of the seven downstream facing ports to the different connectors, whereas Table 35 shows the Pin-out of USB host connector X33.

USB hub port # Connector Connector Type

USB1 X30 USB A USB2 X6 40 pin FCC (pins 16 and 17)

USB3

X8 20 pin header row (pins 19 and

20)

USB4

X9 20 pin header row (pins 19 and

20)

USB5

X33 9 pin header row (see table

below) USB6 X7A (bottom) USB A USB7 X7B (top) USB A

Table 34: Distribution of the USB hub's (U4) ports

Pin number Signal name Description 1

USB5_VBUS USB5 Power

Supply 3 USB5_D- USB5 Data 5 USB5_D+ USB5 Data + 7 GND Ground 2,4,6,8,10 NC Not connected

Table 35: Universal USB pin header X33 signal description

Page 99

The phyCARD-M on the phyBASE

17.3.6 USB OTG Connectivity (X29)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X28

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OF F

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

X29

D39

Figure 25: USB OTG interface at connector X29

The USB OTG interface of the phyCARD is accessible at connector X29 (USB Mini AB) on the Carrier Board. This interface is compliant with USB revision 2.0.

No jumper settings are necessary for using the USB OTG port.

The phyCARD supports the On-The-Go feature. The Universal Serial Bus On-The-Go is a device capable to initiate the session, control the connection and exchange Host/Peripheral roles between each other.

Page 100

phyCARD-M [PCA-A-M1-xxx]

17.3.7 Display / Touch Connectivity (X6, X32)

X33

9.4mm

U13

U18

X32

U10

U15

U26

U23

XT1

U22

U12

U25

U19

BAT1

X34

U28

U11

U20

U17

X27

U27

U29

U21

U24

U14

U16

D38

X10

X28

X29

X30

X26

OUT

MIC

AUDIO

CAM

RS232

USB Host

USB OTG

Ethernet

PWR

LVDS

phyCARD Connector

Expansion 1Expansion 2

ON / OFF

Reset

MMC / SD card

D29

D30

JP2

JP1

D26 D16

D23

D17

D24

D18

D25

D19

D20

D27

D21

D28

D22

D40

D37

D41

D39

Figure 26: Universal LVDS interface at connector X6

The various performance classes of the phyCARD family allow to attach a large number of different displays varying in resolution, signal level, type of the backlight, Pin-out, etc. In order not to limit the range of displays connectable to the phyCARD, the phyBASE has no special display connector suitable only for a small number of displays. The new concept intends the use of an adapter board (e.g. phyBASE LCD interface LCD-014) to attach a special display, or display family to the phyCARD. Two universal connectors provide the connectivity for the display adapter. They allow easy adaption also to any customer display. The display data connector at X6 combines various interface signals like LVDS, USB, I

C, etc. required to hook up a display. The display power connector at X32 provides all supply voltages needed to supply the display and a backlight.
