Introduction

This Reference Manual describes the phyBOARD-RANA-AM335x for application
development. First chapter describes the installation of eclipse and how to develop an
application on phyBOARD-RANA-AM335x using Eclipse IDE. Second chapter describes
about how to write an application using console terminal. After completing this manual you
will come to know how to use the Eclipse.

1. Application development using Eclipse IDE

During this chapter you will learn how to build your own C/C++ applications for the target
with the help of Eclipse. We will start developing our own applications with the help of
Eclipse. First we will take a look on the C programming language. At the end of this
chapter we will explain how to execute your written programs automatically when booting
the target.

1.1. Eclipse IDE Installation

Download the Eclipse IDE from the below link(Note: According to your system
configuration) and install.

For Linux:

 Install java using below command:

$ sudo apt-get install openjdk-7-jdk openjdk-7-jre

 Download eclipse from below link

http://www.eclipse.org/downloads/packages/eclipse-ide-cc-developers/junosr2

For windows:

 Download and install the java for windows using below link:

http://www.oracle.com/technetwork/java/javase/downloads/jre7-downloads-

1880261.html

 Download eclipse from below link

http://www.eclipse.org/downloads/packages/eclipse-ide-cc-developers/junosr2

PHYTEC Embedded Pvt. Ltd 2014 4

1.2. Eclipse IDE Configuration for phyBOARD-RANA-AM335x

1.2.1. Host Setup

Toolchain: For Compiling the Application we need the toolchain which you can easily
download from the below link.

For Linux:

ftp://ftp.phytec.de/pub/Products/India/phyBOARD-RANA­AM335x/Linux/PD13.0.0/tools/toolchain/arm-cortexa8-linux-gnueabihf.tar.bz2

 Set ip Address

$ ifconfig eth0 192.168.1.12 up

Ths will be used as server IP address

Note : Where eth0 is the LAN Interface.

 Set the gateway

# route add default gw 192.168.1.1

For Windows:

http://sourcery.mentor.com/public/gnu_toolchain/arm-none-linux-gnueabi/arm-

2012.09-64-arm-none-linux-gnueabi.exe

 Click Start ► Control Panel ► open Network and Sharing Center
 From the Tasks menu on the left, choose Manage Network Connections
 Find and Right click on the active Local Area Connection and choose

Properties

 Double-click on Internet Protocol Version 4 (TCP/IPv4)
 Click on Use the following IP address
 Enter a IP like 192.168.1.12
 Press Tab and the Subnet Mask section will populate with default

numbers

 Enter gateway 192.168.1.1
 Hit Ok .

PHYTEC Embedded Pvt. Ltd 2014 5

1.2.2. Target Setup

Connect the power adaptor, serial cable, ethernet cable to the Rana AM335x
Board & Boot the Board.

To see all the Communication interfaces present on the Rana AM335x Board

# ifconfig -a

 Configure eth0.

# ifconfig eth0 192.168.1.15 up

where eth0 is the LAN interface.

 Check whether eth0 is configured or not by using the below command.

# ifconfig -a

Note

192.168.1.15 is not mandatory you can use any IP but it should be

different from the server IP.

 Set the gateway

# route add default gw 192.168.1.1

To see the change in the gateway.

# route

1.3. Creating a New Project in Eclipse

In this section you will learn how to create a new project with Eclipse and how
to configure the project for use with the GNU C/C++ cross development
toolchain. Click the Eclipse icon to start the application. You can find this icon
where you have extracted the Eclipse IDE for C/C++ Developers .

PHYTEC Embedded Pvt. Ltd 2014 6

1.3.1. How to open eclipse

For Linux:-

 Go to the Location where you have downloaded eclipse, Extract it and run

binary file ./eclipse

 Confirm the workspace directory with OK

For windows:-

 Click the Eclipse icon to start the application. You can find this icon on

your desktop.

 Confirm the workspace directory with OK

 Close the "Welcome to Eclipse" screen by clicking on the "workbench"

button

PHYTEC Embedded Pvt. Ltd 2014 7

Now you can see the Eclipse workbench.

PHYTEC Embedded Pvt. Ltd 2014 8

1.3.2 Creating a New Project

In this section we will learn how to create a new project with Eclipse and how to
configure the project for use with the GNU C/C++ cross development toolchain.

 Select File ► New ► Project from the menu bar. A new dialog will open.

 Select C Project and click Next

 Enter the project name myHelloWorld and Toolchain as Cross GCC then

click Next

PHYTEC Embedded Pvt. Ltd 2014 9

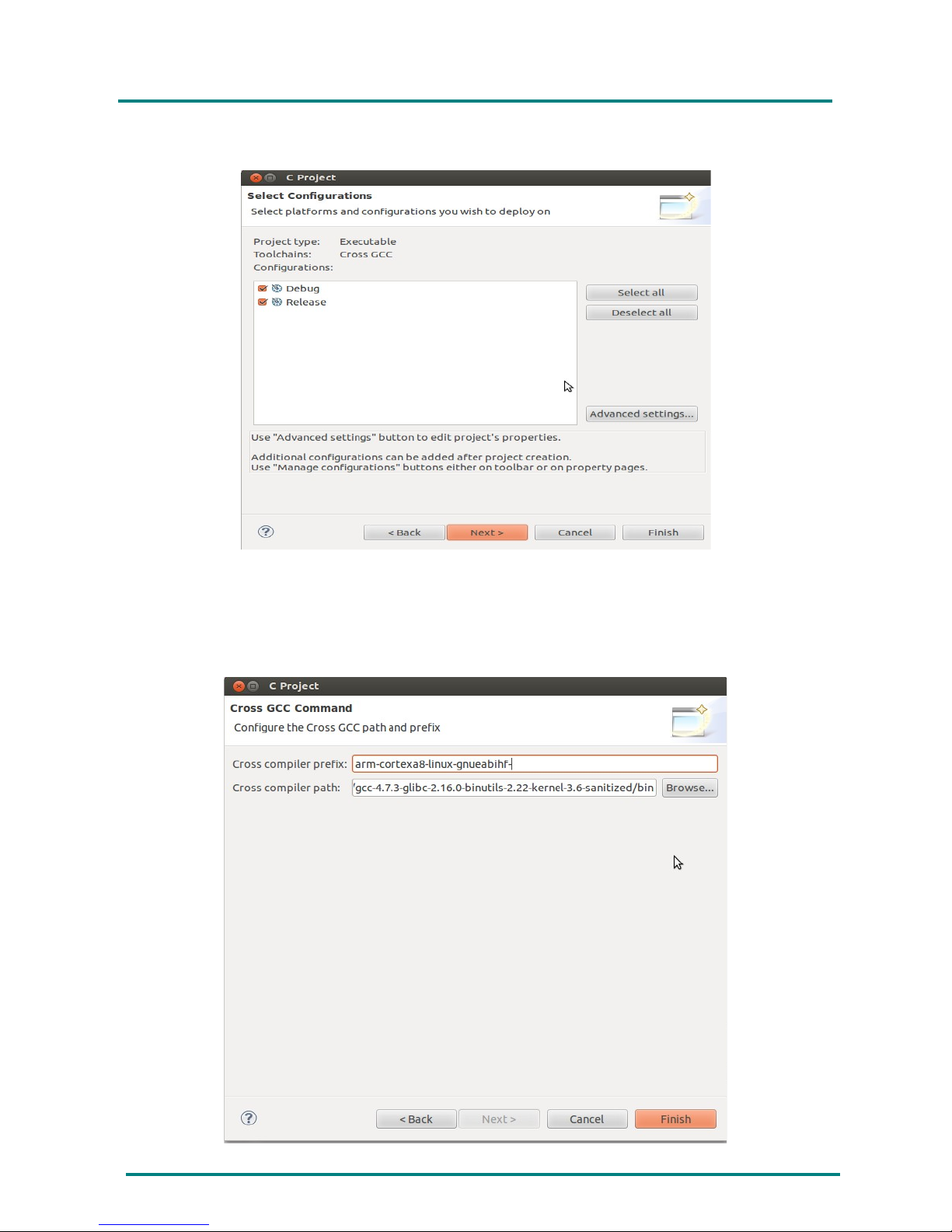

 Click Next

 Set Toolchain Prefix & Path and Click Finish

Select the Cross Compiler Prefix as arm-cortexa8-linux-gnueabihf-
and Cross Compiler Path as <path of toolchain bin>

PHYTEC Embedded Pvt. Ltd 2014 10

Note

For windows you have to select the arm-none-linux-gnueabi- and the appropriate path

of the toolchain.

1.3.3. Open new C source file

 Right-click on myHelloWorld project

 Select File ► New ► Source file from the menu bar

 In Source file write myHelloWorld.c and click on Finish.

`

PHYTEC Embedded Pvt. Ltd 2014 11

1.3.4. Write simple Hello Application

Write a simple Hello Application in C.

`
To compile your project for the phyBOARD-RANA-AM335x instead, you will have
to use the GNU C/C++ cross compiler.

Modify Post build steps:

 Right-click the myHelloWorld project and chose Properties

The Properties dialog box will appear.

 Select C/C++ Build ► Setting ► Select the Build Steps tab

Enter the following command in the Post-build steps Command input field:

scp ./myHelloWorld root@192.168.1.15:/home ;ssh

root@192.168.1.1 5 ./myHelloWorld

PHYTEC Embedded Pvt. Ltd 2014 12

Note

First login manually using ssh as shown in snapshot below. Otherwise we will not be able to
login in target because it requires secure connection

Note

If you are using windows so you have to use Winscp or directly copy the
binary into target board using pen drive or sd card.

PHYTEC Embedded Pvt. Ltd 2014 13

 Click Apply

 Click OK

1.3.5. Build the project

 Select Project ► Build project from the menu bar

The project will be built.

 Select the Console tab.

if no errors occur while building the project, you will see the following output:

Note

If you are using Window machine then you need the make utils using the

below link.

ftp://ftp.equation.com/make/32/make.exe

PHYTEC Embedded Pvt. Ltd 2014 14

1.4. Changing the Demo Application

Now we will extend the myHelloWorld application. The extended myHelloWorld
application will write an output to the first serial interface as well as to the
standard output.

 Open Eclipse if it is not opened yet

 Double-click myHelloWorld.c in the myHelloWorld project

First include the following two additional header files:

#include <unistd.h>
#include <fcntl.h>

Then add the function write_tty(), which writes n bytes to the first serial
interface (which, on the phyBOARD-RANA-AM335x, is connected to the system
console /dev/console):

void write_tty (char *buffer, int count)

{

int out;

out = open ("/dev/console", 666);

write(out, buffer, count);
close(out);

}

Enter the following two lines in the main() function to declare the buffer and
call the write_tty() function.

char buf [] = { "Welcome to the World of the Rana-AM335x! (serial)\n" };

write_tty(buf, sizeof (buf) - 1);

In the next screenshot you can see the complete program.

PHYTEC Embedded Pvt. Ltd 2014 15

 Save your program after changing the code.

 Select Project ► Build project from the menu bar

The project will be build...

The application will be compiled, built, copied to the target and executed.

PHYTEC Embedded Pvt. Ltd 2014 16

1.4.1. Open Target Board using Minicom

 Open the terminal using minicom-

# sudo minicom -D /dev/ttyXX

Note

where XX is the Node Number.In case of USB-to-Serial converter it will be USB*.

 Enter user name root and press Enter then type ls to see all the file.

# ls

Run ./myHelloWorld to start the application

# ./myHelloWorld

Hello World

Welcome to the World of the Rana-AM335x! (serial)

 close minicom.

In this section we had changed an existing application. We had also learned
how to access the serial interface. First we called the function open() on the
device /dev/console. The return value of this function was a file descriptor. With
the file descriptor you called the function write() to send n bytes to the
device /dev/console. After that, the file descriptor was closed with the function
close().

1.5. Remote System Access using Eclipse

For Windows :

You have to set the address manually

connect ethernet cable

Go to network connections

right click on "Local area connection" ► properties ► under general tab

double click on "Internet Protocol(TCP/IP)"

change the parameters

For above settings, refer section 1.2.1

PHYTEC Embedded Pvt. Ltd 2014 17

For Linux :

You have to set the address manually ,for this refer section 1.2.2.1

 Left-click the Window tab

Show view ► other ► Remote Systems and ok

Now you are able to see the remote system page.

PHYTEC Embedded Pvt. Ltd 2014 18

1.5.1. Create New Connection for Remote System login

 Right Click on Local select new connection

select linux

1.5.2. Set the Host Name and IP

Then write Host name as 192.168.1.15 and connection name as Rana Board.

PHYTEC Embedded Pvt. Ltd 2014 19

 Select ssh.files

 select processes.shell.linux and next

PHYTEC Embedded Pvt. Ltd 2014 20

 select ssh.shells and next

 select ssh.terminals and finish

Now the connection has been created successfully

PHYTEC Embedded Pvt. Ltd 2014 21

 Click on the Rana Board ► Sftp Files ► My Home
 Type User ID as root leave password blank. Then press OK.

 Then a secure Storage tab is opened just cancel it.

PHYTEC Embedded Pvt. Ltd 2014 22

1.5.3. Launch the Remote Terminal

 Right click Ssh Terminal ► Launch Terminal

Now we can see all the contents of phyBOARD-RANA-AM335x.

PHYTEC Embedded Pvt. Ltd 2014 23

1.6. Debugging an example project

 In this section, we will learn how to use the GNU debugger i.e., GDB on

the host for remote debugging in conjunction with the GDB server on the
target.

 First, start the GDB server on the target. Then configure the Eclipse platform

and start the GNU debugger of Eclipse using the Debug view.

 The GDB client is running on the host and is used to control the GDB

server on the target, which in turn controls the application running on the
target.

 GDB client and GDB server can communicate over a TCP/IP network

connection as well as via a serial interface.
In this Quickstart we will only describe debugging via TCP/IP.

1.6.1. Starting the GDB server on the target

In this passage you will learn how to start the GDB server on the target. The
GDB server will be used to start and control the myHelloWorld program.

To debug a program with GDB, the program needs extended debugging
symbols.

This has already been added while building the program.

 Open Minicom

#sudo minicom -D /dev/ttyXX

Note : where XX is the Node Number. In case of USB-to-Serial converter it will be USB*

Type user name “root” and press Enter

Start the GDB server:

# gdbserver 192.168.1.12:10000 myHelloWorld

You have started the GDB server on the target. The GDB server is now waiting
for connections on TCP port 10000.

PHYTEC Embedded Pvt. Ltd 2014 24

1.6.2. Configuring and starting the debugger in Eclipse

In this passage we will learn how to configure our project settings to use Eclipse
with the GNU debugger. After the configuration of our project settings, the GNU
debugger will start and connect to the GDB server on the target.

 Start Eclipse if the application is not started yet

 Right-click on the myHelloWorld project in the Navigator window

 Select Debug As ► Debug Configurations

A dialog to create, manage and run applications appears.

 Double click on C/C++ Remote Application ► select myHelloWorld Debug

Note

Make sure that on the bottom of the Debug configuration Window it says “Using GDB
(DSF) Manual Remote Debugging Launcher”. If it does not, then click on the “Select
Other” and select this option.

PHYTEC Embedded Pvt. Ltd 2014 25

 Select the Debugger tab
 Click the Browse button right beside the GDB debugger input field.

 Navigate to the directory <Path of the Toolchain>/bin/arm-cortexa8-linux-

gnueabihf-gdb

 Click OK

 Select the Connection tab and select TCP in the drop-down box

Enter 192.168.1.15 (the target's IP address) in the Host name input field.

And port numer 10000.As shown in next page.

PHYTEC Embedded Pvt. Ltd 2014 26

 Click Apply

 Click Debug

A new dialog appears.

 Select Yes to switch to the Debug perspective

PHYTEC Embedded Pvt. Ltd 2014 27

The host's GDB is now connected to the GDB server on the target.

We have configured our project for remote debugging. We have started the
GNU debugger in Eclipse and connected the host's GDB with the target's GDB
server. We can now start to debug the project.

1.6.3. Setting a Breakpoint

Now we will set a breakpoint in our program. This breakpoint will be set on the
last line of the function main(). If you resume the application, the debugger will
stop on this line.

PHYTEC Embedded Pvt. Ltd 2014 28

Select the last line in main() .Right-click into the small grey border on the left­hand side and select Toggle Breakpoint to set a new breakpoint

1.6.4. Stepping and Watching Variable Contents

In this part we will step through the example project with the debugger. we will
also learn how to check the content of a variable. Expand buf in the Variables
window

 Click the Step Over button in the Debug window to step to the next line

PHYTEC Embedded Pvt. Ltd 2014 29

we will see the content of the buf variable in the Variables window.

 Click on the variable buf

 Then click the button Step into to enter the function write_tty()

The debugger stops in write_tty().

we will see the following variable window:

PHYTEC Embedded Pvt. Ltd 2014 30

 Click on the variable buffer,as pointed in above figure.

we will probably see a different address on the buffer pointer. Remember what
address is shown in our case; we will need this address later.

1.6.5. Stepping and Watching Variable Contents

In this section we will change the value of a variable. At the end of this part we
will see the effect of this change.

 Select the count variable in the Variables window

 Double click on value and Change Value to 7

 Click the Step Overbutton two times

Change to Minicom

we will see the output Welcome in the Minicom window. This shows when
changing the counter variable's value to 7 only the first seven characters of the
buffer are output, instead of the whole sentence.

PHYTEC Embedded Pvt. Ltd 2014 31

1.6.6. Using the Memory Monitor

In the last section of this chapter you will use the memory monitor to control
the content at a memory address.

 Select the Memory tab

 Click Add Memory Monitor

 Enter the address of buffer and click OK. Remember that the variable's

address might differ from your system.

You will see following output.

 Click New Rendering
 Select ASCII and click Add Rendering(s).

PHYTEC Embedded Pvt. Ltd 2014 32

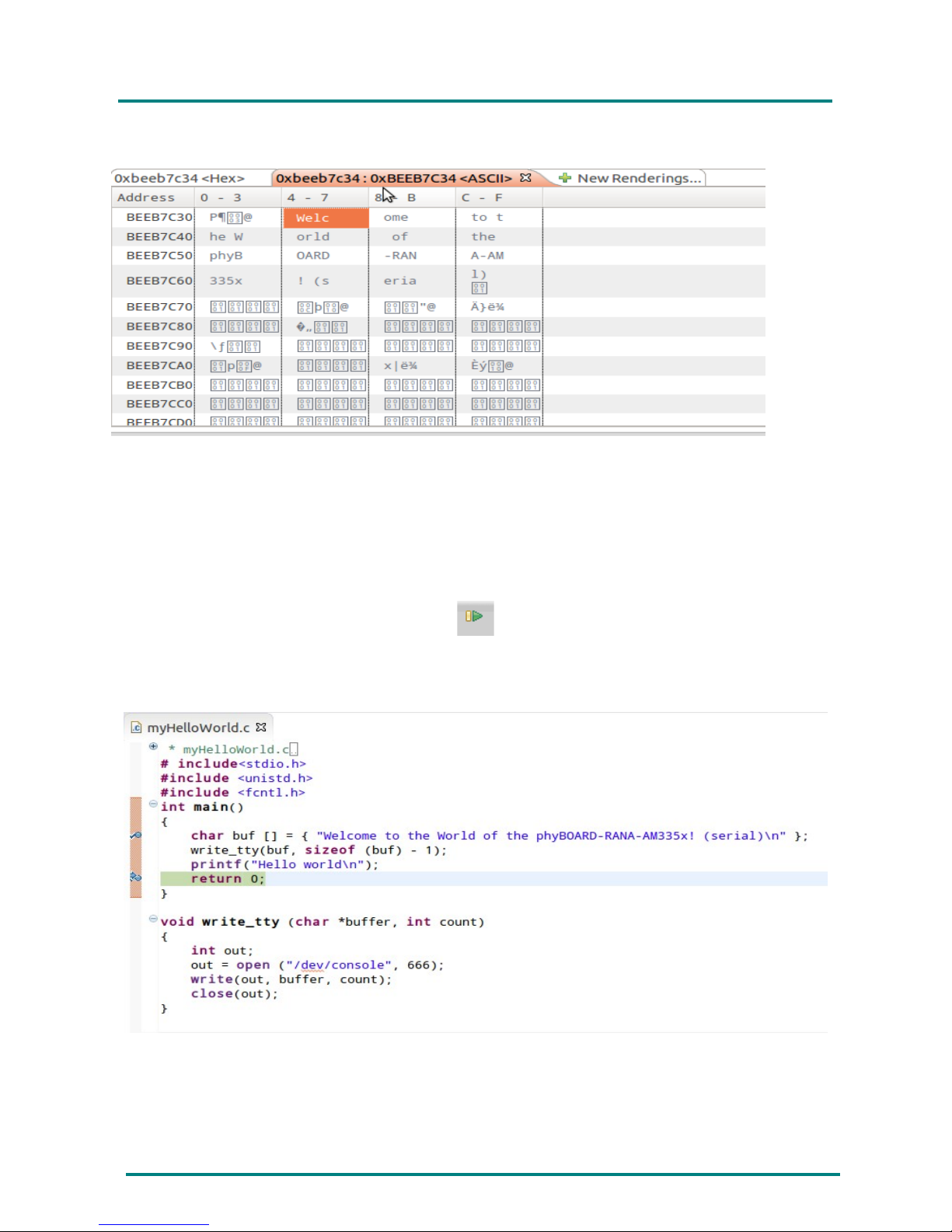

You will see follwing output on your screen.

You can see the contents of the variable buffer at the address 0xbeeb7c34 (or
whatever address is used on your system).

 Now click the Resume button from the menu bar

The debugger stops at the breakpoint in the last line of main() i.e return0.

 Click the Resume button to end the application.

PHYTEC Embedded Pvt. Ltd 2014 33

Get the dialog going ...

... and stay in touch

India

PHYTEC Embedded Pvt. Ltd.

# 16/9C, 3rd Floor,
3rd Main, 8th Block,
Opp: Police Station,

Koramangala,

Bangalore -560095

www.phytec.in

Germany

PHYTEC Messtechnik GmbH

Robert-Koch-Straße 39

D-55129 Mainz
Tel.: [phone]
Fax: [phone]

www.phytec.de
www.phytec.eu

America

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

Tel.: [phone]

Fax: [phone]

www.phytec.com

France

PHYTEC France SARL

17, place St. Etienne

F-72140 Sillé le Guillaume

Tel.: [phone]
Fax: [phone]

www.phytec.fr

..................................We are looking forward to hearing from you!..................................

PHYTEC Embedded Pvt. Ltd 2014 34
