Cube

USER MANUAL

VERSION 1.1

Table of Contents

Product Overview 5............................................................................................

Package Contents ............................................................................................................. 5

System Requirements ..................................................................................................... 5

Introduction ....................................................................................................................... 6

Hardware Overview ......................................................................................................... 8

Installation 9.........................................................................................................

Hardware Installation .................................................................................................... 9

Restore Camera back to factory settings .............................................................. 10

Wireless Installation with WPS function................................................................. 11

Wireless Installation Considerations........................................................................ 12

Quick installation for iOS device ............................................................................ 13

Camera installation on iOS device ................................................................. 13

Wireless Setup on iOS device .......................................................................... 16

.......................................................................... 19Advanced settings on iOS device

Camera installation on Android device ....................................................... 23

.................................................................. 23Quick installation for Android device

Wireless Setup on Android device ................................................................ 26

................................................................ 28Advanced settings on Android device

Camera installation on PC ........................................................................................ 32

Camera Live installation on PC ....................................................................... 32

Play, Delete and Modify cameras ................................................................... 34

Muliti-viewing on one screen ......................................................................... 36

Video recording, Storage andViewing ........................................................ 37

Snapshots, Storage and Viewing ................................................................... 38

Installation via Web Browser ................................................................................... 39

Viewing Camera via Web Browser ................................................................ 39

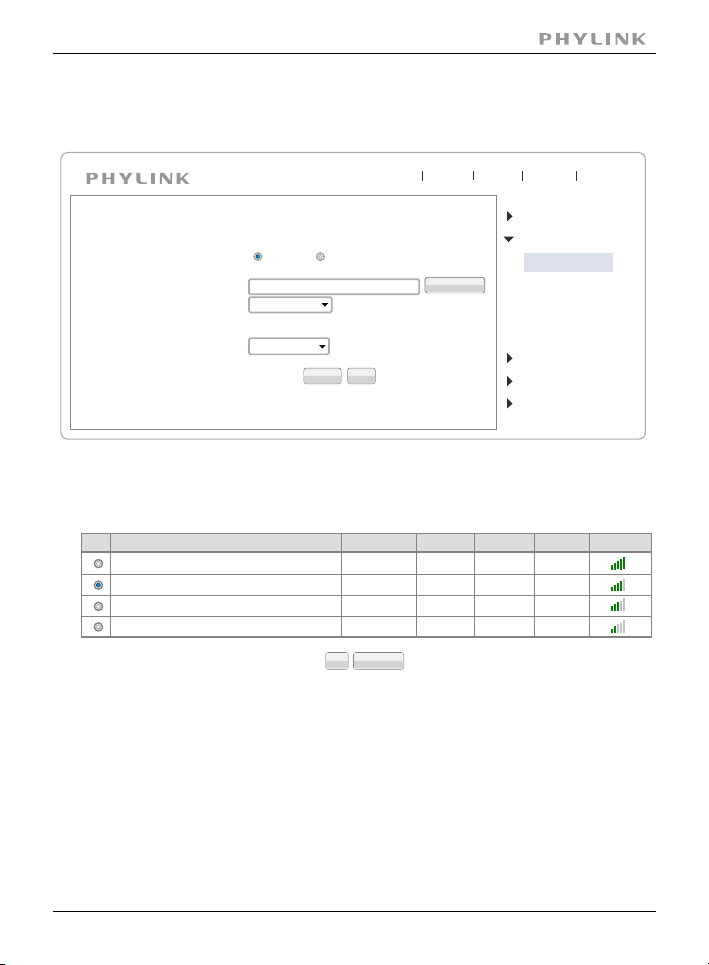

Wireless Setup on PC via Web Browser ..................................................... 40

Advanced Configuration 43............................................................................

Network Camera Setting Interface ........................................................................ 43

Camera................................................................................................................................ 45

Camera Setup.......................................................................................................... 45

PHYLINK Cube HD User Manual

Table of Contents

Stream Setup ........................................................................................................... 46

OSD Setup ................................................................................................................ 49

Night Vision Setup ................................................................................................. 50

Network................................................................................................................................ 51

Wireless Setup.......................................................................................................... 51

TCP/IP Setup............................................................................................................. 53

DDNS Setup.............................................................................................................. 54

UPNP Setup.............................................................................................................. 57

Storage ................................................................................................................................. 59

Storage Setup ......................................................................................................... 59

Browse Storage ....................................................................................................... 60

Format SD Card ....................................................................................................... 60

Recording to NAS .................................................................................................. 61

Task ........................................................................................................................................ 64

Motion Detection .................................................................................................. 64

Schedule Setup ...................................................................................................... 66

Task Management ................................................................................................. 67

Email alarm sending ...................................................................................... 68

Email periodic sending ................................................................................. 70

FTP alarm sending ......................................................................................... 71

FTP periodic sending .................................................................................... 73

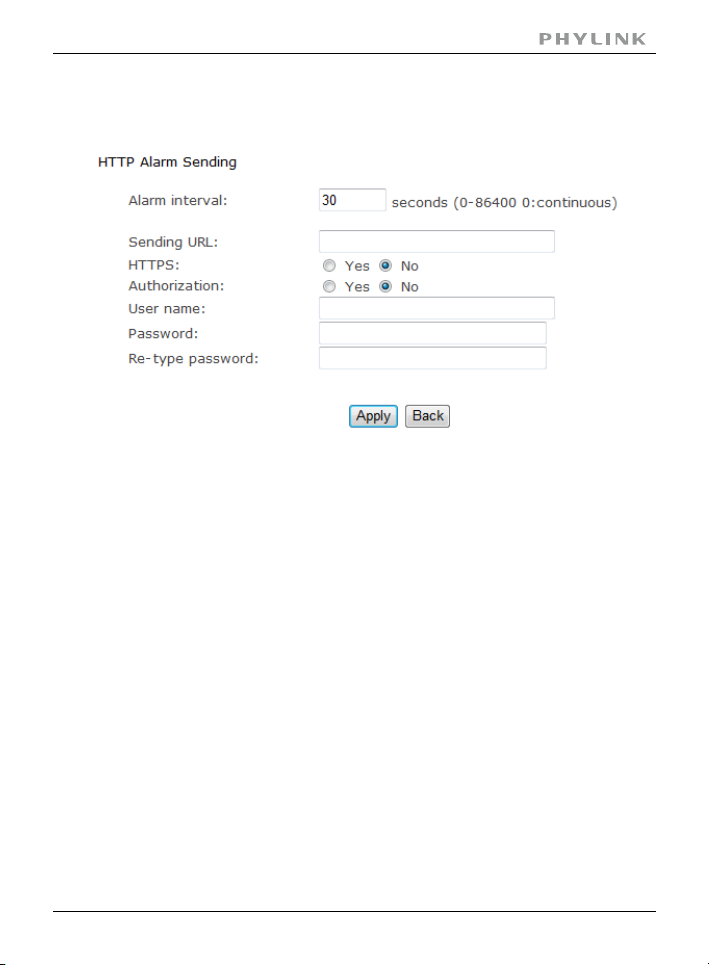

HTTP alarm sending ...................................................................................... 74

HTTP periodic sending ................................................................................. 75

Snapshot to storage on alarm .................................................................... 76

Snapshot to storage periodically .............................................................. 77

Record to storage on alarm ......................................................................... 78

Record to storage continuously ................................................................. 79

Sending files in storage to FTP server ..................................................... 80

Tools ...................................................................................................................................... 81

System Identity ....................................................................................................... 81

User Management ................................................................................................. 82

Date & Time .............................................................................................................. 83

Backup or Reset ...................................................................................................... 84

Firmware Upgrade ................................................................................................. 84

Advanced functions....................................................................................................... 86

Wizard.......................................................................................................................... 86

System......................................................................................................................... 87

PHYLINK Cube HD User Manual

Table of Contents

Troubleshooting 88..................................................................................................

Status indicator LED of camera does not light up ..................................................... 88

The picture viewing interface does not appear on internet explorer ................. 88

The camera’s network connection unreliable............................................................. . 88

Wireless communication does not work ....................................................................... 88

Video window shows "on connecting”.......................................................................... 88

Forget the IP address of network camera ...................................................................... 89

Forget the password to access the setting interface ................................................. 89

Why we see strips in the videos ........................................................................................ 89

The camera is producing noisy images .......................................................................... 89

Using a camera behind glass ............................................................................................. 89

Technical Specifications 90....................................................................................

Glossary of Terms 91.................................................................................................

Technical Support 93................................................................................................

PHYLINK Cube HD User Manual

Section 1 - Product Overview

Package Contents

Verify the package contents against the list below.

PLC-223W/PLC-233W Network Camera Camera Stand Manual and Software on CD-ROM CAT5 Ethernet Cable Power Adapter Quick Install Guide

System Requirements

Minimum PC System Requirements

Operating system-Windows 2000/XP/Vista /Windows 7/Mac/Linux Processor-Intel Pentium III, 1GHz Memory-256Mb RAM

Minimum Mac System Requirements

Operating system-Mac OSX 10.4 (Tiger) Processor-800MHz-Power PC G4 or Intel Memory-128Mb RAM (256Mb recommended)

Viewing System Requirements

Web Browser Setup/Viewing- IEVersion 5.5 or later, Firefox, Google Chrome, Safari & most other browsers Real Player QuickTime and most otherVLC players.

PHYLINK Cube HD User Manual

Section 1 - Product Overview

Introduction

Thank you for your interest and support in our product and purchasing this wireless IP security camera.

Professional High Quality Video Camera

With Megapixel optical lens, Surveillance CMOS Sensor, DSP processor, you can experience outstanding HD video at full resolution. Built-in IR LED Lamps for Night vision that gives you ability to view clearly even in the dark environments. Enhanced by automatic IR cut-filter operation, it provides sharp and clear picture quality, day or night.

Fast and easy setup

View your camera online Within minutes. No software installation or router setup needed. With the Cloud Server Technology, PHYLINK Bullet smart connect to internet without any complicated port mapping or DDNS settings. You just enters or scan the QR Code which printed on each camera. It's very simple and smoothly.

Connections for your smart life

The PHYLINK Bullet records video clips when there any motion events detected. It has a Built-in Micro SDHC card slot(up to 64GB) with remote playback from anywhere. You can also remotely view live video from Smart Phones, iPad, Mac, and PC. The Motion Sensor of PHYLINK Bullet has Multi-zone and Adjustable sensitivity. If any motion detected, PHYLINK Bullet will Alerts through email or push notifications(iOS and Android) to keep you notified. Utilizing advanced H.264 technology, the PHYLINK Bullet uses minimal bandwidth and storage requirements. With smooth real-time video and audio streaming.

PHYLINK Cube HD User Manual

Section 1 - Product Overview

Approval Information

All our products meet the requirements of approval FCC or CE, and are granted the FCC or CE certification. They are authorized to bear FCC or CE mark.

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and the receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes and modification not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commissions rules.

This product complies with standards including Low Voltage Device Directive 73/23/EEC; EMC Directive 89/336/EEC and R&T TE Directive 1999/5/EC. It passed the subject tests by the authority concerned and is authorized to bear CE mark.

PHYLINK Cube HD User Manual

Section 1 - Product Overview

Hardware Overview

1. Ethernet RJ45 connector

2. WPS status indicator LED

3. WPS Button

4. Reset pin hole

5. Audio Out

6. Power Jack

7. Light Sensor

8. Infrared LED

9. Microphone

10. Power/Status indicator LED

11. Micro SD Card slot

12. Screw of Stand

Reset pin hole

Short press this button to reset the camera back to Factory Settings.

Power/Status indicator LED

After the camera is powered on, system is going to start, the indicator LED shows yellow light and quickly off which means the system is being started. When the indicator LED shows yellow again, it means the system has started successfully. Red light is for wired connection, yellow light for wireless connection. The indicator LED flashes during data transfer.

WPS Button

Press this button to setup a wireless connection automatically.

Light sensor

Monitors lighting conditions and switches between color and infrared accordingly.

Power Jack

Connects to the included DC 12V power adapter.

Micro SD Card slot

Local storage for storing recorded image and video.

PHYLINK Cube HD User Manual

Section 2 - Installation

Hardware Installation

Connect network cable and power

Connect the camera to your switch or router using the provided network cable.

Connect the AC adapter cable from the camera to a power outlet.

Note: DHCP sever and UDP port must be enabled on your router(which is default

setting on most router), for automatic of IP address to the network camera.

If needed, please refer to your router's user manual on how to enable

DHCP server and UDP.

Mount the camera

The camera can be either wall-mounted or ceiling-mounted using the supplied stand. It can also be placed on a desktop using the supplied stand, thus providing a flexible installation solution.

For some angles you may need to loosen main mounting ring by turning the big flat screw on the back of the stand with a coin, so that the notch in the mounting ring allows the pin to point in the desired direction. You can then tighten it again with the coin.

Should any mounting position require the image to be rotated 180 degrees (inverted), there is a setting for that in the "camera setup" menu.

IMPORTANT! - The PHYLINK Cube HD is not approved for outdoor use - the product may only be installed in indoor environments.

PHYLINK Cube HD User Manual

Section 2 - Installation

Restore Camera back to factory settings

If you ever forget your admin password or have any other reason to reset the camera to its factory settings, please use the following procedure:

Make sure the camera is powered up.

It is easier to use the software reset function in the “Backup or Reset”menu. If hardware reset is needed, find the at the rear of camera.Reset pin hole Please see the figure in section.Hardware Overview

Insert the tip of a paper clip in the to press the reset switch.Reset pin hole You’ll feel the click when the switch engages.

A few seconds later the camera will restart and is now at factory settings. Of course, after reset the user name and password will both be“admin”again.

PHYLINK Cube HD User Manual

Section 2 - Installation

Wireless Installation with WPS function

You may create a Wi-Fi connect using the on the .Reset/WPS Button Camera Cable

Step 1

After the camera is powered on, press the on the back of the camera.WPS button The blue above the button will blink.WPS status LED

Step 2

Press the on your router within 60 seconds.WPS button WPS function also called (Quick Secure Setup) on some brands of router.QSS The camera will automatically create a wireless connection to your router.

While connecting, the will always on and your cameraWPS Status indicator LED will reboot.

Note: On some routers, you may need to login to the web interface and then click on an onscreen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual.

PHYLINK Cube HD User Manual

Section 2 - Installation

Wireless Installation Considerations

The PHYLINK wireless IP security camera lets you access your network using a wireless

connection from anywhere within the operating range of your wireless network.

However, the number, thickness and location of walls, ceilings, or other objects that the

wireless signals must pass through, may limit the range. Typical ranges vary depending

on the types of materials and background RF (radio frequency) noise in your home or

business. The key to maximizing wireless range is to follow these basic guidelines:

1. Minimize the number of walls and ceilings between your adapter and other network

devices (such as your Network Camera) - each wall or ceiling can reduce your adapter’s

range from 3-90 feet (1-30 meters).

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or other radio frequency sources (such

as microwave ovens), your wireless connection may degrade dramatically or drop

completely. Make sure your 2.4GHz phone base is as far away from your wireless

devices as possible. The base transmits a signal even if the phone in not in use.

PHYLINK Cube HD User Manual

Section 2 - Installation

Quick installation for iOS device

Camera installation on iOS device

Download and install "Phycam" App from App Store.

Start the application after it is installed. The " " screen will appear.Add Camera

iPad

Add

Camera Found! (2)

VNW5V15K6RY7J4VWC7W1

192.168.168.102

THG5T55K2RY7K1VWC7XJ

192.168.168.112

V5G5SX5U2TE71JBWC7W1

192.168.168.126

Camera

There are three ways to add cameras on an iOS device.

Option 1

Automatically search in Local Area Network

If you camera is in the same Local Area Network with your Smart phone, the App can search cameras for Local Network. Enable Wi-Fi on iPhone/iPad, the App will automatically search cameras for Local Network.

If camera UID shows up on list then press the UID and click on "Add".

iPad

Cancel

Event

17:50

Add Camera

QRCode

Playback

17:50

Add Camera

63%

Info

63%

Save

Name

UID

Account

Camera

THG5T55K2RY7K1VWC7XJ

admin

PasswordPassword

Enter "Password" (default password is "admin") Assign a "Name" to the camera to help identify this camera if more than one

camera is in use. Press "Save" button and your camera will show up under“ ”.Camera List

PHYLINK Cube HD User Manual

Section 2 - Installation

Option 2

Scan the camera UID using smart phone

Press "QRCode" to scan the camera UID from the sticker on the product.

iPad

Add

Camera Found! (2)

VNW5V15K6RY7J4VWC7W1

192.168.168.102

THG5T55K2RY7K1VWC7XJ

192.168.168.112

V5G5SX5U2TE71JBWC7W1

192.168.168.126

Camera

Event

17:50

Add Camera

QRCode

Playback

Add Camera

iPad

63%

Place a barcode inside the

viewﬁnder rectangle to scan it.

Info

Cancel Light

17:50

Enter "Password" (default password is "admin")

Assign a "Name" to the camera to help identify this camera if more than one camera is in use. Press "Save" button and your camera will show up under“ ”.Camera List

Option 3

Manually type UID

If you camera is not in the same Local Area Network with your Smart phone, the App can NOT search cameras for Local Network.

Press "Add" button and manually type "UID" according to the UID sticker on the product.

Enter "Password" (default password is "admin") Assign a "Name" to the camera to help identify this camera if more than one

camera is in use. Press "Save" button and your camera will show up under“ ”.Camera List

63%

PHYLINK Cube HD User Manual

Section 2 - Installation

Press on the Camera name from“ ” for "Live View" using a wired connection.Camera List

iPad

Back

Online / LAN

768x432 / FPS: 16 / BPS: 154 Kbps

17:50

Camera

Live View

63%

Press to View saved pictures.

Press to take a snapshot.

Press to start listening or stop listening.

Press to start speaking or stop speaking.

Press the "Back" button to go back to the“ ”.Camera List

PHYLINK Cube HD User Manual

Section 2 - Installation

Wireless Setup on on iOS device

There are two ways to setup wireless connection on iOS device.

Option 1

Quick setup with smart phone

Press on next to the camera name from .Camera List

iPad

Camera

Connected

VNW5V15K6RY7J4VWC7W1

Camera

Connected

V5G5SX5U2TE71JBWC7W1

Event

17:50

Camera List

Playback

Add Camera

63%

Edit

Info

Press on from the .Advanced Setting Edit Camera

iPad

Back

Name

Account

Password

Reconnect

Security Code

17:50

Edit Camera

Camera

admin

63%

Connected

iPad

Back

Motion Detection

Alarm Recording

Microphone

Speaker

Video Quality

Network Setup

17:50

Advanced Setting

Not available

63%

Advanced Setting

Alarm Actions

PHYLINK Cube HD User Manual

Section 2 - Installation

Press on from the .Network Setup Advanced Setting

iPad

Back

WiFi Networks

17:52

Network Setup

62%

iPad

Back

CHOOSE A NETWORK...

WiFi Networks

D-Link_DIR-612

17:52

62%

Data & Time

TP-Link_245416

FAST_11DA2E

phr-002

Press on , then the App will search for available wireless networks,WiFi Networks select your network among this list. Type your Wi-Fi password and press on to complete the Wi-Fi setup.Join

iPad

Cancel

Password

17:52

Enter Password

62%

Join

After a successful wireless setup, you can remove the network cable and the camera should work through the wireless network after a shirt delay.

PHYLINK Cube HD User Manual

Quick installation for iOS device

Option 2

You may create a WiFi connect using the WPS Button on the back of the camera.

Quick setup with WPS function

Step 1

After the camera is powered on, press the on the back of the camera.WPS button

The blue above the button will blink.WPS status LED

Step 2

Press the on your router within 60 seconds.WPS button WPS function also called (Quick Secure Setup) on some brands of router.QSS

The camera will automatically create a wireless connection to your router. While connecting, the will always on and your camera will reboot.WPS status LED

For other Advanced Setting, (such as Record, Event, Motion Detection, Alarm Action, Login Account, Video Quality and more) please see the User Manual which is available on the installation CD in this package or from the PHYLINK support website.

PHYLINK Cube HD Quick Install Guide

Section 2 - Installation

Advanced Setting on iOS device

Video Quality

There are two pre-programmed stream profiles: primary stream and secondary stream.

These streams profiles help for quick setup.

The settings for these can be adjusted. Press on for the settings of stream profiles.

iPad

Back

Primary Stream

Secondary Stream

Environment Mode

Horizontal Flip

Vertical Flip

On-Screen-Display

Video Quality

17:52

62%

50Hz

Disable

iPad

Back

Image Size

Frame Per Second

Bitrate (Kbps)

Pre-Recording (sec)

17:52

Stream Setup

Good

62%

Conﬁrm

PoorMediumBest

640x480

512

There are four quality level of video can be set quickly. You can also make further changes to the details of quality. Please note that the higher the video quality, the more network bandwidth you will need to support it.

Two options: 50Hz & 60Hz. Set according to the mains[]Environment Mode frequency in the country of use. For UK this would be 50Hz. For US this would be 50Hz.

The Pre-RecordingTime control how long the video is recorded[Pre-Recording] before motion detection is detected by a camera. You can fill a value of seconds to adjust this times.(The Max value is 10 seconds)

Video pre-recordingallows the camera to record up to 10 seconds of video leading up to a related trigger event. It will allows users to review the moments before the camera was triggered. Moving objects triggered motion detection recording function, but the delay problems caused the loss of data images in the beginning of the event, in some situations, these are very important.Video pre-recording will help you catch everything.

PHYLINK Cube HD User Manual

Section 2 - Installation

Alarm Actions

The camera refers to motion detection as an “alarm”. If any alarm occurs, the camera can trigger a recording and send an email.

iPad

Back

Alarm Recording

Alarm Email

Alarm Actions

17:52

62%

Press on to enter the Alarm Recording settings or Alarm Email settings.

Alarm Recording

iPad

Back

Alarm Recording

Record Stream

Post-Recording (sec)

File Split (sec)

17:52

Alarm Recording

In the Alarm Recording settings, you can turn on or off the Alarm Recording feature.

You can select which

after motion detection is detected by a camera. You can fill a value of seconds to adjust this times.

The video can be recorded into many split files for better management[File Split]

and index.You can set the recording time for each split file.

62%

Conﬁrm

1st 2nd

stream profile to record.

The Post-Recording Time control how long the video is recorded[Post-Recording]

PHYLINK Cube HD User Manual

Section 2 - Installation

Alarm Email

For automatic emailing you will need both a mail server and one or more email receiving addresses. If you don’t have this information handy you may want to refer to your internet service provider’s help pages or other email program account settings.

SMTP Email Server Setting

iPad

Back

General Setting

Email Sending

Snapshot Stream

Email Interval (sec)

17:52

Alarm Email

In the Alarm Email settings, you can turn on or off the Alarm Email feature. You can select the

stream profile to .snapshot for mail

1st 2nd

62%

Conﬁrm

Server

Port 25

SSL Connection

Authentication

Account

Password

Sender

[]Email Interval .Input the interval between two E-mails

If you do not want to send mail too frequently, you can increase the time interval to send the E-mail.

[Server] Input your E-mail’s SMTP server name.

25, as default.[Port]

Select . For Gmail, select .[SSL connection] OFF ON

It depends on the mail system.

Select .[Authentication] ON

your E-mail user name.[Account] Input

Input your E-mail password.[Password]

Input the sender mail address[Sender]

Input the receiver mail address.[Receiver mail address]

PHYLINK Cube HD User Manual

Section 2 - Installation

Receiver Setting

Receiver#1

Receiver#2

Receiver#3

Subject Warning from Network...

Message

Input the receiver mail address.[Receiver#] You can set up a total of three E-mail address.

[Subject] Input the subject of mail.

Fill with the content you want to send in the mail[Message] .

Note: Gmail requires that you go to your account settings on Gmail.com and enable the POP feature (Post Office Protocol). If your Gmail account does not have POP enabled, the camera will not be able to send email.

PHYLINK Cube HD User Manual

Section 2 - Installation

Quick installation for Android device

Camera installation on Android device

Download and install "Phycam" App from Google Play.

Start the application after it is installed. The " " screen will appear.Camera List

20:46

PHYCAM

Click here to add camera

There are three ways to add cameras on an Android device.

Option 1

Automatically search in Local Area Network

If you camera is in the same Local Area Network with your Smart phone, the App can search cameras for Local Network.

Enable Wi-Fi on Android OS device, press on “ ” button and camera UID longSearch ( alphanumeric string with IP address on the bottom) will shows up on " " screen.Search camera from LAN Then press the UID for the camera you are setting up.

20:46

Add Camera

Device Setting

UID:

Scan

Search camera from LAN

TDGNUX5221EZ11BWC7EJ

192.168.168.105

Refresh

Enter "Password" (default password is "admin") Assign a "Name" to the camera to help identify this camera if more than one

camera is in use.

Press " " button and your camera will show up under“ ”.OK Camera List

PHYLINK Cube HD User Manual

Section 2 - Installation

Option 2

Scan the camera UID using smart phone

Press " " to scan the camera UID from the sticker on the product or Camera Cable.Scan

you must have a bar code reader application installed on your Android device)(

Add Camera

Device Setting

UID:

Scan

20:46

Barcode Scanner

Place a barcode inside the viewﬁnder rectangle to scan it.

Enter "Password" (default password is "admin")

Assign a "Name" to the camera to help identify this camera if more than one camera is in use. Press " " button and your camera will show up under“ ”.OK Camera List

Option 3

Manually type UID

If you camera is not in the same Local Area Network with your Smart phone, the App can NOT search cameras for Local Network.

Press "Add" button and manually type " " according to the UID sticker on theUID product or Camera Cable.

Enter "Password" (default password is "admin") Assign a "Name" to the camera to help identify this camera if more than one

camera is in use.

Press "Save" button and your camera will show up under“ ”.Camera List

PHYLINK Cube HD User Manual

Section 2 - Installation

Press on the Camera name from“ ” for " " using a wired connection.Camera List Live View

20:46

PHYCAM

Camera

VNW5V15K6RY7J4VWC7W1

Online

Click here to add camera

Live View

Camera

Press to view saved pictures.

Press to take a snapshort of live view.

Press to start listening or stop listening.

Press to start speaking or stop speaking.

Press the Back Button of Android to go back to the“ ”.Camera List

PHYLINK Cube HD User Manual

Section 2 - Installation

Wireless Setup on on Android device

There are two ways to setup wireless connection on Android device.

Option 1

Quick setup with smart phone

press and hold camera name until the menu shown below pops up. And press "Edit Camera".

20:46

PHYCAM

Camera

VNW5V15K6RY7J4VWC7W1

Online

Click here to add camera

Press "Advanced Setting" button and press "Wi-Fi Setting" under“Network Setup".

Advanced Setting

Modify Security Code

Advanced Setting

Wi-Fi Setting

SSID

None

Disconnect

Network Setup

Wi-Fi Setting

Press on the text box to view list of available networks. Select your network from the list and type in your Wi-Fi password (also known as wireless key), and press " " toOK

20:46

complete setup. After successful wireless setup,

D-Link_DIR-612

TP-Link_245416

FAST_11DA2E

phr-002

remove the network cable and the camera should work through the wireless network after a short delay.

PHYLINK Cube HD User Manual

Section 2 - Installation

Option 2

You may create a WiFi connect using the WPS Button on the back of the camera.

Quick setup with WPS function

Step 1

After the cameras start, press the on the back of the camera.WPS button The blue above the button will blink.WPS status LED

Step 2

Press the on your router within 60 seconds.WPS button WPS function also called (Quick Secure Setup) on some brands of router.QSS

The camera will automatically create a wireless connection to your router. While connecting, the will always on and your camera will reboot.WPS status LED

PHYLINK Cube HD User Manual

Section 2 - Installation

Advanced Setting on Android device

Video Setting

There are two pre-programmed stream profiles: primary stream and secondary stream. These streams profiles help for quick setup.

The settings for these can be adjusted. Press on for the settings of stream profiles.

Advanced Setting

Motion Detection

Microphone

Speaker

Video Setting

Primary Stream

Secondary Stream

Environment Mode

Horizontal Flip

Vertical Flip

On-Screen-Display

50Hz

OFF

disable

In the , you can turn on or off the Motion Detection feature.Advanced Setting

You can drag the volume bar to adjust the volume of speaker or Microphone.

Two options: 50Hz & 60Hz. Set according to the mains[]Environment Mode frequency in the country of use. For UK this would be 50Hz. For US this would be 50Hz.

Video pre-recordingallows the camera to record up to 10 seconds of video leading up to a related trigger event. It will allows users to review the moments before the camera was triggered.

PHYLINK Cube HD User Manual

Section 2 - Installation

Alarm Actions

The camera refers to motion detection as an “alarm”. If any alarm occurs, the camera can trigger a recording and send an email.

Alarm Actions

Alarm Email

Alarm Recording

Press on to enter the Alarm Recording settings or Alarm Email settings.

Alarm Recording

Record Stream

Post-Recording

File Split (sec)

OFF

1st

In the Alarm Recording settings, you can turn on or off the Alarm Recording feature.

You can select which

stream profile to record.

The Post-Recording Time control how long the video is[Post-Recording]

recorded after motion detection is detected by a camera. You can fill a value of seconds to adjust this times.

and index.You can set the recording time for each split file.

The video can be recorded into many split files for better management[File Split]

PHYLINK Cube HD User Manual

Section 2 - Installation

Alarm Email

General Setting

Email Sending

Snapshot Stream

Email Interval (sec)

Alarm Email

Email Server Setting

Server

Port

SSL Connection

Authentication

Account

Password

OFF

In the Alarm Email settings, you can turn on or off the Alarm Email feature.

You can select the stream profile

OFF

to .snapshot for mail

[]Email Interval Input the interval

1st

between two E-mails. If you do not want to send mail too frequently, you can increase the time interval to send the E-mail.

[Server] Input your E-mail’s SMTP server name.

25, as default.[Port]

Select . For Gmail,[SSL connection] OFF

select . It depends on the mail system.ON

Select .[Authentication] ON

your E-mail user name.[Account] Input

Input your E-mail password.[Password]

Input the sender mail address[Sender]

Input the receiver[Receiver mail address]

mail address.

Sender

PHYLINK Cube HD User Manual

Section 2 - Installation

Alarm Email

Receiver Setting

Receiver#1

Receiver#2

Receiver#3

Subject

Message

Input the receiver mail address.[Receiver#] You can set up a total of three E-mail address.

[Subject] Input the subject of mail.

Fill with the content you want to send in the mail[Message] .

PHYLINK Cube HD User Manual

Section 2 - Installation

Camera Live installation on PC

Insert provided installation CD into computer's CD-ROM drive and then the installation window the will appear. Click on the "Install Camera Live" button and follow the setup wizard to complete the software installation.

Note: If the Installation CD program

does not start automatically open

CD-ROM drive and double click on

Install Camera Live

Documents

Exit

"autorun".

The icon

will appear on the desktop after software installation is completed.

Double click the icon to start Phylink Camera Live.

Main Toolbar

Camera

Multilive Video Album

Setup

6.2 Add a camera to Camera Live

Click on to add a camera, a Pop-up window will Appear as below.

PHYLINK Cube HD User Manual

Section 2 - Installation

Add Camera

Discover

Cancel

Option 1

UID

Password

Name

The camera is in your Local Area Network with your PC.

Click "Discovery", the App will automatically search for available camera in Local Area Network. Select the right camera UID you want to add from the list.

Select Camera

T7S5TH5K2BYRS5BW87Z1 (PLC-325PW)

T5M5TN7U67A4VW87FJ2M (PLC-335PW)

SDS515A6FW5BC7X1UYSU (PLC-233PW)

EVUSJD78JDGHNVBWW76 (PLC-223PW)

Cancel

Enter "password"(default password is "admin"). Assign a "Name" to the camera to help identify this camera if more than one camera is in use. Click on "OK" to save.

Wait for a few minutes, then the icon will turn in green , which means camera is online and connection established, otherwise it's in disconnection status, please check the UID and password you entered or your internet connection.

Option 2

If you camera is not in the same Local Area Network with your PC, you can not discover the camera.

Manually type the camera UID according to the sticker on the camera cable or product main body. The remaining steps are same, please refer to .

After the above steps, you have completed a camera installation and you can view the live video now.

PHYLINK Cube HD User Manual

option 1

Section 2 - Installation

Play, Delete and Modify cameras

Click on “menu” button to play/delete/modify camera.

Click on ”play” button for live viewing. Or you can double click on the for live viewing.Camera preview

Click on ”delete” button to delete a camera has been added.

In the lower left corner of camera preview, there is a camera connection status indication icon.

Camera preview

CVZMNUX5A6T2K5VM8RE7

Camera

This icon indicates that the camera is online and connection established.

This icon indicates that the camera is in disconnection status. In this state you can not connect and view the camera. Please check the UID and password you entered or your internet connection. Also check the of your camera.Hardware Installation

PHYLINK Cube HD User Manual

Section 2 - Installation

Click ”play” button or double click on a camera preview, enter the live viewing mode. You can perform various operations with Play Control Panel at the bottom of live viewing window.

Live Viewing Window

Camera

Take a snapshot

Zoom in display ratio

Back cameras preview

Multilive Video Album

1920x1080 8FPS 1.3Mbps

Play Control Panel

Record video

Zoom out display ratio

Mute

Setup

Speak talk back

Full screen viewing

Volume control bar

PHYLINK Cube HD User Manual

Section 2 - Installation

Muliti-viewing on one screen

Click on "Muliti-Live" button from Main Toolbar, then click selection icon , the Select Camera window pop up as below.

Multilive

Select Camera

Home

Office

Video Album

Bedroom

Setup

School

Cancel

All cameras has been added. will be listed out and then select the right cameras for

Muliti-viewing on one screen. Click a camera preview the camera will be added for the Muliti-viewing, then the camera preview will appear a blue border. Click the camera preview again, the blue border will disappear, that means the camera is deselected from the Muliti-viewing. Once you have made your selection click on "OK" to save.

If you want to listen to the sound of

Camera

Multilive

Video Album

Setup

camera, you just need to click the live viewing window of camera, then the live viewing window will appear a blue border. You can only listen one camera audio

home

office

at the same time.

bedroom

school

PHYLINK Cube HD User Manual

Section 2 - Installation

Video recording, Storage and Viewing

Click ”play” button or double click on a camera preview, enter the live viewing window.

Click on “Video recording” icon on Play Control Pane to start the video recording and then click on the icon again to stop the recording.

Click on “Recorded video” icon from Main Toolbar, and select the camera from the list, then you can view and playback the recorded video.

Camera

Home

Office

Bedroom

school

Multilive Video Album

20140206_102606.mov

20140108_092905.mov

20140208_102605.mov

20140108_092903.mov

Setup

Note: The recorded video file will be automatically created and you can find these files in Camera Live folder in My Documents on desktop.

PHYLINK Cube HD User Manual

Section 2 - Installation

Snapshots, Storage and Viewing

Click ”play” button or double click on a camera preview, enter the live viewing window.

Click on “Snapshot” icon on Play Control Pane to take a snapshot.

Click on “Album”icon from Main Toolbar, and select the right camera from the list then you can view the snapshots in Album.

Note: The recorded video file will be automatically created and you can find these files in Camera Live folder in My Documents on desktop.

Camera

Home

Office

Bedroom

school

Multilive Video Album



PHYLINK Cube HD User Manual

Setup



Section 2 - Installation

Installation via Web Browser

IMPORTANT! - Viewing and configuration Camera via web browser apply to the users who have fundamental knowledge about Internet and whose cameras are set in Local Area Network with their PC. You do not need this way unless for some advanced function. You can set up a camera on a smart phone with simple steps.

Viewing Camera via Web Browser

Start the Phylink Camera Live and Click on "Setup" button to proceed advanced setup mode via web browser. Press "Search" button to find the camera in Local Area Network.

Location

Setup

MAC

Port

IPModel

192.168.168.39 80 0:e0:4b:c2:8f:64 T5M5TN7U67A...

192.168.168.56 80 0:e0:4b:c2:6e:22 SR6MJ87HJKF...

192.168.168.77 80 0:e0:4b:b9:11:68 EVFG78KHUW...

192.168.168.75 80 0:e0:4b:c6:23:c4

P2P UID

VDF45G8IPK3...

Multilive Video Album

Camera

PLC 325PW-

PLC 335PW-

PLC 233PW-

PLC 223PW-

Search Browser Clean Setup

Name

Phylink Bullet

Phylink Cube

Default Location

Click a right camera from the camera list and it will be highlighted. Click the "Browser" button and then the login page will appear.

Note: If you can not search the camera, please check the connection of camera and PC. Please refer .Hardware Installation

PHYLINK Cube HD User Manual

Section 2 - Installation

PLC-233W

Click "Live Video" button to view live camera. Click "Setting" button to config the camera. When prompted for authentication use the following information.

User Name: admin (default User Name is "admin") Password: admin (default password is "admin")

Note: When using the camera for first time on a PC with Internet Explorer, the user may be prompted to select allow installation of "Active X" control. It is perfectly safe to install this add-on, so click "Allow" to install.

Wireless Setup on PC via Web Browser

Please note that if you have already setup wireless connection through Smart phone App, your camera is already using wireless connection with your router, and you can skip this setup.

IMPORTANT! - Most likely your wireless network was set up with a password. If you don't remember it, you can check you router's wireless setup menu or ask the person who set up your wireless network. Without the password you can not proceed with your camera's wireless setup. So you can either continue to use your camera in wired mode or set up a new wireless key/password on your router.

PHYLINK Cube HD User Manual

Section 2 - Installation

After login the camera via browser, click "Setting" button to config the camera. Click on "Network", then click on "wireless setup", and you will get the following:

Live View

Wizard

System

Support

Reboot

Wireless Setup

Wireless:

SSID: Mode:

Enable

Wirelessnc

Infrastructure

(Select infrastruture mode using wireless router.)

Security mode:

Off

Apply

Disable

Search...

Test

Camera

Network

Wireless Setup

TCP/IP Setup

DDNS Setup

UPNP Setup

P2P Setup

Storage

Task

Tools

Do NOT type anything in the SSID field. Instead, use the "search..." function so that the camera can search for available wireless network list.

wirelessnc

TP-LINK_4B8C68

FAST_3AC1FE

Tenda_0B0458

SSID

Mode

Infrastructure

OK Cancel

Channel

Encrypt

Auth

OPEN

WPA2PSK

WPA2PSK AES

Signal

NONE

AES

Select your Wi-Fi network from this list then click "OK", and check if your network

name has now been filled into the SSID field.

Note: If your wireless network doesn't appear on the SSID list, make sure that the

Visibility Status on the wireless router is set to "Visible" and then try "Search" again.

PHYLINK Cube HD User Manual

Section 2 - Installation

Live View

Wizard

System

Support

Reboot

Wireless Setup

Wireless:

SSID: Mode:

(Select infrastruture mode using wireless router.)

Security mode:

Encryption type:

WPA Key: Re-type WPA Key:

Enable

TP-LINK_4B8C68

Infrastructure

WPA2PSK

AES

Apply

Disable

Search...

Test

Camera

Network

Wireless Setup

TCP/IP Setup

DDNS Setup

UPNP Setup

P2P Setup

Storage

Task

Tools

Do NOT change any of the settings (SSID, Mode, securitry mode, Encryption type)Type

in "WPA Key"(also known as wireless key or password)- Please note that both WPA and WPA2 keys, which are setup on the wireless router, are case sensitive.

Click on "Apply" - "Wireless setup accepted successfully" message will be displayedPlease note that this only means that the information was stored on the camera successfully.

Now you should use the "Test" feature to check if all the information about the wireless setup was entered correctly. If the test reports "Success!" you can remove the network cable and the camera should work through wireless network after a short delay.

Congratulations! At this point you should be able to use your camera wired or through wireless network on your local network using the same local IP address.

For other advanced configuration , (such as motion detection zone, schedule, Email alarm, DDNS, FTP uploading, NAS, SD card recording, firmware upgrade and more) please see the User Manual which is availableon the installation CD in this package or from the PHYLINK support website.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

IMPORTANT! - Advanced configuration camera via web browser apply to the users who have fundamental knowledge about Internet and whose cameras are set in Local Area Network with their PC. You do not need this way unless for some advanced function. You can set up a camera on a smart phone with sample steps.

Network Camera Setting Interface

Click on button from the home page. When connecting the camera for theSetting first time or after resetting it to its default settings, the setup interface start page below will load. It is recommend that you change the admin password in order to avoid unauthorized access to the camera.To do this follow the instructions by clicking on the underlined link“ ”to access administrator password editinghere page.

Live View

Wizard

System

CAMERA SETTINGS

Support

Camera

Network

Storage

Task

Tools

Reboot

Type the password in both fields then click Save. Please take note of the password. If you forget the password, the camera will have to be reset to its default settings in order to gain access to the settings page and this will also reset all other settings you may have changed.

Edit User

User name: Admin

Password:

Re-type password:

Back

Delete

Save

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

After successful login, the following page will appear.

* User modified successfully!

User Management

No.

User name

Admin

Add

Group

Administrators

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Camera Setup

From the home page click button and enter the administrator user namesetting and password. Click on under the title to change theCamera Setup Camera image and audio parameters of the camera.

Camera

Camera Setup

Stream Setup

OSD Setup

Night Vison Setup

for protecting your privacy.

The video of camera display always a static colored stripes[Enable privacy mode]

The Status LED will been power off.[Disable powerLED light]

frequency in the country of use.

Two options: 50Hz & 60Hz. Set according to the mains[Light frequency]

For UK this would be 50Hz. For US this would be 50Hz.

Turn on/off the built-in microphone.[Microphone]

Adjusts the volume of the microphone from 0~14 where 0 is the[Mic volume]

lowest.

Click to confirm your settings.Apply

Camera Setup

System:

Enable privacy mode

Disable power LED light

Camera:

Light frequency:

Enable image mirror

Enable image flip vertical

Microphone:

Volume:

Speaker:

Volume:

60Hz

Enable

Apply

Disable

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Stream Setup

The camera supports three streams: primary stream, secondary stream and mobile stream.

Primary stream:

Preset:

Image size:

H.264/MPEG4 bitrate:

MJPEG quality:

JPEG snapshot quality:

Audio:

Authentication:

Prerecord:

[Image size]Three image resolutions available: 640 x 480(VGA), 320 x 240(QVGA), 160 x 120.

Twelve options: 1/2/3/4/5/6/8/10/15/20/25/30 frames per second (fps).[Frame rate]

Select H.264/MPEG4 bit rate.Eight options: 64, 128, 256,[H.264/MPEG4 bit rate]

512, 768, 1024, 1536,2048 (kbps).

Type MJPEG video quality. (20– 100), 20 is low quality, 100 is[MJPEGquality]

high quality.

Type snapshot quality. (20 – 100) , 20 is low quality, 100 is[Snapshot quality] high quality. The above five settings determine the image quality, however higher bit rates require

greater bandwidth. Please select the appropriate settings according to your connection speed and network traffic. If you are experiencing jerky video it may be necessary to decrease the bit rate.

Enable or disable audio.[Audio]

Enable or disable RTSP authentication.[RTSP authentication] You can use Mobile phone to play the mobile stream from camera, but generally Mobile phone do not support authentication, so we have to disable theRTSP authentication.

Please choose bandwidth status...

1280x720

fpsFrame rate:

fps

2048

AAC-LC 16kbps

Disable

Enable

kbps

(20-100)

Disable

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Secondary stream:

Preset:

Image size:

H.264/MPEG4 bitrate:

MJPEG quality:

JPEG snapshot quality:

Audio:

Authentication:

Prerecord:

Mobile stream:

Please choose bandwidth status...

512x228

fpsFrame rate:

256

kbps

(20-100)

AAC-LC 16kbps

Enable Disable

Disable

Preset:

Image size:

H.264/MPEG4 bitrate:

Audio:

Authentication:

Please choose bandwidth status...

176x114

fpsFrame rate:

kbps

(20-100)JPEG snapshot quality:

AAC-LC 16kbps

Enable (For PC)

Alternate (For Windows Mobile)

Disable (For other mobiles)

For access to specific types of audio or video encoding, you bypass the main login screen and go directly to a link for the camera with the desired protocol and encoding type.The full list is accessible by clicking on the blue underlined“Primary Stream Secondary Stream Mobile Stream”, “ ”, or“ ”links in the Stream Setup page.

A sample of list as below:primary stream

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

You can use RealPlayer,VLC Player or QuickTime Player to play the live stream from camera in Intranet or Internet.

RTSP steams can be opened by the“Open URL…” menu in Apple QuickTime 7.0 or later and“Open Network…”menu in VLC2.0 version on Macintosh orWindows desktop with audio and video.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

OSD Setup

This function can display system name, date and time, or use-defined on screen.

[OSD]Enable or disable OSD function.

OSD is date and time of camera.[Display date and time]

OSD is system name of camera.[Display system name]

OSD is user-defined text.[Display the text below]

Click to confirm your settings.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Night Vision Setup (IR-CUT)

The camera can be opened automatically when camera check dark environment.

[Infrared LED control] When the environment is dark, the LED will be opened

automatically due to a photosensitive component. Users also can select open or close

the infrared LED manually.

changed to Black andWhite automatically. Users also can select whether change the

images to black and white or color manually.

It can be set to“On”, “Off”, and“Automatic”. This uses the light sensor to turn on

moonlight mode only at night.When “Moonlight model”is“auto”or“On”, the

cameras produce gorgeous night vision, especially the outdoor serials

have a feature that combines the excellent daytime color with theIR night vision.

During the day, an optical“IR Cut filter” removes all IR light. This makes the camera's

vision similar to a human eye which does not seeIR light, and therefore all colors

appear vivid and natural to us. At night, the filter moves out of the optical path to

enable IR night vision. You can actually hear a muted click when this filter moves I

n or out. This happens both during power-up and when light levels change

between day & night.

Note: If you are using the cameras to look through a window, you should set the night vision mode to turn off the IR LEDs and instead turn on the automatic moonlight mode. Otherwise the IR LEDs would reflect off the window glass and the glare would make everything almost invisible.

When the environment is dark, the moving images will be[Black and white mode]

Boosts the available light by reducing the frame rate to 7.5 fps.[Moonlight mode]

Can be“On”, “Off” and“Automatic”. The cameras with IR Cut Filter[IR Cut Filter control]

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Network

Wireless Setup

TCP/IP Setup

DDNS Setup

UPNP Setup

Wireless Setup

The camera corresponds to the wireless system based onIEEE802.11b/g/n. Encryption establishes the security to prevent unauthorized users to access the wireless data communication.

Live View

Wizard

System

Support

Reboot

Wireless Setup

Wireless:

SSID: Mode:

(Select infrastruture mode using wireless router.)

Security mode:

Enable

Wirelessnc

Infrastructure

Off

Apply

Disable

Search...

Test

Camera

Network

Wireless Setup

TCP/IP Setup

DDNS Setup

UPNP Setup

P2P Setup

Storage

Task

Tools

[SSID]Type the ID of the wireless network you want to connect to using up to 32

characters or click to search for available networks.Search

Infrastructure mode and Adhoc mode[Mode]

: Select Adhoc mode when the camera is directly connected to yourAdhoc Mode

computer.

: Select Infrastructure mode when the camera is connectedInfrastructure Mode

via an access point or router.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Live View

Wizard

Wireless Setup

Wireless:

SSID: Mode:

(Select infrastruture mode using wireless router.)

Security mode:

Encryption type:

WPA Key: Re-type WPA Key:

Enable

TP-LINK_4B8C68

Infrastructure

WPA2PSK

AES

Apply

System

Disable

Search...

Test

Support

Camera

Network

Wireless Setup

TCP/IP Setup

DDNS Setup

UPNP Setup

P2P Setup

Storage

Task

Tools

Reboot

[Security mode] Security mode is not only WEP64bit orWEP128bit but alsoWPA-PSK

orWPA2-PSK.

TKIP and AES.[Encryption type]

Type 8-63 characters as password.[WPA key]

Re-confirm the password.[Re-type WPA key]

Encrypt

Signal

NONE

AES

wirelessnc

TP-LINK_4B8C68

FAST_3AC1FE

Tenda_0B0458

SSID

Mode

Infrastructure

OK Cancel

Channel

Auth

OPEN

WPA2PSK

WPA2PSK AES

When click search ,see figure above.

select the network name you searched .[SSID]

Infrastructure mode and Adhoc mode[Mode] It show out the strength of signal[signal]

on and off.[Encryption] Click to save changes.Apply Click to test whether connection is successful.Test

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

TCP/IP Setup

The camera is set up to obtain the IP address automatically (DHCP) by default. Should you may wish to assign theIP address manually, use the page toTCP/IP Setup enter the address details.

Obtain an IP address automatically(DHCP): If your network supports a DHCPserver (e.g. router) select this option to have theIP address is assigned automatically. If you select you should select Obtain a DNSObtain an IP address automatically Server address automatically.

Use the following IP address

Select this option when a fixed IP is required.

Type theIP address of your camera.[IP address]

Type the subnet mask.[Subnet mask]

Type the default gateway.[Default gateway]

Obtain DNS Server address automatically

If your network supports a DHCPserver (e.g. router) select this option to have the DNS Server address is assigned automatically. Use the following DNS server address:

Type theIP address of the primary DNS server.[PrimaryDNS IP address]

Type theIP address of the secondary DNS server,[Secondary DNS IP address]

if necessary.

The default HTTP port number is 80, it is also be used asRTSP port.[HTTP/RTSP port]

It is forUPnP port forwarding, 1 camera actually use 2RTP ports,[RTP port range]

one for video, the other for audio. (See UPnP setup)

Select Basic Authentication or Digest Access[HTTP/RTSP Authentication method]

Authentication.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

DDNS Setup

Dynamic DNS (DDNS) is simply a way of using a static hostname to connect to a dynamic IP address.When connected to yourISP, you are assigned a temporary IP address. DDNS services keep track of your IP address and route your Domain name to that address when you wish to connect to the camera from a remote location.

DDNS Setup

DDNS:

Service providor: Host name: User name:

Password:

Re-type password:

Enable

no-ip.com

phylinkipcamera.sevehttp.com

phylinkipcamera

Apply

[DDNS] Enable or disableDDNS connection. How to add DDNS

1. Enable the Dynamic DNS function.

2. Select your preferred DDNS service provider from the list then click Register.

3. Enter the Host Name details and password supplied by your DDNSservice provider when you registered.

4. Click Apply to confirm your settings.

Disable

Guide to you setup DDNS by a example

Looking up the current IP address can be inconvenient, and buying a static IP address is an unnecessary monthly expense. There is an example to guide you how to setup a DDNSof camera.

Choose a Dynamic DNS service

www.no-ip.com and www.dyndns.com are the recommended companies for “Dynamic DNS” service. Also known as DDNS, this is a totally free service that allows your own name to be assigned to your camera. This name takes the place of the IP address. Together with software in your camera this also makes sure the name for your camera is always updated with the correct IP address.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Create a free DDNS account

First you create a free account with one or both of these companies. We’ll take www.no-ip.com as an example. The “create account” function is on the top right under the Username/ Password fields. Do not register a domain or sign up for any other paid services. You just need the free account. Once you have an account and once you validated it by responding to their email, log in and select” Hosts/ Redirects” on the top left of the screen, then “Add Host”. For Hostname, pick anything you like as a name for your camera, except do not use spaces. Use only lower case letters and numbers. Then click on the domain names you can pick from, as well as some that they consider premium names worth paying for. For example, you could pick servehttp.com as your demo cameras.

Then be sure that only“DNS Host (A)”is selected. Don’t worry about the current IP address and don’t change anything else. Click on “Create Host”and you’re done! Please write down your complete hostname as well as the username and password you used for logging in to No-IP.com as you’ll need it for the next step. DynDNS.com is very similar but in their case there is an additional step of checking out a shopping cart with a zero dollar fee.

Updating of your Camera’s Internet IP address

In the previous step we set up a name for your camera. To make sure that this hostname always corresponds to the correct IP address for your camera we have to make sure it is updated automatically when there is a change. There is no need for client software. Our IP cameras have a menu that allows you to enter your hostnameDDNS information.This menu is under“ ” in the camera’s “ ”.DDNS Network Settings Be sure to select the provider, for instance if you signed up with No-IP.comDDNS you should select No-IP in the camera’s menu.DDNS

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

After you enter your account and hostname information you can go to the camera’s “ ” menu at the top of the and scroll down to theDDNSSystem Settings screen section to see if it worked.

DDNS

Status:

Host name:

External IP addess:

If it says “Updating” or Unavailable” you should double check your account settings. No-IP.com uses your complete email address as user name, and the password required in this menu is the one you created during No-IP account setup. If successful the camera will show you the complete external URL for your reference.

Success

phylinkipcamera.sevehttp.com

183.48.162.134

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

UPNP Setup

The camera supports UPnP which is enabled by default. This function requires a Windows XP/Vista operating system. It is a quick way to discover the camera on your network. Please make sure that theUPnP function is enabled on your PC.

[UPnP] Enable or disable theUPnP function.

Enable or disable this function.[Gateway HTTP/RTSP port forwarding]

forwarding rule to a router via UPnP protocol. Please note that not all routers support this function. Refer to your router manual for further details. If set port range is 8150~8350, camera will ask router to add a port forwarding rule automatically. In this rule, the internal port is camera default port 80, the external port is 8150, IP address is camera's IP. Use this setting, users can visit the camera from Internet through the router with this URL http://routeripaddress:8150. If there are several cameras in Local Network, the first one which first be opened will use 8150 as external port, and second one will use 8151, third one use 8152, etc. Every camera will remember its port, it will preferentially use this port in next power on.

PHYLINK Cube HD User Manual

Using this port, automatically adds a port[External HTTP/RTSP port range]

Section 3 - Advanced Configuration

RealPlayer or QuickTime Player to visit the camera from Internet through the router.

Enable this function, users can use mobile phone ,[Gateway RTP port forwarding]

30000—30200 default. (See TCP/IP setup)[External RTP port range]

Click to confirm your setting.Apply

Click at the top right of page to show the System information.System Settings If UPnP works, clicking on the camera’s“system”menu at the top of the setting screen will show something like the following in the UPnP section:

UPNP

Status:

Gateway external IP address:

Gateway external port:

Internet URL:

Success

121.35.168.19

8150

http://myphylinkcam.3322.org:8150

Note: If UPnP did not work, and if you have an up to date router other than Apple Airport, it is worth double checking if UPnP is enabled in your router. Some Routers like the ActionTec and Westell units distributed for free with Verizon and Qwest DSL service have the feature initially disabled. Usually it is very simple to enable UPnP. You just need to log in to your router’s setup screen and find the UPnP menu. Then you click on enable, save the setting and restart both the router and the camera (in that order). Many routers may need a firmware update for UPnP to be available or work properly. You should look up your router’s model number on your router manufacturer’s support web page to see if updates are available.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Storage Setup

Storage

Storage Setup

Browse Storage

Format SD Card

[Storage] Select Enable

NAS or SD Card[Store to]

The file that Videos will be saved to.[Store directory]

Unlimited (The capacity of all videos)[Max Space]

The Max quantity of all the videos.[Max files]

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Browse Storage

When click Browse Storage and you can browse, download, delete the snapshot and recording files in it.

Format SD Card

Click to formatSD card click , all the recorder files will be lost after format.Format

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Recording to NAS

Getting your camera recording to a NAS drive, please follow 3 steps below.

1. Prepare your NAS

Ensure that your NAS drive is compatible with the CIFS or SMB protocol – most are but best to check first anyway (refer to the user manual for your NAS box). Locate and make a note of your IP address of your NAS box (this can be found within your NAS settings or by using the Search program that came with the drive). Should be in the form something like 192.168.x.x or 10.x.x.x Create a folder in the root of your NAS drive for where you want the video to be saved to. e.g. /camvideo.The camera only saves to folders one directory deep from the root of the

NAS drive (e.g. 192.168.1.3/camvideo) so don’t create a directory like /myfiles/downloads/camera/video. We recommend you now create a new user login in your NAS drive settings. When creating the user, give it access to the directory you have just created, and make sure it has Read and Write access to it. If your NAS drive doesn’t allow you to create new users, or you don’t want to, just remember your admin username and password. If you are unsure about any of the above please refer to your NAS drive's manual or the manufacturer's technical support.

2. Entering the NAS settings into your camera

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

[Storage Select] Select whether you want to record on NAS or micro SD card.

Remember the camera only accepts one level directory e.g. //192.168.1.3/camvideo as opposed to //192.../cam/abc.

This field is required if your NAS Drive requires authentication.

To complete click to confirm and Save your settings.Apply

Enter the path that you wish to save the files to on your NAS Drive.[NAS remote path]

Select whether authentication is required by the NAS Drive.[Authorization1]

& Type the user name and password of the NAS Drive.[User name] [Password]

3. Create a task in Task Management

Create a task in Task Management to set the camera to record to your NAS based on Alarm or Continuously

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Select the task you want to set and then access it, e.g. click on the 'Record to storage on alarm' link if you want to get the camera to record to your NAS drive based on motion detection. Now set whatever you want as the parameters for this (or leave as default if you just want to try things out. You can always come back and fine tune these later).

Now, providing everything is set up correctly your camera will record to your NAS drive whenever motion is detected.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Motion Detection

The camera refers to motion detection as an “alarm”. You can select what you want the camera to do once the motion is detected.The factory default setting for motion detection is a single motion detection window covering the entire visible area. The“Motion Detection”menu allows you to designate up to 4 separate windows with individually adjustable sensitivity.

After selecting“Motion detection”from the main settings screen, you may need to expand the size of the display window towards the right to see the 4 controls for individual motion detection windows. Each window can have individually adjustable sensitivity and threshold.

Window 1 Window 2

[Window] Check this box to enable the window.

Set the threshold bar to the amount of motion required to[Threshold]

trigger the alarm.

Set the measurable difference between two sequential images that[Sensitivity] would indicate motion.

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Window 1

Threshold

Sensitivity

Window 2

Threshold

Sensitivity

Window 3

Threshold

Sensitivity

Window 1

Window 4

Threshold

Sensitivity

Apply

Section 3 - Advanced Configuration

Window 1

Threshold

Sensitivity

Window 2

Threshold

Sensitivity

Window 3

Threshold

Sensitivity

Window 1

Window 4

Threshold

Sensitivity

Checked the windows box to enable this window.

Threshold bar and indicator

1. When you enable, disable, relocate or resize a window click Apply to for the new settings to

be enable.

2. Only the checked window area will trigger the

alarm.

3. Moving the Threshold bar to the left or the

Sensitivity bar to the right will increase the sensitivity of when the alarm is triggered.

4.To resize a window simply drag one of its corners.

5. To move a window click and drag on the top bar of the window (Window name).

Apply

To trigger an alarm (and hence send out emails or upload to an FTP server etc) the detected amount of motion needs to be larger than the threshold setting. If the blue level does not reach the threshold setting the motion is ignored. To reduce the chance of false alarms you would increase the threshold (move threshold slider to right) or decrease sensitivity (move sensitivity slider

to left)

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Schedule Setup

Alarm Sending, Periodical Sending and Buffer Sending sends images via e-mail or FTP according to schedule setup.

Schedule Setup

Schedule ID:

Every day

Always

Start time

End time

Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Task Management

The camera refers to motion detection as an “alarm”. You can select what you want the camera to do once the motion is detected

One option is to set up the details of your email server account and have the camera send you JPEG snapshots. You can also set it up to send your pictures automatically every few minutes, or have the camera upload these files to your FTP server (or a NAS hard drive with built-in FTP server) Recording to built-in Micro-SD card or NAS. All series cameras can now accept Micro SD cards. Capacities up to 128GB are supported.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Email alarm sending

[Snapshot from] Select Primary stream [Snapshot duration] Input the number of seconds

Select the frame[Snapshot frame rate]

Input the interval time[Alarm interval]

Input your E-mail’s SMTP server name.[SMTP server name]

25, as default.[SMTP server port]

It depends on the mail system.

Select Yes[Authentication]

your E-mail user name.[ User name] Input

Input your E-mail password.[Password]

Input the sender mail address[Sender mail address]

Select No. For Gmail, selectYes.[Secure SSL connection]

Input the receiver mail address.[Receiver mail address]

Click Apply to confirm your setting.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

For automatic emailing you will need both an outgoing email server and one or more email receiving addresses. If you don't have this information handy you may want to refer to your internet service provider's help pages or your Microsoft Outlook or other email program account settings.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Email periodic sending

Instead of using motion detection in Email Alarm Sending, you can also use the “Email Periodic sending”menu to upload pictures at regular time intervals.

The default setting is the same as E-mail Alarm Sending.

Input the interval time.[Periodic interval]

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

FTP alarm sending

If you prefer, you can have the pictures uploaded to an FTP server instead of an email address.There are many choices for FTP servers.

For example, you could enable the built-in FTP server function on one of your computers or download free FTP server software such as FileZilla server.

Another possibility is to use an online account with FTP access, which is sometimes even available for free with a limited amount of storage. You can download free FTP client software to manage the FTP server, such as FileZilla client.

Yet another option for FTP server is to use a standalone NAS (Network Attached storage) hard drive such as the MyBookWorld Edition.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

[Snapshot from] Primary stream.

Type your FTP user name.[User name]

Type your FTP password.[Password]

Input the time.[Keep alive]

Click to confirm your setting.Apply

Input the duration time.[Snapshot duration]

Select the number of frame per second.[Snapshot frame rate]

Type the interval time.[Alarm interval]

Input the FTP server name.[FTP server name] As default 21.[FTP server port] Select Yes.[Authentication]

Re-type FTP password.[Re-type password]

Select on or off.[Passive mode]

Input the file directory.[Remote path]

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

FTP periodic sending

[Periodic interval]Input the interval time.

The default setting is the same as FTP Alarm Sending.

Click to confirm your setting.Apply

Note:The menu option for “HTTP alarm sending” and “ HTTP Periodic sending”are not explained here since HTTP servers are only used by network professionals.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

HTTP alarm sending

[Alarm interval]Input the FTP server name.

Input the HTTP server name.[HTTP server name]

As default 80.[HTTP server port]

Select Yes.[Authentication]

Type your HTTP user name.[User name]

Type your HTTP password.[Password]

Re-type your HTTP password.[Re-type password]

Input the URL, the camera will give an alarm to it.[Sending URL]

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

HTTP periodic sending

[Period interval]Input the interval time.

The rest setting is the same asHTTP Alarm Sending.

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Snapshot to storage on alarm

The following chapters will show even more possibilities to use motion detection. You can use motion detection to initiate the snapshots to Micro SD card or NAS (Snapshot to storage on Alarm) or at regular time intervals (Snapshot to Storage Periodically) to take snapshots and store them to MicroSD card orNAS.

All series cameras can now accept Micro SD cards. Capacities up to 128 GB are supported. The card is not included except in special bundle packages.

When the camera powers up with a Micro SD present in the slot, Enable“storage”and select store to“SD card”, and then select“format the Micro SD”.

[Snapshot to storage on alarm] Select Primary stream.

Select the time.[Snapshot duration]

Select the frame.[Snapshot frame rate]

Input the interval time.[Alarm interval]

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Snapshot to storage periodically

[Period interval]Input the interval time.

The rest setting is the same as Snapshot to storage on alarm.

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Record to storage on alarm

[Record from]Primary stream

Input the duration time.[Record duration]

Input the split duration time.[Split duration]

( The videos will be split.)

Select Enable or Disable.[Record thumbnail]

Click to confirm your setting.Apply

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Record to storage continuously

[Record from]Select Primary stream.

( The videos will be split.)

Click to confirm your setting.Apply

With the larger Micro SD cards it is practical to use the camera as a continuously recording DVR (DigitalVideo Recorder) with the right settings.

A 2 GB Micro SD card has about 1872 usable megabytes of storage space after formatting. At the very highest settings of video quality with the highest picture size, this is only about 2 hours’worth of storage.

However, if you setup the“secondary stream”in the camera’s“stream setup”menu with 320 x 240 resolution, a frame rate of 10 fps, and bit rate of 120K, this will be reduced to about 12Megabytes per 10 minutes clip or 75 Megabytes per hour, which allows 24 hours of total recording time. Then with 32 GB Micro SD card this can be extended to approximately 16 days. Or you can increase video quality via increasing bit rate, which improves image sharpness and makes motion appear smoother.

Input the split duration time.[Split duration]

Select Enable or Disable.[Record thumbnail]

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Sending files in storage to FTP server

Phylink cameras can transfer files automatically to a standalone NAS hard drive or any other FTP server, such as a computer with FTP software or an online server.

[FTP server name] Input the FTP server name.

Click to confirm your setting.Apply

Note:The menu option for “HTTP alarm sending” and “ HTTP Periodic sending”are not explained here since HTTP servers are only used by network professionals.

As default 21.[FTP server port] Select Yes.[Authentication]

Type the FTP user name.[User name]

Input the FTP password.[Password]

Re-input the FTP password.[Re-type password]

Select on or off.[Passive mode]

Input the time.[Keep alive]

Input the file directory.[Remote path]

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Tools

System Identity

User Management

Date & Time

Backup or Reset

Automatic Reboot Setup

Firmware Upgrade

System Identity

System Identity Setup

Tools

System Name:

System Contact:

System Location:

PhyLink Bullet HD1080

Default Contact

Default Location

Apply

[System Name] Type a name to easily identify the camera.

Type the contact name of the administrator of the camera.[System Contact] Type the location of the camera.[System Location]

Location

Setup

MAC

Port

IPModel

192.168.168.39 80 0:e0:4b:c2:8f:64 T5M5TN7U67A...

192.168.168.56 80 0:e0:4b:c2:6e:22 SR6MJ87HJKF...

192.168.168.77 80 0:e0:4b:b9:11:68 EVFG78KHUW...

192.168.168.75 80 0:e0:4b:c6:23:c4

P2P UID

VDF45G8IPK3...

Multilive Video Album

Camera

Name

PLC 325PW-

PLC 335PW-

PLC 233PW-

PLC 223PW-

Phylink Bullet

Phylink Cube

Search Browser Clean Setup

Default Location

The information you fill in can be displayed on the camera. It can help to distinguish different Cameras in the network .

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

User Management

No.

User name

Admin

Add

Add Up to 64 users (including the admin) can created. Note:

1. A maximum of 16 users are allowed to access the camera simultaneously.

2. As the number of simultaneously users increase, the overall performance will decrease. This is dependant on the Network bandwidth.

Adding users

1. Click Add on the Camera User List page.

2. Enter the User name, Password and re-confirm the password then click Add.

Add User

Group

Administrators

User name:

Password: Re-type password:

Admin

Add

Back

To edit a user’s password, click on the user name then enter the new password for that user twice and click Save. To delete a user, click on the user name then click .Delete

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Date & Time

[Current device time] Internal time for camera.

camera will be changed to this time.

PC system time. On clicking Apply the internal time of the[Proposed device time]

choose proper time zone.[Select to change the time zone for the device location]

Daylight Saving Time (or summertime as it is called in many[Daylight saving time] countries) is a way of getting more light out of the day by advancing clocks by one hour during the summer.

Select date and time format.[Date and time format]

Enable or disable this function.[Auto time setting(SNTP)]

Type one SNTP server name in the box.[Time server]

Click Apply to confirm your settings.

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Backup or Reset

Backup or Reset Settings

Click Reset to erase the camera's configuration

and restore the factory defaults.

Click Backup to save the camera's configuration to a file.

Restore the camera's configuration from a previously backed-up file.

Browse...

[Reset] Click Reset to initialize the camera to default factory setting. All users and settings will be lost, requiring you to reconfigure the camera.

Reset

Backup

Restore

reference.

Click Backup to backup the current configuration of the camera for future[Backup]

Click Browse... to search for a backup configuration you wish to upload to[Browse...]

the camera, then click Restore.

Note: Do not turn off the power during the Reset, Backup or Restore functions since this might corrupt the camera’s firmware. The camera can also be reset to the default settings by pressing the reset switch on the side of the camera.

Firmware Upgrade

Step 1

Read these information carefully and click Continue.

Firmware Upgrade

Warning:

Upgrading the firmware may erase or change your current settings, please ensure you have made a backup of your settings under the Backup and Reset menu.

Current firmware version is: 5.68 (build 20140416)

Click continue to proceed.

Continue

PHYLINK Cube HD User Manual

Back

Section 3 - Advanced Configuration

Step 2

Click Browse... to search for the newest Firmware you downloaded from Phylink technical support , and then click Upgrade.website

Firmware Upgrade

Upgrade Firmware (path and file name)

Browse...

Upgrade

Step 3

Click Reboot when the upgrade terminates.

IMPORTANT!

Do not unplug or power off the camera while the upgrade is in progress!

PHYLINK Cube HD User Manual

Section 3 - Advanced Configuration

Advanced functions

Wizard

In order to facilitate the setup of the camera there is a Wizard that helps non technical users setup the camera easily. Click on at the top of the window to launch theWizard wizard.

Live View

Wizard

System

The Quick setup interface will pop up. Follow the simple instructions on the screen and enter the required details, clicking next to proceed to the Next page.

Support

Camera

Network

Reboot

Welcome to the camera setup wizard. You will now be guided through the setup process. Click Next to continue.

Note: you will be able to change all of these settings at a later time should you wish to do so.

PHYLINK Cube HD User Manual

Welcome

Camera Setup Date & Time Wlan setup IP setup Finish

Section 3 - Advanced Configuration

System

Click to see over system information about your camera.The data of theSystem software activity of the camera and recorded in this. It includes data that are useful when a problem occurs.

Live View

Wizard

System

Support

Camera

Network

Reboot

PHYLINK Cube HD User Manual

Section 4 - Troubleshooting

Troubleshooting

Status indicator LED of camera does not light up

The power supply might be faulty. Confirm that you are using the provided DC 5V power supply for this network camera. Verify that the power supply is correctly connected. If the camera is functioning normally, the LED may have been disabled. See the about how to enable the LED.Camera Setup

The picture viewing interface does not appear on internet explorer

1. Check that your internet explorer settings allow you to download and install ActiveX

controls.

2. Network traffic may prevent the viewing interface from appearing quickly. Wait for

a while.

The camera’s network connection unreliable

There might be a problem with the network cable. To confirm that the cables are working, PING the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms). Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly. Please confirm the power for the devices are well connected and functioning properly.

Wireless communication does not work

1. Signal strength is weak. Relocate the camera or remove the obstacle around it.

2. Make sure the SSID and Encryption settings are identical.

3. Check for any interference from other equipment.

4. For more information about wireless

please refer to .Wireless Installation Considerations

Video window shows "on connecting..."

The app may take up to 30secs to connect to your camera as the initial connection depends on a variety of factors including (but not limited to) your local or remote network speed, mobile provider, etc. If the status remains on "connecting..." for more than a minute try closing the app and trying again.

PHYLINK Cube HD User Manual

Section 4 - Troubleshooting

Forget the IP address of network camera

1. Use Phylink Camera Live.

2. Use Phycam App.

3. Reset your Network to default IP address. Note that all settings will be restored to factory default.

Forget the password to access the setting interface

Initialize the network camera by pressing the button. Note that allRESET configuration settings will be lost.

Why we see strips in the videos

Because of the electricity. Some country like USA is 60Hz, yet Europe is 50Hz. For example: In USA, the camera should choose 60Hz, otherwise we will see strips in the videos.

The camera is producing noisy images

The camera is producing noisy images. How can I solve the problem? The video images might be noisy if the Network Camera is used in a very low light environment.

PHYLINK Cube HD User Manual

Section 5 - Technical Specifications

Technical Specifications

Camera

Aperture-F2.0

White Balance, Exposure, Gain-Auto

-12Infrared LED

-2-Way AudioAudio output

Built-in microphone-Yes

-microSD card (Up to 64Gb)SD slot

PLC-223W / PLC-233W

-0 LuxMin.illumination

-8mNight Vision Distance

-H.264,MPEG-4,MJPEGImage compression

-AACAudio compression

PLC-223W

3.6 mm

Wireless LAN

Wireless technology-IEEE802.11b/g/n

-2.412-2.462GHzFrequency

-Auto Switch up to 150MbpsTransmission speed

-WEP (64/128 bit) WPA-PSK(AES/TKIP)Security 、、

WPA2-PSK(AES/TKIP)

General

Power requirements-DC 12V

-3.75WPower consumption

-5 to +60 °C (-4 to +140 °F)Operating temperature

-20 to +60 °C (-4 to +140 °F)Storage temperature

-20 90%RH(Non-condensing)Operating humidity ～

-20 95%RH(Non-condensing)Storage humidity ～

- 57X125mmDimensions Φ

-85g(Main BodyWeight )

PHYLINK Cube HD User Manual

PLC-233W

18fps@1920x1080P

3.8 mm

Section 6 - Glossary of Terms

Glossary of Terms

1. Network Camera: A stand-alone device which allows users to view live, full motion video from anywhere on a computer network, even over the Internet, using a standard web browser.

2. JPEG: A standard image format, used widely for photographs, also known as JPG.

3. IEEE 802.11b/g/n:The specifications developed by the IEEE for wireless network technology. It provides 11 Mbps transmission in the 2.4GHz band usage.

4. WEP: Wireless Equivalent Privacy. A security protocol for wireless network defined in

the IEEE 802.11b/g/n standard. WEP aims to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another.

5. Adhoc Mode: A wireless network system in which devices communicate directly with

each other, without the use of a wireless router.

6. Infrastructure Mode: One of the wireless network system in which devices

communicate with each other by first going through the wireless router.

7. IP Address: The unique 32 bit number assigned to each computer connected to the

Internet. IP numbers are used by the TCP/IP protocol to route packets of data to their destinations.

8. TCP/IP: The collection of "protocols" underlying the functioning of the Internet. Each computer connected to the Internet is identified by a unique IP Address.

9. SMTP: Simple Mail Transfer Protocol.

10. FTP: File Transfer Protocol. Network cameras equipped with an embedded operating

system, such as Linux, can use FTP to send images to a website.

11. DHCP: Dynamic Host Configuration Protocol is a set of rules used by communications

devices such as a computer, router or network adapter to allow the device to request and obtain an IP address from a server which has a list of addresses available for assignment.

12 UPnP: Universal Plug and Play is an architecture for pervasive peer-to-peer network

connectivity of intelligent appliances and wireless devices.

13. DDNS: DDNS is a method of keeping a domain name linked to a dynamic IP address

with your Network Camera. You can set up your DDNS service and the device will automatically update your DDNS server each time it alter a different IP address.

PHYLINK Cube HD User Manual

Section 6 - Glossary of Terms

14. Time server: A time server consists of a computer networking device that reads the

actual time from a reference clock and distributes this information to its clients using a computer network.

15. WPA:Wi-Fi Protected Access (WPA and WPA2) is a class of systems to secure wireless

(Wi-Fi)computer networks. WPA implements the majority of the IEEE 802.11i standard, and was intended as an intermediate measure to take the place of WEP while 802.11i was prepared.

PHYLINK Cube HD User Manual

Section 7 - Technical Support

Technical Support

If you have purchased this product from an authorized retailer worldwide, you are eligible for priority email based technical support.

We are always glad to help, however we ask that you read this short manual first. If you still have questions send us an email.

For Technical questions, please email: support@phylink.com

Phylink’s website contains the latest user documentation and software updates for Phylink’s products.Visit www.phylink.com for more details.

Phylink Solutions LLC

One Commerce Center-1201 Orange St. #600 Wilmington Delaware 19899 United States

PHYLINK Cube HD User Manual

For more information or support, visit:

http://www.phylink.com

Or contact

support@phylink.com

Phylink Cube PLC-223W, Cube PLC-233W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
